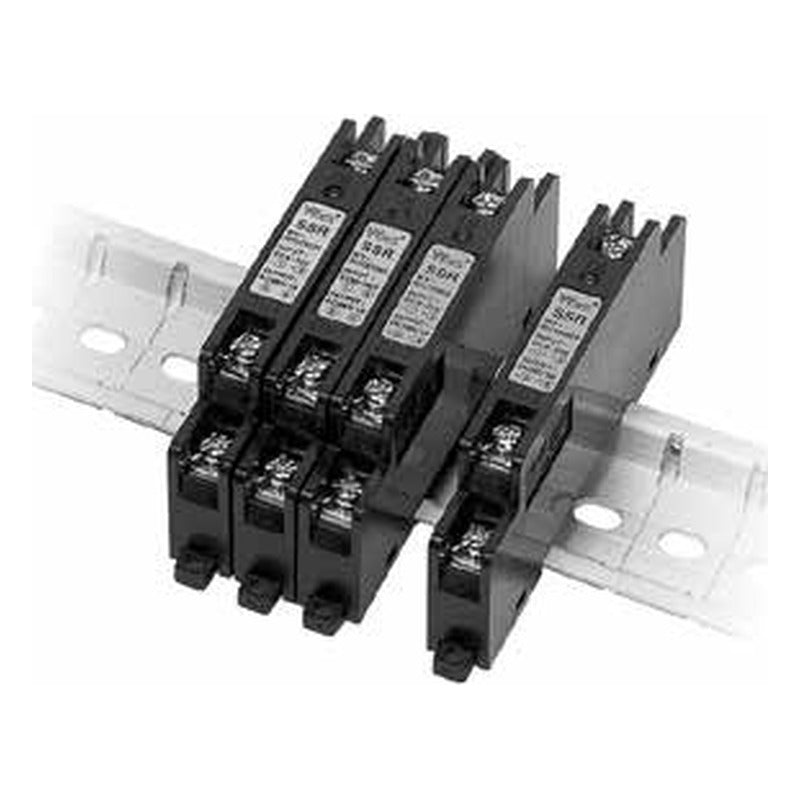

Woonyoung Slim 10mm DIN Rail SSR WYR / WYRH (1A)

Woonyoung Slim 10mm DIN Rail SSR WYR / WYRH (1A)

10 mm wide slim SSR for DIN rail mounting with good workability and an LED lamp to verify the input power connection.

Key features

  • 10 mm width
  • DIN rail mounting
  • LED input indicator
  • DC or AC control input

Specifications

Rated load current 1 A
Weight 20 g
WYR1C01Z4 Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Control input: DC 4-32V | Switching: Zero cross
WYR1C01Z40 Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Control input: AC 90-240V | Switching: Zero cross
WYRH1C01Z4 Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Control input: DC 4-32V | Switching: Zero cross
WYRH1C01Z40 Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Control input: AC 90-240V | Switching: Zero cross
WYRH1C01R4 Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Control input: DC 4-32V | Switching: Random (non zero cross) | Source: selection table p.41 only
WYR1C201V4 Rated voltage: 200 VAC/DC | Voltage range: 5-200 VAC/DC | Rated load current: 1.0 A AC/DC (rms 0.6 A) | Control input: DC 4-32V | Output: AC/DC | Page: 60
Solid State RelaysWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Slim 10mm DIN Rail SSR WYR / WYRH (1A)

Brand Woonyoung·Solid State Relays

Available part numbers (6)

WYR1C01Z4, WYR1C01Z40, WYRH1C01Z4, WYRH1C01Z40, WYRH1C01R4, WYR1C201V4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYR1C01Z4Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Control input: DC 4-32V | Switching: Zero cross
WYR1C01Z40Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Control input: AC 90-240V | Switching: Zero cross
WYRH1C01Z4Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Control input: DC 4-32V | Switching: Zero cross
WYRH1C01Z40Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Control input: AC 90-240V | Switching: Zero cross
WYRH1C01R4Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Control input: DC 4-32V | Switching: Random (non zero cross) | Source: selection table p.41 only
WYR1C201V4Rated voltage: 200 VAC/DC | Voltage range: 5-200 VAC/DC | Rated load current: 1.0 A AC/DC (rms 0.6 A) | Control input: DC 4-32V | Output: AC/DC | Page: 60
