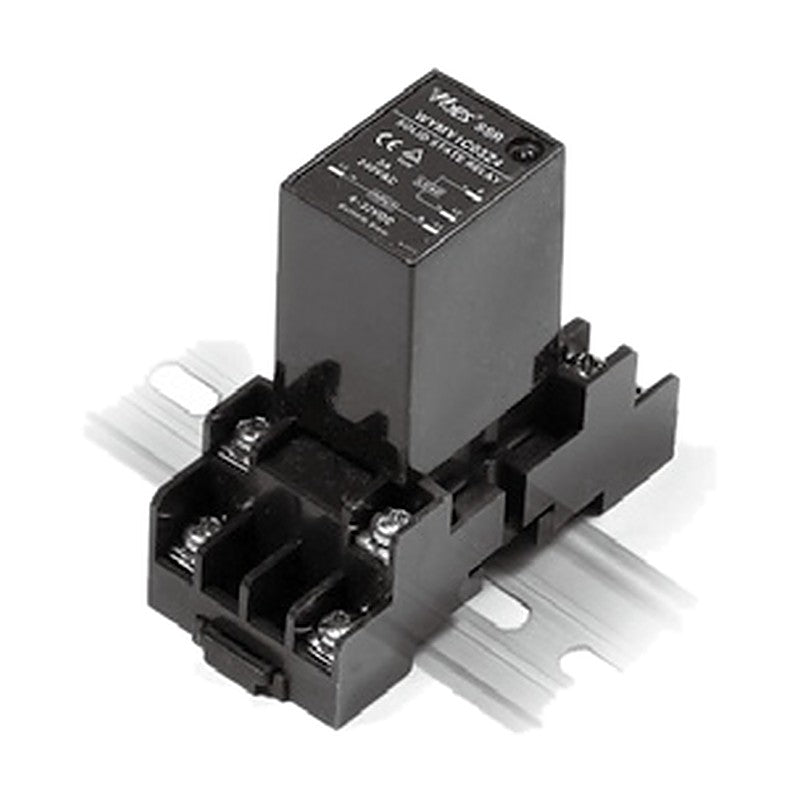

Woonyoung Socket & DIN Rail DC SSR WYMY (MY relay socket, 200VDC)

Small DC SSR operated in ordinary MY-type relay sockets, in single and dual output versions with LED indication, suitable for DIN rail modularization.

Key features

Fits MY-type relay sockets
1 or 2 circuits
LED indicator

Specifications

Input voltage range	4-32 VDC
Output	DC
Dielectric strength	1500 VAC / 1 min
Rated voltage	200 VDC
Voltage range	10-200 VDC
Weight	40 g

WYMY1C203D4		Circuits: 1 \| Rated load current: 3 A \| Leakage current: 0.01 A
WYMY2C201D4		Circuits: 2 \| Rated load current: 1 A \| Leakage current: 0.05 A

Solid State RelaysWoonyoung

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Socket & DIN Rail DC SSR WYMY (MY relay socket, 200VDC)

Brand Woonyoung·Solid State Relays

Available part numbers (2)

WYMY1C203D4, WYMY2C201D4
