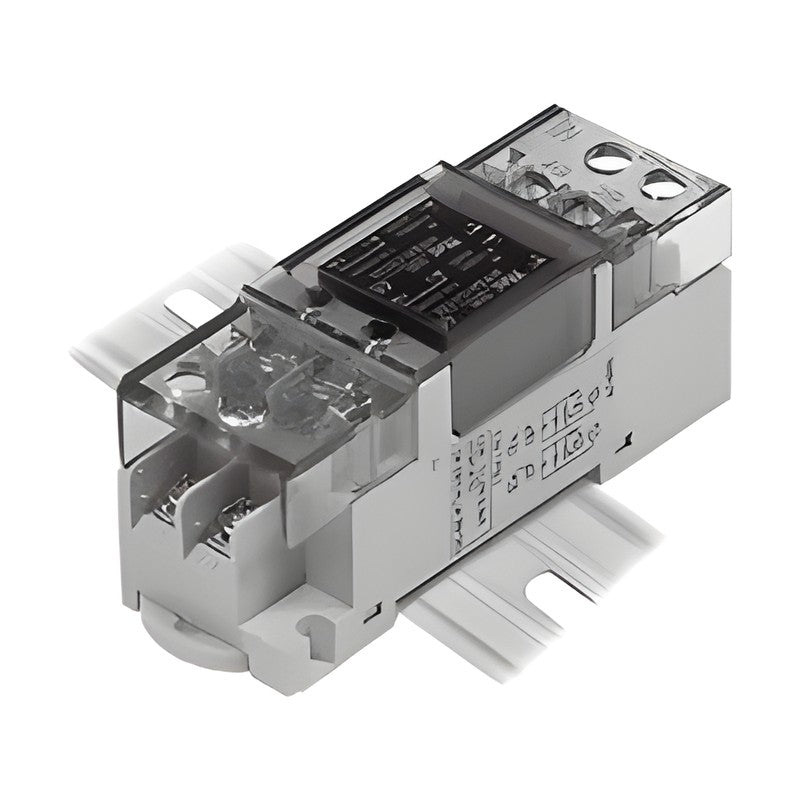

Woonyoung Sub-miniature SSR WYGA (AC 220V, 1.2A, 1/2/4 circuit)

Woonyoung Sub-miniature SSR WYGA (AC 220V, 1.2A, 1/2/4 circuit)

Sub-miniature socket-type SSR in 1-, 2- and 4-circuit versions that can be mounted directly on PCB or attached to DIN rail.

Key features

  • 1a / 2a / 4a outputs
  • PCB or DIN rail socket mounting
  • Zero cross switching
  • Input 4-32 VDC

Specifications

Rated voltage 220 VAC
Voltage range 90-240 VAC
Input voltage range 4-32 VDC
Switching Zero cross
WYGA1C01Z4 Output contact: 1a | Rated load current: 1.2 A (catalog list: 1 A) | Peak surge current: 8 A | Minimum operating voltage: 2.1 VDC | Weight: 60 g | Page: 54
WYGA2C01Z4 Output contact: 2a | Rated load current: 1.2 A x 2 (catalog list: 1.5 A x 2) | Peak surge current: 8 A | Minimum operating voltage: 2.0 VDC | Weight: 60 g | Page: 54
WYGA4C01Z4 Output contact: 4a | Rated load current: 1.2 A x 4 (catalog list: 1.5 A x 4) | Peak surge current: 8 A | Minimum operating voltage: 2.0 VDC | Weight: 60 g | Page: 55
Solid State RelaysWoonyoung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Sub-miniature SSR WYGA (AC 220V, 1.2A, 1/2/4 circuit)

Brand Woonyoung·Solid State Relays

Available part numbers (3)

WYGA1C01Z4, WYGA2C01Z4, WYGA4C01Z4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYGA1C01Z4Output contact: 1a | Rated load current: 1.2 A (catalog list: 1 A) | Peak surge current: 8 A | Minimum operating voltage: 2.1 VDC | Weight: 60 g | Page: 54
WYGA2C01Z4Output contact: 2a | Rated load current: 1.2 A x 2 (catalog list: 1.5 A x 2) | Peak surge current: 8 A | Minimum operating voltage: 2.0 VDC | Weight: 60 g | Page: 54
WYGA4C01Z4Output contact: 4a | Rated load current: 1.2 A x 4 (catalog list: 1.5 A x 4) | Peak surge current: 8 A | Minimum operating voltage: 2.0 VDC | Weight: 60 g | Page: 55
