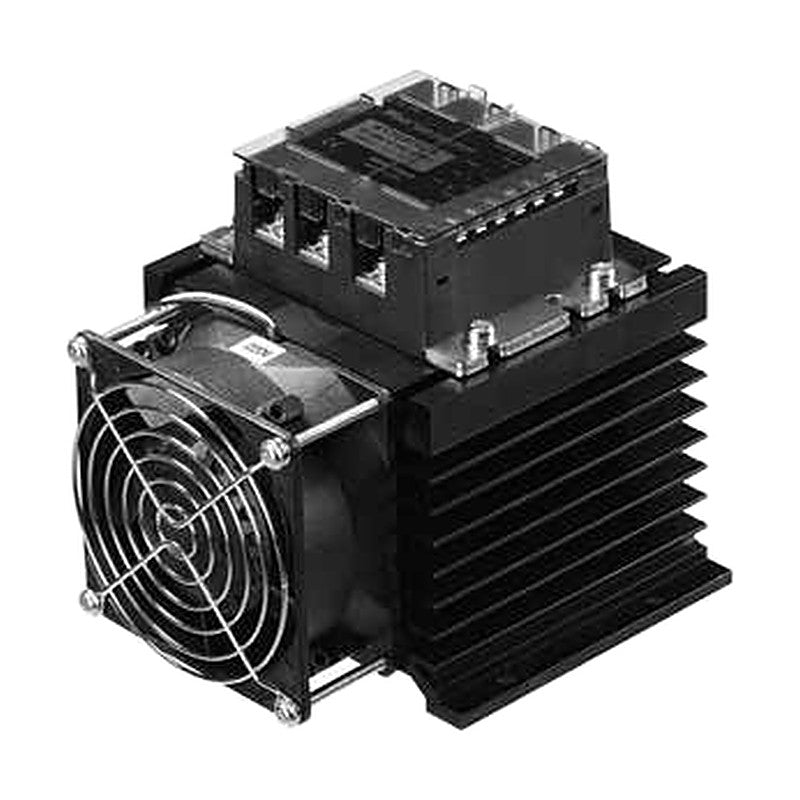

Woonyoung Temperature Protection SSR WYT (2/3 pole, 10-80A)

Woonyoung Temperature Protection SSR WYT (2/3 pole, 10-80A)

2- or 3-pole breaking SSR with built-in circuit giving a 1st alarm at 60C and a 2nd alarm with breaking at 80C against overheating, mountable on DIN rail or panel.

Key features

  • Overheat alarm at 60C, alarm and breaking at 80C
  • 2-pole or 3-pole breaking
  • S-mark and CE certified
  • DIN rail or panel mounting

Specifications

Input voltage range 12-24 VDC
Aux power 24 VDC
Switching Zero cross
Response time 10 ms
WYTG2C10Z4 Breaking: 2-pole | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C20Z4 Breaking: 2-pole | Rated load current: 20 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C30Z4 Breaking: 2-pole | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C40Z4 Breaking: 2-pole | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C50Z4 Breaking: 2-pole | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C60Z4 Breaking: 2-pole | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C80Z4 Breaking: 2-pole | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C10Z4 Breaking: 2-pole | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C20Z4 Breaking: 2-pole | Rated load current: 20 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C30Z4 Breaking: 2-pole | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C40Z4 Breaking: 2-pole | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C50Z4 Breaking: 2-pole | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C60Z4 Breaking: 2-pole | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C80Z4 Breaking: 2-pole | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYT3G3C10Z4 Breaking: 3-pole | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C20Z4 Breaking: 3-pole | Rated load current: 20 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C30Z4 Breaking: 3-pole | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C40Z4 Breaking: 3-pole | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C50Z4 Breaking: 3-pole | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C60Z4 Breaking: 3-pole | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C80Z4 Breaking: 3-pole | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C10Z4 Breaking: 3-pole | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C20Z4 Breaking: 3-pole | Rated load current: 20 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C30Z4 Breaking: 3-pole | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C40Z4 Breaking: 3-pole | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C50Z4 Breaking: 3-pole | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C60Z4 Breaking: 3-pole | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C80Z4 Breaking: 3-pole | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
Solid State RelaysWoonyoung
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Temperature Protection SSR WYT (2/3 pole, 10-80A)

Brand Woonyoung·Solid State Relays

Available part numbers (28)

WYTG2C10Z4, WYTG2C20Z4, WYTG2C30Z4, WYTG2C40Z4, WYTG2C50Z4, WYTG2C60Z4, WYTG2C80Z4, WYTH2C10Z4, WYTH2C20Z4, WYTH2C30Z4 + 18 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYTG2C10Z4Breaking: 2-pole | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C20Z4Breaking: 2-pole | Rated load current: 20 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C30Z4Breaking: 2-pole | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C40Z4Breaking: 2-pole | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C50Z4Breaking: 2-pole | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C60Z4Breaking: 2-pole | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTG2C80Z4Breaking: 2-pole | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C10Z4Breaking: 2-pole | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C20Z4Breaking: 2-pole | Rated load current: 20 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C30Z4Breaking: 2-pole | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C40Z4Breaking: 2-pole | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C50Z4Breaking: 2-pole | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C60Z4Breaking: 2-pole | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYTH2C80Z4Breaking: 2-pole | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.3 kg
WYT3G3C10Z4Breaking: 3-pole | Rated load current: 10 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C20Z4Breaking: 3-pole | Rated load current: 20 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C30Z4Breaking: 3-pole | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C40Z4Breaking: 3-pole | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C50Z4Breaking: 3-pole | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C60Z4Breaking: 3-pole | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3G3C80Z4Breaking: 3-pole | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C10Z4Breaking: 3-pole | Rated load current: 10 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 160 A | Contact voltage drop: 1.7 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C20Z4Breaking: 3-pole | Rated load current: 20 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 250 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C30Z4Breaking: 3-pole | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C40Z4Breaking: 3-pole | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 420 A | Contact voltage drop: 1.8 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C50Z4Breaking: 3-pole | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C60Z4Breaking: 3-pole | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
WYT3H3C80Z4Breaking: 3-pole | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak surge current: 480 A | Contact voltage drop: 2.0 V | Weight (without heat sink/fan): 0.32 kg
