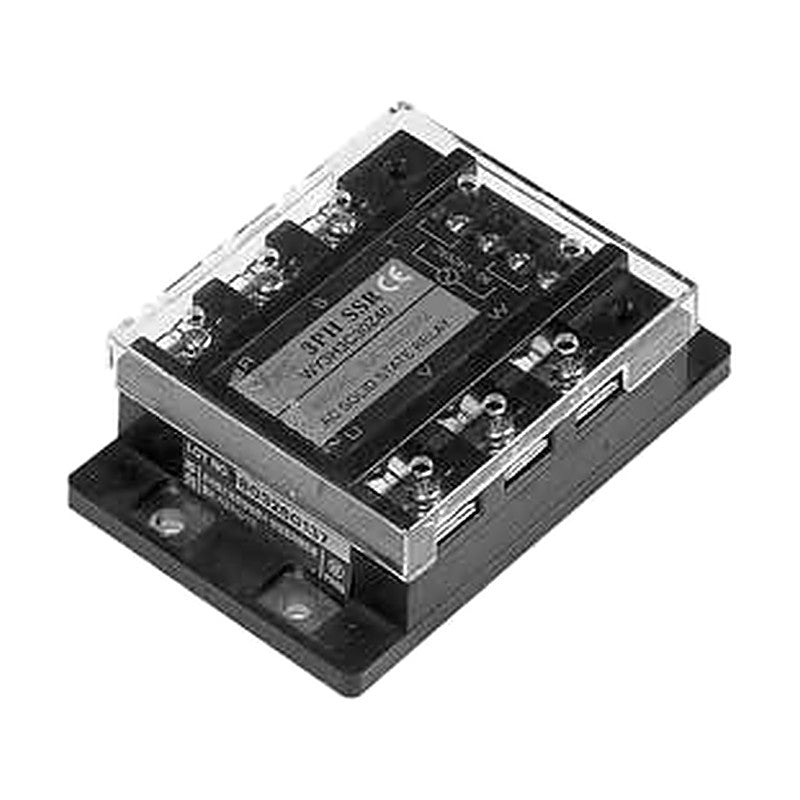

Woonyoung Three Phase Motor Forward/Reverse SSR Unit WY3G2PC / WY3H2PC (15-40A)

Woonyoung Three Phase Motor Forward/Reverse SSR Unit WY3G2PC / WY3H2PC (15-40A)

Three-phase SSR unit for forward and reverse rotation of motor loads, available in 15, 25 and 40A.

Key features

  • Motor forward / reverse switching
  • 15 / 25 / 40 A
  • DC (R4) or AC (R40) control input

Specifications

Phase 3
Weight 0.3 kg
Response time 8.3+/-1 ms
WY3G2PC15R4 Phase: 3 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 10 mA | Control input: DC 4-32V
WY3G2PC15R40 Phase: 3 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 10 mA | Control input: AC 90-240V
WY3G2PC25R4 Phase: 3 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 10 mA | Control input: DC 4-32V
WY3G2PC25R40 Phase: 3 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 10 mA | Control input: AC 90-240V
WY3G2PC40R4 Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 10 mA | Control input: DC 4-32V
WY3G2PC40R40 Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 10 mA | Control input: AC 90-240V
WY3H2PC15R4 Phase: 3 | Rated load current: 15 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 30 mA | Control input: DC 4-32V
WY3H2PC15R40 Phase: 3 | Rated load current: 15 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 30 mA | Control input: AC 90-240V
WY3H2PC25R4 Phase: 3 | Rated load current: 25 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 30 mA | Control input: DC 4-32V
WY3H2PC25R40 Phase: 3 | Rated load current: 25 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 30 mA | Control input: AC 90-240V
WY3H2PC40R4 Phase: 3 | Rated load current: 40 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 30 mA | Control input: DC 4-32V
WY3H2PC40R40 Phase: 3 | Rated load current: 40 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 30 mA | Control input: AC 90-240V
Solid State RelaysWoonyoung
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Three Phase Motor Forward/Reverse SSR Unit WY3G2PC / WY3H2PC (15-40A)

Brand Woonyoung·Solid State Relays

Available part numbers (12)

WY3G2PC15R4, WY3G2PC15R40, WY3G2PC25R4, WY3G2PC25R40, WY3G2PC40R4, WY3G2PC40R40, WY3H2PC15R4, WY3H2PC15R40, WY3H2PC25R4, WY3H2PC25R40 + 2 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY3G2PC15R4Phase: 3 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 10 mA | Control input: DC 4-32V
WY3G2PC15R40Phase: 3 | Rated load current: 15 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 10 mA | Control input: AC 90-240V
WY3G2PC25R4Phase: 3 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 10 mA | Control input: DC 4-32V
WY3G2PC25R40Phase: 3 | Rated load current: 25 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 10 mA | Control input: AC 90-240V
WY3G2PC40R4Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 10 mA | Control input: DC 4-32V
WY3G2PC40R40Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 10 mA | Control input: AC 90-240V
WY3H2PC15R4Phase: 3 | Rated load current: 15 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 30 mA | Control input: DC 4-32V
WY3H2PC15R40Phase: 3 | Rated load current: 15 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 125 A | Contact voltage drop: 1.5 V | Leakage current: 30 mA | Control input: AC 90-240V
WY3H2PC25R4Phase: 3 | Rated load current: 25 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 30 mA | Control input: DC 4-32V
WY3H2PC25R40Phase: 3 | Rated load current: 25 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 260 A | Contact voltage drop: 1.7 V | Leakage current: 30 mA | Control input: AC 90-240V
WY3H2PC40R4Phase: 3 | Rated load current: 40 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 30 mA | Control input: DC 4-32V
WY3H2PC40R40Phase: 3 | Rated load current: 40 A | Rated voltage: 380/440 VAC | Voltage range: 90-480 VAC | Peak surge current: 300 A | Contact voltage drop: 1.8 V | Leakage current: 30 mA | Control input: AC 90-240V
