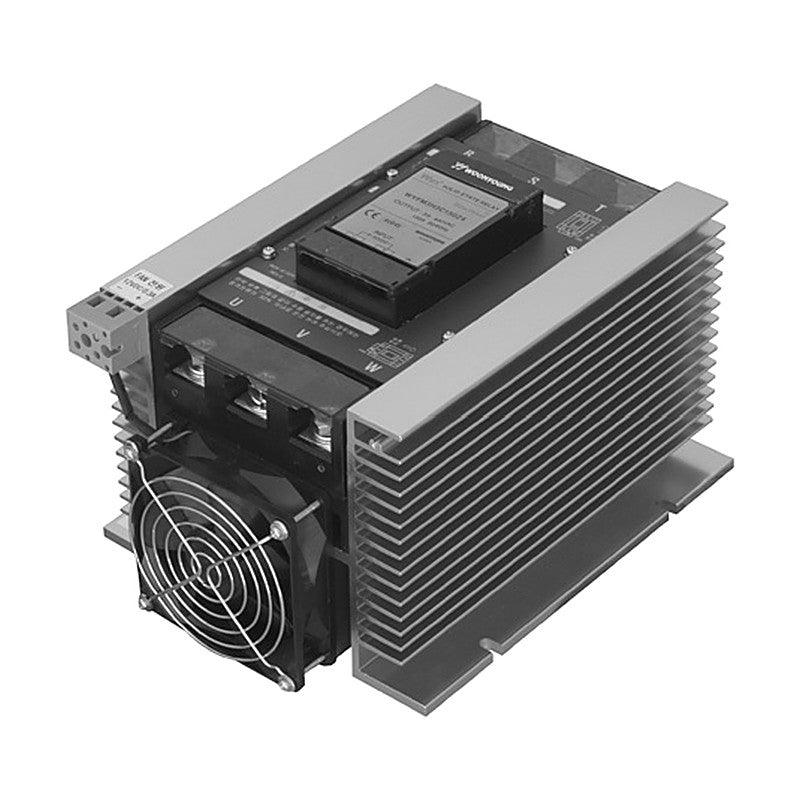

Woonyoung Three Phase SSR with Heat Sink and Fan WYFM3G3 / WYFM3H3 (60-150A)

Woonyoung Three Phase SSR with Heat Sink and Fan WYFM3G3 / WYFM3H3 (60-150A)

Large-capacity integral three-phase SSR with fan and heat sink, rated 60-150A, designed for convenient use without an additional heat sink.

Key features

  • 60 / 80 / 100 / 150 A
  • Integrated heat sink and fan
  • Zero cross or random switching
  • DC or AC control input

Specifications

Phase 3
Weight 5.6 kg
WYFM3G3C60Z4 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C60R4 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C60Z40 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C60R40 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3G3C80Z4 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C80R4 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C80Z40 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C80R40 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3G3C100Z4 Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C100R4 Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C100Z40 Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C100R40 Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3G3C150Z4 Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C150R4 Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C150Z40 Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C150R40 Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C60Z4 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C60R4 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C60Z40 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C60R40 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C80Z4 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C80R4 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C80Z40 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C80R40 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C100Z4 Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C100R4 Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C100Z40 Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C100R40 Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C150Z4 Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C150R4 Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C150Z40 Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C150R40 Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
Solid State RelaysWoonyoung
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Three Phase SSR with Heat Sink and Fan WYFM3G3 / WYFM3H3 (60-150A)

Brand Woonyoung·Solid State Relays

Available part numbers (32)

WYFM3G3C60Z4, WYFM3G3C60R4, WYFM3G3C60Z40, WYFM3G3C60R40, WYFM3G3C80Z4, WYFM3G3C80R4, WYFM3G3C80Z40, WYFM3G3C80R40, WYFM3G3C100Z4, WYFM3G3C100R4 + 22 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFM3G3C60Z4Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C60R4Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C60Z40Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C60R40Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3G3C80Z4Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C80R4Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C80Z40Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C80R40Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3G3C100Z4Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C100R4Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C100Z40Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C100R40Phase: 3 | Rated load current: 100 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3G3C150Z4Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3G3C150R4Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3G3C150Z40Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3G3C150R40Phase: 3 | Rated load current: 150 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C60Z4Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C60R4Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C60Z40Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C60R40Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C80Z4Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C80R4Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C80Z40Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C80R40Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C100Z4Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C100R4Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C100Z40Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C100R40Phase: 3 | Rated load current: 100 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 1950 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFM3H3C150Z4Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFM3H3C150R4Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFM3H3C150Z40Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFM3H3C150R40Phase: 3 | Rated load current: 150 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1600 V | Peak surge current: 2550 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
