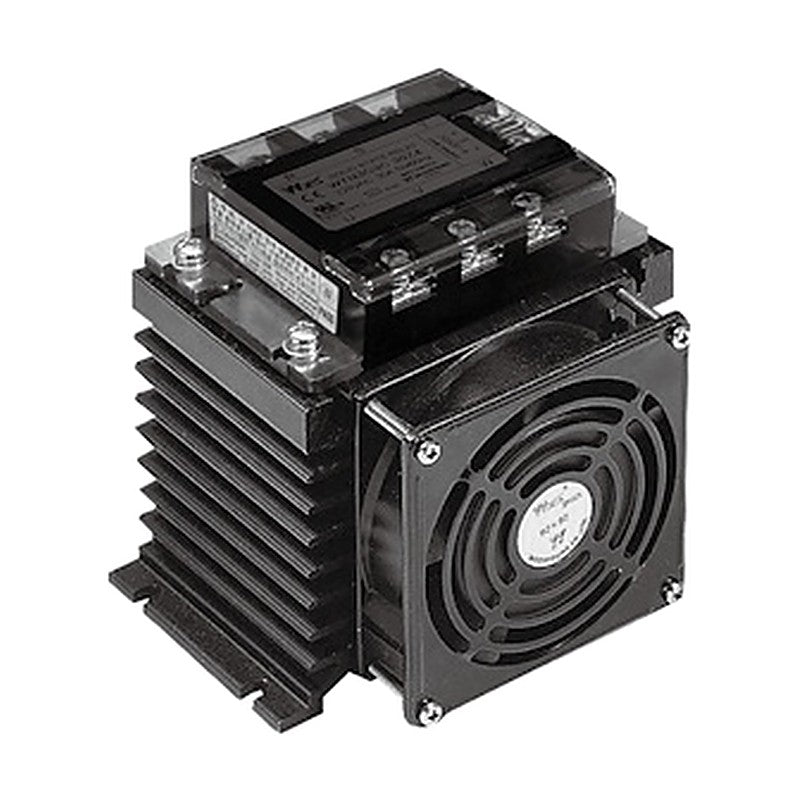

• Woonyoung Three Phase SSR with Heat Sink and Fan WYFN3G3 / WYFN3H3 (30-80A)
1 1

Woonyoung Three Phase SSR with Heat Sink and Fan WYFN3G3 / WYFN3H3 (30-80A)

Woonyoung Three Phase SSR with Heat Sink and Fan WYFN3G3 / WYFN3H3 (30-80A)

Three-phase integral SSR with self heat sink and fan for capacities of 30-80A, designed for convenient use.

Key features

  • 30-80 A
  • Integrated heat sink with fan
  • Zero cross or random switching
  • DC or AC control input

Specifications

Phase 3
Weight 2.8 kg
WYFN3G3C30Z4 Phase: 3 | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3G3C30R4 Phase: 3 | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3G3C30Z40 Phase: 3 | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3G3C30R40 Phase: 3 | Rated load current: 30 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3G3C40Z4 Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3G3C40R4 Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3G3C40Z40 Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3G3C40R40 Phase: 3 | Rated load current: 40 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3G3C50Z4 Phase: 3 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3G3C50R4 Phase: 3 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3G3C50Z40 Phase: 3 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3G3C50R40 Phase: 3 | Rated load current: 50 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3G3C60Z4 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3G3C60R4 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3G3C60Z40 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3G3C60R40 Phase: 3 | Rated load current: 60 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3G3C80Z4 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3G3C80R4 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3G3C80Z40 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3G3C80R40 Phase: 3 | Rated load current: 80 A | Rated voltage: 220 VAC | Voltage range: 90-240 VAC | Peak voltage: 600 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3H3C30Z4 Phase: 3 | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3H3C30R4 Phase: 3 | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3H3C30Z40 Phase: 3 | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3H3C30R40 Phase: 3 | Rated load current: 30 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 250 A | Contact voltage drop: 2.25 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3H3C40Z4 Phase: 3 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3H3C40R4 Phase: 3 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3H3C40Z40 Phase: 3 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3H3C40R40 Phase: 3 | Rated load current: 40 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 300 A | Contact voltage drop: 2.15 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3H3C50Z4 Phase: 3 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3H3C50R4 Phase: 3 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3H3C50Z40 Phase: 3 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3H3C50R40 Phase: 3 | Rated load current: 50 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 350 A | Contact voltage drop: 2.0 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3H3C60Z4 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3H3C60R4 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3H3C60Z40 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3H3C60R40 Phase: 3 | Rated load current: 60 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1300 A | Contact voltage drop: 1.95 V | Control input: AC 90-240V | Switching: Random (non zero cross)
WYFN3H3C80Z4 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Zero cross
WYFN3H3C80R4 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: DC 4-32V | Switching: Random (non zero cross)
WYFN3H3C80Z40 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Zero cross
WYFN3H3C80R40 Phase: 3 | Rated load current: 80 A | Rated voltage: 440 VAC | Voltage range: 90-480 VAC | Peak voltage: 1200 V | Peak surge current: 1750 A | Contact voltage drop: 1.8 V | Control input: AC 90-240V | Switching: Random (non zero cross)
Solid State RelaysWoonyoung
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung Three Phase SSR with Heat Sink and Fan WYFN3G3 / WYFN3H3 (30-80A)

Brand Woonyoung·Solid State Relays

Available part numbers (40)

WYFN3G3C30Z4, WYFN3G3C30R4, WYFN3G3C30Z40, WYFN3G3C30R40, WYFN3G3C40Z4, WYFN3G3C40R4, WYFN3G3C40Z40, WYFN3G3C40R40, WYFN3G3C50Z4, WYFN3G3C50R4 + 30 more — see full table ↓
