• Woonyoung Three-Phase Synchro Control Transformer WY3P-325/326/327
1 1

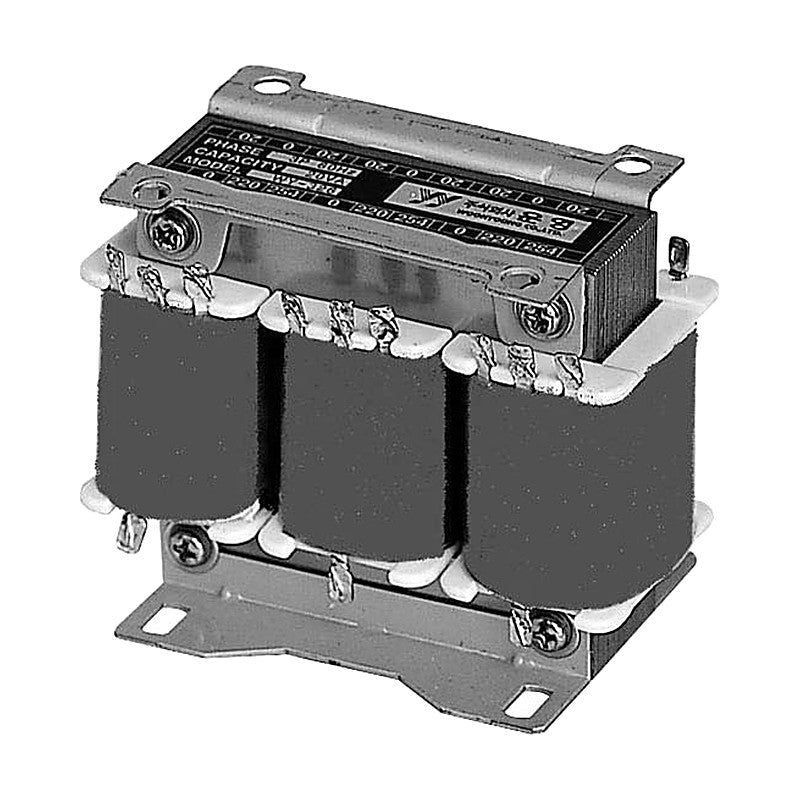

WOONYOUNG Three-Phase Synchro Control Transformer WY3P-325/326/327

WOONYOUNG Three-Phase Synchro Control Transformer WY3P-325/326/327

Three-phase isolation synchronous transformer built as one three-phase unit for DC motor control, with soldering terminals.

Key features

  • One-piece three-phase construction for DC motor control
  • Soldering terminal (3PWO) type
  • Insulation class B

Specifications

Phase Three phase
Type 3PWO
Secondary (V) 20-0-20
Capacity 20 VA
Dimensions W x H x D (mm) 98 x 80 x 80
Weight (kg) 1.80
Insulation class B
WY3P-325 Primary (V): 220 | Secondary (V): 20-0-20 | Capacity: 20 VA | Dimensions W x H x D (mm): 98 x 80 x 80 | Weight (kg): 1.80
WY3P-326 Primary (V): 380-440 | Secondary (V): 20-0-20 | Capacity: 20 VA | Dimensions W x H x D (mm): 98 x 80 x 80 | Weight (kg): 1.80
WY3P-327 Primary (V): 220-440 | Secondary (V): 20-0-20 | Capacity: 20 VA | Dimensions W x H x D (mm): 98 x 80 x 80 | Weight (kg): 1.80
Industrial TransformersWOONYOUNG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG Three-Phase Synchro Control Transformer WY3P-325/326/327

Brand WOONYOUNG·Industrial Transformers

Available part numbers (3)

WY3P-325, WY3P-326, WY3P-327

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY3P-325Primary (V): 220 | Secondary (V): 20-0-20 | Capacity: 20 VA | Dimensions W x H x D (mm): 98 x 80 x 80 | Weight (kg): 1.80
WY3P-326Primary (V): 380-440 | Secondary (V): 20-0-20 | Capacity: 20 VA | Dimensions W x H x D (mm): 98 x 80 x 80 | Weight (kg): 1.80
WY3P-327Primary (V): 220-440 | Secondary (V): 20-0-20 | Capacity: 20 VA | Dimensions W x H x D (mm): 98 x 80 x 80 | Weight (kg): 1.80
