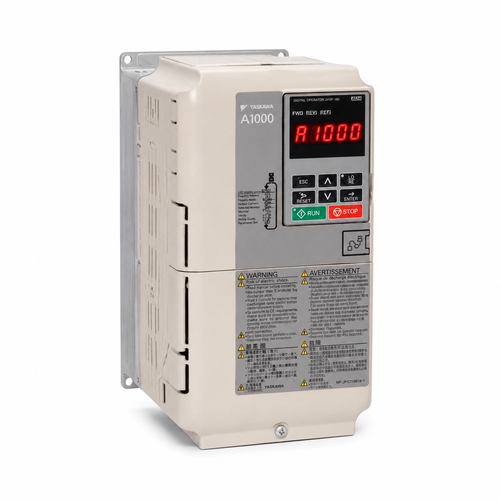

YASKAWA A1000 CIMR-AT2A0008 200V Class AC Drive / Inverter

YASKAWA A1000 CIMR-AT2A0008 200V Class AC Drive / Inverter

Yaskawa A1000 200V class AC drive/inverter, model CIMR-AT2A0008.

Key features

  • Maximum applicable motor: ND 1.5kW / HD 1.1kW
  • Rated output current: ND 8A / HD 6.9A
  • Designed for variable-speed motor control with selectable Normal Duty (ND) and Heavy Duty (HD) ratings

Specifications

Series A1000
Model CIMR-AT2A0008
Voltage Class 200V
Rated Supply 3-phase 200–240 V AC, 50/60 Hz
DC Supply 270–340 V DC
Maximum Applicable Motor ND 1.5kW / HD 1.1kW
Rated Input Current ND 8.8A / HD 7A
Rated Output Capacity ND 3kVA / HD 2.6kVA
Rated Output Current ND 8A / HD 6.9A
Power Supply Capacity ND 4kVA / HD 3.2kVA
Overload Capacity ND 120% for 60s / HD 150% for 60s
Maximum Output Frequency 400 Hz
CIMR-AT2A0008 A1000 200V class AC drive/inverter; ND 1.5kW / HD 1.1kW | Series: A1000 | Model: CIMR-AT2A0008 | Voltage Class: 200V | Rated Supply: 3-phase 200–240 V AC, 50/60 Hz | DC Supply: 270–340 V DC | Maximum Applicable Motor: ND 1.5kW / HD 1.1kW | Rated Input Current: ND 8.8A / HD 7A | Rated Output Capacity: ND 3kVA / HD 2.6kVA | Rated Output Current: ND 8A / HD 6.9A | Power Supply Capacity: ND 4kVA / HD 3.2kVA | Overload Capacity: ND 120% for 60s / HD 150% for 60s | Maximum Output Frequency: 400 Hz | Frequency Control Range: 0.01–400Hz | Control: V/f, vector and PM motor control modes | Communication: MEMOBUS RS-485/422 up to 115.2kbps | Safety Standards: UL508C, EN61800-3, EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC/EN61508 SIL2
Variable Frequency DrivesYASKAWA
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA A1000 CIMR-AT2A0008 200V Class AC Drive / Inverter

Brand YASKAWA·Variable Frequency Drives

Available part numbers (1)

CIMR-AT2A0008

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CIMR-AT2A0008A1000 200V class AC drive/inverter; ND 1.5kW / HD 1.1kW | Series: A1000 | Model: CIMR-AT2A0008 | Voltage Class: 200V | Rated Supply: 3-phase 200–240 V AC, 50/60 Hz | DC Supply: 270–340 V DC | Maximum Applicable Motor: ND 1.5kW / HD 1.1kW | Rated Input Current: ND 8.8A / HD 7A | Rated Output Capacity: ND 3kVA / HD 2.6kVA | Rated Output Current: ND 8A / HD 6.9A | Power Supply Capacity: ND 4kVA / HD 3.2kVA | Overload Capacity: ND 120% for 60s / HD 150% for 60s | Maximum Output Frequency: 400 Hz | Frequency Control Range: 0.01–400Hz | Control: V/f, vector and PM motor control modes | Communication: MEMOBUS RS-485/422 up to 115.2kbps | Safety Standards: UL508C, EN61800-3, EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC/EN61508 SIL2
