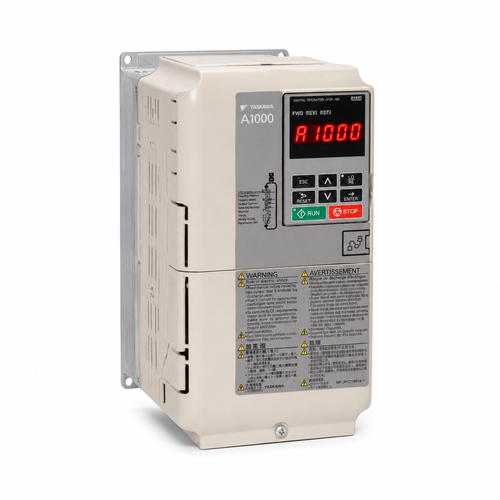

YASKAWA A1000 CIMR-AT2A0138 200V Class AC Drive / Inverter

YASKAWA A1000 CIMR-AT2A0138 200V Class AC Drive / Inverter

Yaskawa A1000 200V class AC drive/inverter, model CIMR-AT2A0138.

Key features

  • Maximum applicable motor: ND 37kW / HD 30kW
  • Rated output current: ND 138A / HD 115A
  • Designed for variable-speed motor control with selectable Normal Duty (ND) and Heavy Duty (HD) ratings

Specifications

Series A1000
Model CIMR-AT2A0138
Voltage Class 200V
Rated Supply 3-phase 200–240 V AC, 50/60 Hz
DC Supply 270–340 V DC
Maximum Applicable Motor ND 37kW / HD 30kW
Rated Input Current ND 136A / HD 111A
Rated Output Capacity ND 53kVA / HD 44kVA
Rated Output Current ND 138A / HD 115A
Power Supply Capacity ND 62kVA / HD 51kVA
Overload Capacity ND 120% for 60s / HD 150% for 60s
Maximum Output Frequency 400 Hz
CIMR-AT2A0138 A1000 200V class AC drive/inverter; ND 37kW / HD 30kW | Series: A1000 | Model: CIMR-AT2A0138 | Voltage Class: 200V | Rated Supply: 3-phase 200–240 V AC, 50/60 Hz | DC Supply: 270–340 V DC | Maximum Applicable Motor: ND 37kW / HD 30kW | Rated Input Current: ND 136A / HD 111A | Rated Output Capacity: ND 53kVA / HD 44kVA | Rated Output Current: ND 138A / HD 115A | Power Supply Capacity: ND 62kVA / HD 51kVA | Overload Capacity: ND 120% for 60s / HD 150% for 60s | Maximum Output Frequency: 400 Hz | Frequency Control Range: 0.01–400Hz | Control: V/f, vector and PM motor control modes | Communication: MEMOBUS RS-485/422 up to 115.2kbps | Safety Standards: UL508C, EN61800-3, EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC/EN61508 SIL2
Variable Frequency DrivesYASKAWA
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA A1000 CIMR-AT2A0138 200V Class AC Drive / Inverter

Brand YASKAWA·Variable Frequency Drives

Available part numbers (1)

CIMR-AT2A0138

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CIMR-AT2A0138A1000 200V class AC drive/inverter; ND 37kW / HD 30kW | Series: A1000 | Model: CIMR-AT2A0138 | Voltage Class: 200V | Rated Supply: 3-phase 200–240 V AC, 50/60 Hz | DC Supply: 270–340 V DC | Maximum Applicable Motor: ND 37kW / HD 30kW | Rated Input Current: ND 136A / HD 111A | Rated Output Capacity: ND 53kVA / HD 44kVA | Rated Output Current: ND 138A / HD 115A | Power Supply Capacity: ND 62kVA / HD 51kVA | Overload Capacity: ND 120% for 60s / HD 150% for 60s | Maximum Output Frequency: 400 Hz | Frequency Control Range: 0.01–400Hz | Control: V/f, vector and PM motor control modes | Communication: MEMOBUS RS-485/422 up to 115.2kbps | Safety Standards: UL508C, EN61800-3, EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC/EN61508 SIL2
