Rotary Encoder
Autonics

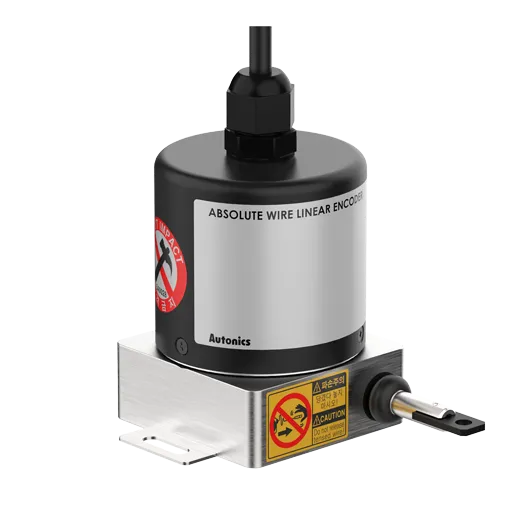

[AUTONICS] EWLS50 Series 50 mm Wire-Type Linear Scale Absolute Encoders
Family ID: AUTONICS-EWLS50-SERIES
Ø 50 mm wire-type linear scale absolute encoders. Converts linear travel into absolute position via internal wire/spring mechanism. For long-stroke linear position measurement.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-EWLS50-1500-G | — | AUTONICS | Rotary encoder | EWLS50 Series | Wire-type linear scale | 1.5 m stroke | Gray code parallel | 12-24 VDC | Cable type | IP65 | wire-type 1.5 m | ||
| AUTONICS-EWLS50-3000-G | — | AUTONICS | Rotary encoder | EWLS50 Series | Wire-type linear scale | 3 m stroke | Gray code parallel | 12-24 VDC | Cable type | IP65 | wire-type 3 m | ||
| AUTONICS-EWLS50-5000-G | — | AUTONICS | Rotary encoder | EWLS50 Series | Wire-type linear scale | 5 m stroke | Gray code parallel | 12-24 VDC | Cable type | IP65 | wire-type 5 m | ||
| AUTONICS-EWLS50-1500-S | — | AUTONICS | Rotary encoder | EWLS50 Series | Wire-type linear scale | 1.5 m stroke | SSI serial | 12-24 VDC | Cable type | IP65 | wire-type 1.5 m SSI | ||
| AUTONICS-EWLS50-3000-S | — | AUTONICS | Rotary encoder | EWLS50 Series | Wire-type linear scale | 3 m stroke | SSI serial | 12-24 VDC | Cable type | IP65 | wire-type 3 m SSI | ||
| AUTONICS-EWLS50-5000-S | — | AUTONICS | Rotary encoder | EWLS50 Series | Wire-type linear scale | 5 m stroke | SSI serial | 12-24 VDC | Cable type | IP65 | wire-type 5 m SSI |
