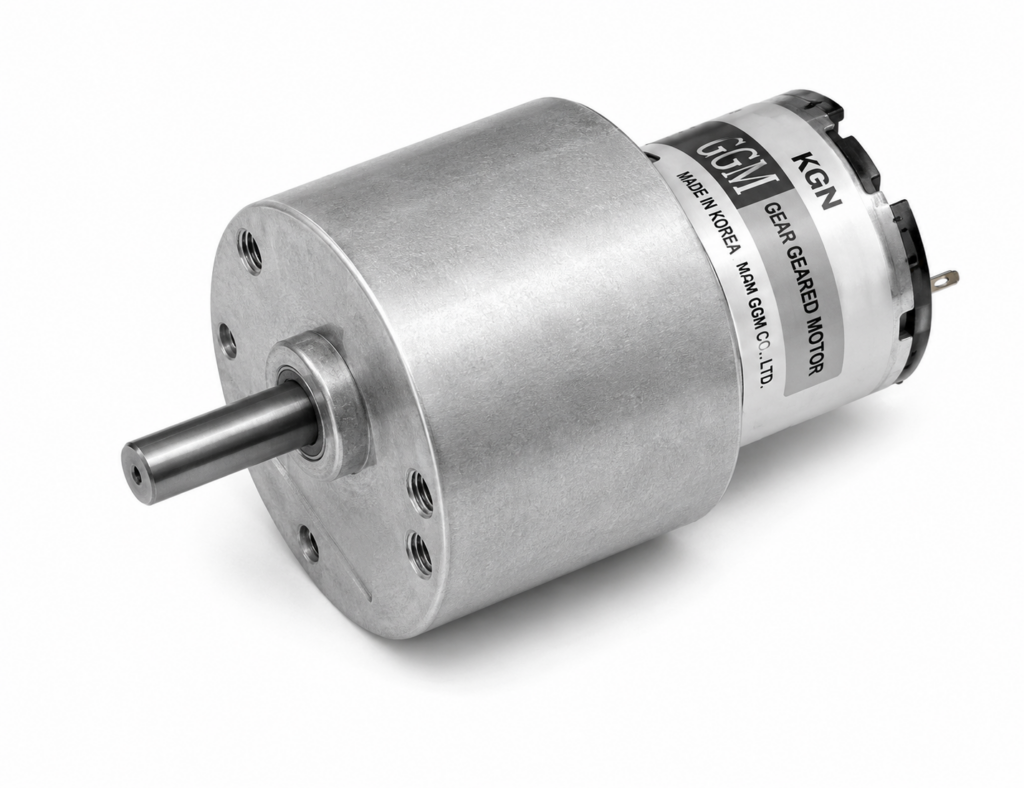

[GGM] — KG5-3429 Geared Motor, KD3429T2 (DC 24V, 35 ratios 1/3–1/3240, ø50 inline)

Family ID: GGM-KG5-3429-T2

GGM KG5-3429 DC geared motor with KD3429T2 brushed motor (DC 24V, no-load 7500 rpm). 35 reduction ratios 1/3–1/3240, ø50 round flange with ø6 coaxial output shaft, output torque up to 10 kgf·cm.

35 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code	Description	Brand	Spec
KG5-0003-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/3	GGM	Gear Ratio: 1/3 \| Output Speed: 2167 rpm \| Output Torque: 0.1 kgf·cm \| Gearhead Length: 34 mm
KG5-0005-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/5	GGM	Gear Ratio: 1/5 \| Output Speed: 1300 rpm \| Output Torque: 0.16 kgf·cm \| Gearhead Length: 34 mm
KG5-0010-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/10	GGM	Gear Ratio: 1/10 \| Output Speed: 650 rpm \| Output Torque: 0.3 kgf·cm \| Gearhead Length: 34 mm
KG5-0015-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/15	GGM	Gear Ratio: 1/15 \| Output Speed: 433 rpm \| Output Torque: 0.44 kgf·cm \| Gearhead Length: 34 mm
KG5-0020-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/20	GGM	Gear Ratio: 1/20 \| Output Speed: 325 rpm \| Output Torque: 0.58 kgf·cm \| Gearhead Length: 34 mm
KG5-0025-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/25	GGM	Gear Ratio: 1/25 \| Output Speed: 260 rpm \| Output Torque: 0.73 kgf·cm \| Gearhead Length: 34 mm
KG5-0030-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/30	GGM	Gear Ratio: 1/30 \| Output Speed: 217 rpm \| Output Torque: 0.87 kgf·cm \| Gearhead Length: 34 mm
KG5-0040-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/40	GGM	Gear Ratio: 1/40 \| Output Speed: 162.5 rpm \| Output Torque: 1.2 kgf·cm \| Gearhead Length: 34 mm
KG5-0050-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/50	GGM	Gear Ratio: 1/50 \| Output Speed: 130 rpm \| Output Torque: 1.3 kgf·cm \| Gearhead Length: 34 mm
KG5-0060-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/60	GGM	Gear Ratio: 1/60 \| Output Speed: 108 rpm \| Output Torque: 1.6 kgf·cm \| Gearhead Length: 34 mm
KG5-0075-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/75	GGM	Gear Ratio: 1/75 \| Output Speed: 87 rpm \| Output Torque: 2 kgf·cm \| Gearhead Length: 34 mm
KG5-0090-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/90	GGM	Gear Ratio: 1/90 \| Output Speed: 72 rpm \| Output Torque: 2.4 kgf·cm \| Gearhead Length: 34 mm
KG5-0100-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/100	GGM	Gear Ratio: 1/100 \| Output Speed: 65 rpm \| Output Torque: 2.6 kgf·cm \| Gearhead Length: 34 mm
KG5-0120-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/120	GGM	Gear Ratio: 1/120 \| Output Speed: 54.2 rpm \| Output Torque: 3.1 kgf·cm \| Gearhead Length: 34 mm
KG5-0150-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/150	GGM	Gear Ratio: 1/150 \| Output Speed: 43.3 rpm \| Output Torque: 3.5 kgf·cm \| Gearhead Length: 46 mm
KG5-0160-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/160	GGM	Gear Ratio: 1/160 \| Output Speed: 40.6 rpm \| Output Torque: 3.8 kgf·cm \| Gearhead Length: 46 mm
KG5-0180-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/180	GGM	Gear Ratio: 1/180 \| Output Speed: 36.1 rpm \| Output Torque: 4.2 kgf·cm \| Gearhead Length: 46 mm
KG5-0200-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/200	GGM	Gear Ratio: 1/200 \| Output Speed: 32.5 rpm \| Output Torque: 4.7 kgf·cm \| Gearhead Length: 46 mm
KG5-0210-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/210	GGM	Gear Ratio: 1/210 \| Output Speed: 31 rpm \| Output Torque: 5 kgf·cm \| Gearhead Length: 46 mm
KG5-0240-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/240	GGM	Gear Ratio: 1/240 \| Output Speed: 27 rpm \| Output Torque: 5.7 kgf·cm \| Gearhead Length: 46 mm
KG5-0270-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/270	GGM	Gear Ratio: 1/270 \| Output Speed: 24 rpm \| Output Torque: 6.4 kgf·cm \| Gearhead Length: 46 mm
KG5-0300-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/300	GGM	Gear Ratio: 1/300 \| Output Speed: 21.7 rpm \| Output Torque: 7.1 kgf·cm \| Gearhead Length: 46 mm
KG5-0360-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/360	GGM	Gear Ratio: 1/360 \| Output Speed: 18 rpm \| Output Torque: 8.5 kgf·cm \| Gearhead Length: 46 mm
KG5-0400-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/400	GGM	Gear Ratio: 1/400 \| Output Speed: 16.3 rpm \| Output Torque: 8.5 kgf·cm \| Gearhead Length: 46 mm
KG5-0500-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/500	GGM	Gear Ratio: 1/500 \| Output Speed: 13 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-0600-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/600	GGM	Gear Ratio: 1/600 \| Output Speed: 10.8 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-0750-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/750	GGM	Gear Ratio: 1/750 \| Output Speed: 8.7 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-0900-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/900	GGM	Gear Ratio: 1/900 \| Output Speed: 7.2 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-1080-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/1080	GGM	Gear Ratio: 1/1080 \| Output Speed: 6 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-1250-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/1250	GGM	Gear Ratio: 1/1250 \| Output Speed: 5.2 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-1500-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/1500	GGM	Gear Ratio: 1/1500 \| Output Speed: 4.3 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-1800-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/1800	GGM	Gear Ratio: 1/1800 \| Output Speed: 3.6 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-2250-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/2250	GGM	Gear Ratio: 1/2250 \| Output Speed: 2.9 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-2700-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/2700	GGM	Gear Ratio: 1/2700 \| Output Speed: 2.4 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
KG5-3240-KD3429T2	KG5-3429 KD3429T2 geared motor, 1/3240	GGM	Gear Ratio: 1/3240 \| Output Speed: 2 rpm \| Output Torque: 10 kgf·cm \| Gearhead Length: 46 mm
