DC
GGM

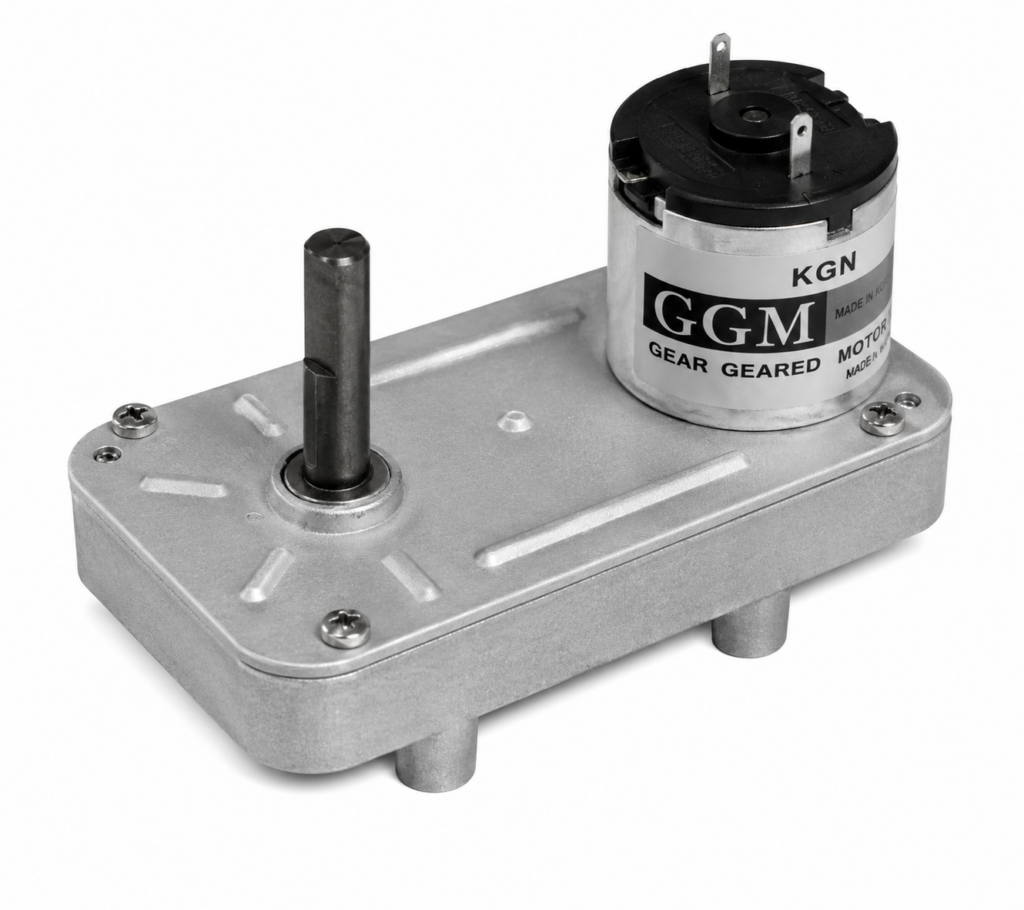

[GGM] — KGN-3429-P2 Worm Geared DC Motor (DC 24V, 9500rpm base, 3 ratios 1/43-1/105, F/R shaft)
Family ID: GGM-KGN3429-P2
GGM KGN-3429-P2 worm geared DC motor, DC 24V (9500 rpm base motor). 3 gear ratios 1/43-1/105, output torque up to 3 kgf·cm, ø8 output shaft, 2-M4 mounting. Output rotation opposite to motor. F-Type and R-Type shaft orientations.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KGN-0043-KD3429P2-F | KGN-3429-P2 F-Type worm geared, 1/43, 186rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/43 | Output Speed: 186 rpm | Output Torque: 1.3 kgf·cm | Shaft Type: F-Type | ||
| KGN-0050-KD3429P2-F | KGN-3429-P2 F-Type worm geared, 1/50, 160rpm, 1.5kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 1.5 kgf·cm | Shaft Type: F-Type | ||
| KGN-0105-KD3429P2-F | KGN-3429-P2 F-Type worm geared, 1/105, 76.2rpm, 3kgf·cm | GGM | Gear Ratio: 1/105 | Output Speed: 76.2 rpm | Output Torque: 3 kgf·cm | Shaft Type: F-Type | ||
| KGN-0043-KD3429P2-R | KGN-3429-P2 R-Type worm geared, 1/43, 186rpm, 1.3kgf·cm | GGM | Gear Ratio: 1/43 | Output Speed: 186 rpm | Output Torque: 1.3 kgf·cm | Shaft Type: R-Type | ||
| KGN-0050-KD3429P2-R | KGN-3429-P2 R-Type worm geared, 1/50, 160rpm, 1.5kgf·cm | GGM | Gear Ratio: 1/50 | Output Speed: 160 rpm | Output Torque: 1.5 kgf·cm | Shaft Type: R-Type | ||
| KGN-0105-KD3429P2-R | KGN-3429-P2 R-Type worm geared, 1/105, 76.2rpm, 3kgf·cm | GGM | Gear Ratio: 1/105 | Output Speed: 76.2 rpm | Output Torque: 3 kgf·cm | Shaft Type: R-Type |
