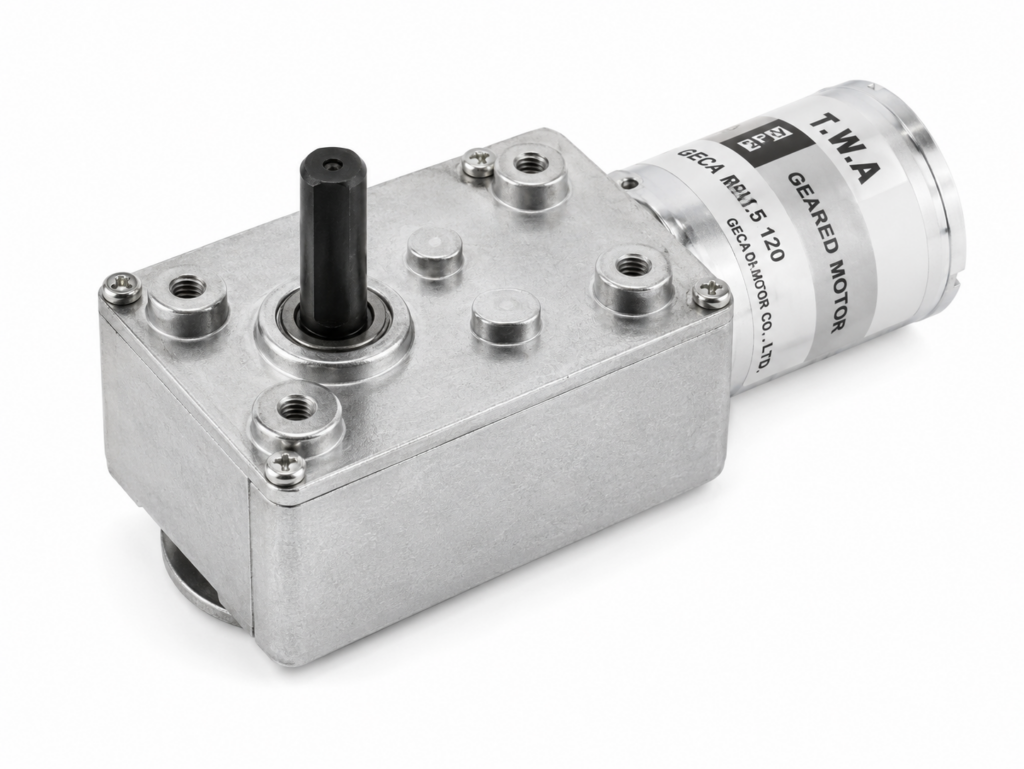

[GGM] — KWA-2531-U2 Worm Geared Motor (DC 24V, 1/76–1/1650)
Family ID: GGM-KWA-2531-U2
GGM KWA worm geared motor, KD2531U2 base, DC 24V. 12 gear ratios 1/76 to 1/1650, output torque 0.4–6 kgf·cm; ø6 output shaft, 6500 rpm no-load motor.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| KWA-0076-KD2531U2 | KWA worm gearhead KD2531U2, 1/76, DC 24V | GGM | Gear Ratio: 1/76 · Output Speed: 61.8 rpm · Output Torque: 0.4 kgf·cm | ||
| KWA-0095-KD2531U2 | KWA worm gearhead KD2531U2, 1/95, DC 24V | GGM | Gear Ratio: 1/95 · Output Speed: 49.4 rpm · Output Torque: 0.5 kgf·cm | ||
| KWA-0123-KD2531U2 | KWA worm gearhead KD2531U2, 1/123, DC 24V | GGM | Gear Ratio: 1/123 · Output Speed: 38.2 rpm · Output Torque: 0.6 kgf·cm | ||
| KWA-0150-KD2531U2 | KWA worm gearhead KD2531U2, 1/150, DC 24V | GGM | Gear Ratio: 1/150 · Output Speed: 31.3 rpm · Output Torque: 0.8 kgf·cm | ||
| KWA-0175-KD2531U2 | KWA worm gearhead KD2531U2, 1/175, DC 24V | GGM | Gear Ratio: 1/175 · Output Speed: 26.8 rpm · Output Torque: 0.9 kgf·cm | ||
| KWA-0200-KD2531U2 | KWA worm gearhead KD2531U2, 1/200, DC 24V | GGM | Gear Ratio: 1/200 · Output Speed: 23.5 rpm · Output Torque: 1 kgf·cm | ||
| KWA-0255-KD2531U2 | KWA worm gearhead KD2531U2, 1/255, DC 24V | GGM | Gear Ratio: 1/255 · Output Speed: 18.4 rpm · Output Torque: 1.3 kgf·cm | ||
| KWA-0290-KD2531U2 | KWA worm gearhead KD2531U2, 1/290, DC 24V | GGM | Gear Ratio: 1/290 · Output Speed: 16.2 rpm · Output Torque: 1.4 kgf·cm | ||
| KWA-0380-KD2531U2 | KWA worm gearhead KD2531U2, 1/380, DC 24V | GGM | Gear Ratio: 1/380 · Output Speed: 12.3 rpm · Output Torque: 1.8 kgf·cm | ||
| KWA-0650-KD2531U2 | KWA worm gearhead KD2531U2, 1/650, DC 24V | GGM | Gear Ratio: 1/650 · Output Speed: 7.2 rpm · Output Torque: 3.1 kgf·cm | ||
| KWA-0940-KD2531U2 | KWA worm gearhead KD2531U2, 1/940, DC 24V | GGM | Gear Ratio: 1/940 · Output Speed: 5 rpm · Output Torque: 4 kgf·cm | ||
| KWA-1650-KD2531U2 | KWA worm gearhead KD2531U2, 1/1650, DC 24V | GGM | Gear Ratio: 1/1650 · Output Speed: 2.8 rpm · Output Torque: 6 kgf·cm |
