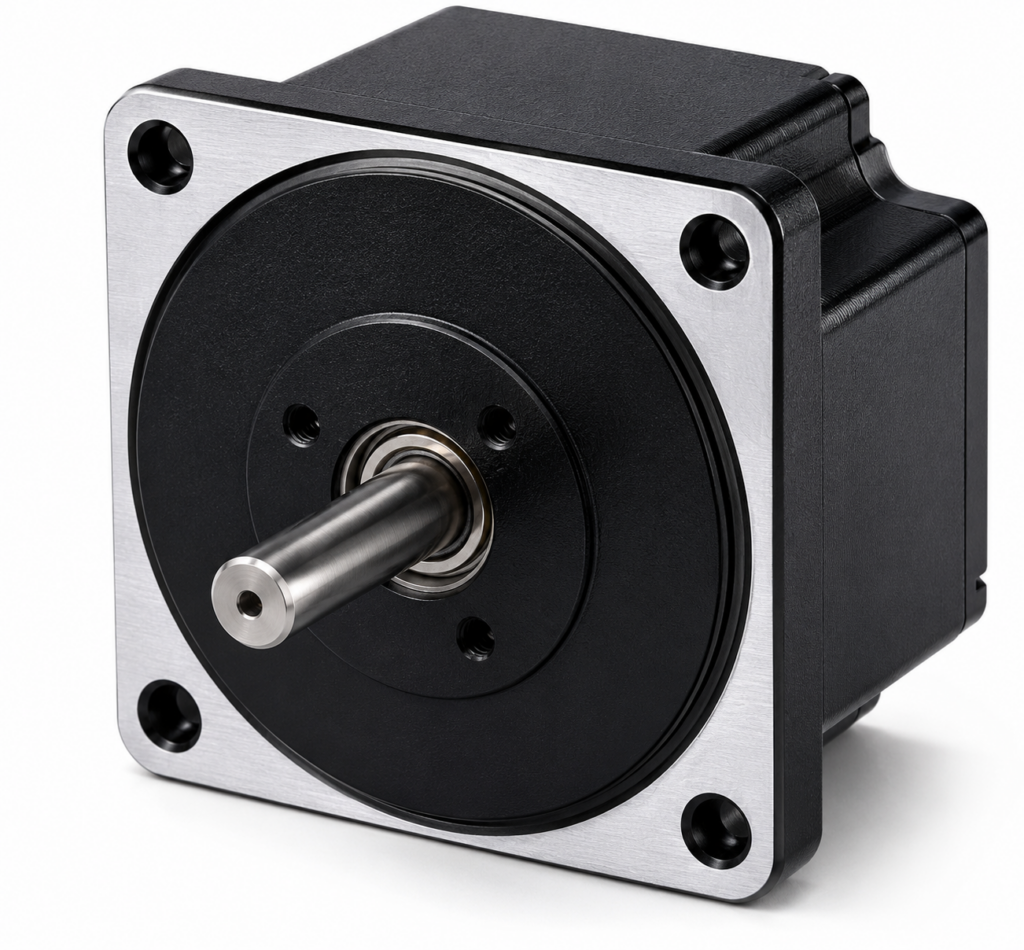

[GGM] — X Series K8X50N2 50W Brushless DC Motor Unit (□80mm, DC 24V)
Family ID: GGM-K8X50N2
GGM Brushless DC Motor Unit, X Series (DC voltage input). 50W continuous output, □80mm frame, DC 24V input (±10%). Rated speed 2,500 r/min, speed control range 100~3,000 r/min. Rated torque 0.2 N·m, starting torque 0.24 N·m. Shaft types: Gear (H) / Straight (S) / Key (K). Electromagnetic brake and 1,000PPR line-driver encoder options. Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. UL certified (E504659).
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K8XH50N2 | X Series 50W DC BLDC, Gear type, DC 24V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659 | ||
| K8XH50N2-B | X Series 50W DC BLDC, Gear type, DC 24V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 1.3 kg | UL: E504659 | ||
| K8XH50N2-E | X Series 50W DC BLDC, Gear type, DC 24V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659 | ||
| K8XH50N2-BE | X Series 50W DC BLDC, Gear type, DC 24V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 1.4 kg | UL: E504659 | ||
| K8XS50N2 | X Series 50W DC BLDC, Straight type, DC 24V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659 | ||
| K8XS50N2-B | X Series 50W DC BLDC, Straight type, DC 24V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 1.3 kg | UL: E504659 | ||
| K8XS50N2-E | X Series 50W DC BLDC, Straight type, DC 24V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659 | ||
| K8XS50N2-BE | X Series 50W DC BLDC, Straight type, DC 24V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 1.4 kg | UL: E504659 | ||
| K8XK50N2 | X Series 50W DC BLDC, Key type, DC 24V, Standard | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659 | ||
| K8XK50N2-B | X Series 50W DC BLDC, Key type, DC 24V, Brake | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 1.3 kg | UL: E504659 | ||
| K8XK50N2-E | X Series 50W DC BLDC, Key type, DC 24V, Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659 | ||
| K8XK50N2-BE | X Series 50W DC BLDC, Key type, DC 24V, Brake + Encoder | GGM | Series: X (Brushless DC, DC voltage input) | Frame: K8 (□80mm) | Rated Output: 50W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 3.1 A | Max Input Current: 5.4 A | Rated Torque: 0.2 N·m | Starting Torque: 0.24 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø10 (h7) | Spigot: Ø73 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 1.4 kg | UL: E504659 |
