![[OMRON] — E32-L11FS Wet Process Fiber Sensor Head (SUS316L, IP67 85°C)](https://prosourcemro.com/wp-content/uploads/2026/05/001-1024x929.png)
Fiber Optic
Omron

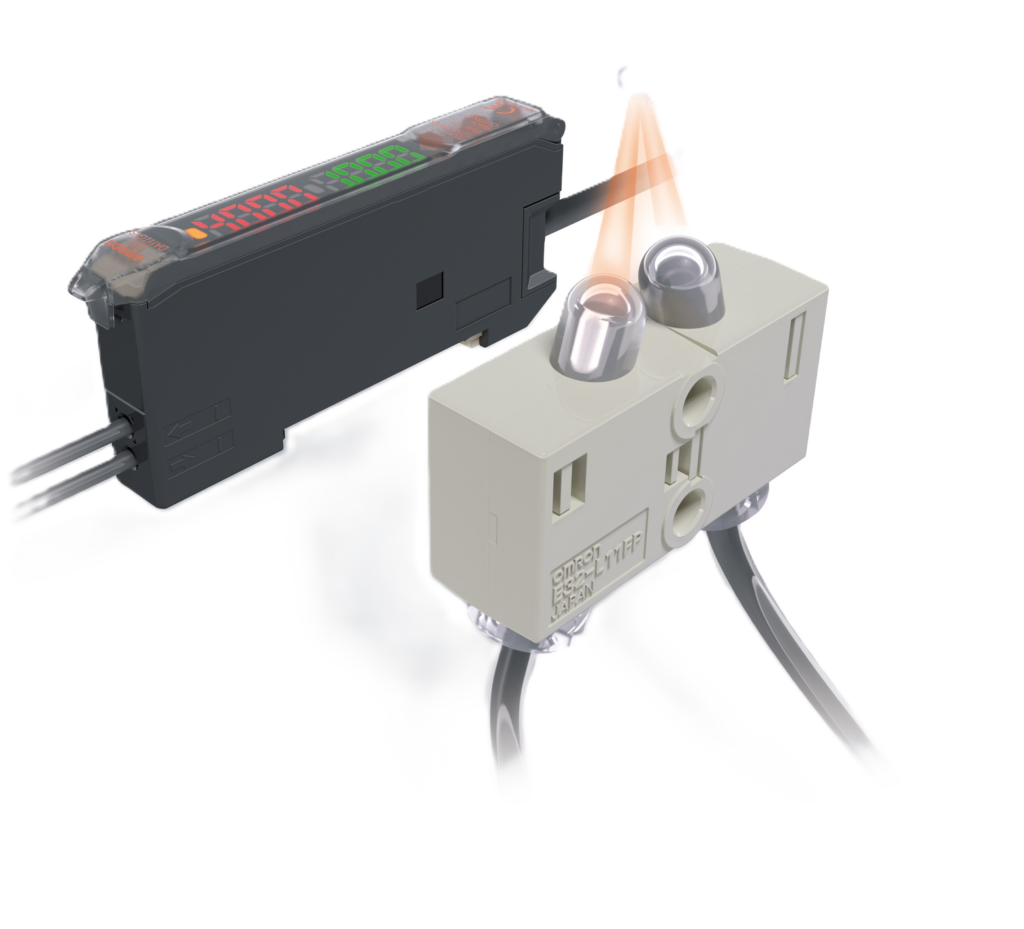

[OMRON] — E32-L11FS Wet Process Fiber Sensor Head (SUS316L, IP67 85°C)
Family ID: OMRON-E32-L11FS
Limited-reflective fiber optic sensor head for stable glass detection in high-temperature wet processes. SUS316L stainless steel and fluororesin construction withstands resist stripping environments up to 85°C. Non-contact detection with high resistance to chemical splatter — operates reliably even in misty environments. Free-cut compatible. Amplifier (E3X series) sold separately. Standard object: glass (t=0.7mm). Sensing distance: 8~20mm from lens tip (recommended 11mm); 32~44mm from mounting hole A center (recommended 35mm). Material: SUS316L + Fluororesin (PFA). Protection: IP67 @ 85°C. Min. bending radius: R40 mm. Compliant with CE marking. Applications: Resist Stripping (high-temperature wet process).
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E32-L11FS 2M | OMRON E32-L11FS fiber optic sensor head, SUS316L body, 2m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 32~44mm from mounting hole A center (recommended 35mm) | Cable Length: 2m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: SUS316L + Fluororesin (PFA) | Protection: IP67 @ 85°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Resist Stripping (high-temperature wet process) | ||
| E32-L11FS 5M | OMRON E32-L11FS fiber optic sensor head, SUS316L body, 5m pre-wired cable, IP67. | OMRON | Sensing Method: Limited-reflective fiber optic | Standard Object: Glass (t=0.7mm) | Sensing Distance (lens tip): 8~20mm from lens tip (recommended 11mm) | Sensing Distance (mounting hole A): 32~44mm from mounting hole A center (recommended 35mm) | Cable Length: 5m | Fiber Diameter: ø2.2mm | Min. Bending Radius: R40 mm | Material: SUS316L + Fluororesin (PFA) | Protection: IP67 @ 85°C | Free-cut: Supported | Connection: Pre-wired (Amplifier sold separately — E3X series) | Applications: Resist Stripping (high-temperature wet process) |
