![[OMRON] — E3X-HD Smart Fiber Amplifier (GIGA RAY II, Smart Tuning, APC+DPC Auto-Compensation)](https://prosourcemro.com/wp-content/uploads/2026/05/001-2-1024x809.png)
Fiber Optic
Omron

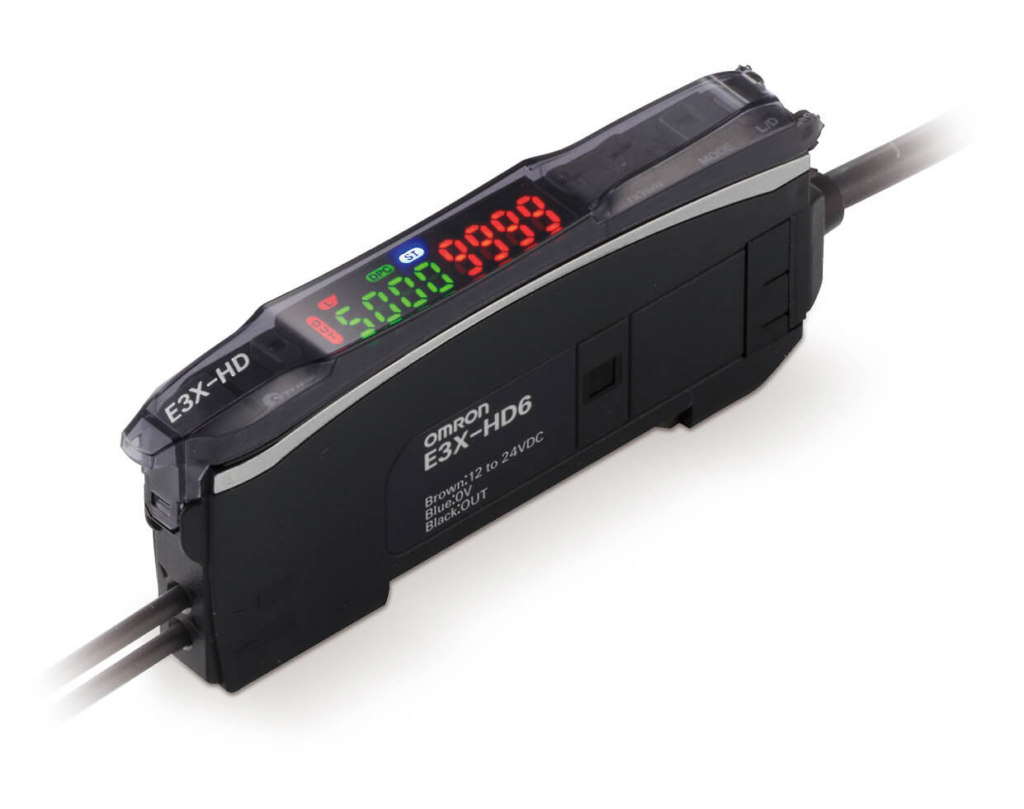

[OMRON] — E3X-HD Smart Fiber Amplifier (GIGA RAY II, Smart Tuning, APC+DPC Auto-Compensation)
Family ID: OMRON-E3X-HD
Smart fiber amplifier unit with one-touch Smart Tuning that auto-configures optimum settings with a single button press. GIGA RAY II light source delivers best-in-class power for stable detection of low-reflective and large workpieces. APC (Auto Power Control) plus DPC (Dynamic Power Control) provide maintenance-free operation by automatically compensating for dirt, vibration, and LED aged deterioration — long-term stable detection without recalibration. Twin digital display (green threshold + red incident level) and visible indicators (L/D, OUT, ST, DPC) for at-a-glance status. Pushbutton operation works even with gloves on. Four selectable response modes: Super-high-speed (50μs), High-speed (250μs default), Standard (1ms), and Giga-power (16ms) — one amplifier covers fast-line counting through long-distance detection. 12-24 VDC, NPN or PNP open-collector output. Up to 16 units side-by-side mounted with mutual interference prevention. Compatible with OMRON E32 series fiber optic head units. M8 connector models compatible with XS3F-M421/M422 sensor I/O cables (separately listed). Wire-saving Connectors (E3X-CN11/CN12), Mounting Bracket (E39-L143), DIN Track (PFP-100N/50N/100N2), and End Plate (PFP-M) sold separately — contact for quote.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3X-HD11 2M | OMRON E3X-HD11 smart fiber amplifier, NPN open-collector, 2m pre-wired cable. | OMRON | Output: NPN | Connection: Pre-wired (2m vinyl-insulated round cable, 4 dia., 3 conductors) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | ||
| E3X-HD41 2M | OMRON E3X-HD41 smart fiber amplifier, PNP open-collector, 2m pre-wired cable. | OMRON | Output: PNP | Connection: Pre-wired (2m vinyl-insulated round cable, 4 dia., 3 conductors) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | ||
| E3X-HD6 | OMRON E3X-HD6 smart fiber amplifier, NPN, wire-saving connector type. | OMRON | Output: NPN | Connection: Wire-saving connector (E3X-CN11 Master 3-conductor / E3X-CN12 Slave 1-conductor sold separately) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | ||
| E3X-HD8 | OMRON E3X-HD8 smart fiber amplifier, PNP, wire-saving connector type. | OMRON | Output: PNP | Connection: Wire-saving connector (E3X-CN11 Master 3-conductor / E3X-CN12 Slave 1-conductor sold separately) | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | ||
| E3X-HD14 | OMRON E3X-HD14 smart fiber amplifier, NPN, M8 4-pin connector. | OMRON | Output: NPN | Connection: M8 4-pin connector — Compatible XS3F cables: XS3F-M421-402-A / XS3F-M421-405-A (straight, 2m/5m), XS3F-M422-402-A / XS3F-M422-405-A (L-shaped, 2m/5m) — separately listed under OMRON Sensor I/O Connector Cables | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) | ||
| E3X-HD44 | OMRON E3X-HD44 smart fiber amplifier, PNP, M8 4-pin connector. | OMRON | Output: PNP | Connection: M8 4-pin connector — Compatible XS3F cables: XS3F-M421-402-A / XS3F-M421-405-A (straight, 2m/5m), XS3F-M422-402-A / XS3F-M422-405-A (L-shaped, 2m/5m) — separately listed under OMRON Sensor I/O Connector Cables | Light Source: Red 4-element LED (625 nm) — GIGA RAY II | Display: Twin digital display: green (threshold) + red (incident level), 4 visible indicators (L/D, OUT, ST, DPC) | Sensitivity Setting: Smart Tuning (single-button auto-setup) + UP/DOWN fine-tune + MODE/L-D pushbuttons | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 720 mW max. Normal / 530 mW Eco-ON / 640 mW Eco-LO (30 mA @ 24 VDC) | Control Output: Open-collector (NPN or PNP), 26.4 VDC max. | Load Current: 100 mA max. (1-3 amplifiers gang-mounted), 20 mA max. (4-16 amplifiers) | Residual Voltage: 1 V max. (<10 mA load) / 2 V max. (10-100 mA load) | OFF Current: 0.1 mA max. | Mode Selector: Light-ON / Dark-ON | Response Time — SHS (Super-high-speed): 50 μs (NPN) / 55 μs (PNP) | Response Time — HS (High-speed, default): 250 μs | Response Time — Stnd (Standard): 1 ms | Response Time — GIGA (Giga-power): 16 ms | Auto Power Control (APC): Always ON (light intensity auto-compensation) | Dynamic Power Control (DPC): Active threshold-based incident-level auto-compensation — compensates for dirt, vibration, and LED aged deterioration | Other Functions: Power tuning, differential detection, timer (OFF-delay/ON-delay/one-shot), zero reset, settings reset, Eco mode | Maximum Connectable Units: 16 units (standard) — up to 30 units with E3X-ECT Communications Unit | Mutual Interference Prevention: Up to 10 units (optical sync, disabled in SHS mode) | Protection: IP50 (with Protective Cover) | Ambient Temperature: -25°C to 55°C (1-2 amps), -25°C to 50°C (3-10), -25°C to 45°C (11-16) | Vibration Resistance: 10-55 Hz, 1.5mm double amplitude, 2 hours each axis (X/Y/Z) | Shock Resistance: 500 m/s² × 3 times each axis | Insulation Resistance: 20 MΩ min. (at 500 VDC) | Dielectric Strength: 1,000 VAC at 50/60 Hz for 1 minute | Compatible Fiber Heads: OMRON E32 series fiber optic head units (E32-L11FP/L11FS/L12FS and others) | Mounting: DIN track or Mounting Bracket E39-L143 (sold separately) |
