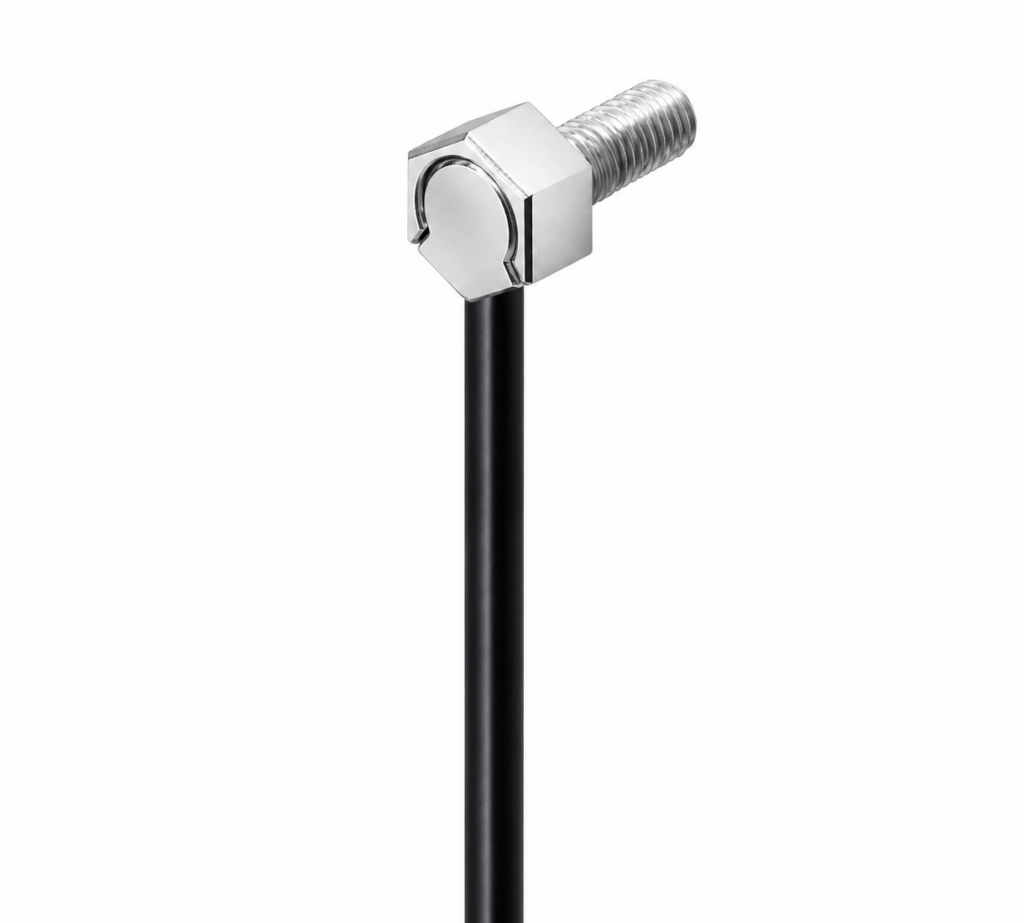

[OMRON] — E32 LENS in Nut Type Fiber Unit (15° GIGA Beam, Through-beam / Reflective / Retro-reflective)
Family ID: OMRON-E32-LENSIN-NUT
OMRON E32 LENS in Nut Type Fiber Unit — Build-in lens + Nut-type mounting in a single product. 15° narrow aperture angle (GIGA Beam) with high power output for stable detection: approx. 10× light intensity vs non-lens through-beam (E32-LT11N) and approx. 3× S/N ratio vs non-lens reflective (E32-LD11N). Reduces false detection from light reflection in narrow spaces. Patented tool-fit nut structure — spanner inserts deep into nut without contacting fiber cable, preventing fiber damage during installation. Single-nut tightening simplifies mounting. No lens attachment work, no torque management, no risk of lost lens. Includes E39-RP1 Reflector for E32-LR11NP transparent-object detection (required pair). Compatible with E3NX-FA and E3X-HD smart fiber amplifiers. IP50, −40 to +70 °C, bend-resistant R2 cable. Patent registered.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E32-LT11N 2M | E32-LT11N — LENS in Nut Type through-beam fiber unit, M4, 15° aperture | OMRON | Type: Through-beam (透過形) | Aperture Angle: 15° (LENS in GIGA Beam, vs conventional 60° non-lens) | Mounting Size: M4 | Mounting Thread: M4×0.7 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2.3 mm dia. (methacrylate resin lens) | Optical Axis Diameter: 2.3 mm dia. | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Sensing Distance — E3X-HD GIGA: 4,000 mm (2m each side, total 4,000mm) | Sensing Distance — E3X-HD HS: 4,000 mm | Sensing Distance — E3X-HD ST: 3,500 mm | Sensing Distance — E3X-HD SHS: 920 mm | Sensing Distance — E3NX-FA GIGA: 4,000 mm | Sensing Distance — E3NX-FA HS: 3,450 mm | Sensing Distance — E3NX-FA ST: 4,000 mm | Sensing Distance — E3NX-FA SHS: 920 mm | Light Intensity Advantage: Approx. 10× vs non-lens E32-T11N (HS mode at 1 m, E3NX-FA) | Mounting Hardware: Hex nut opposite side 7 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 4.2 +0.5/0 mm dia. | Tightening Torque: 0.78 N·m | Tensile Strength: 29.4 N | Weight (Packed): approx. 40 g | Cable Configuration: 2 m on each side (4,000 mm total sensing path) | Emitter/Receiver Differentiation: None (interchangeable) | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | ||
| E32-LD11N 2M | E32-LD11N — LENS in Nut Type reflective fiber unit, M6, 15° aperture | OMRON | Type: Reflective (反射形) | Aperture Angle: 15° (LENS in GIGA Beam, vs conventional 60° non-lens) | Mounting Size: M6 | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (methacrylate resin lens) | Min. Sensing Object (E3X-HD): 0.1 mm dia. | Min. Sensing Object (E3NX-FA): 0.03 mm dia. | Sensing Distance — E3X-HD GIGA: 840 mm | Sensing Distance — E3X-HD HS: 240 mm | Sensing Distance — E3X-HD ST: 350 mm | Sensing Distance — E3X-HD SHS: 100 mm | Sensing Distance — E3NX-FA GIGA: 1,260 mm | Sensing Distance — E3NX-FA HS: 360 mm | Sensing Distance — E3NX-FA ST: 520 mm | Sensing Distance — E3NX-FA SHS: 100 mm | Standard Sensing Object: Glossy white paper | S/N Ratio Advantage: Approx. 3× vs non-lens E32-D11R (E3NX-FA HS mode, matte black workpiece, QR code 10mm□ at 50mm detection distance) | Mounting Hardware: Hex nut opposite side 10 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 6.2 +0.5/0 mm dia. | Tightening Torque: 0.98 N·m | Tensile Strength: 29.4 N | Weight (Packed): approx. 40 g | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | ||
| E32-LR11NP 2M | E32-LR11NP — LENS in Nut Type retro-reflective fiber unit for transparent objects, M6 | OMRON | Type: Retro-reflective for transparent object detection (透明体検出用 回帰反射形) | Aperture Angle: 15° (LENS in) | Mounting Size: M6 | Mounting Thread: M6×0.75 (trivalent chrome-plated zinc alloy) | Sensing Surface: 2× 1.5 mm dia. (optical filter) | Required Reflector: E39-RP1 (sold separately, available as separate MPN in this family — included in catalog) | Sensing Distance — E3X-HD GIGA: 1,350 mm | Sensing Distance — E3X-HD HS: 1,000 mm | Sensing Distance — E3X-HD ST: 1,200 mm | Sensing Distance — E3X-HD SHS: 550 mm | Sensing Distance — E3NX-FA GIGA: 2,020 mm | Sensing Distance — E3NX-FA HS: 1,500 mm | Sensing Distance — E3NX-FA ST: 1,800 mm | Sensing Distance — E3NX-FA SHS: 550 mm | Note (Retro-reflective): Highly reflective objects may produce incident-light state due to direct reflection. Some transparent materials may not be detected stably — verify in advance. | Mounting Hardware: Hex nut opposite side 10 mm / thickness 2.4 mm (nickel-plated brass) + toothed washer (nickel-plated iron) | Recommended Mounting Hole: 6.2 +0.5/0 mm dia. | Tightening Torque: 0.98 N·m | Tensile Strength: 29.4 N | Weight (Packed): approx. 40 g | Form Factor: Nut Type (ナット型) — tool-fit structure, spanner does not contact cable | Mounting Method: Single nut tightening with head fixed by spanner (vs conventional 2-nut clamping) | Tool-Fit Feature: Spanner inserted deep into nut without contacting fiber cable — prevents fiber damage | Cable Routing: Wide cable outlet for relaxed routing | Degree of Protection: IP50 (standard for E32 LENS in series) | Ambient Temperature: −40 to +70 °C | Bending Radius of Cable: Bend-resistant R2 | Unbendable Length: 0 mm | Cable Sheath Material: Polyethylene | Fiber Core Material: Plastic | Cable Length: 2 m | Free-cut: Supported | Compatible Amplifiers: E3NX-FA series / E3X-HD series (E3X-DA-S series for C21N/D21N via E39-F9W13 attachment) | Note: E3X-HD0 Communication Unit Connector model was discontinued October 2024 | ||
| E39-RP1 | E39-RP1 Reflector for E32-LR11NP retro-reflective fiber unit | OMRON | Type: Reflector for E32-LR11NP Retro-reflective Fiber Unit | Compatible Sensor: E32-LR11NP (LENS in Nut Type Retro-reflective) | Application: Transparent object detection (films, bottles, sheets etc.) | Ambient Temperature: −40 to +60 °C (narrower than E32-LR11NP sensor body −40 to +70 °C) | Mounting: Separate reflector — install opposite to sensor head | Note: Reflector required for retro-reflective operation. Not included with E32-LR11NP sensor (order separately, registered as separate MPN in this family for buyer convenience). | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards |
