Fiber Optic
Omron

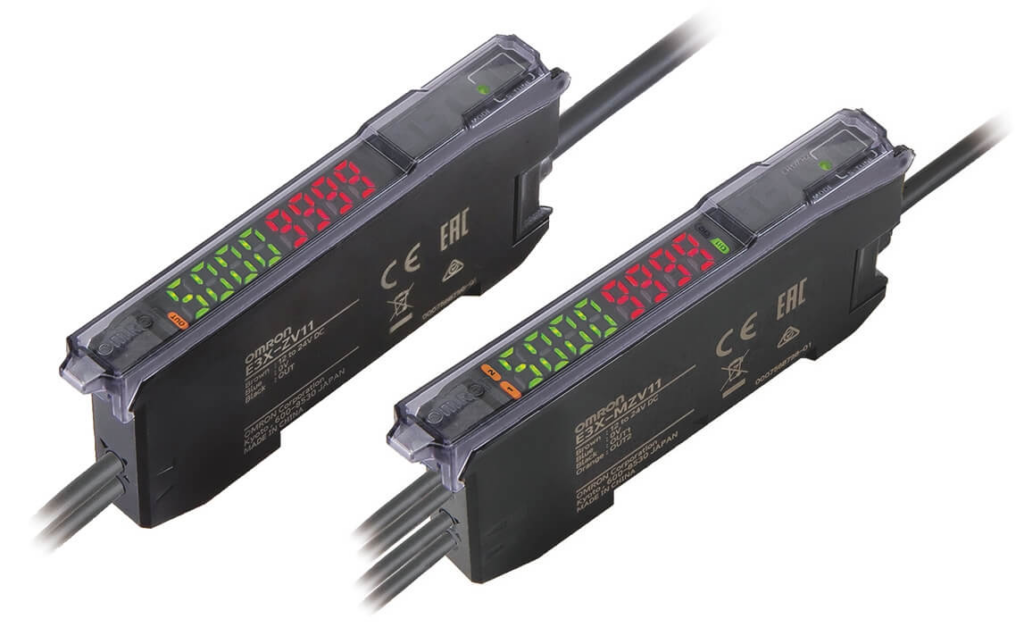

[OMRON] — E3X-MZV Smart Fiber Amplifier (2-Channel, Value Line, Red LED)
Family ID: OMRON-E3X-MZV
OMRON E3X-MZV Smart Fiber Amplifier — Value Line (2-channel, NEW). 1 amp body provides 2 independent detection points — 1/2 installation space and up to 60% wiring savings compared to standard single-channel amplifiers (with wire-saving connector). Red 4-element LED (625 nm), min. detectable object 3 μm. Response time 100 μs (Super High Speed) / 250 μs (High Speed) / 1 ms (Standard) / 16 ms (Giga Power). Smart Tuning (2-press auto-adjust), DPC, ATC, built-in timer (1-9999 ms). Mutual interference prevention by emission cycle switching (max 2 MZV units, or 2× E3X-ZV + 1× E3X-MZV combination). Independent CH1/CH2 indicators and selection. User Save/Reset for easy field recovery. Available with NPN or PNP output, pre-wired cable (2 m) or wire-saving connector type. 12-24 VDC, IEC compliant, CE marked. Patented dual-channel design.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3X-MZV11 2M | E3X-MZV Value Line 2-channel fiber amplifier, NPN, Pre-wired Cable 2 m | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: NPN open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Pre-wired Cable 2 m | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: — | Weight (Packed): approx. 100 g | Weight (Body Only): approx. 75 g | ||
| E3X-MZV41 2M | E3X-MZV Value Line 2-channel fiber amplifier, PNP, Pre-wired Cable 2 m | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: PNP open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Pre-wired Cable 2 m | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: — | Weight (Packed): approx. 100 g | Weight (Body Only): approx. 75 g | ||
| E3X-MZV6 | E3X-MZV Value Line 2-channel fiber amplifier, NPN, Wire-saving Connector | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: NPN open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Wire-saving Connector | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: E3X-CN21 (master, 4-wire) / E3X-CN22 (slave, 2-wire) — sold separately | Weight (Packed): approx. 45 g | Weight (Body Only): approx. 20 g | ||
| E3X-MZV8 | E3X-MZV Value Line 2-channel fiber amplifier, PNP, Wire-saving Connector | OMRON | Channels: 2-Channel (independent) | Outputs: 2 outputs | Response Time — Super High Speed (SHS): 100 μs (operate/reset) | Response Time — High Speed (HS): 250 μs (operate/reset, 700 μs with mutual interference) | Response Time — Standard (Stnd): 1 ms (operate/reset, 1.6 ms with mutual interference) | Response Time — Giga Power (GIGA): 16 ms (operate/reset) | Mutual Interference Prevention: Emission cycle switching (max 2 units MZV, or 2× E3X-ZV + 1× E3X-MZV, no close-mounting required) | Power Consumption (Normal): 820 mW max (24V: 35 mA / 12V: 69 mA) | Power Consumption (Eco ON): 600 mW max (24V: 25 mA / 12V: 50 mA) | Note: 1 amp body = 2 detection points / 1/2 installation space / up to 60% wiring savings with wire-saving connector | Output Type: PNP open collector (load 100 mA max, residual voltage 1-2 V) | Connection: Wire-saving Connector | Light Source: Red 4-element LED (625 nm) | Power Supply: 12-24 VDC ±10% (ripple p-p 10% max) | Min. Detectable Object: 3 μm (with E32-CC200) | Sensitivity Adjustment: Smart Tuning (2-point / power tuning / percent / max sensitivity / full auto / positioning) or manual | Display: 7-segment (green min. + red incident light) — orientation reversible | Functions: Smart Tuning / DPC (auto light correction) / ATC (auto threshold correction) / Timer / Zero Reset / User Save+Reset / Eco / Power Tuning | Timer: Off / Off-delay / On-delay / One-shot (1-9999 ms) | Ambient Illuminance: Incandescent 20,000 lx max / Sunlight 30,000 lx max | Ambient Temperature: Operating -25 to +55 °C / Storage -30 to +70 °C (no icing/condensation) | Ambient Humidity: 35-85 %RH (operating and storage) | Insulation Resistance: 20 MΩ min. (500 VDC megger) | Dielectric Strength: 1,000 VAC 50/60 Hz 1 min | Vibration Resistance: 10-55 Hz, 1.5 mm double amplitude, 2 h each X/Y/Z | Shock Resistance: 500 m/s² 3 times each X/Y/Z | Protection Circuits: Reverse polarity / Output short-circuit / Output reverse polarity | Housing Material: Polycarbonate (case + cover) | Compliance: CE | Compatible Connector: E3X-CN21 (master, 4-wire) / E3X-CN22 (slave, 2-wire) — sold separately | Weight (Packed): approx. 45 g | Weight (Body Only): approx. 20 g |
