Timer
Omron

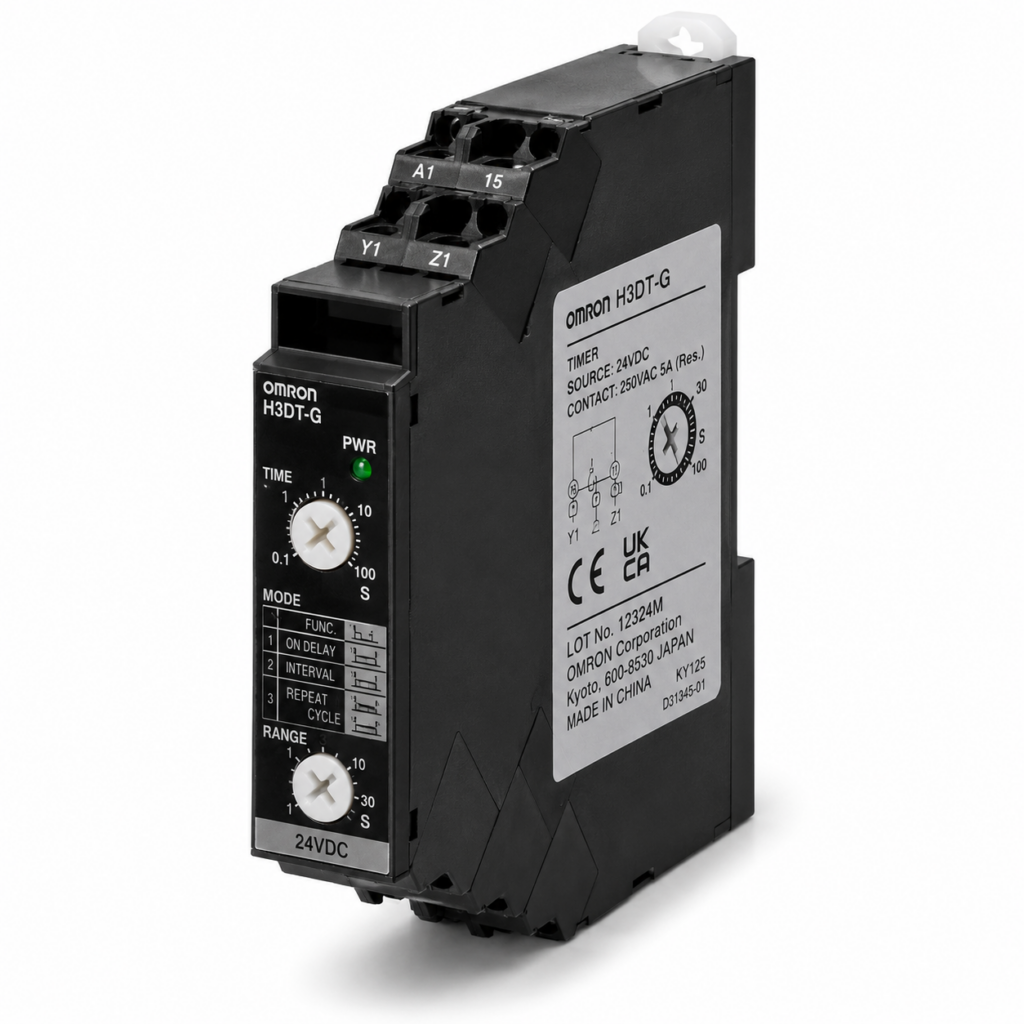

[OMRON] — H3DT-G Star-delta Timer (1~120s Dual Range, Delta SPDT + Star SPDT, 24~240VAC/DC, DIN Track)
Family ID: OMRON-H3DT-G
Our Value Design Products Increase the Value of Your Control Panels. Set two time ranges between 1 and 120 s with one Timer. Star-delta timer with independent Star circuit and Delta circuit SPDT outputs. Supply voltage: 24~240VAC/DC. 8 terminals. DIN Track mounting. Certifications: cULus (UL508 / CSA C22.2 No.14), CCC, LR, EN 61812-1.
1 product code available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H3DT-G | Star-delta Timer, Delta SPDT + Star SPDT relay outputs, 8 terminals, 24~240VAC/DC | OMRON | Type: Star-delta Timer | Operating Mode: Star-delta | Output: Relay — Delta circuit SPDT + Star circuit SPDT | Operation: Time-limit / Self-resetting | Terminals: 8 | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track | Time Range: 1~120 s (two ranges settable) |
