![[OMRON] — H3DT-H Power OFF-delay Timer (S/L Series, SPDT, 24~48VAC/DC or 100~240VAC, DIN Track)](https://img.prosourcemro.com/2026/05/001-621-1024x1024.png)
Timer
Omron

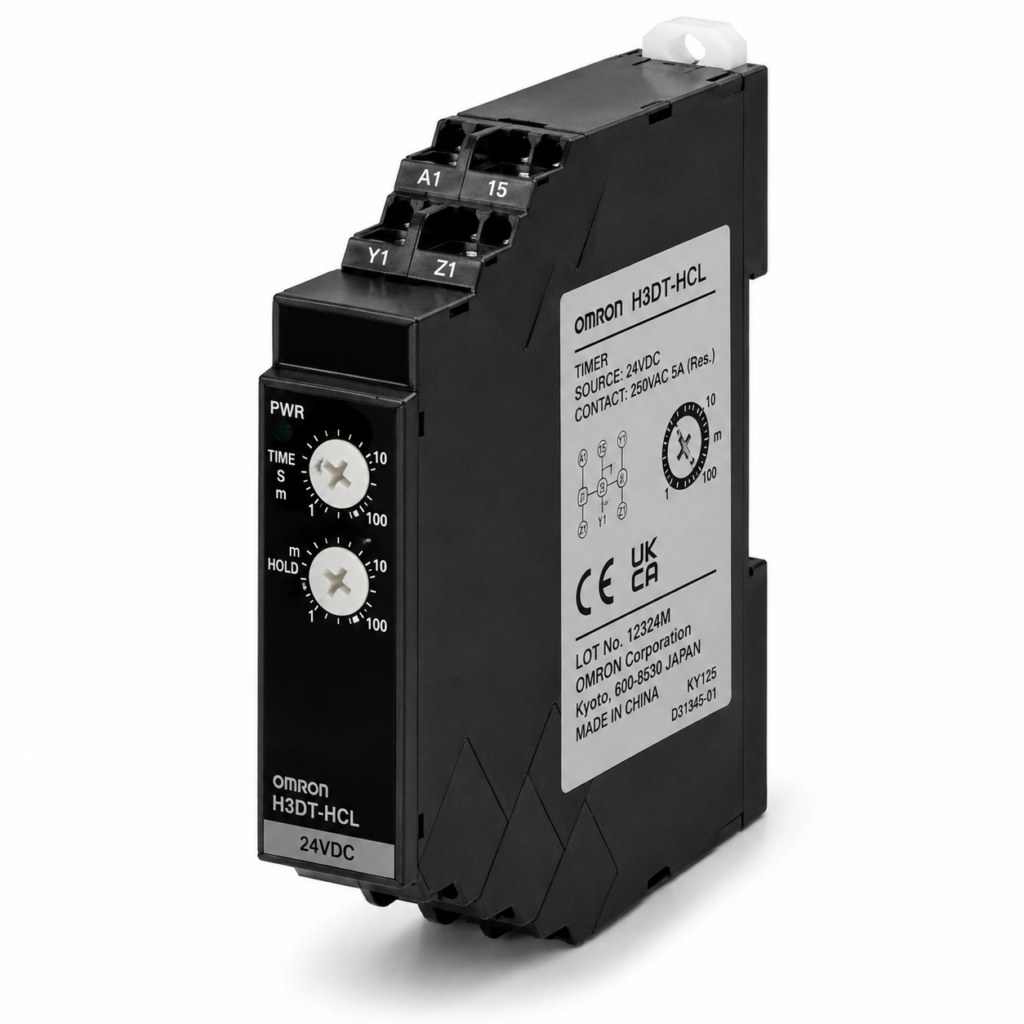

[OMRON] — H3DT-H Power OFF-delay Timer (S/L Series, SPDT, 24~48VAC/DC or 100~240VAC, DIN Track)
Family ID: OMRON-H3DT-H
Our Value Design Products Increase the Value of Your Control Panels. Set two time ranges with each Timer: S Series 0.1~12s, L Series 1.0~120s. Power OFF Delay operation. Instantaneous operation / time-limit reset. Supply voltage: 100~120VAC / 200~240VAC / 24~48VAC/DC. DIN Track mounting. Certifications: cULus (UL508 / CSA C22.2 No.14), CCC, LR, EN 61812-1.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H3DT-HCS | Power OFF-delay, S Series (0.1~12s), SPDT, 100~120VAC | OMRON | Type: Power OFF-delay Timer | Series: S (0.1~12s) | Output: Relay SPDT | Supply Voltage: 100~120VAC | Terminals: 6 | Mounting: DIN Track | ||
| H3DT-HCL | Power OFF-delay, L Series (1.0~120s), SPDT, 100~120VAC | OMRON | Type: Power OFF-delay Timer | Series: L (1.0~120s) | Output: Relay SPDT | Supply Voltage: 100~120VAC | Terminals: 6 | Mounting: DIN Track | ||
| H3DT-HDS | Power OFF-delay, S Series (0.1~12s), SPDT, 200~240VAC | OMRON | Type: Power OFF-delay Timer | Series: S (0.1~12s) | Output: Relay SPDT | Supply Voltage: 200~240VAC | Terminals: 6 | Mounting: DIN Track | ||
| H3DT-HDL | Power OFF-delay, L Series (1.0~120s), SPDT, 200~240VAC | OMRON | Type: Power OFF-delay Timer | Series: L (1.0~120s) | Output: Relay SPDT | Supply Voltage: 200~240VAC | Terminals: 6 | Mounting: DIN Track | ||
| H3DT-HBS | Power OFF-delay, S Series (0.1~12s), SPDT, 24~48VAC/DC | OMRON | Type: Power OFF-delay Timer | Series: S (0.1~12s) | Output: Relay SPDT | Supply Voltage: 24~48VAC/DC | Terminals: 6 | Mounting: DIN Track | ||
| H3DT-HBL | Power OFF-delay, L Series (1.0~120s), SPDT, 24~48VAC/DC | OMRON | Type: Power OFF-delay Timer | Series: L (1.0~120s) | Output: Relay SPDT | Supply Voltage: 24~48VAC/DC | Terminals: 6 | Mounting: DIN Track |
