![[OMRON] — H5CC Digital Timer (48x48mm, Multi-mode, Screw/11-pin/8-pin, Contact/Transistor Output)](https://img.prosourcemro.com/2026/05/001-637-1024x1024.png)
Timer
Omron

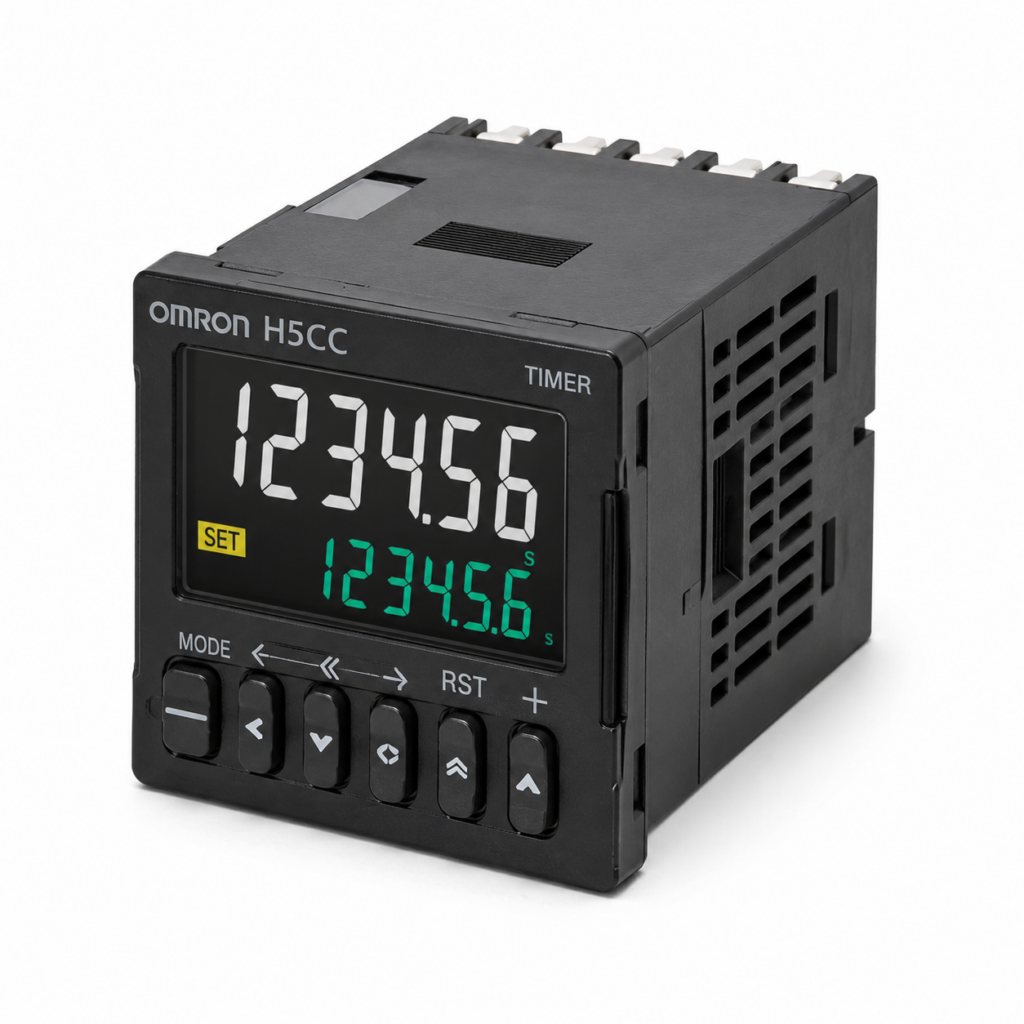

[OMRON] — H5CC Digital Timer (48x48mm, Multi-mode, Screw/11-pin/8-pin, Contact/Transistor Output)
Family ID: OMRON-H5CC
New and improved design for easier use, programming, maintenance and user feedback. Replacement time notification function. H5CC-A: 20 timer/twin-timer modes, screw terminal or 11-pin socket. H5CC-L: 8-pin socket, 7 modes. Contact (SPDT/SPST) and Transistor output variants.
19 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H5CC-AWSD | H5CC-A, Mode A+F-1 only, Screw, Transistor DPST, 12~48VDC/24VAC | OMRON | Type: H5CC-A | Modes: A (Signal ON delay I) / F-1 (Cumulative) | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Transistor DPST | Supply: 12~48VDC / 24VAC | ||
| H5CC-A | H5CC-A, 20 modes, Screw, Contact SPDT, 100~240VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Contact time-limit SPDT | Supply: 100~240VAC | ||
| H5CC-AD | H5CC-A, 20 modes, Screw, Contact SPDT, 12~48VDC/24VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Contact time-limit SPDT | Supply: 12~48VDC / 24VAC | ||
| H5CC-AS | H5CC-A, 20 modes, Screw, Transistor SPST, 100~240VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Transistor SPST | Supply: 100~240VAC | ||
| H5CC-ASD | H5CC-A, 20 modes, Screw, Transistor SPST, 12~48VDC/24VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Transistor SPST | Supply: 12~48VDC / 24VAC | ||
| H5CC-AU | H5CC-A, 20 modes, Screw, Contact SPDT + Transistor SPST, 100~240VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Contact SPDT + Transistor SPST | Supply: 100~240VAC | ||
| H5CC-AUD | H5CC-A, 20 modes, Screw, Contact SPDT + Transistor SPST, 12~48VDC/24VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: Screw | Input: Signal/Reset/Gate (NPN/PNP) | Output: Contact SPDT + Transistor SPST | Supply: 12~48VDC / 24VAC | ||
| H5CC-A11 | H5CC-A, 20 modes, 11-pin socket, Contact SPDT, 100~240VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: 11-pin socket | Input: Signal/Reset/Gate (NPN/PNP) | Output: Contact time-limit SPDT | Supply: 100~240VAC | ||
| H5CC-A11D | H5CC-A, 20 modes, 11-pin socket, Contact SPDT, 12~48VDC/24VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: 11-pin socket | Input: Signal/Reset/Gate (NPN/PNP) | Output: Contact time-limit SPDT | Supply: 12~48VDC / 24VAC | ||
| H5CC-A11S | H5CC-A, 20 modes, 11-pin socket, Transistor SPST, 100~240VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: 11-pin socket | Input: Signal/Reset/Gate (NPN/PNP) | Output: Transistor SPST | Supply: 100~240VAC | ||
| H5CC-A11SD | H5CC-A, 20 modes, 11-pin socket, Transistor SPST, 12~48VDC/24VAC | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: 11-pin socket | Input: Signal/Reset/Gate (NPN/PNP) | Output: Transistor SPST | Supply: 12~48VDC / 24VAC | ||
| H5CC-A11F | H5CC-A, 20 modes, 11-pin socket, Contact SPDT, 24~240VDC/VAC, NPN only | OMRON | Type: H5CC-A | Modes: 20 Timer+Twin Timer modes | Terminal: 11-pin socket | Input: Signal/Reset/Gate (NPN only) | Output: Contact time-limit SPDT | Supply: 24~240VDC/VAC | ||
| H5CC-L8 | H5CC-L, 7 modes, 8-pin socket, Contact SPDT, 100~240VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: Signal/Reset (NPN) | Output: Contact time-limit SPDT | Supply: 100~240VAC | ||
| H5CC-L8D | H5CC-L, 7 modes, 8-pin socket, Contact SPDT, 12~48VDC/24VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: Signal/Reset (NPN) | Output: Contact time-limit SPDT | Supply: 12~48VDC / 24VAC | ||
| H5CC-L8S | H5CC-L, 7 modes, 8-pin socket, Transistor SPST, 100~240VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: Signal/Reset (NPN) | Output: Transistor SPST | Supply: 100~240VAC | ||
| H5CC-L8SD | H5CC-L, 7 modes, 8-pin socket, Transistor SPST, 12~48VDC/24VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: Signal/Reset (NPN) | Output: Transistor SPST | Supply: 12~48VDC / 24VAC | ||
| H5CC-L8E | H5CC-L, 7 modes, 8-pin socket, Contact SPDT+instantaneous SPDT, 100~240VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: None | Output: Contact time-limit SPDT + instantaneous SPDT | Supply: 100~240VAC | ||
| H5CC-L8ED | H5CC-L, 7 modes, 8-pin socket, Contact SPDT+instantaneous SPDT, 12~48VDC/24VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: None | Output: Contact time-limit SPDT + instantaneous SPDT | Supply: 12~48VDC / 24VAC | ||
| H5CC-L8EF | H5CC-L, 7 modes, 8-pin socket, Contact SPDT+instantaneous SPDT, 24~240VDC/VAC | OMRON | Type: H5CC-L | Modes: A-2/b/E/Z/toff/ton (7 modes) | Terminal: 8-pin socket | Input: None | Output: Contact time-limit SPDT + instantaneous SPDT | Supply: 24~240VDC/VAC |
