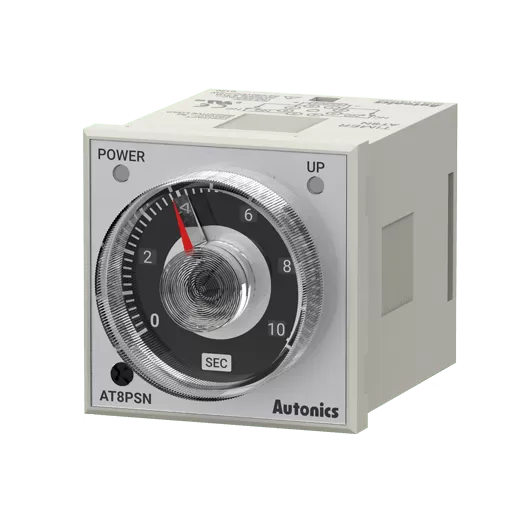

[AUTONICS] AT8PSN / AT8PMN Series Power OFF Delay Analog Timers

Family ID: AUTONICS-AT8PSN-PMN-SERIES

Power OFF delay analog timers W 48 x H 48 mm. AT8PSN (single time range) and AT8PMN (multi-range) variants. 8-pin plug type.

3 product codes available in this family

Product Codes & Specifications

Product Code	Description	Brand	Spec
AUTONICS-AT8PSN-1	—	AUTONICS	Timer \| AT8PSN Series \| Analog W 48 x H 48 mm \| OFF-delay 1 sec \| DPDT relay \| 100-240 VAC \| 8-pin plug \| IP50 \| OFF-delay single range
AUTONICS-AT8PSN-3	—	AUTONICS	Timer \| AT8PSN Series \| Analog W 48 x H 48 mm \| OFF-delay 3 sec \| DPDT relay \| 100-240 VAC \| 8-pin plug \| IP50 \| OFF-delay single range
AUTONICS-AT8PMN	—	AUTONICS	Timer \| AT8PMN Series \| Analog W 48 x H 48 mm \| OFF-delay multi-range \| DPDT relay \| 100-240 VAC \| 8-pin plug \| IP50 \| OFF-delay multi-range
