Timer
Omron

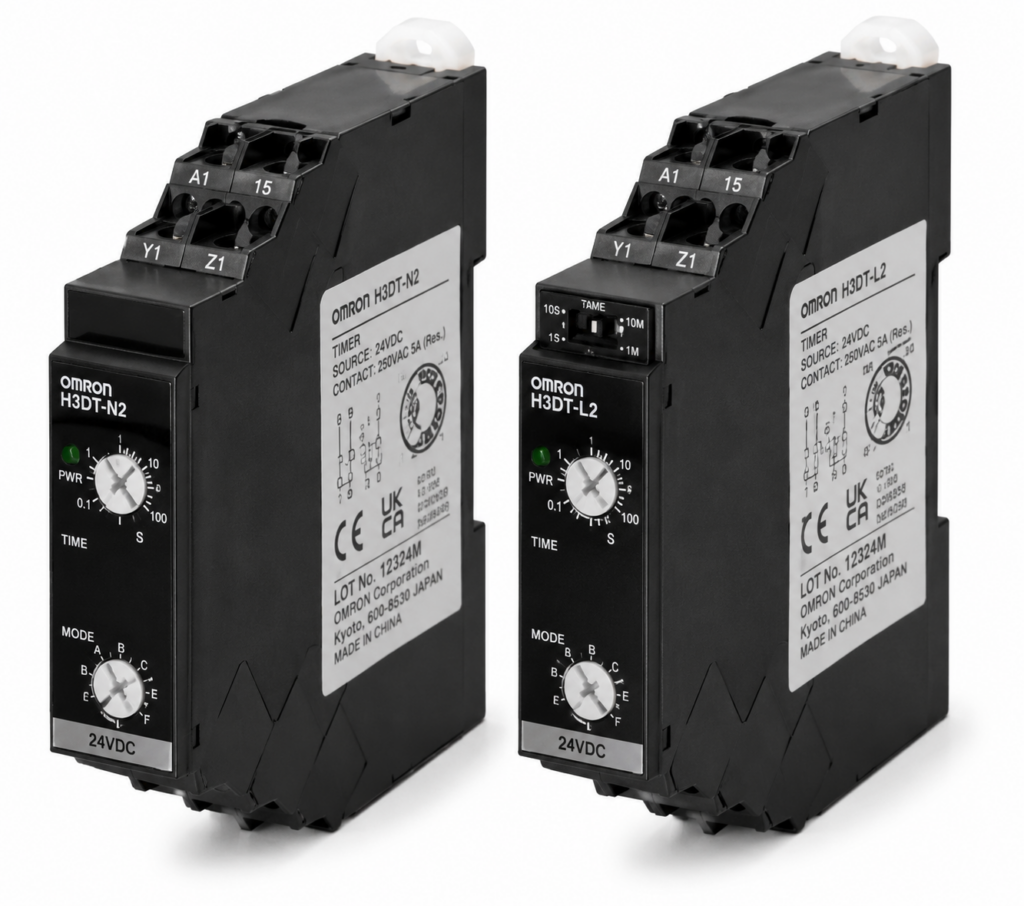

[OMRON] — H3DT-N/L Multi-range Multi-mode Timer (8 Operating Modes, DPDT/SPDT, 24~240VAC/DC, DIN Track)
Family ID: OMRON-H3DT
Our Value Design Products Increase the Value of Your Control Panels. Multiple time ranges and operating modes let you cover a wide range of applications. H3DT-N: Standard 8-mode timer. H3DT-L: Expansion 8-mode timer. Supply voltage: 24~240VAC/DC. DIN Track mounting. Certifications: cULus (UL508 / CSA C22.2 No.14), CCC, LR, EN 61812-1.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H3DT-N2 | Standard 8-mode Timer, DPDT contact output, 10 terminals, 24~240VAC/DC | OMRON | Type: Standard Eight-mode Timer | Output: Relay DPDT (time-limit DPDT or time-limit SPDT + instantaneous SPDT) | Terminals: 10 | Input: Voltage input | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track | Modes: ON Delay / Flicker OFF Start / Flicker ON Start / Signal OFF Delay / Interval / Signal OFF Interval / Cumulative ON Delay / Cumulative Interval | ||
| H3DT-N1 | Standard 8-mode Timer, SPDT contact output, 8 terminals, 24~240VAC/DC | OMRON | Type: Standard Eight-mode Timer | Output: Relay SPDT (time-limit SPDT) | Terminals: 8 | Input: Voltage input | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track | Modes: ON Delay / Flicker OFF Start / Flicker ON Start / Signal OFF Delay / Interval / Signal OFF Interval / Cumulative ON Delay / Cumulative Interval | ||
| H3DT-L2 | Expansion 8-mode Timer, DPDT contact output, 10 terminals, 24~240VAC/DC | OMRON | Type: Expansion Eight-mode Timer | Output: Relay DPDT | Terminals: 10 | Input: Voltage input | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track | Modes: ON Delay / Flicker OFF Start / Flicker ON Start / Signal ON-OFF Delay / Interval / Signal ON-OFF Delay (G) / One-shot Output (Signal Start) / One-shot Output (Power ON Start) | ||
| H3DT-L1 | Expansion 8-mode Timer, SPDT contact output, 8 terminals, 24~240VAC/DC | OMRON | Type: Expansion Eight-mode Timer | Output: Relay SPDT | Terminals: 8 | Input: Voltage input | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track | Modes: ON Delay / Flicker OFF Start / Flicker ON Start / Signal ON-OFF Delay / Interval / Signal ON-OFF Delay (G) / One-shot Output (Signal Start) / One-shot Output (Power ON Start) |
