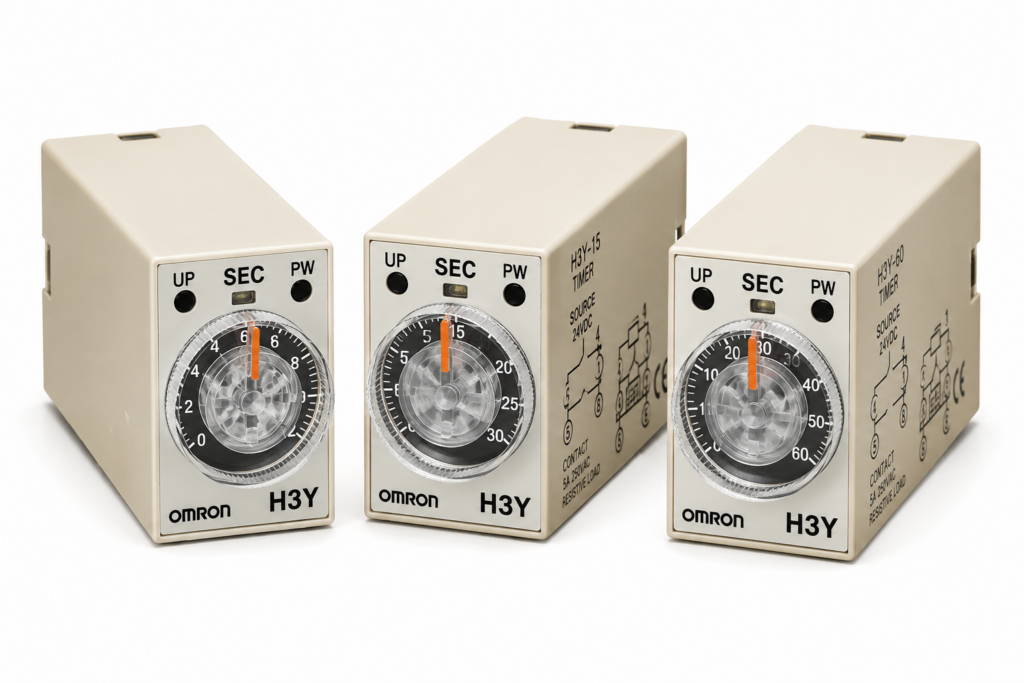

[OMRON] — H3Y Solid-state Timer (Miniature, DPDT/4PDT, 0.04s~3h, Socket or PCB Terminal)
Timer Omron

[OMRON] — H3Y Solid-state Timer (Miniature, DPDT/4PDT, 0.04s~3h, Socket or PCB Terminal)

Family ID: OMRON-H3Y

Miniature Timer Compatible with the MY Relay. Time-limit operation / self-resetting. Time range: 0.04s to 3 hours. Supply voltage: 24/100~120/200~230/240VAC (50/60Hz) or 12/24/48/125/100~110VDC. Socket mounting (H3Y-2/4) and PCB terminal (H3Y-2-0/4-0) variants.

4 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
H3Y-2 DPDT, 0.04s~3h, socket mounting (PYFZ-08), 24/100~120/200~230/240VAC or 12/24/48/125/100~110VDC OMRON Type: Solid-state Timer | Contact: DPDT (for power switching) | Time Range: 0.04s to 3h | Mounting: Surface/DIN-track with socket (PYFZ-08, 8-pin) | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 240VAC (50/60Hz) / 12VDC / 24VDC / 48VDC / 125VDC / 100~110VDC
H3Y-4 4PDT, 0.04s~3h, socket mounting (PYFZ-14), 24/100~120/200~230/240VAC or 12/24/48/125/100~110VDC OMRON Type: Solid-state Timer | Contact: 4PDT (micro load) | Time Range: 0.04s to 3h | Mounting: Surface/DIN-track with socket (PYFZ-14, 14-pin) | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 240VAC (50/60Hz) / 12VDC / 24VDC / 48VDC / 125VDC / 100~110VDC
H3Y-2-0 DPDT, 0.04s~3h, PCB terminal, 24/100~120/200~230/240VAC or 12/24/48/125/100~110VDC OMRON Type: Solid-state Timer | Contact: DPDT (for power switching) | Time Range: 0.04s to 3h | Mounting: Surface with PCB terminals | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 240VAC (50/60Hz) / 12VDC / 24VDC / 48VDC / 125VDC / 100~110VDC
H3Y-4-0 4PDT, 0.04s~3h, PCB terminal, 24/100~120/200~230/240VAC or 12/24/48/125/100~110VDC OMRON Type: Solid-state Timer | Contact: 4PDT (micro load) | Time Range: 0.04s to 3h | Mounting: Surface with PCB terminals | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 240VAC (50/60Hz) / 12VDC / 24VDC / 48VDC / 125VDC / 100~110VDC
