Timer
Omron

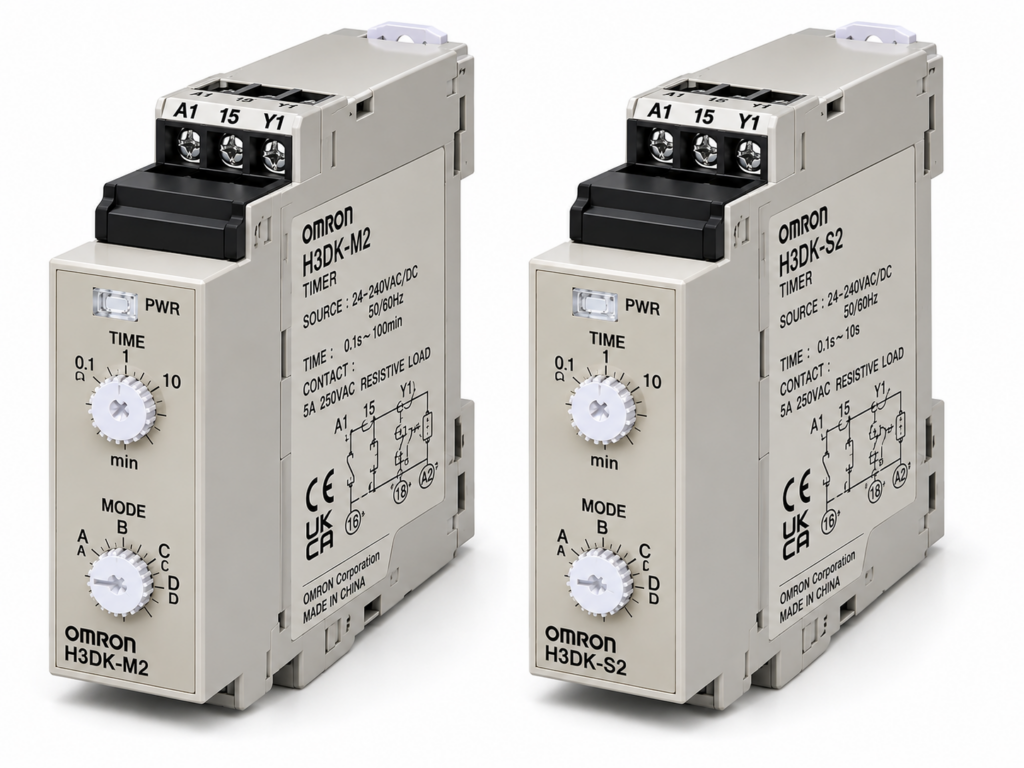

[OMRON] — H3DK-M/S Multi-range Multi-mode Timer (22.5mm DIN Track, 8-mode/4-mode, DPDT/SPDT, 12VDC or 24~240VAC/DC)
Family ID: OMRON-H3DK
DIN Track-mounted, 22.5mm-width Standard Timer Series. H3DK-M: 8-mode timer (A/B/B2/C/D/E/G/J). H3DK-S: 4-mode timer (A/B2/E/J). DPDT and SPDT relay output variants. Supply voltage: 24~240VAC/DC (standard) or 12VDC (A-suffix models).
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H3DK-M2 | Eight-mode Timer, DPDT, 24~240VAC/DC, 9 terminals | OMRON | Type: Eight-mode Timer | Modes: A/B/B2/C/D/E/G/J | Output: Relay DPDT | Terminals: 9 | Input: Voltage | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track 22.5mm | ||
| H3DK-M1 | Eight-mode Timer, SPDT, 24~240VAC/DC | OMRON | Type: Eight-mode Timer | Modes: A/B/B2/C/D/E/G/J | Output: Relay SPDT | Input: Voltage | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track 22.5mm | ||
| H3DK-M2A | Eight-mode Timer, DPDT, 12VDC, 9 terminals | OMRON | Type: Eight-mode Timer | Modes: A/B/B2/C/D/E/G/J | Output: Relay DPDT | Terminals: 9 | Input: Voltage | Supply Voltage: 12VDC | Mounting: DIN Track 22.5mm | ||
| H3DK-M1A | Eight-mode Timer, SPDT, 12VDC | OMRON | Type: Eight-mode Timer | Modes: A/B/B2/C/D/E/G/J | Output: Relay SPDT | Input: Voltage | Supply Voltage: 12VDC | Mounting: DIN Track 22.5mm | ||
| H3DK-S2 | Four-mode Timer, DPDT, 24~240VAC/DC | OMRON | Type: Four-mode Timer | Modes: A/B2/E/J | Output: Relay DPDT | Input: Voltage | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track 22.5mm | ||
| H3DK-S1 | Four-mode Timer, SPDT, 24~240VAC/DC, 6 terminals | OMRON | Type: Four-mode Timer | Modes: A/B2/E/J | Output: Relay SPDT | Terminals: 6 | Input: Voltage | Supply Voltage: 24~240VAC/DC | Mounting: DIN Track 22.5mm | ||
| H3DK-S2A | Four-mode Timer, DPDT, 12VDC | OMRON | Type: Four-mode Timer | Modes: A/B2/E/J | Output: Relay DPDT | Input: Voltage | Supply Voltage: 12VDC | Mounting: DIN Track 22.5mm | ||
| H3DK-S1A | Four-mode Timer, SPDT, 12VDC, 6 terminals | OMRON | Type: Four-mode Timer | Modes: A/B2/E/J | Output: Relay SPDT | Terminals: 6 | Input: Voltage | Supply Voltage: 12VDC | Mounting: DIN Track 22.5mm |
