Timer
Omron

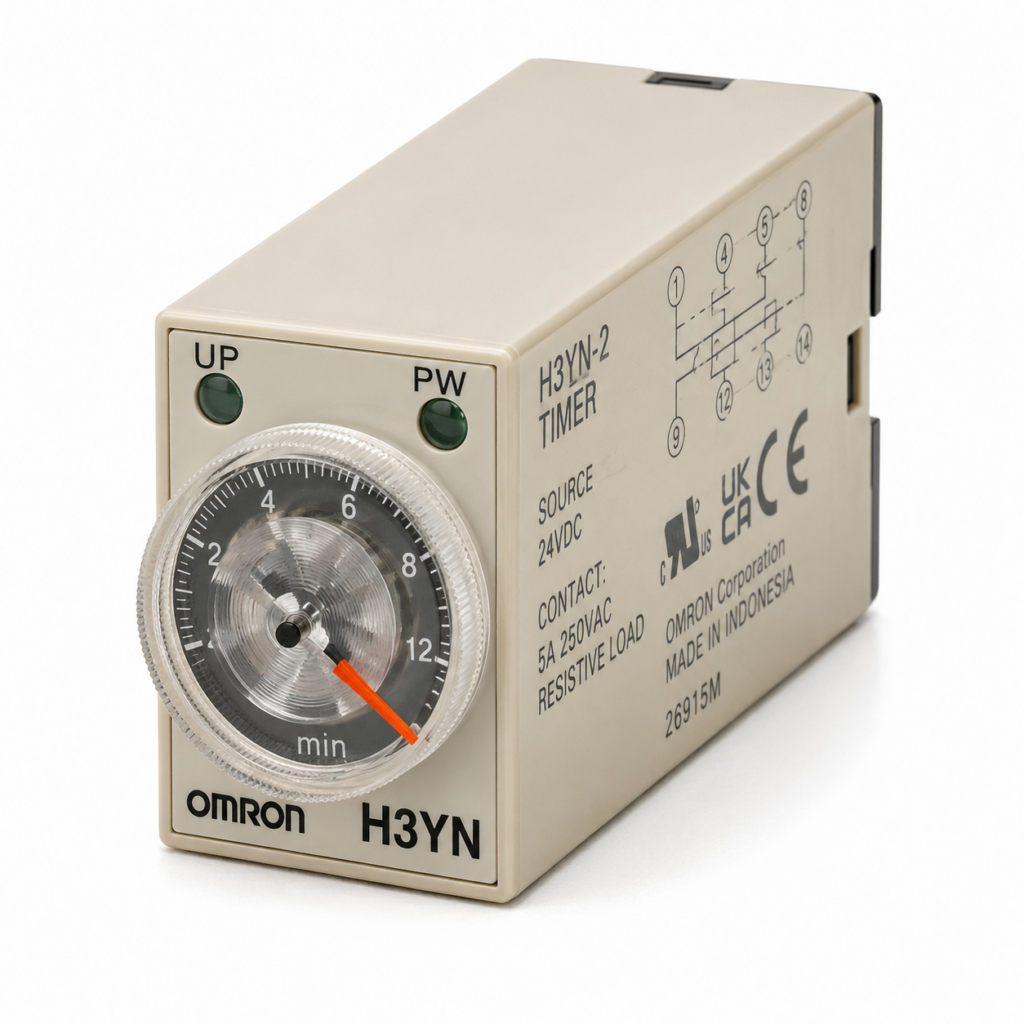

[OMRON] — H3YN Solid-state Timer (Miniature, Multi-range Multi-mode, DPDT/4PDT, Socket Mounting)
Family ID: OMRON-H3YN
Miniature Timer with Multiple Time Ranges and Multiple Operating Modes. Short-time range: 0.1s~10min. Long-time range: 0.1min~10h. Supply voltage: 24/100~120/200~230VAC or 12/24/48/100~110/125VDC. Socket sold separately (PYFZ-08 for DPDT / PYFZ-14 for 4PDT).
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| H3YN-2 | DPDT, Short-range (0.1s~10min), 24/100~120/200~230VAC or 12/24/48/100~110/125VDC, 8-pin | OMRON | Type: Solid-state Timer | Contact: DPDT | Time Range: Short (0.1s to 10min) | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 12VDC / 24VDC / 48VDC / 100~110VDC / 125VDC | Socket: PYFZ-08 (8-pin) | ||
| H3YN-21 | DPDT, Long-range (0.1min~10h), 24/100~120/200~230VAC or 12/24/48/100~110/125VDC, 8-pin | OMRON | Type: Solid-state Timer | Contact: DPDT | Time Range: Long (0.1min to 10h) | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 12VDC / 24VDC / 48VDC / 100~110VDC / 125VDC | Socket: PYFZ-08 (8-pin) | ||
| H3YN-4 | 4PDT, Short-range (0.1s~10min), 24/100~120/200~230VAC or 12/24/48/100~110/125VDC, 14-pin | OMRON | Type: Solid-state Timer | Contact: 4PDT (micro load) | Time Range: Short (0.1s to 10min) | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 12VDC / 24VDC / 48VDC / 100~110VDC / 125VDC | Socket: PYFZ-14 (14-pin) | ||
| H3YN-41 | 4PDT, Long-range (0.1min~10h), 24/100~120/200~230VAC or 12/24/48/100~110/125VDC, 14-pin | OMRON | Type: Solid-state Timer | Contact: 4PDT (micro load) | Time Range: Long (0.1min to 10h) | Supply Voltage: 24VAC / 100~120VAC / 200~230VAC / 12VDC / 24VDC / 48VDC / 100~110VDC / 125VDC | Socket: PYFZ-14 (14-pin) | ||
| H3YN-4-Z | 4PDT Twin contacts, Short-range (0.1s~10min), 24VDC only, 14-pin | OMRON | Type: Solid-state Timer | Contact: 4PDT Twin contacts (ultra-micro load) | Time Range: Short (0.1s to 10min) | Supply Voltage: 24VDC only | Socket: PYFZ-14 (14-pin) | ||
| H3YN-41-Z | 4PDT Twin contacts, Long-range (0.1min~10h), 24VDC only, 14-pin | OMRON | Type: Solid-state Timer | Contact: 4PDT Twin contacts (ultra-micro load) | Time Range: Long (0.1min to 10h) | Supply Voltage: 24VDC only | Socket: PYFZ-14 (14-pin) |
