![[THK] — BIF3205V-5 Ball Screw Nut Unit (Small, Shaft φ32, Lead 5mm)](https://img.prosourcemro.com/2026/05/001-835-1024x754.png)
Ball Screws
THK

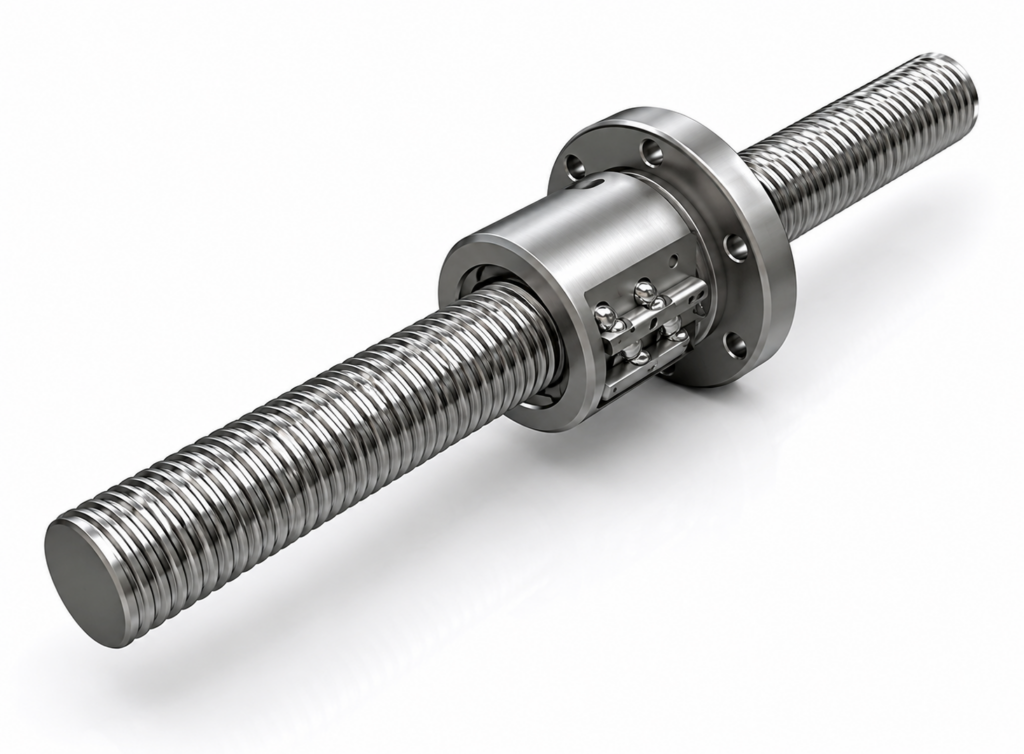

[THK] — BIF3205V-5 Ball Screw Nut Unit (Small, Shaft φ32, Lead 5mm)
Family ID: THK-BIF3205V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded). Shaft diameter φ32mm, lead 5mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 100,000. Flanged nut, basic dynamic load rating Ca=10.2kN, static C0a=28.1kN, rigidity K=570N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF3205V-5+930 | THK BIF3205V-5, φ32 Lead5, L=930mm | THK | Shaft Diameter: φ32mm | Lead: 5mm | Shaft Total Length L: 930mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 10.2kN | C0a: 28.1kN | K: 570N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3205V-5+1430 | THK BIF3205V-5, φ32 Lead5, L=1430mm | THK | Shaft Diameter: φ32mm | Lead: 5mm | Shaft Total Length L: 1430mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 10.2kN | C0a: 28.1kN | K: 570N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF3205V-5+1830 | THK BIF3205V-5, φ32 Lead5, L=1830mm | THK | Shaft Diameter: φ32mm | Lead: 5mm | Shaft Total Length L: 1830mm | Nut Length L1: 56mm | Ball Circuit: 1×2.5 | Ca: 10.2kN | C0a: 28.1kN | K: 570N/μm | Nut OD D: 58mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End |
