LM Guides
THK

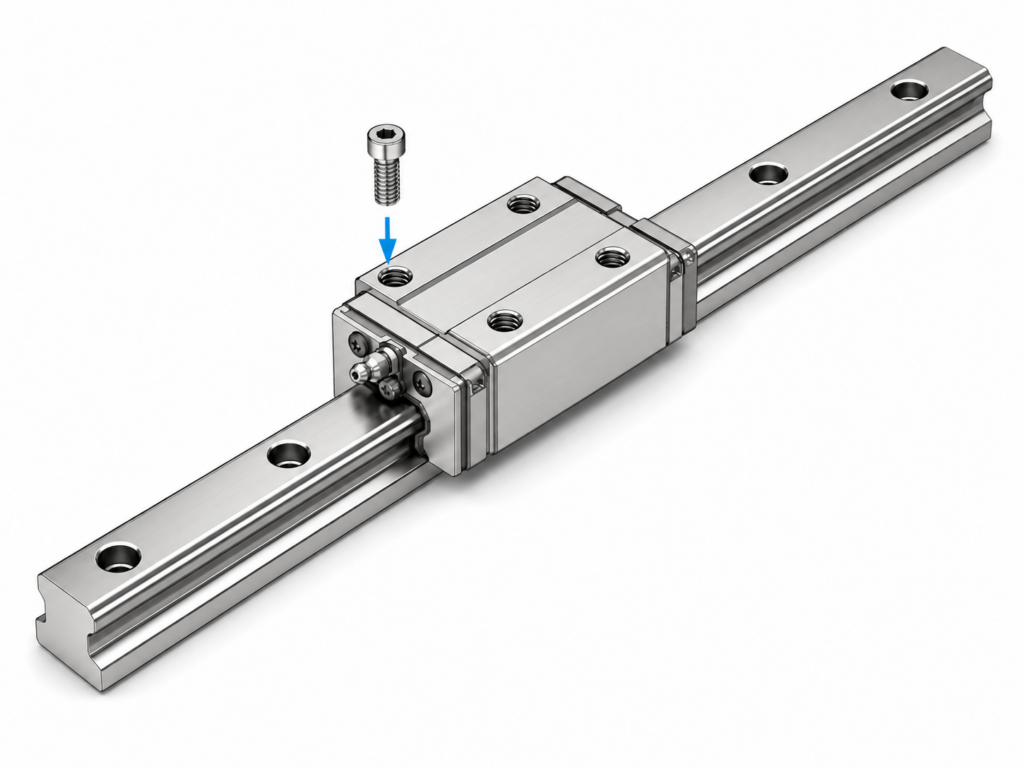

[THK] — HSR-M1-R/LR High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)
Family ID: THK-HSR-M1-R
High temperature type HSR LM Guide. Narrow block width (R type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR-15M1R | HSR 15M1R LM Block H28×W34×L59.6mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 15M1R | Height M: 28 mm | Width W: 34 mm | Length L: 59.6 mm | Max Rail Length: 1240 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-20M1R | HSR 20M1R LM Block H30×W44×L76mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1R | Height M: 30 mm | Width W: 44 mm | Length L: 76 mm | Max Rail Length: 1480 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-20M1LR | HSR 20M1LR LM Block H30×W44×L92mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1LR | Height M: 30 mm | Width W: 44 mm | Length L: 92 mm | Max Rail Length: 1480 mm | Dynamic Load C: 23.9 kN | Static Load C0: 35.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-25M1R | HSR 25M1R LM Block H40×W48×L83.9mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1R | Height M: 40 mm | Width W: 48 mm | Length L: 83.9 mm | Max Rail Length: 1500 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-25M1LR | HSR 25M1LR LM Block H40×W48×L103mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1LR | Height M: 40 mm | Width W: 48 mm | Length L: 103 mm | Max Rail Length: 1500 mm | Dynamic Load C: 35.2 kN | Static Load C0: 51.6 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-30M1R | HSR 30M1R LM Block H45×W60×L98.8mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1R | Height M: 45 mm | Width W: 60 mm | Length L: 98.8 mm | Max Rail Length: 1500 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-30M1LR | HSR 30M1LR LM Block H45×W60×L121.4mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1LR | Height M: 45 mm | Width W: 60 mm | Length L: 121.4 mm | Max Rail Length: 1500 mm | Dynamic Load C: 48.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-35M1R | HSR 35M1R LM Block H55×W70×L112mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1R | Height M: 55 mm | Width W: 70 mm | Length L: 112 mm | Max Rail Length: 1500 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| HSR-35M1LR | HSR 35M1LR LM Block H55×W70×L137.4mm | THK | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1LR | Height M: 55 mm | Width W: 70 mm | Length L: 137.4 mm | Max Rail Length: 1500 mm | Dynamic Load C: 65 kN | Static Load C0: 91.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK |
