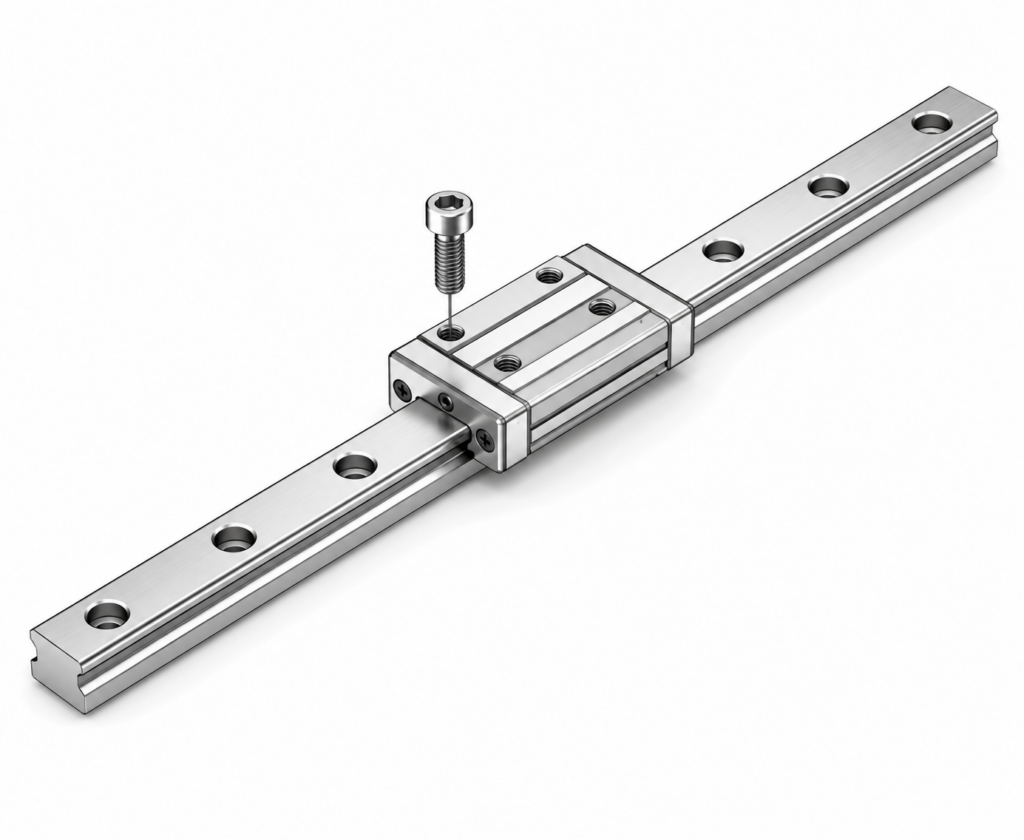

[THK] — GSR-T Separable LM Guide Block (Radial, Low Profile, Tapped)
Family ID: THK-GSR-T
Separable radial type LM Guide. Standard tapped type. Low profile structure for compact machine design. Ball contact angle designed for all load directions — suitable for inverse radial, lateral and moment loads. Note: Cannot be used as single-axis guide.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GSR-15T | GSR 15T LM Block H20×W32×L59.8mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 15T | Height M: 20 mm | Width W: 32 mm | Length L: 59.8 mm | Max Rail Length: 2000 mm | Dynamic Load C: 8.42 kN | Static Load C0: 9.77 kN | Structure: Separable Radial | Profile: Low | Mount: Tapped | Brand: THK | ||
| GSR-20T | GSR 20T LM Block H24×W43×L74mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 20T | Height M: 24 mm | Width W: 43 mm | Length L: 74 mm | Max Rail Length: 3000 mm | Dynamic Load C: 13.6 kN | Static Load C0: 15.3 kN | Structure: Separable Radial | Profile: Low | Mount: Tapped | Brand: THK | ||
| GSR-25T | GSR 25T LM Block H30×W50×L88mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 25T | Height M: 30 mm | Width W: 50 mm | Length L: 88 mm | Max Rail Length: 3000 mm | Dynamic Load C: 20 kN | Static Load C0: 22 kN | Structure: Separable Radial | Profile: Low | Mount: Tapped | Brand: THK | ||
| GSR-30T | GSR 30T LM Block H33×W57×L103mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 30T | Height M: 33 mm | Width W: 57 mm | Length L: 103 mm | Max Rail Length: 3000 mm | Dynamic Load C: 27.8 kN | Static Load C0: 29.9 kN | Structure: Separable Radial | Profile: Low | Mount: Tapped | Brand: THK | ||
| GSR-35T | GSR 35T LM Block H38×W68×L117mm | THK | Type: Separable LM Guide Block | Series: GSR | Model: GSR 35T | Height M: 38 mm | Width W: 68 mm | Length L: 117 mm | Max Rail Length: 3000 mm | Dynamic Load C: 37 kN | Static Load C0: 39.1 kN | Structure: Separable Radial | Profile: Low | Mount: Tapped | Brand: THK |
