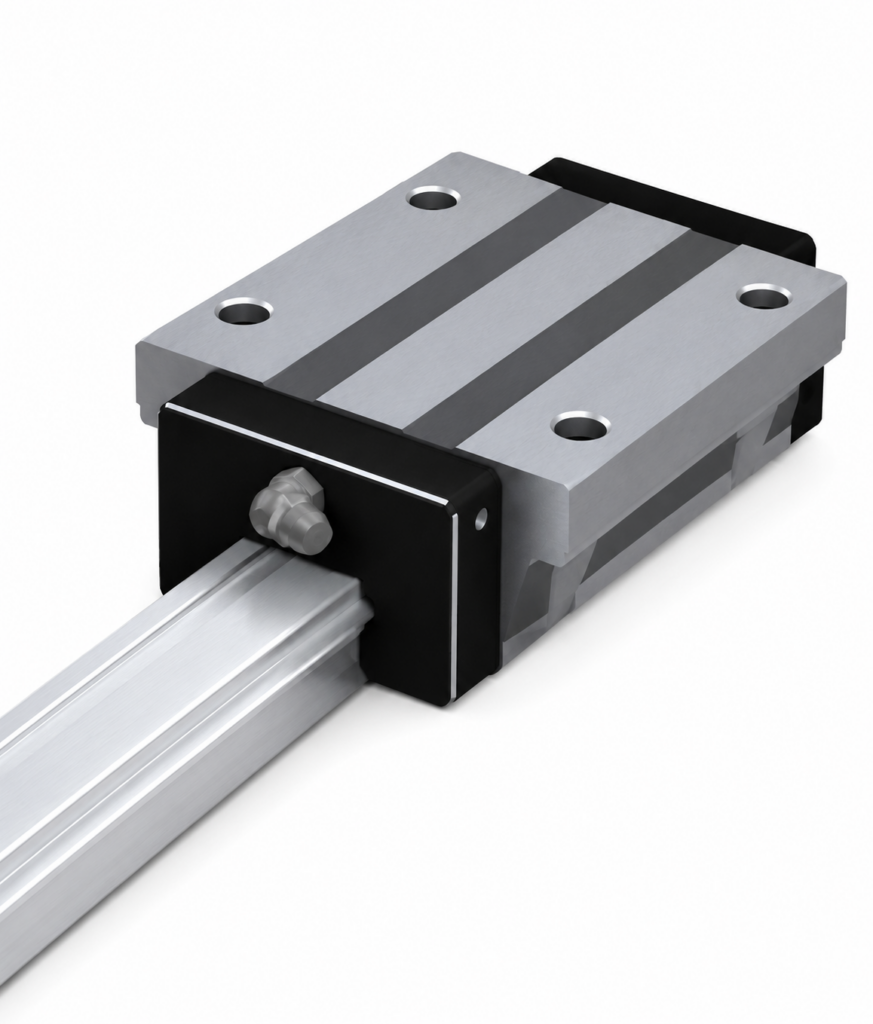

[THK] — HSR-XSCM/XCM/XLCM Miniature LM Guide Block (Full Ball, Flange, Stainless)
Family ID: THK-HSR-XCM
Miniature Full ball type LM Guide. HSR miniature series — stainless steel rail, block and balls. Flange type (C type). Short/Standard/Long block lengths available. 4-direction equal load, 4-row high rigidity. THK Circular Arc groove (DF structure).
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| HSR8XSCM | HSR8XSCM LM Block H10×W24×L18mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR8XSCM | Height M: 10 mm | Width W: 24 mm | Length L: 18 mm | Max Rail Length: 3000 mm | Dynamic Load C: 0.85 kN | Static Load C0: 1.24 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR8XCM | HSR8XCM LM Block H10×W24×L24mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR8XCM | Height M: 10 mm | Width W: 24 mm | Length L: 24 mm | Max Rail Length: 3000 mm | Dynamic Load C: 1.2 kN | Static Load C0: 2.02 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR8XLCM | HSR8XLCM LM Block H10×W24×L30.5mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR8XLCM | Height M: 10 mm | Width W: 24 mm | Length L: 30.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 1.5 kN | Static Load C0: 2.8 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR10XSCM | HSR10XSCM LM Block H12×W30×L24mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR10XSCM | Height M: 12 mm | Width W: 30 mm | Length L: 24 mm | Max Rail Length: 3000 mm | Dynamic Load C: 1.54 kN | Static Load C0: 2.18 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR10XCM | HSR10XCM LM Block H12×W30×L31mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR10XCM | Height M: 12 mm | Width W: 30 mm | Length L: 31 mm | Max Rail Length: 3000 mm | Dynamic Load C: 2.16 kN | Static Load C0: 3.54 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR10XLCM | HSR10XLCM LM Block H12×W30×L40mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR10XLCM | Height M: 12 mm | Width W: 30 mm | Length L: 40 mm | Max Rail Length: 3000 mm | Dynamic Load C: 2.72 kN | Static Load C0: 4.9 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR12XSCM | HSR12XSCM LM Block H19×W40×L34mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR12XSCM | Height M: 19 mm | Width W: 40 mm | Length L: 34 mm | Max Rail Length: 3000 mm | Dynamic Load C: 3.95 kN | Static Load C0: 5.39 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR12XCM | HSR12XCM LM Block H19×W40×L45mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR12XCM | Height M: 19 mm | Width W: 40 mm | Length L: 45 mm | Max Rail Length: 3000 mm | Dynamic Load C: 5.54 kN | Static Load C0: 8.75 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK | ||
| HSR12XLCM | HSR12XLCM LM Block H19×W40×L58mm | THK | Type: Miniature LM Guide Block | Series: HSR | Model: HSR12XLCM | Height M: 19 mm | Width W: 40 mm | Length L: 58 mm | Max Rail Length: 3000 mm | Dynamic Load C: 6.96 kN | Static Load C0: 12.1 kN | Material: Stainless Steel | Structure: Full Ball DF | Mount: Flange (C type) | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK |
