![[THK] — SR-M1-W/V High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)](https://img.prosourcemro.com/2026/05/001-786-1024x765.png)
LM Guides
THK

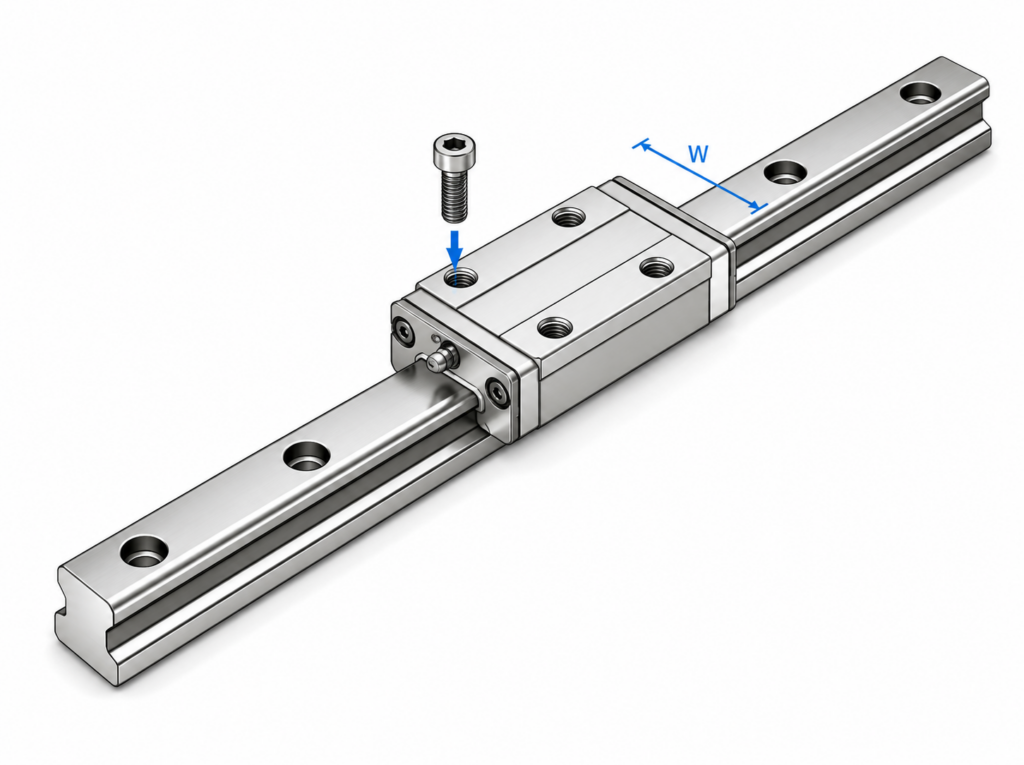

[THK] — SR-M1-W/V High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)
Family ID: THK-SR-M1-W
High temperature type SR LM Guide. Narrow block width (W/V type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SR-15M1V | SR 15M1V LM Block H24×W34×L40.4mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 15M1V | Height M: 24 mm | Width W: 34 mm | Length L: 40.4 mm | Max Rail Length: 1240 mm | Dynamic Load C: 9.1 kN | Static Load C0: 11.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-15M1W | SR 15M1W LM Block H24×W34×L57mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 15M1W | Height M: 24 mm | Width W: 34 mm | Length L: 57 mm | Max Rail Length: 1240 mm | Dynamic Load C: 13.8 kN | Static Load C0: 20.5 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-20M1V | SR 20M1V LM Block H28×W42×L47.3mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 20M1V | Height M: 28 mm | Width W: 42 mm | Length L: 47.3 mm | Max Rail Length: 1500 mm | Dynamic Load C: 13.4 kN | Static Load C0: 17.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-20M1W | SR 20M1W LM Block H28×W42×L66.2mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 20M1W | Height M: 28 mm | Width W: 42 mm | Length L: 66.2 mm | Max Rail Length: 1500 mm | Dynamic Load C: 19.2 kN | Static Load C0: 28.6 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-25M1V | SR 25M1V LM Block H33×W48×L59.2mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 25M1V | Height M: 33 mm | Width W: 48 mm | Length L: 59.2 mm | Max Rail Length: 1500 mm | Dynamic Load C: 21.6 kN | Static Load C0: 26.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-25M1W | SR 25M1W LM Block H33×W48×L83mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 25M1W | Height M: 33 mm | Width W: 48 mm | Length L: 83 mm | Max Rail Length: 1500 mm | Dynamic Load C: 30.9 kN | Static Load C0: 44.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-30M1V | SR 30M1V LM Block H42×W60×L67.9mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 30M1V | Height M: 42 mm | Width W: 60 mm | Length L: 67.9 mm | Max Rail Length: 1500 mm | Dynamic Load C: 29.5 kN | Static Load C0: 34.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-30M1W | SR 30M1W LM Block H42×W60×L96.8mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 30M1W | Height M: 42 mm | Width W: 60 mm | Length L: 96.8 mm | Max Rail Length: 1500 mm | Dynamic Load C: 45.6 kN | Static Load C0: 64.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-35M1V | SR 35M1V LM Block H48×W70×L77.6mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 35M1V | Height M: 48 mm | Width W: 70 mm | Length L: 77.6 mm | Max Rail Length: 1500 mm | Dynamic Load C: 40.9 kN | Static Load C0: 46.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK | ||
| SR-35M1W | SR 35M1W LM Block H48×W70×L111mm | THK | Type: High Temperature LM Guide Block | Series: SR-M1 | Model: SR 35M1W | Height M: 48 mm | Width W: 70 mm | Length L: 111 mm | Max Rail Length: 1500 mm | Dynamic Load C: 60.4 kN | Static Load C0: 81.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK |
