[THK] — HSR-85A/85LA LM Guide Block (Full Ball, Flange, High Rigidity 4-Row)
LM Guides THK

[THK] — HSR-85A/85LA LM Guide Block (Full Ball, Flange, High Rigidity 4-Row)

Family ID: THK-HSR-85A

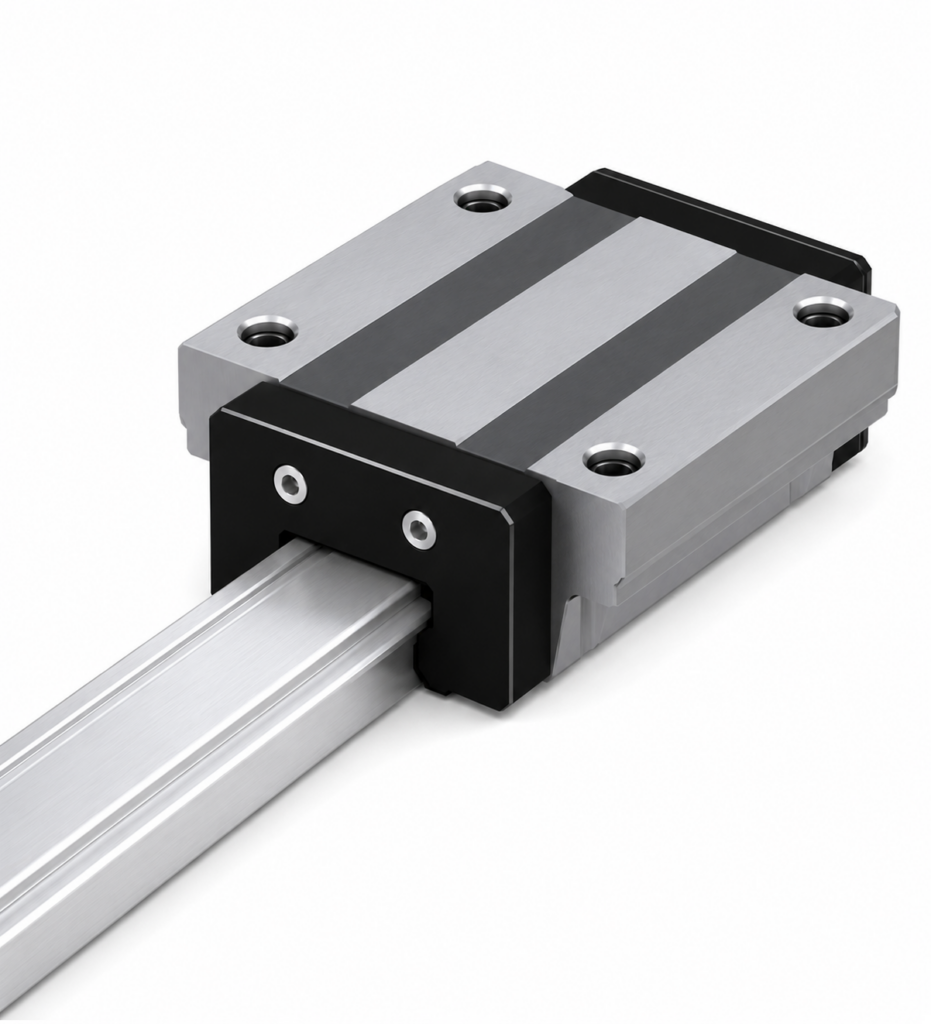

Full ball type LM Guide. World standard dimensions. Flange type with tapped holes. 4-row configuration for high rigidity — sufficient preload applicable in all 4 directions. THK Circular Arc groove (DF structure).

2 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
HSR-85A HSR 85A LM Block H110×W215×L245.6mm THK Type: LM Guide Block | Series: HSR | Model: HSR 85A | Height M: 110 mm | Width W: 215 mm | Length L: 245.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 304 kN | Static Load C0: 355 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK
HSR-85LA HSR 85LA LM Block H110×W215×L303mm THK Type: LM Guide Block | Series: HSR | Model: HSR 85LA | Height M: 110 mm | Width W: 215 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 367 kN | Static Load C0: 464 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK
