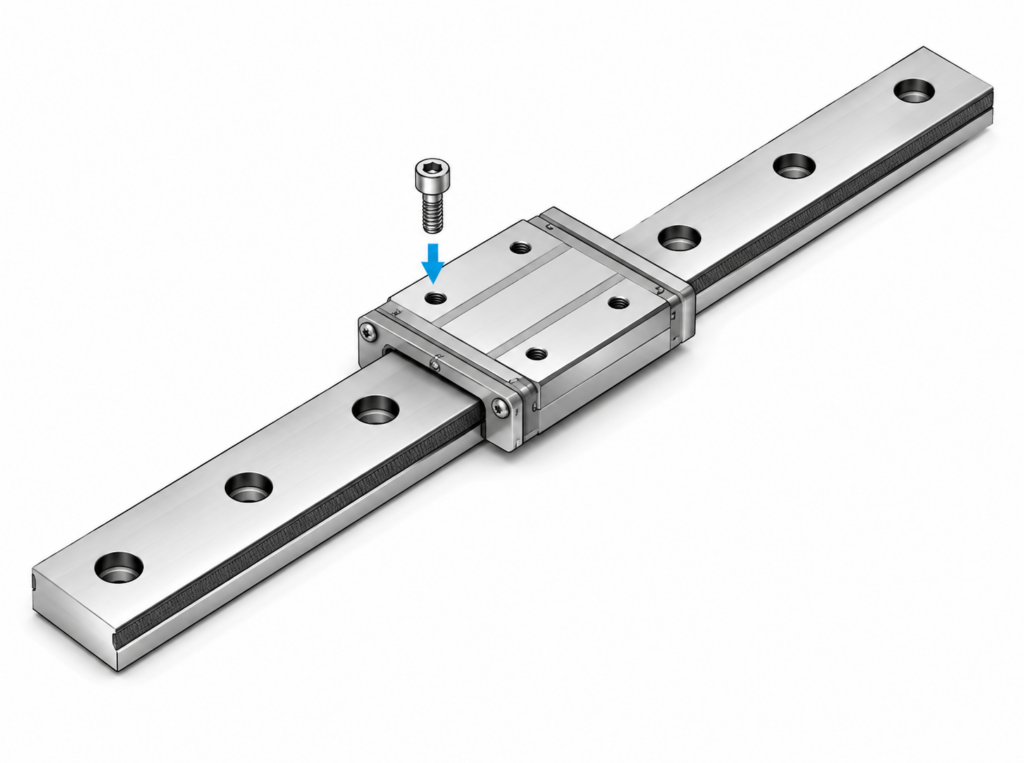

[THK] — RSX-M1W/M1WN High Temperature LM Guide Block (Wide Block, Stainless, 150°C)
Family ID: THK-RSX-M1W
High temperature type RSX LM Guide. Wide block width (W type) with tapped holes. Stainless end plate and high-temp rubber end seal — max 150°C operating temperature. Stainless block, rail and balls — ideal for clean rooms.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| RSX9-M1W | RSX9 M1W LM Block H12×W30×L39mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1W | Height M: 12 mm | Width W: 30 mm | Length L: 39 mm | Max Rail Length: 1430 mm | Dynamic Load C: 2.8 kN | Static Load C0: 4.28 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | Note: C0 corrected from source typo (42.8→4.28) | ||
| RSX9-M1WN | RSX9 M1WN LM Block H12×W30×L50.7mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX9 M1WN | Height M: 12 mm | Width W: 30 mm | Length L: 50.7 mm | Max Rail Length: 1430 mm | Dynamic Load C: 3.48 kN | Static Load C0: 5.81 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | ||
| RSX12-M1W | RSX12 M1W LM Block H14×W40×L44.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1W | Height M: 14 mm | Width W: 40 mm | Length L: 44.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 4.46 kN | Static Load C0: 6.31 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | ||
| RSX12-M1WN | RSX12 M1WN LM Block H14×W40×L59.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX12 M1WN | Height M: 14 mm | Width W: 40 mm | Length L: 59.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.93 kN | Static Load C0: 9.46 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK | ||
| RSX15-M1W | RSX15 M1W LM Block H16×W60×L55.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1W | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 7.43 kN | Static Load C0: 10.1 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Standard | Application: High-temp / Clean room | Brand: THK | ||
| RSX15-M1WN | RSX15 M1WN LM Block H16×W60×L74.5mm | THK | Type: High Temperature LM Guide Block | Series: RSX-M1 | Model: RSX15 M1WN | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.87 kN | Static Load C0: 15.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Structure: Wire Retainer | Block Width: Wide | Block Length: Long (N type) | Application: High-temp / Clean room | Brand: THK |
