Linear Bushings
THK

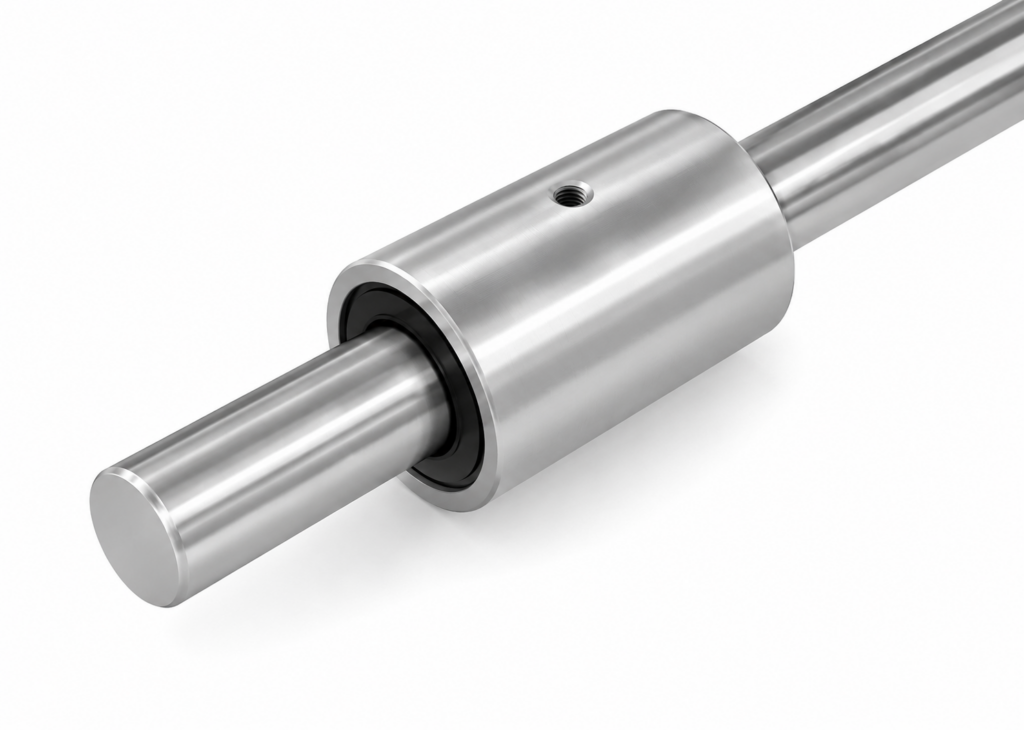

[THK] — LG Guide Ball Bush Shaft (LG4, LG6, LG8)
Family ID: THK-LG-SHAFT
Guide Ball Bush shaft for LG-type nut. Material: SUJ2, hardness 55~63HRC. Set-free — can be ordered independently from nut. Standard lengths: 100~250mm depending on diameter. Custom lengths available on request.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LG4 | THK Guide Ball Bush shaft LG4, φ4mm, max 150mm | THK | Shaft Dia.: D0=4mm (h7) | Max Length: 150mm | Standard Lengths: 100, 150mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L) | ||
| LG6 | THK Guide Ball Bush shaft LG6, φ6mm, max 200mm | THK | Shaft Dia.: D0=6mm (h7) | Max Length: 200mm | Standard Lengths: 100, 150, 200mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L) | ||
| LG8 | THK Guide Ball Bush shaft LG8, φ8mm, max 250mm | THK | Shaft Dia.: D0=8mm (h7) | Max Length: 250mm | Standard Lengths: 100, 150, 200, 250mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L) |
