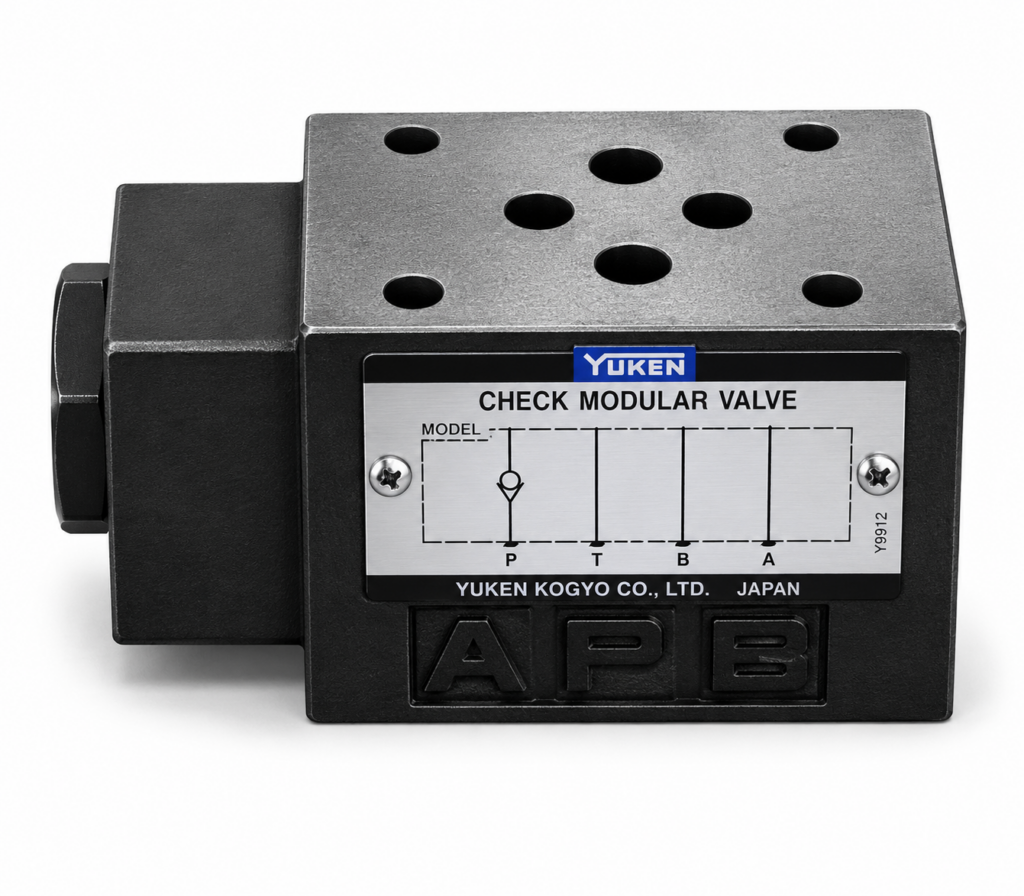

Yuken — 01 Series Throttle & Check Modular Valve (Sandwich Type)
Family ID: YUK-FMOD-01-THRCHK
01 Series Modular Valves — Throttle & Check. Sandwich/stack mounting. Detailed specifications by inquiry.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MSA-01-X-70 | Throttle-and-check modular valve 01, A-line, meter-out | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line, meter-out) | Control Code: X | ||
| MSA-01-Y-70 | Throttle-and-check modular valve 01, A-line, meter-in | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line, meter-in) | Control Code: Y | ||
| MSB-01-X-70 | Throttle-and-check modular valve 01, B-line, meter-out | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line, meter-out) | Control Code: X | ||
| MSB-01-Y-70 | Throttle-and-check modular valve 01, B-line, meter-in | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line, meter-in) | Control Code: Y | ||
| MSW-01-X-70 | Throttle-and-check modular valve 01, A & B line, meter-out | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A & B line, meter-out) | Control Code: X | ||
| MSW-01-Y-70 | Throttle-and-check modular valve 01, A & B line, meter-in | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A & B line, meter-in) | Control Code: Y | ||
| MSW-01-XY-70 | Throttle-and-check modular valve 01, A&B, A:meter-out B:meter-in | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A&B, X/Y) | Control Code: XY | ||
| MSW-01-YX-70 | Throttle-and-check modular valve 01, A&B, A:meter-in B:meter-out | Yuken | Series: 01 Modular (1/8) | Max Pressure: 35 MPa | Max Flow: per module - RFQ | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A&B, Y/X) | Control Code: YX |
