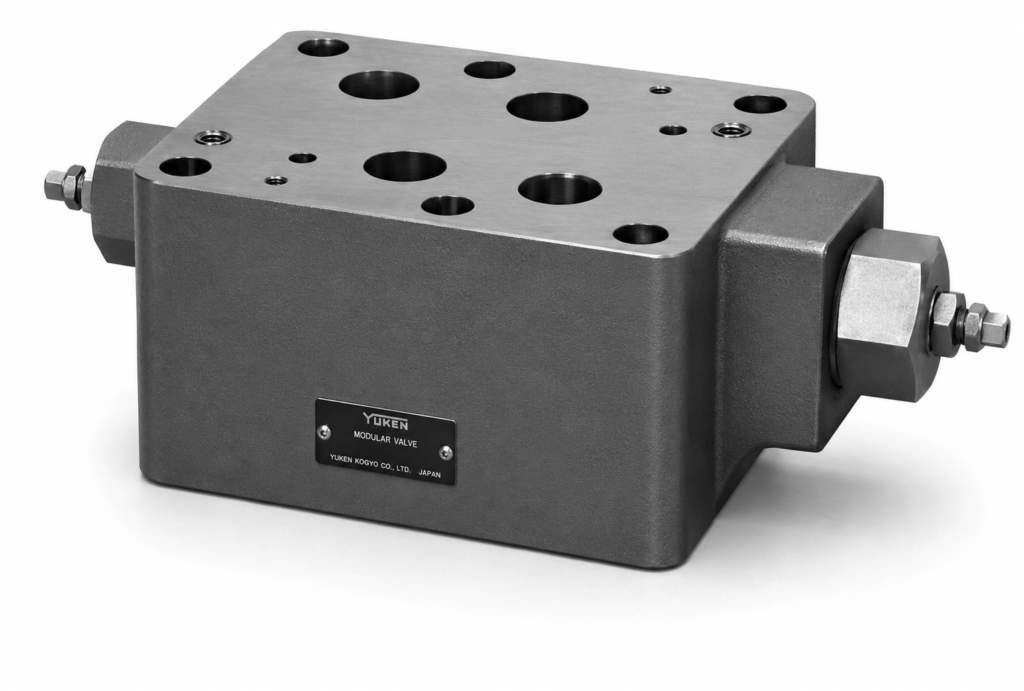

Yuken — 10 Series Throttle & Check Modular Valve (Sandwich Type)
Family ID: YUK-FMOD-10-THRCHK
10 (1¼) Series Throttle and Check Modular Valves. Sandwich/stack mounting (ISO 4401). A/B/A·B-line, meter-out (X) / meter-in (Y). Max 25 MPa / 800 L/min.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MSA-10-X-30 | Throttle & check modular valve, A-line, meter-out | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MSA-10-Y-30 | Throttle & check modular valve, A-line, meter-in | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MSB-10-X-30 | Throttle & check modular valve, B-line, meter-out | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MSB-10-Y-30 | Throttle & check modular valve, B-line, meter-in | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (B-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MSW-10-X-30 | Throttle & check modular valve, A·B-line, meter-out | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A·B-line) | Metering: X: meter-out | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min | ||
| MSW-10-Y-30 | Throttle & check modular valve, A·B-line, meter-in | Yuken | Series: 10 (1¼) Modular | Mounting: Sandwich/stack (ISO 4401) | Function: Throttle & check (A·B-line) | Metering: Y: meter-in | Throttle Adjustment: screw (continuous) | Max Pressure: 25 MPa | Max Flow: 800 L/min |
