![[Yuken] — AMN-D-10 Compact Power Amplifier for 10Ω Series Proportional Control Valves](https://prosourcemro.com/wp-content/uploads/2026/05/002-139-1024x803.png)

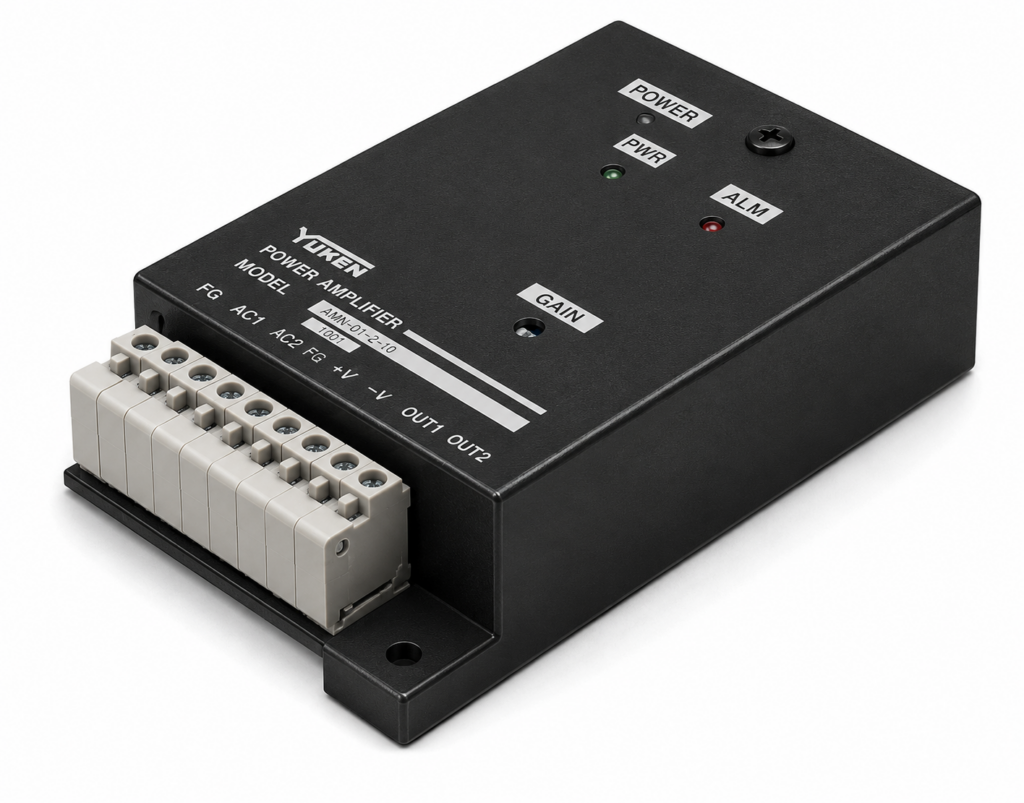

[Yuken] — AMN-D-10 Compact Power Amplifier for 10Ω Series Proportional Control Valves
Family ID: YK-AMN-D-10
Yuken compact DC24V power amplifier for 10Ω proportional solenoid valves. A newly designed circuit gives lower heat generation than earlier models in a small package. Drives the 10Ω-series proportional electro-hydraulic control valves (EDG pilot relief, EBG relief, ERBG relieving/reducing, EFG/EFCG flow control [design 51], EFBG power-saving). Max output current 1 A (10Ω solenoid), max command input DC +10 V, input impedance 10 kΩ, max gain 1 A/5 V, internal variable dither, temperature drift 0.2 mA/°C. Supply DC24V (20–30 V incl. ripple), 25 W. No power switch (operates as soon as powered — fit an external switch). External setter potentiometer 1 kΩ. Mass 0.2 kg.
1 product code available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AMN-D-10 | Yuken AMN-D-10 compact DC24V power amplifier for 10ohm proportional control valves | Yuken | Type: Compact power amplifier for 10Ω proportional control valves | Brand: Yuken | Model: AMN-D-10 | Function: DC input type | Power Supply: DC 24 V (20–30 V incl. ripple) | Max Output Current: 1 A (10Ω solenoid) | Max Command Input: DC +10 V | Input Impedance: 10 kΩ | Max Gain: 1 A / 5 V | Dither: Internal, variable | Temp Drift: 0.2 mA/°C | Power Consumption: 25 W | Power Switch: None (fit external switch) | External Setter: 1 kΩ potentiometer | Mass: 0.2 kg | Dimensions: 60 × 100 × 30 mm | Drives: 10Ω valves (EDG/EBG/ERBG/EFG/EFCG[51]/EFBG) | Design No.: 10 |
