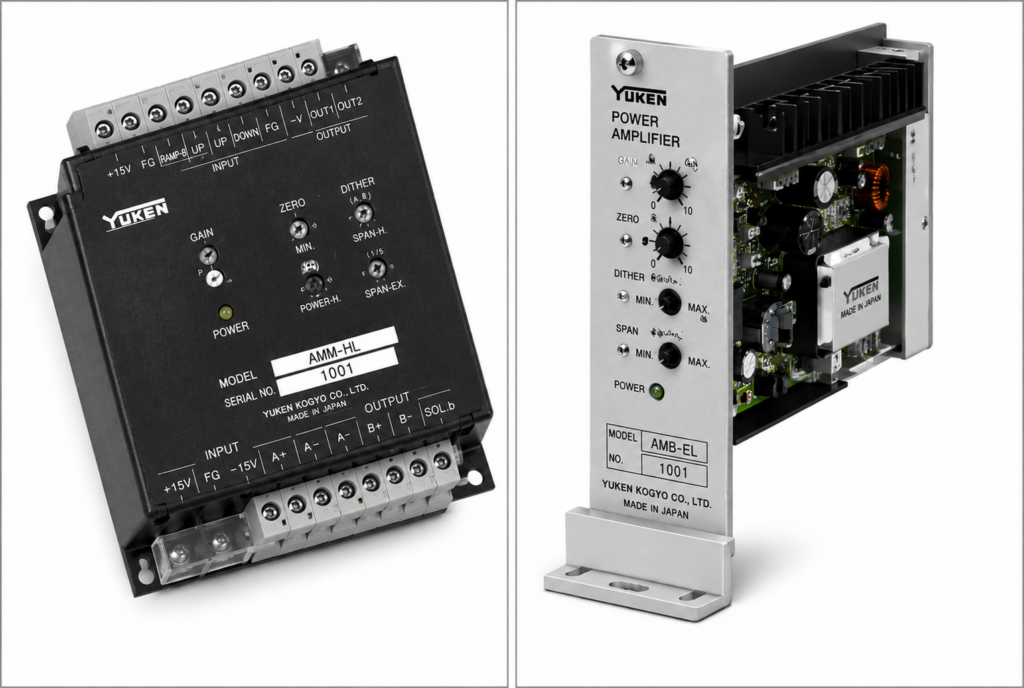

[Yuken] — AMN-L Compact High-Response Power Amplifier (for ELDFG-01)
Family ID: YK-AMN-L-01
High Response Type Power Amplifiers For Directional and Flow Control Valves. AMN-L is the compact minor-feedback DC-input amplifier for the high-response direct-operated directional & flow control valve ELDFG-01. Max output current 2.5 A (3.9Ω solenoid), command input ±10 V (P→B→A→T / P→A→B→T), input impedance ≥10 kΩ, variable dither, slope 0.03–5 s, spool-displacement monitor ±1.5 V/±3 mm, open-collector alarm (max DC30V/10 mA). Supply DC24V (20–30 V incl. ripple), 75 W, mass 300 g. The compensation code matches the spool (1 = 3C2/3C40, 3 = 3C2P).
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AMN-L-01-1-10 | Yuken AMN-L-01-1-10 compact high-response amplifier for ELDFG-01, comp 1, 3C2/3C40 (overlap) | Yuken | Type: Compact high-response power amplifier (ELDFG-01) | Brand: Yuken | Model: AMN-L-01-1-10 | Function: L (minor-feedback DC-input directional/flow) | Compatible Valve Size: 01 | Compensation: 1 | Spool Form: 3C2/3C40 (overlap) | Max Output Current: 2.5 A (3.9Ω) | Command Input: ±10 V | Slope: 0.03–5 s | Spool Monitor: ±1.5 V/±3 mm | Alarm: open collector max DC30V/10 mA | Power Supply: DC24V (20–30 V incl. ripple) | Power Consumption: 75 W | Mass: 300 g | Drives: ELDFG-01 | Design No.: 10 | ||
| AMN-L-01-3-2P-10 | Yuken AMN-L-01-3-2P-10 compact high-response amplifier for ELDFG-01, comp 3, 3C2P (zero-lap) | Yuken | Type: Compact high-response power amplifier (ELDFG-01) | Brand: Yuken | Model: AMN-L-01-3-2P-10 | Function: L (minor-feedback DC-input directional/flow) | Compatible Valve Size: 01 | Compensation: 3 | Spool Form: 3C2P (zero-lap) | Max Output Current: 2.5 A (3.9Ω) | Command Input: ±10 V | Slope: 0.03–5 s | Spool Monitor: ±1.5 V/±3 mm | Alarm: open collector max DC30V/10 mA | Power Supply: DC24V (20–30 V incl. ripple) | Power Consumption: 75 W | Mass: 300 g | Drives: ELDFG-01 | Design No.: 10 |
