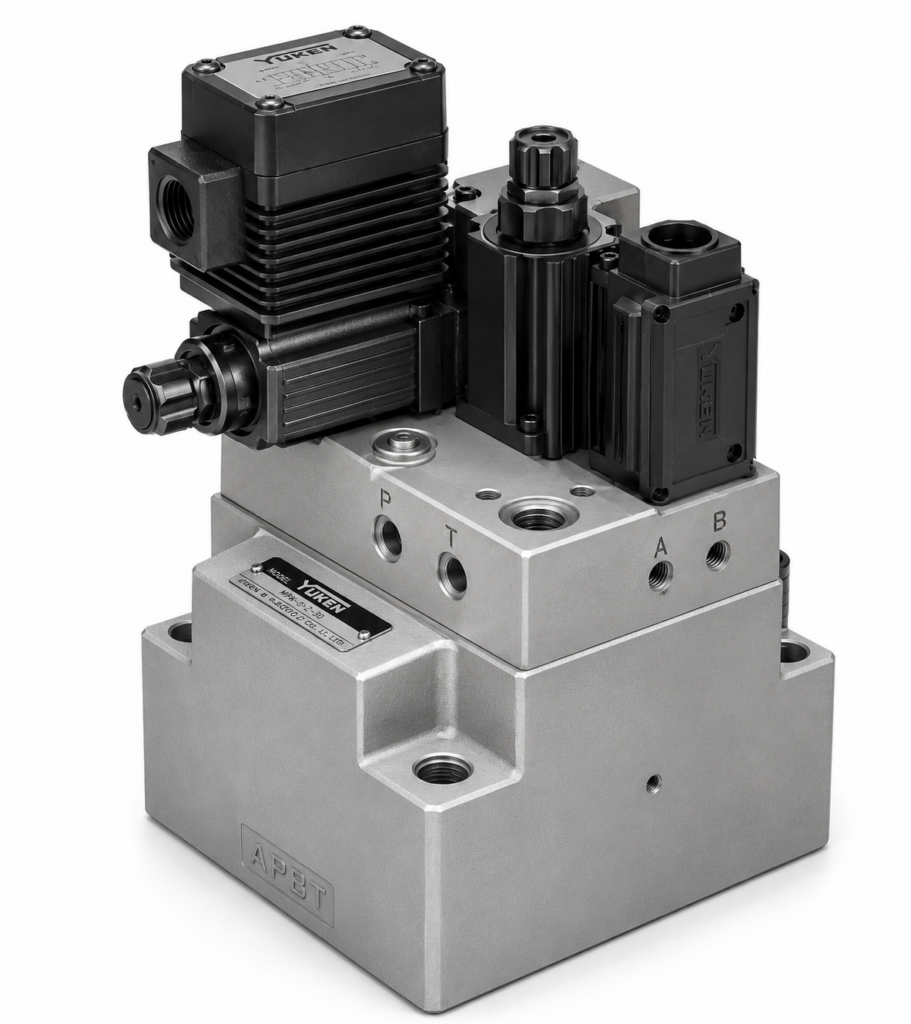

[Yuken] — EHFBG-03 Proportional Power-Saving Valve (24.5 MPa, max 60/125 L/min, size 03)
Family ID: YK-EHFBG-03
Proportional Electro-Hydraulic Flow Control and Relief Valves. Energy-saving valve that supplies only the minimum pressure and flow required to drive the actuator, controlling pump pressure according to load to lower power consumption; a meter-in flow-adjusting valve with built-in temperature compensation for stable flow control regardless of oil temperature. Sub-plate mounting, valve size 03. Max operating pressure 24.5 MPa, max flow 60/125 L/min. Pilot-relief pressure range C: 1.2–15.7 MPa / H: 1.4–24.5 MPa. Versions with/without built-in pilot relief, internal/external flow pilot, and optional pressure sensor. Coil resistance 10Ω, supply DC24V (28W max).
20 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| EHFBG-03-60-50 | EHFBG-03 Power-Saving, 60L/min, no pilot relief valve (flow control only), Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: Internal pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-E-50 | EHFBG-03 Power-Saving, 60L/min, no pilot relief valve (flow control only), External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: External pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-C-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-C-E-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-C-S-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop + sensor, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-C-E-S-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief C, open loop + sensor, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-H-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-H-E-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-H-S-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop + sensor, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-60-H-E-S-50 | EHFBG-03 Power-Saving, 60L/min, pilot relief H, open loop + sensor, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 60 L/min | Flow Adj. Range: 1–60 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-50 | EHFBG-03 Power-Saving, 125L/min, no pilot relief valve (flow control only), Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: Internal pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-E-50 | EHFBG-03 Power-Saving, 125L/min, no pilot relief valve (flow control only), External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: None (no pilot relief valve) | Flow-control Pilot: External pilot | Pressure-control: None | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-C-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-C-E-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-C-S-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop + sensor, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-C-E-S-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief C, open loop + sensor, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range C (1.2–15.7 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-H-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-H-E-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-H-S-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop + sensor, Internal pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: Internal pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 | ||
| EHFBG-03-125-H-E-S-50 | EHFBG-03 Power-Saving, 125L/min, pilot relief H, open loop + sensor, External pilot | Yuken | Type: Proportional Power-Saving Valve (Flow Control + Relief) | Series: EHFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Pilot Relief Pressure: Range H (1.4–24.5 MPa) | Flow-control Pilot: External pilot | Pressure-control: Open loop + built-in sensor | Valve Pressure Drop: 0.6 MPa | Max Pressure: 24.5 MPa | Coil: 10Ω, DC24V | Design No.: 50 |
