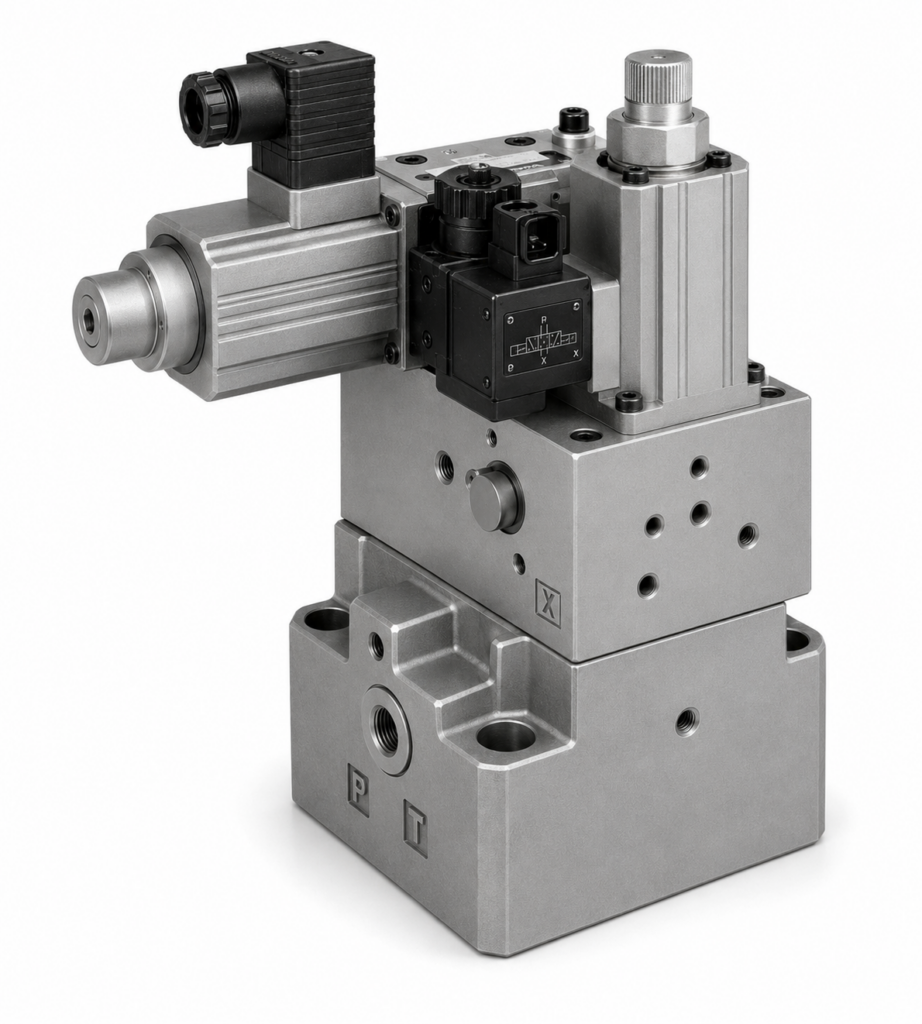

[Yuken] — ELFBG-03-125 High-Performance Proportional Power-Saving Valve (E series, 25 MPa, max 125 L/min)
Family ID: YK-ELFBG-03-125
High-Performance Proportional Electro-Hydraulic Flow Control and Relief Valves. E-series energy-saving valve that supplies only the minimum pressure and flow needed to drive the actuator; a temperature-stable meter-in flow-adjusting valve with a built-in differential transformer (LVDT) that detects throttle position for stable, high-accuracy flow control. The flow-control system is voltage-driven (DC10V input, coil 4Ω) while the pressure-control system is current-driven (coil 10Ω). Use with a dedicated Yuken power amplifier. Sub-plate mounting, valve size 03. Max operating pressure 25 MPa, max flow 125 L/min (1–125 L/min). Pilot-relief pressure range C: 1.6–16 MPa. Internal/external pilot. Hysteresis 0.5%.
2 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| ELFBG-03-125-C-10 | ELFBG-03-125 High-Performance Power-Saving (E), pilot relief C, Internal pilot | Yuken | Type: High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series) | Series: ELFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Max Pressure: 25 MPa | Pilot Relief Pressure: C (1.6–16 MPa) | Pressure-control Rated Current: 890 mA | Pilot: Internal pilot | Flow-control: Voltage input DC10V, coil 4Ω, LVDT spool-position feedback | Pressure-control: Current input, coil 10Ω | Valve Pressure Drop: 0.6–0.8 MPa | Hysteresis: 0.5% | Drive: Use with dedicated power amplifier | Design No.: 10 | ||
| ELFBG-03-125-C-E-10 | ELFBG-03-125 High-Performance Power-Saving (E), pilot relief C, External pilot | Yuken | Type: High-Performance Proportional Power-Saving Valve (Flow Control + Relief, E series) | Series: ELFBG | Mounting: Sub-plate (G) | Valve Size: 03 | Max Adjustable Flow: 125 L/min | Flow Adj. Range: 1–125 L/min | Max Pressure: 25 MPa | Pilot Relief Pressure: C (1.6–16 MPa) | Pressure-control Rated Current: 890 mA | Pilot: External pilot | Flow-control: Voltage input DC10V, coil 4Ω, LVDT spool-position feedback | Pressure-control: Current input, coil 10Ω | Valve Pressure Drop: 0.6–0.8 MPa | Hysteresis: 0.5% | Drive: Use with dedicated power amplifier | Design No.: 10 |
