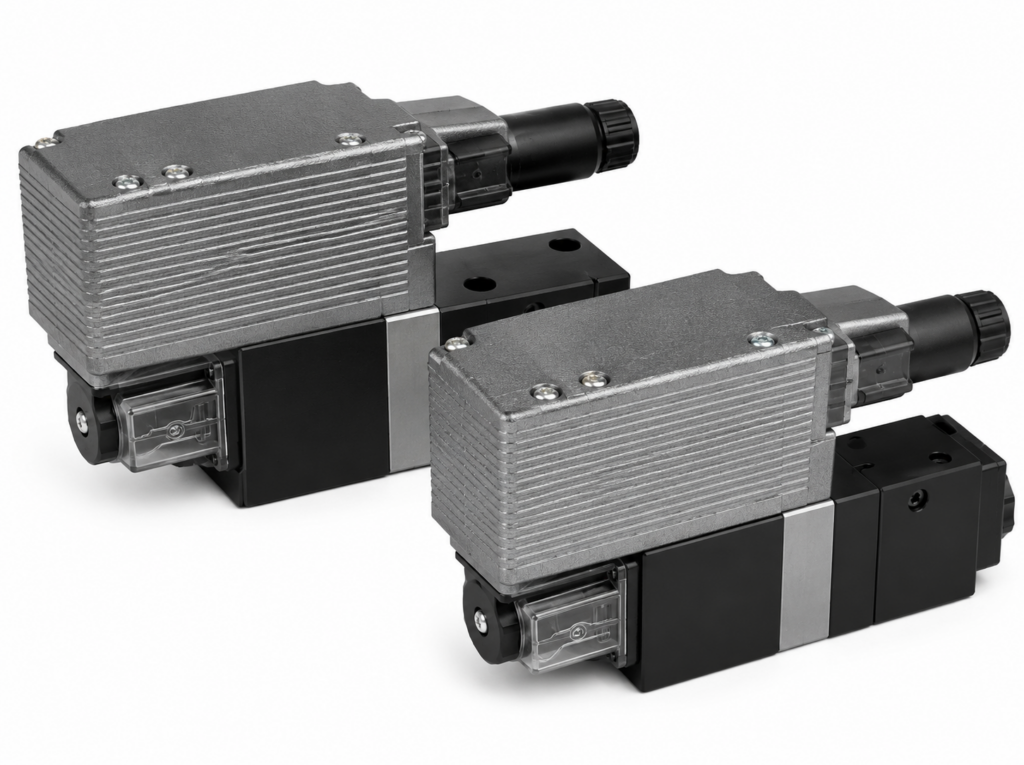

[YUKEN] — LSVG-03EH On-Board Electronic Direct Linear Servo Valve
Family ID: YK-LSVG03EH
On-board electronic (OBE) type direct-operated linear servo valve, realizing the 'high precision, simple, convenient' concept of the LSVG and LSVHG-EH series in a direct-operated form. Hysteresis 0.1% or less; step response 3 ms; frequency response up to 260 Hz. Operates from a DC 24 V supply with command-signal input only; built-in amplifier with fault-diagnosis indicator. Usable to NAS 1638 class 10 (ISO4406 21/19/15). Safety device PABT / PBAT / neutral; connector 6+PE / 11+PE; dry (Y-port) or wet (no Y-port) type — selectable per order.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LSVG-03EH-40-A | LSVG-03EH OBE Direct Servo Valve, 40 L/min, input A | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 40 L/min | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 260 Hz (240) | Frequency Resp. (−90° phase): 310 Hz (310) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-40-B | LSVG-03EH OBE Direct Servo Valve, 40 L/min, input B | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 40 L/min | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA input → PBAT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 260 Hz (240) | Frequency Resp. (−90° phase): 310 Hz (310) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-40-C | LSVG-03EH OBE Direct Servo Valve, 40 L/min, input C | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 40 L/min | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 260 Hz (240) | Frequency Resp. (−90° phase): 310 Hz (310) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-40-D | LSVG-03EH OBE Direct Servo Valve, 40 L/min, input D | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 40 L/min | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 260 Hz (240) | Frequency Resp. (−90° phase): 310 Hz (310) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-40-E | LSVG-03EH OBE Direct Servo Valve, 40 L/min, input E | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 40 L/min | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA input → PABT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 260 Hz (240) | Frequency Resp. (−90° phase): 310 Hz (310) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-40-F | LSVG-03EH OBE Direct Servo Valve, 40 L/min, input F | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 40 L/min | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 3 ms (3.5) | Frequency Resp. (−3 dB gain): 260 Hz (240) | Frequency Resp. (−90° phase): 310 Hz (310) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-60-A | LSVG-03EH OBE Direct Servo Valve, 60 L/min, input A | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 60 L/min | Input Signal / Spool Monitor: A: Voltage ±10 V (+input → PBAT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 4 ms (4.5) | Frequency Resp. (−3 dB gain): 250 Hz (220) | Frequency Resp. (−90° phase): 260 Hz (220) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-60-B | LSVG-03EH OBE Direct Servo Valve, 60 L/min, input B | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 60 L/min | Input Signal / Spool Monitor: B: Current 4–20 mA (12–20 mA input → PBAT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 4 ms (4.5) | Frequency Resp. (−3 dB gain): 250 Hz (220) | Frequency Resp. (−90° phase): 260 Hz (220) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-60-C | LSVG-03EH OBE Direct Servo Valve, 60 L/min, input C | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 60 L/min | Input Signal / Spool Monitor: C: Current ±10 mA (+input → PBAT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 4 ms (4.5) | Frequency Resp. (−3 dB gain): 250 Hz (220) | Frequency Resp. (−90° phase): 260 Hz (220) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-60-D | LSVG-03EH OBE Direct Servo Valve, 60 L/min, input D | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 60 L/min | Input Signal / Spool Monitor: D: Voltage ±10 V (+input → PABT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 4 ms (4.5) | Frequency Resp. (−3 dB gain): 250 Hz (220) | Frequency Resp. (−90° phase): 260 Hz (220) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-60-E | LSVG-03EH OBE Direct Servo Valve, 60 L/min, input E | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 60 L/min | Input Signal / Spool Monitor: E: Current 4–20 mA (12–20 mA input → PABT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 4 ms (4.5) | Frequency Resp. (−3 dB gain): 250 Hz (220) | Frequency Resp. (−90° phase): 260 Hz (220) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 | ||
| LSVG-03EH-60-F | LSVG-03EH OBE Direct Servo Valve, 60 L/min, input F | YUKEN | Type: Direct (single-stage), on-board electronic (OBE) amp-mounted | Valve Frame: 03 (ISO 4401-05) | Rated Flow (ΔP=7MPa): 60 L/min | Input Signal / Spool Monitor: F: Current ±10 mA (+input → PABT flow) | Max Operating Pressure: 35 (31.5 for 1006/M6-bolt type) MPa | Tank Port Pressure: 35 (7) MPa | Internal Leakage (Ps=14MPa, 32mm²/s): 1.7 L/min max | Step Response (0↔100%): 4 ms (4.5) | Frequency Resp. (−3 dB gain): 250 Hz (220) | Frequency Resp. (−90° phase): 260 Hz (220) | Spool Rated Stroke: ±0.75 mm | Mass: 5.2 kg | Mounting Bolts: M8×65L ×4 (30.8–37.7 N·m); 1006 type M6×60L ×4 (13.0–16.0 N·m) | Built-in Amplifier: On-board (OBE), DC 24 V (DC 21.6–26.4 V incl. ripple), ≥100 VA | Safety Device (select): A=PABT-open / B=PBAT-open / C=neutral | Drain Port Y (select): Std=Y-port (dry, 0.05 MPa max) / W=no Y-port (wet; not for water-glycol) | Connector (select): 1=6+PE / 2=11+PE (Enable, valve-ready, alarm output) | Linear Motor: 1.5 A (3.2 A max), coil 7 Ω | Hysteresis: 0.1% max | Protection: IP65 | Ambient Temp: 0 to +50 °C | Fluid: Mineral oil (std) / Phosphate-ester (F prefix, fluoro seals) | Source: Yuken Cat. I-Edit0, I-22/I-23 |
