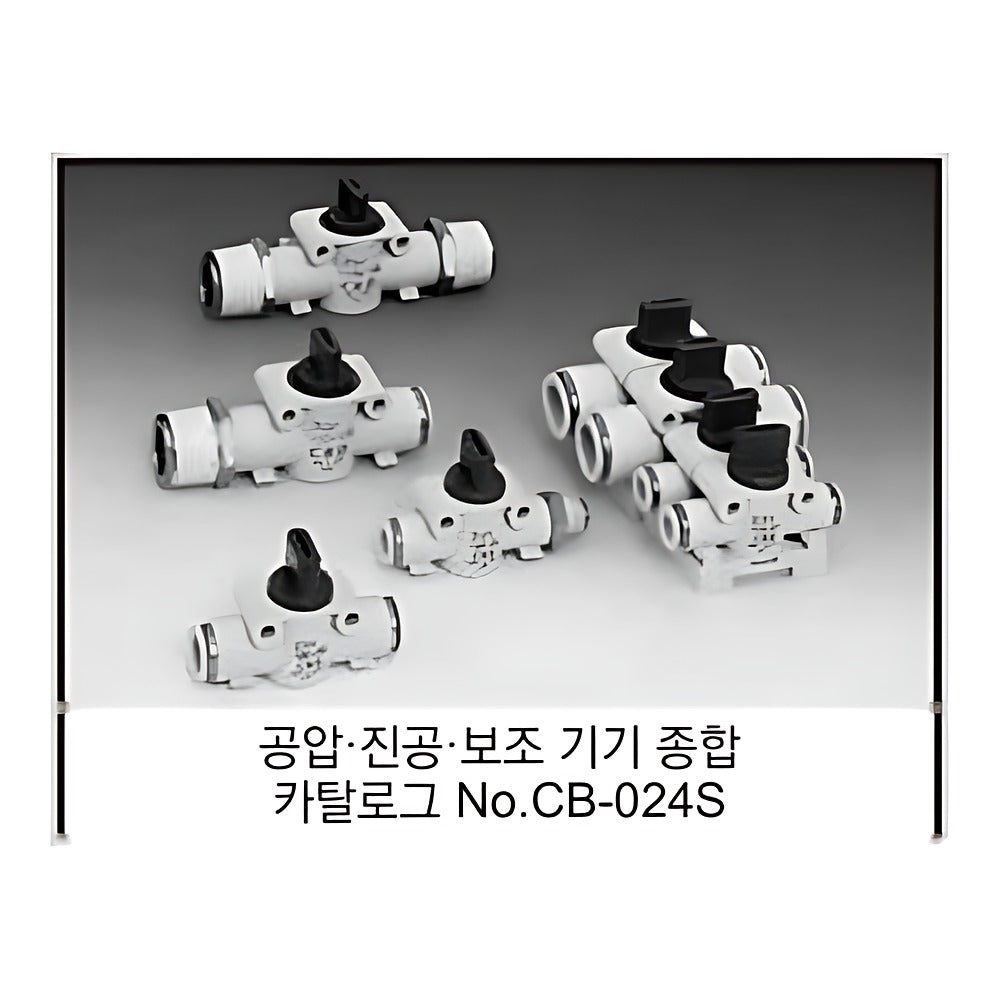

CKD 2QV/3QV-FP1 Quick Valve with Push-in (Food Grade, 4-12 mm)

CKD 2QV/3QV-FP1 Quick Valve with Push-in (Food Grade, 4-12 mm)

CKD 2QV/3QV-FP1 lever quick valves with push-in fittings for shut-off (2-port) or residual pressure exhaust (3-port) duty.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Straight flow path with large effective area, 90-degree switching
  • Flame-retardant resin (UL94 V-0 equiv.)
  • Manifold mounting possible with optional bracket

Specifications

Fluid Air
Max. operating pressure 1.0 MPa
Min. operating pressure -100 kPa
Proof pressure 1.5 MPa
Temperature 0 to 60 C
Source CKD Korea catalog CC-1271K-5, p. 312-313
2QV-04-04-FP1 Valve: 2-port | Push-in IN/OUT: 4/4 mm | Stopper material: Brass (electroless Ni)
2QV-06-06-FP1 Valve: 2-port | Push-in IN/OUT: 6/6 mm | Stopper material: Brass (electroless Ni)
2QV-08S-08S-FP1 Valve: 2-port | Push-in IN/OUT: 8/8 mm (small body) | Stopper material: Brass (electroless Ni)
2QV-08-08-FP1 Valve: 2-port | Push-in IN/OUT: 8/8 mm | Stopper material: Stainless steel
2QV-10-10-FP1 Valve: 2-port | Push-in IN/OUT: 10/10 mm | Stopper material: Stainless steel
2QV-12-12-FP1 Valve: 2-port | Push-in IN/OUT: 12/12 mm | Stopper material: Stainless steel
3QV-04-04-FP1 Valve: 3-port | Push-in IN/OUT: 4/4 mm | Stopper material: Brass (electroless Ni)
3QV-06-06-FP1 Valve: 3-port | Push-in IN/OUT: 6/6 mm | Stopper material: Brass (electroless Ni)
3QV-08S-08S-FP1 Valve: 3-port | Push-in IN/OUT: 8/8 mm (small body) | Stopper material: Brass (electroless Ni)
3QV-08-08-FP1 Valve: 3-port | Push-in IN/OUT: 8/8 mm | Stopper material: Stainless steel
3QV-10-10-FP1 Valve: 3-port | Push-in IN/OUT: 10/10 mm | Stopper material: Stainless steel
3QV-12-12-FP1 Valve: 3-port | Push-in IN/OUT: 12/12 mm | Stopper material: Stainless steel
Hand ValvesCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 2QV/3QV-FP1 Quick Valve with Push-in (Food Grade, 4-12 mm)

Brand CKD·Hand Valves

Available part numbers (12)

2QV-04-04-FP1, 2QV-06-06-FP1, 2QV-08S-08S-FP1, 2QV-08-08-FP1, 2QV-10-10-FP1, 2QV-12-12-FP1, 3QV-04-04-FP1, 3QV-06-06-FP1, 3QV-08S-08S-FP1, 3QV-08-08-FP1 + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2QV-04-04-FP1Valve: 2-port | Push-in IN/OUT: 4/4 mm | Stopper material: Brass (electroless Ni)
2QV-06-06-FP1Valve: 2-port | Push-in IN/OUT: 6/6 mm | Stopper material: Brass (electroless Ni)
2QV-08S-08S-FP1Valve: 2-port | Push-in IN/OUT: 8/8 mm (small body) | Stopper material: Brass (electroless Ni)
2QV-08-08-FP1Valve: 2-port | Push-in IN/OUT: 8/8 mm | Stopper material: Stainless steel
2QV-10-10-FP1Valve: 2-port | Push-in IN/OUT: 10/10 mm | Stopper material: Stainless steel
2QV-12-12-FP1Valve: 2-port | Push-in IN/OUT: 12/12 mm | Stopper material: Stainless steel
3QV-04-04-FP1Valve: 3-port | Push-in IN/OUT: 4/4 mm | Stopper material: Brass (electroless Ni)
3QV-06-06-FP1Valve: 3-port | Push-in IN/OUT: 6/6 mm | Stopper material: Brass (electroless Ni)
3QV-08S-08S-FP1Valve: 3-port | Push-in IN/OUT: 8/8 mm (small body) | Stopper material: Brass (electroless Ni)
3QV-08-08-FP1Valve: 3-port | Push-in IN/OUT: 8/8 mm | Stopper material: Stainless steel
3QV-10-10-FP1Valve: 3-port | Push-in IN/OUT: 10/10 mm | Stopper material: Stainless steel
3QV-12-12-FP1Valve: 3-port | Push-in IN/OUT: 12/12 mm | Stopper material: Stainless steel
