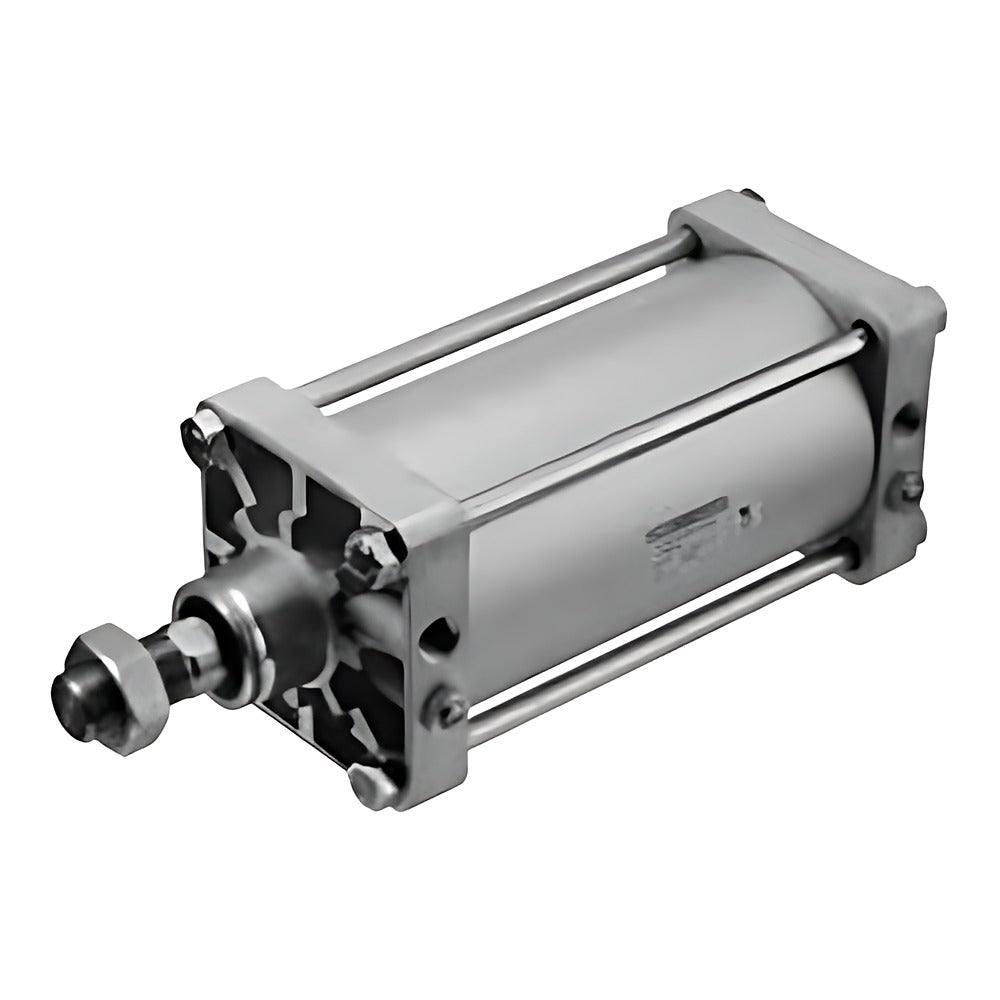

CKD SCS2-W Selex Cylinder (Outdoor, Bore 125 to 250)

CKD SCS2-W Selex Cylinder (Outdoor, Bore 125 to 250)

CKD SCS2-W outdoor-spec large-bore Selex double-acting single-rod cylinder, bore phi 125 to phi 250.

Key features

  • Outdoor WEATHER PROOF spec, ambient -20 to 60 C
  • Mountings: basic, axial foot, rod flange, head flange
  • Air cushion both ends, rod or head end, or none
  • Standard strokes 50-300 mm; up to 800-945 mm in 1 mm steps on order
  • Options L1 bellows, cushion needle position R/S/T and NPT/G thread (made to order) not multiplied

Specifications

Action Double acting, single rod
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.6 MPa
Ambient temperature -20 to 60 C (no freezing)
Piston speed 20 to 1000 mm/s
Port Rc1/2 (125), Rc3/4 (140-200), Rc1 (250)
Source CKD Korea catalog CC-1276K, p. 92-95
SCS2-N-00-125B-50-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-125B-75-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-125B-100-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-125B-150-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-125B-200-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-125B-250-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-125B-300-W Mounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-125R-50-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-125R-75-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-125R-100-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-125R-150-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-125R-200-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-125R-250-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-125R-300-W Mounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-125H-50-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-125H-75-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-125H-100-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-125H-150-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-125H-200-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-125H-250-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-125H-300-W Mounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-125N-50-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-125N-75-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-125N-100-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-125N-150-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-125N-200-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-125N-250-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-125N-300-W Mounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-140B-50-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-140B-75-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-140B-100-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-140B-150-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-140B-200-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-140B-250-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-140B-300-W Mounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-140R-50-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-140R-75-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-140R-100-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-140R-150-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-140R-200-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-140R-250-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-140R-300-W Mounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-140H-50-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-140H-75-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-140H-100-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-140H-150-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-140H-200-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-140H-250-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-140H-300-W Mounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-140N-50-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-140N-75-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-140N-100-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-140N-150-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-140N-200-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-140N-250-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-140N-300-W Mounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-160B-50-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-160B-75-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-160B-100-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-160B-150-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-160B-200-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-160B-250-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-160B-300-W Mounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-160R-50-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-160R-75-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-160R-100-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-160R-150-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-160R-200-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-160R-250-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-160R-300-W Mounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-160H-50-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-160H-75-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-160H-100-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-160H-150-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-160H-200-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-160H-250-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-160H-300-W Mounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-160N-50-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-160N-75-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-160N-100-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-160N-150-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-160N-200-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-160N-250-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-160N-300-W Mounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-180B-50-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-180B-75-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-180B-100-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-180B-150-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-180B-200-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-180B-250-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-180B-300-W Mounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-180R-50-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-180R-75-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-180R-100-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-180R-150-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-180R-200-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-180R-250-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-180R-300-W Mounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-180H-50-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-180H-75-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-180H-100-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-180H-150-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-180H-200-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-180H-250-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-180H-300-W Mounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-180N-50-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-180N-75-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-180N-100-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-180N-150-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-180N-200-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-180N-250-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-180N-300-W Mounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-200B-50-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-200B-75-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-200B-100-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-200B-150-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-200B-200-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-200B-250-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-200B-300-W Mounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-200R-50-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-200R-75-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-200R-100-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-200R-150-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-200R-200-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-200R-250-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-200R-300-W Mounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-200H-50-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-200H-75-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-200H-100-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-200H-150-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-200H-200-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-200H-250-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-200H-300-W Mounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-200N-50-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-200N-75-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-200N-100-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-200N-150-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-200N-200-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-200N-250-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-200N-300-W Mounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-250B-50-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-250B-75-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-250B-100-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-250B-150-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-250B-200-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-250B-250-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-250B-300-W Mounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-250R-50-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-250R-75-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-250R-100-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-250R-150-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-250R-200-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-250R-250-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-250R-300-W Mounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-250H-50-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-250H-75-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-250H-100-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-250H-150-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-250H-200-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-250H-250-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-250H-300-W Mounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-250N-50-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-250N-75-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-250N-100-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-250N-150-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-250N-200-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-250N-250-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-250N-300-W Mounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-125B-50-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-125B-75-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-125B-100-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-125B-150-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-125B-200-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-125B-250-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-125B-300-W Mounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-125R-50-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-125R-75-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-125R-100-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-125R-150-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-125R-200-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-125R-250-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-125R-300-W Mounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-125H-50-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-125H-75-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-125H-100-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-125H-150-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-125H-200-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-125H-250-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-125H-300-W Mounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-125N-50-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-125N-75-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-125N-100-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-125N-150-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-125N-200-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-125N-250-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-125N-300-W Mounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-140B-50-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-140B-75-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-140B-100-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-140B-150-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-140B-200-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-140B-250-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-140B-300-W Mounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-140R-50-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-140R-75-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-140R-100-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-140R-150-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-140R-200-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-140R-250-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-140R-300-W Mounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-140H-50-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-140H-75-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-140H-100-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-140H-150-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-140H-200-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-140H-250-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-140H-300-W Mounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-140N-50-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-140N-75-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-140N-100-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-140N-150-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-140N-200-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-140N-250-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-140N-300-W Mounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-160B-50-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-160B-75-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-160B-100-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-160B-150-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-160B-200-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-160B-250-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-160B-300-W Mounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-160R-50-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-160R-75-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-160R-100-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-160R-150-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-160R-200-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-160R-250-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-160R-300-W Mounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-160H-50-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-160H-75-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-160H-100-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-160H-150-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-160H-200-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-160H-250-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-160H-300-W Mounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-160N-50-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-160N-75-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-160N-100-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-160N-150-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-160N-200-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-160N-250-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-160N-300-W Mounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-180B-50-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-180B-75-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-180B-100-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-180B-150-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-180B-200-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-180B-250-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-180B-300-W Mounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-180R-50-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-180R-75-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-180R-100-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-180R-150-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-180R-200-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-180R-250-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-180R-300-W Mounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-180H-50-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-180H-75-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-180H-100-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-180H-150-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-180H-200-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-180H-250-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-180H-300-W Mounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-180N-50-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-180N-75-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-180N-100-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-180N-150-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-180N-200-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-180N-250-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-180N-300-W Mounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-200B-50-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-200B-75-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-200B-100-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-200B-150-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-200B-200-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-200B-250-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-200B-300-W Mounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-200R-50-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-200R-75-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-200R-100-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-200R-150-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-200R-200-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-200R-250-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-200R-300-W Mounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-200H-50-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-200H-75-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-200H-100-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-200H-150-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-200H-200-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-200H-250-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-200H-300-W Mounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-200N-50-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-200N-75-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-200N-100-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-200N-150-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-200N-200-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-200N-250-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-200N-300-W Mounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-250B-50-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-250B-75-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-250B-100-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-250B-150-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-250B-200-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-250B-250-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-250B-300-W Mounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-250R-50-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-250R-75-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-250R-100-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-250R-150-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-250R-200-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-250R-250-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-250R-300-W Mounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-250H-50-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-250H-75-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-250H-100-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-250H-150-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-250H-200-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-250H-250-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-250H-300-W Mounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-250N-50-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-250N-75-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-250N-100-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-250N-150-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-250N-200-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-250N-250-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-250N-300-W Mounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-125B-50-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-125B-75-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-125B-100-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-125B-150-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-125B-200-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-125B-250-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-125B-300-W Mounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-125R-50-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-125R-75-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-125R-100-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-125R-150-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-125R-200-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-125R-250-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-125R-300-W Mounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-125H-50-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-125H-75-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-125H-100-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-125H-150-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-125H-200-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-125H-250-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-125H-300-W Mounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-125N-50-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-125N-75-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-125N-100-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-125N-150-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-125N-200-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-125N-250-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-125N-300-W Mounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-140B-50-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-140B-75-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-140B-100-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-140B-150-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-140B-200-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-140B-250-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-140B-300-W Mounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-140R-50-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-140R-75-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-140R-100-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-140R-150-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-140R-200-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-140R-250-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-140R-300-W Mounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-140H-50-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-140H-75-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-140H-100-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-140H-150-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-140H-200-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-140H-250-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-140H-300-W Mounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-140N-50-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-140N-75-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-140N-100-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-140N-150-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-140N-200-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-140N-250-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-140N-300-W Mounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-160B-50-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-160B-75-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-160B-100-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-160B-150-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-160B-200-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-160B-250-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-160B-300-W Mounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-160R-50-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-160R-75-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-160R-100-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-160R-150-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-160R-200-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-160R-250-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-160R-300-W Mounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-160H-50-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-160H-75-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-160H-100-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-160H-150-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-160H-200-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-160H-250-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-160H-300-W Mounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-160N-50-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-160N-75-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-160N-100-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-160N-150-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-160N-200-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-160N-250-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-160N-300-W Mounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-180B-50-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-180B-75-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-180B-100-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-180B-150-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-180B-200-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-180B-250-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-180B-300-W Mounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-180R-50-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-180R-75-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-180R-100-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-180R-150-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-180R-200-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-180R-250-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-180R-300-W Mounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-180H-50-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-180H-75-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-180H-100-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-180H-150-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-180H-200-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-180H-250-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-180H-300-W Mounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-180N-50-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-180N-75-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-180N-100-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-180N-150-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-180N-200-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-180N-250-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-180N-300-W Mounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-200B-50-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-200B-75-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-200B-100-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-200B-150-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-200B-200-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-200B-250-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-200B-300-W Mounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-200R-50-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-200R-75-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-200R-100-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-200R-150-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-200R-200-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-200R-250-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-200R-300-W Mounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-200H-50-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-200H-75-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-200H-100-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-200H-150-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-200H-200-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-200H-250-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-200H-300-W Mounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-200N-50-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-200N-75-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-200N-100-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-200N-150-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-200N-200-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-200N-250-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-200N-300-W Mounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-250B-50-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-250B-75-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-250B-100-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-250B-150-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-250B-200-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-250B-250-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-250B-300-W Mounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-250R-50-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-250R-75-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-250R-100-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-250R-150-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-250R-200-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-250R-250-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-250R-300-W Mounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-250H-50-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-250H-75-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-250H-100-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-250H-150-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-250H-200-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-250H-250-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-250H-300-W Mounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-250N-50-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-250N-75-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-250N-100-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-250N-150-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-250N-200-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-250N-250-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-250N-300-W Mounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-125B-50-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-125B-75-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-125B-100-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-125B-150-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-125B-200-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-125B-250-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-125B-300-W Mounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-125R-50-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-125R-75-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-125R-100-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-125R-150-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-125R-200-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-125R-250-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-125R-300-W Mounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-125H-50-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-125H-75-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-125H-100-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-125H-150-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-125H-200-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-125H-250-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-125H-300-W Mounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-125N-50-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-125N-75-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-125N-100-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-125N-150-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-125N-200-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-125N-250-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-125N-300-W Mounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-140B-50-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-140B-75-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-140B-100-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-140B-150-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-140B-200-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-140B-250-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-140B-300-W Mounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-140R-50-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-140R-75-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-140R-100-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-140R-150-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-140R-200-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-140R-250-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-140R-300-W Mounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-140H-50-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-140H-75-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-140H-100-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-140H-150-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-140H-200-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-140H-250-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-140H-300-W Mounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-140N-50-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-140N-75-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-140N-100-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-140N-150-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-140N-200-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-140N-250-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-140N-300-W Mounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-160B-50-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-160B-75-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-160B-100-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-160B-150-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-160B-200-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-160B-250-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-160B-300-W Mounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-160R-50-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-160R-75-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-160R-100-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-160R-150-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-160R-200-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-160R-250-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-160R-300-W Mounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-160H-50-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-160H-75-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-160H-100-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-160H-150-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-160H-200-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-160H-250-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-160H-300-W Mounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-160N-50-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-160N-75-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-160N-100-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-160N-150-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-160N-200-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-160N-250-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-160N-300-W Mounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-180B-50-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-180B-75-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-180B-100-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-180B-150-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-180B-200-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-180B-250-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-180B-300-W Mounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-180R-50-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-180R-75-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-180R-100-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-180R-150-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-180R-200-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-180R-250-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-180R-300-W Mounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-180H-50-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-180H-75-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-180H-100-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-180H-150-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-180H-200-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-180H-250-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-180H-300-W Mounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-180N-50-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-180N-75-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-180N-100-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-180N-150-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-180N-200-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-180N-250-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-180N-300-W Mounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-200B-50-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-200B-75-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-200B-100-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-200B-150-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-200B-200-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-200B-250-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-200B-300-W Mounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-200R-50-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-200R-75-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-200R-100-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-200R-150-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-200R-200-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-200R-250-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-200R-300-W Mounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-200H-50-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-200H-75-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-200H-100-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-200H-150-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-200H-200-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-200H-250-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-200H-300-W Mounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-200N-50-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-200N-75-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-200N-100-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-200N-150-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-200N-200-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-200N-250-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-200N-300-W Mounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-250B-50-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-250B-75-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-250B-100-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-250B-150-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-250B-200-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-250B-250-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-250B-300-W Mounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-250R-50-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-250R-75-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-250R-100-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-250R-150-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-250R-200-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-250R-250-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-250R-300-W Mounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-250H-50-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-250H-75-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-250H-100-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-250H-150-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-250H-200-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-250H-250-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-250H-300-W Mounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-250N-50-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-250N-75-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-250N-100-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-250N-150-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-250N-200-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-250N-250-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-250N-300-W Mounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
Pneumatic CylindersCKD
672 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCS2-W Selex Cylinder (Outdoor, Bore 125 to 250)

Brand CKD·Pneumatic Cylinders

Available part numbers (672)

SCS2-N-00-125B-50-W, SCS2-N-00-125B-75-W, SCS2-N-00-125B-100-W, SCS2-N-00-125B-150-W, SCS2-N-00-125B-200-W, SCS2-N-00-125B-250-W, SCS2-N-00-125B-300-W, SCS2-N-00-125R-50-W, SCS2-N-00-125R-75-W, SCS2-N-00-125R-100-W + 662 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCS2-N-00-125B-50-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-125B-75-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-125B-100-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-125B-150-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-125B-200-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-125B-250-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-125B-300-WMounting: Basic | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-125R-50-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-125R-75-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-125R-100-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-125R-150-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-125R-200-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-125R-250-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-125R-300-WMounting: Basic | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-125H-50-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-125H-75-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-125H-100-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-125H-150-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-125H-200-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-125H-250-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-125H-300-WMounting: Basic | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-125N-50-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-125N-75-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-125N-100-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-125N-150-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-125N-200-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-125N-250-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-125N-300-WMounting: Basic | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-140B-50-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-140B-75-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-140B-100-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-140B-150-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-140B-200-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-140B-250-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-140B-300-WMounting: Basic | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-140R-50-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-140R-75-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-140R-100-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-140R-150-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-140R-200-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-140R-250-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-140R-300-WMounting: Basic | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-140H-50-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-140H-75-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-140H-100-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-140H-150-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-140H-200-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-140H-250-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-140H-300-WMounting: Basic | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-140N-50-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-140N-75-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-140N-100-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-140N-150-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-140N-200-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-140N-250-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-140N-300-WMounting: Basic | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-160B-50-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-160B-75-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-160B-100-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-160B-150-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-160B-200-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-160B-250-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-160B-300-WMounting: Basic | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-160R-50-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-160R-75-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-160R-100-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-160R-150-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-160R-200-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-160R-250-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-160R-300-WMounting: Basic | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-160H-50-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-160H-75-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-160H-100-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-160H-150-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-160H-200-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-160H-250-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-160H-300-WMounting: Basic | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-160N-50-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-160N-75-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-160N-100-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-160N-150-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-160N-200-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-160N-250-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-160N-300-WMounting: Basic | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-180B-50-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-180B-75-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-180B-100-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-180B-150-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-180B-200-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-180B-250-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-180B-300-WMounting: Basic | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-180R-50-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-180R-75-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-180R-100-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-180R-150-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-180R-200-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-180R-250-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-180R-300-WMounting: Basic | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-180H-50-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-180H-75-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-180H-100-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-180H-150-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-180H-200-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-180H-250-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-180H-300-WMounting: Basic | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-180N-50-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-180N-75-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-180N-100-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-180N-150-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-180N-200-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-180N-250-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-180N-300-WMounting: Basic | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-200B-50-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-200B-75-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-200B-100-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-200B-150-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-200B-200-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-200B-250-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-200B-300-WMounting: Basic | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-200R-50-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-200R-75-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-200R-100-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-200R-150-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-200R-200-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-200R-250-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-200R-300-WMounting: Basic | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-200H-50-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-200H-75-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-200H-100-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-200H-150-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-200H-200-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-200H-250-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-200H-300-WMounting: Basic | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-200N-50-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-200N-75-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-200N-100-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-200N-150-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-200N-200-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-200N-250-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-200N-300-WMounting: Basic | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-00-250B-50-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-00-250B-75-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-00-250B-100-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-00-250B-150-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-00-250B-200-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-00-250B-250-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-00-250B-300-WMounting: Basic | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-00-250R-50-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-00-250R-75-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-00-250R-100-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-00-250R-150-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-00-250R-200-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-00-250R-250-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-00-250R-300-WMounting: Basic | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-00-250H-50-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-00-250H-75-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-00-250H-100-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-00-250H-150-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-00-250H-200-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-00-250H-250-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-00-250H-300-WMounting: Basic | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-00-250N-50-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-00-250N-75-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-00-250N-100-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-00-250N-150-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-00-250N-200-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-00-250N-250-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-00-250N-300-WMounting: Basic | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-125B-50-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-125B-75-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-125B-100-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-125B-150-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-125B-200-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-125B-250-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-125B-300-WMounting: Axial foot | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-125R-50-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-125R-75-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-125R-100-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-125R-150-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-125R-200-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-125R-250-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-125R-300-WMounting: Axial foot | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-125H-50-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-125H-75-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-125H-100-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-125H-150-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-125H-200-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-125H-250-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-125H-300-WMounting: Axial foot | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-125N-50-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-125N-75-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-125N-100-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-125N-150-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-125N-200-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-125N-250-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-125N-300-WMounting: Axial foot | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-140B-50-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-140B-75-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-140B-100-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-140B-150-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-140B-200-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-140B-250-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-140B-300-WMounting: Axial foot | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-140R-50-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-140R-75-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-140R-100-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-140R-150-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-140R-200-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-140R-250-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-140R-300-WMounting: Axial foot | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-140H-50-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-140H-75-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-140H-100-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-140H-150-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-140H-200-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-140H-250-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-140H-300-WMounting: Axial foot | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-140N-50-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-140N-75-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-140N-100-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-140N-150-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-140N-200-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-140N-250-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-140N-300-WMounting: Axial foot | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-160B-50-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-160B-75-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-160B-100-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-160B-150-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-160B-200-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-160B-250-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-160B-300-WMounting: Axial foot | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-160R-50-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-160R-75-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-160R-100-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-160R-150-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-160R-200-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-160R-250-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-160R-300-WMounting: Axial foot | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-160H-50-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-160H-75-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-160H-100-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-160H-150-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-160H-200-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-160H-250-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-160H-300-WMounting: Axial foot | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-160N-50-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-160N-75-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-160N-100-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-160N-150-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-160N-200-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-160N-250-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-160N-300-WMounting: Axial foot | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-180B-50-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-180B-75-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-180B-100-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-180B-150-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-180B-200-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-180B-250-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-180B-300-WMounting: Axial foot | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-180R-50-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-180R-75-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-180R-100-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-180R-150-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-180R-200-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-180R-250-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-180R-300-WMounting: Axial foot | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-180H-50-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-180H-75-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-180H-100-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-180H-150-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-180H-200-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-180H-250-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-180H-300-WMounting: Axial foot | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-180N-50-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-180N-75-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-180N-100-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-180N-150-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-180N-200-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-180N-250-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-180N-300-WMounting: Axial foot | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-200B-50-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-200B-75-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-200B-100-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-200B-150-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-200B-200-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-200B-250-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-200B-300-WMounting: Axial foot | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-200R-50-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-200R-75-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-200R-100-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-200R-150-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-200R-200-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-200R-250-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-200R-300-WMounting: Axial foot | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-200H-50-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-200H-75-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-200H-100-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-200H-150-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-200H-200-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-200H-250-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-200H-300-WMounting: Axial foot | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-200N-50-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-200N-75-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-200N-100-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-200N-150-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-200N-200-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-200N-250-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-200N-300-WMounting: Axial foot | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-LB-250B-50-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-LB-250B-75-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-LB-250B-100-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-LB-250B-150-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-LB-250B-200-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-LB-250B-250-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-LB-250B-300-WMounting: Axial foot | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-LB-250R-50-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-LB-250R-75-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-LB-250R-100-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-LB-250R-150-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-LB-250R-200-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-LB-250R-250-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-LB-250R-300-WMounting: Axial foot | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-LB-250H-50-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-LB-250H-75-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-LB-250H-100-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-LB-250H-150-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-LB-250H-200-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-LB-250H-250-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-LB-250H-300-WMounting: Axial foot | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-LB-250N-50-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-LB-250N-75-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-LB-250N-100-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-LB-250N-150-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-LB-250N-200-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-LB-250N-250-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-LB-250N-300-WMounting: Axial foot | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-125B-50-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-125B-75-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-125B-100-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-125B-150-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-125B-200-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-125B-250-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-125B-300-WMounting: Rod flange | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-125R-50-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-125R-75-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-125R-100-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-125R-150-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-125R-200-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-125R-250-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-125R-300-WMounting: Rod flange | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-125H-50-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-125H-75-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-125H-100-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-125H-150-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-125H-200-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-125H-250-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-125H-300-WMounting: Rod flange | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-125N-50-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-125N-75-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-125N-100-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-125N-150-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-125N-200-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-125N-250-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-125N-300-WMounting: Rod flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-140B-50-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-140B-75-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-140B-100-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-140B-150-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-140B-200-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-140B-250-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-140B-300-WMounting: Rod flange | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-140R-50-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-140R-75-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-140R-100-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-140R-150-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-140R-200-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-140R-250-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-140R-300-WMounting: Rod flange | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-140H-50-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-140H-75-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-140H-100-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-140H-150-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-140H-200-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-140H-250-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-140H-300-WMounting: Rod flange | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-140N-50-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-140N-75-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-140N-100-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-140N-150-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-140N-200-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-140N-250-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-140N-300-WMounting: Rod flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-160B-50-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-160B-75-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-160B-100-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-160B-150-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-160B-200-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-160B-250-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-160B-300-WMounting: Rod flange | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-160R-50-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-160R-75-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-160R-100-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-160R-150-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-160R-200-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-160R-250-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-160R-300-WMounting: Rod flange | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-160H-50-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-160H-75-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-160H-100-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-160H-150-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-160H-200-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-160H-250-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-160H-300-WMounting: Rod flange | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-160N-50-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-160N-75-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-160N-100-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-160N-150-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-160N-200-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-160N-250-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-160N-300-WMounting: Rod flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-180B-50-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-180B-75-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-180B-100-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-180B-150-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-180B-200-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-180B-250-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-180B-300-WMounting: Rod flange | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-180R-50-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-180R-75-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-180R-100-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-180R-150-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-180R-200-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-180R-250-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-180R-300-WMounting: Rod flange | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-180H-50-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-180H-75-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-180H-100-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-180H-150-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-180H-200-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-180H-250-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-180H-300-WMounting: Rod flange | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-180N-50-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-180N-75-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-180N-100-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-180N-150-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-180N-200-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-180N-250-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-180N-300-WMounting: Rod flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-200B-50-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-200B-75-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-200B-100-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-200B-150-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-200B-200-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-200B-250-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-200B-300-WMounting: Rod flange | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-200R-50-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-200R-75-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-200R-100-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-200R-150-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-200R-200-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-200R-250-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-200R-300-WMounting: Rod flange | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-200H-50-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-200H-75-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-200H-100-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-200H-150-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-200H-200-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-200H-250-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-200H-300-WMounting: Rod flange | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-200N-50-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-200N-75-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-200N-100-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-200N-150-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-200N-200-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-200N-250-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-200N-300-WMounting: Rod flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FA-250B-50-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FA-250B-75-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FA-250B-100-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FA-250B-150-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FA-250B-200-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FA-250B-250-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FA-250B-300-WMounting: Rod flange | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FA-250R-50-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FA-250R-75-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FA-250R-100-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FA-250R-150-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FA-250R-200-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FA-250R-250-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FA-250R-300-WMounting: Rod flange | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FA-250H-50-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FA-250H-75-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FA-250H-100-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FA-250H-150-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FA-250H-200-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FA-250H-250-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FA-250H-300-WMounting: Rod flange | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FA-250N-50-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FA-250N-75-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FA-250N-100-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FA-250N-150-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FA-250N-200-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FA-250N-250-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FA-250N-300-WMounting: Rod flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-125B-50-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-125B-75-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-125B-100-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-125B-150-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-125B-200-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-125B-250-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-125B-300-WMounting: Head flange | Bore: 125 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-125R-50-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-125R-75-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-125R-100-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-125R-150-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-125R-200-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-125R-250-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-125R-300-WMounting: Head flange | Bore: 125 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-125H-50-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-125H-75-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-125H-100-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-125H-150-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-125H-200-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-125H-250-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-125H-300-WMounting: Head flange | Bore: 125 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-125N-50-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-125N-75-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-125N-100-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-125N-150-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-125N-200-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-125N-250-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-125N-300-WMounting: Head flange | Bore: 125 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-140B-50-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-140B-75-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-140B-100-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-140B-150-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-140B-200-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-140B-250-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-140B-300-WMounting: Head flange | Bore: 140 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-140R-50-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-140R-75-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-140R-100-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-140R-150-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-140R-200-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-140R-250-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-140R-300-WMounting: Head flange | Bore: 140 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-140H-50-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-140H-75-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-140H-100-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-140H-150-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-140H-200-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-140H-250-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-140H-300-WMounting: Head flange | Bore: 140 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-140N-50-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-140N-75-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-140N-100-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-140N-150-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-140N-200-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-140N-250-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-140N-300-WMounting: Head flange | Bore: 140 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-160B-50-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-160B-75-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-160B-100-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-160B-150-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-160B-200-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-160B-250-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-160B-300-WMounting: Head flange | Bore: 160 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-160R-50-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-160R-75-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-160R-100-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-160R-150-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-160R-200-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-160R-250-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-160R-300-WMounting: Head flange | Bore: 160 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-160H-50-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-160H-75-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-160H-100-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-160H-150-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-160H-200-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-160H-250-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-160H-300-WMounting: Head flange | Bore: 160 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-160N-50-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-160N-75-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-160N-100-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-160N-150-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-160N-200-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-160N-250-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-160N-300-WMounting: Head flange | Bore: 160 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-180B-50-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-180B-75-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-180B-100-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-180B-150-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-180B-200-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-180B-250-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-180B-300-WMounting: Head flange | Bore: 180 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-180R-50-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-180R-75-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-180R-100-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-180R-150-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-180R-200-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-180R-250-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-180R-300-WMounting: Head flange | Bore: 180 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-180H-50-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-180H-75-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-180H-100-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-180H-150-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-180H-200-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-180H-250-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-180H-300-WMounting: Head flange | Bore: 180 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-180N-50-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-180N-75-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-180N-100-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-180N-150-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-180N-200-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-180N-250-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-180N-300-WMounting: Head flange | Bore: 180 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-200B-50-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-200B-75-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-200B-100-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-200B-150-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-200B-200-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-200B-250-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-200B-300-WMounting: Head flange | Bore: 200 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-200R-50-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-200R-75-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-200R-100-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-200R-150-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-200R-200-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-200R-250-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-200R-300-WMounting: Head flange | Bore: 200 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-200H-50-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-200H-75-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-200H-100-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-200H-150-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-200H-200-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-200H-250-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-200H-300-WMounting: Head flange | Bore: 200 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-200N-50-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-200N-75-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-200N-100-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-200N-150-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-200N-200-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-200N-250-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-200N-300-WMounting: Head flange | Bore: 200 mm | Cushion: None | Stroke: 300 mm
SCS2-N-FB-250B-50-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 50 mm
SCS2-N-FB-250B-75-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 75 mm
SCS2-N-FB-250B-100-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 100 mm
SCS2-N-FB-250B-150-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 150 mm
SCS2-N-FB-250B-200-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 200 mm
SCS2-N-FB-250B-250-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 250 mm
SCS2-N-FB-250B-300-WMounting: Head flange | Bore: 250 mm | Cushion: Both ends | Stroke: 300 mm
SCS2-N-FB-250R-50-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 50 mm
SCS2-N-FB-250R-75-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 75 mm
SCS2-N-FB-250R-100-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 100 mm
SCS2-N-FB-250R-150-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 150 mm
SCS2-N-FB-250R-200-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 200 mm
SCS2-N-FB-250R-250-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 250 mm
SCS2-N-FB-250R-300-WMounting: Head flange | Bore: 250 mm | Cushion: Rod end | Stroke: 300 mm
SCS2-N-FB-250H-50-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 50 mm
SCS2-N-FB-250H-75-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 75 mm
SCS2-N-FB-250H-100-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 100 mm
SCS2-N-FB-250H-150-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 150 mm
SCS2-N-FB-250H-200-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 200 mm
SCS2-N-FB-250H-250-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 250 mm
SCS2-N-FB-250H-300-WMounting: Head flange | Bore: 250 mm | Cushion: Head end | Stroke: 300 mm
SCS2-N-FB-250N-50-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 50 mm
SCS2-N-FB-250N-75-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 75 mm
SCS2-N-FB-250N-100-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 100 mm
SCS2-N-FB-250N-150-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 150 mm
SCS2-N-FB-250N-200-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 200 mm
SCS2-N-FB-250N-250-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 250 mm
SCS2-N-FB-250N-300-WMounting: Head flange | Bore: 250 mm | Cushion: None | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
