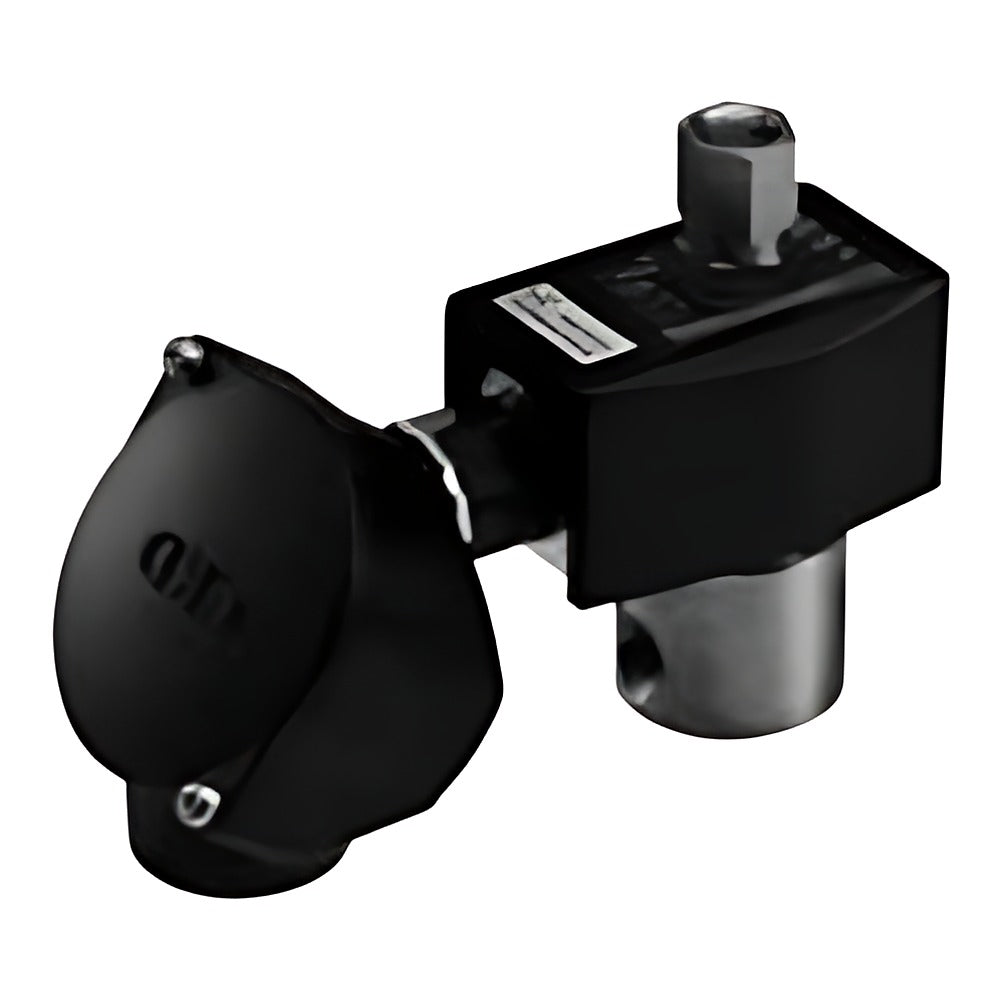

CKD AG41-W MULTILEX Direct Acting 3-Port Solenoid Valve (Outdoor)

CKD AG41-W MULTILEX Direct Acting 3-Port Solenoid Valve (Outdoor)

CKD AG41-W outdoor direct-acting universal 3-port solenoid valve (MULTILEX), Rc1/4 or Rc3/8.

Key features

  • Outdoor WEATHER PROOF series: passed 960 h combined cycle test (JIS H8502), 1000 h sunshine weather meter and 400 h ozone exposure tests
  • Universal 3-port direct-acting poppet, orifice phi 2.0 or phi 2.3
  • Stainless steel body with NBR (D) or FKM (E) seal
  • Open-frame coil with circular terminal box G1/2, with or without lamp; IP65
  • Bracket, cable gland, surge killer and WG warranty options not multiplied

Specifications

Fluid Air, low vacuum, water, kerosene, oil
Max. operating pressure 1 MPa
Proof pressure 25 MPa (hydraulic)
Ambient temperature -20 to 60 C (NBR), -10 to 60 C (FKM)
Insulation Class 130 (B)
Protection IP65
Source CKD Korea catalog CC-1276K, p. 56-59
AG41-02-1-D3EW-AC100V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-02-1-D3EW-AC200V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-02-1-D3LW-AC100V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-1-D3LW-AC200V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-02-1-E3EW-AC100V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-02-1-E3EW-AC200V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-02-1-E3LW-AC100V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-1-E3LW-AC200V Port: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AG41-02-2-D3EW-AC100V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-02-2-D3EW-AC200V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-02-2-D3LW-AC100V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-2-D3LW-AC200V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-02-2-E3EW-AC100V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-02-2-E3EW-AC200V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-02-2-E3LW-AC100V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-2-E3LW-AC200V Port: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-1-D3EW-AC100V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-03-1-D3EW-AC200V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-03-1-D3LW-AC100V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-1-D3LW-AC200V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-1-E3EW-AC100V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-03-1-E3EW-AC200V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-03-1-E3LW-AC100V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-1-E3LW-AC200V Port: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-2-D3EW-AC100V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-03-2-D3EW-AC200V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-03-2-D3LW-AC100V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-2-D3LW-AC200V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-2-E3EW-AC100V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-03-2-E3EW-AC200V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-03-2-E3LW-AC100V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-2-E3LW-AC200V Port: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
Solenoid ValvesCKD
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AG41-W MULTILEX Direct Acting 3-Port Solenoid Valve (Outdoor)

Brand CKD·Solenoid Valves

Available part numbers (32)

AG41-02-1-D3EW-AC100V, AG41-02-1-D3EW-AC200V, AG41-02-1-D3LW-AC100V, AG41-02-1-D3LW-AC200V, AG41-02-1-E3EW-AC100V, AG41-02-1-E3EW-AC200V, AG41-02-1-E3LW-AC100V, AG41-02-1-E3LW-AC200V, AG41-02-2-D3EW-AC100V, AG41-02-2-D3EW-AC200V + 22 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AG41-02-1-D3EW-AC100VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-02-1-D3EW-AC200VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-02-1-D3LW-AC100VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-1-D3LW-AC200VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-02-1-E3EW-AC100VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-02-1-E3EW-AC200VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-02-1-E3LW-AC100VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-1-E3LW-AC200VPort: Rc1/4 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AG41-02-2-D3EW-AC100VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-02-2-D3EW-AC200VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-02-2-D3LW-AC100VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-2-D3LW-AC200VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-02-2-E3EW-AC100VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-02-2-E3EW-AC200VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-02-2-E3LW-AC100VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-02-2-E3LW-AC200VPort: Rc1/4 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-1-D3EW-AC100VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-03-1-D3EW-AC200VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-03-1-D3LW-AC100VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-1-D3LW-AC200VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-1-E3EW-AC100VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-03-1-E3EW-AC200VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-03-1-E3LW-AC100VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-1-E3LW-AC200VPort: Rc3/8 | Orifice: phi 2.0 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-2-D3EW-AC100VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC100V
AG41-03-2-D3EW-AC200VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box | Voltage: AC200V
AG41-03-2-D3LW-AC100VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-2-D3LW-AC200VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / NBR | Coil: Terminal box + lamp | Voltage: AC200V
AG41-03-2-E3EW-AC100VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC100V
AG41-03-2-E3EW-AC200VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box | Voltage: AC200V
AG41-03-2-E3LW-AC100VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC100V
AG41-03-2-E3LW-AC200VPort: Rc3/8 | Orifice: phi 2.3 | Body/seal: SUS / FKM | Coil: Terminal box + lamp | Voltage: AC200V
