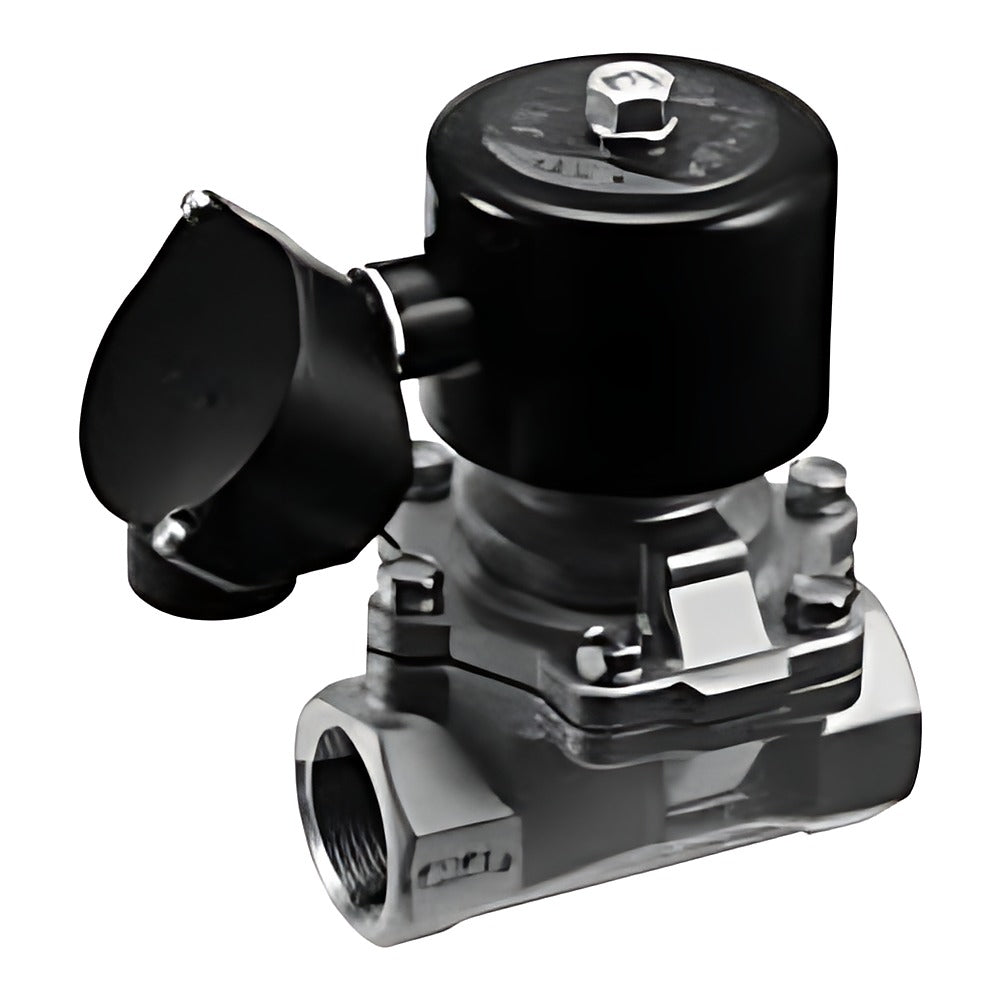

CKD ADK11-W MULTILEX Pilot Kick 2-Port Solenoid Valve (Outdoor)

CKD ADK11-W outdoor pilot-kick NC 2-port diaphragm solenoid valve, Rc1/2 to Rc1, operating from 0 MPa differential.

Key features

Outdoor WEATHER PROOF series: passed 960 h combined cycle test (JIS H8502), 1000 h sunshine weather meter and 400 h ozone exposure tests
Pilot-kick poppet with diaphragm drive; operates from 0 MPa differential pressure
Orifice 16 / 23 / 28 mm
Stainless steel body, NBR (D) or FKM (E) seal
Bracket, cable gland, surge killer and WG warranty options not multiplied

Specifications

Fluid	Air, low vacuum, water, kerosene, oil
Max. operating pressure	2 MPa
Operating differential	0 to 1.0 MPa
Proof pressure	4 MPa (hydraulic)
Insulation	Class 130 (B)
Protection	IP65
Source	CKD Korea catalog CC-1276K, p. 60-63

ADK11-15A-D3EW-AC100V		Port: Rc1/2 \| Body/seal: SUS / NBR \| Coil: Terminal box \| Voltage: AC100V
ADK11-15A-D3EW-AC200V		Port: Rc1/2 \| Body/seal: SUS / NBR \| Coil: Terminal box \| Voltage: AC200V
ADK11-15A-D3LW-AC100V		Port: Rc1/2 \| Body/seal: SUS / NBR \| Coil: Terminal box + lamp \| Voltage: AC100V
ADK11-15A-D3LW-AC200V		Port: Rc1/2 \| Body/seal: SUS / NBR \| Coil: Terminal box + lamp \| Voltage: AC200V
ADK11-20A-D3EW-AC100V		Port: Rc3/4 \| Body/seal: SUS / NBR \| Coil: Terminal box \| Voltage: AC100V
ADK11-20A-D3EW-AC200V		Port: Rc3/4 \| Body/seal: SUS / NBR \| Coil: Terminal box \| Voltage: AC200V
ADK11-20A-D3LW-AC100V		Port: Rc3/4 \| Body/seal: SUS / NBR \| Coil: Terminal box + lamp \| Voltage: AC100V
ADK11-20A-D3LW-AC200V		Port: Rc3/4 \| Body/seal: SUS / NBR \| Coil: Terminal box + lamp \| Voltage: AC200V
ADK11-25A-D3EW-AC100V		Port: Rc1 \| Body/seal: SUS / NBR \| Coil: Terminal box \| Voltage: AC100V
ADK11-25A-D3EW-AC200V		Port: Rc1 \| Body/seal: SUS / NBR \| Coil: Terminal box \| Voltage: AC200V
ADK11-25A-D3LW-AC100V		Port: Rc1 \| Body/seal: SUS / NBR \| Coil: Terminal box + lamp \| Voltage: AC100V
ADK11-25A-D3LW-AC200V		Port: Rc1 \| Body/seal: SUS / NBR \| Coil: Terminal box + lamp \| Voltage: AC200V

Solenoid ValvesCKD

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD ADK11-W MULTILEX Pilot Kick 2-Port Solenoid Valve (Outdoor)

Brand CKD·Solenoid Valves

Available part numbers (12)

ADK11-15A-D3EW-AC100V, ADK11-15A-D3EW-AC200V, ADK11-15A-D3LW-AC100V, ADK11-15A-D3LW-AC200V, ADK11-20A-D3EW-AC100V, ADK11-20A-D3EW-AC200V, ADK11-20A-D3LW-AC100V, ADK11-20A-D3LW-AC200V, ADK11-25A-D3EW-AC100V, ADK11-25A-D3EW-AC200V + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
