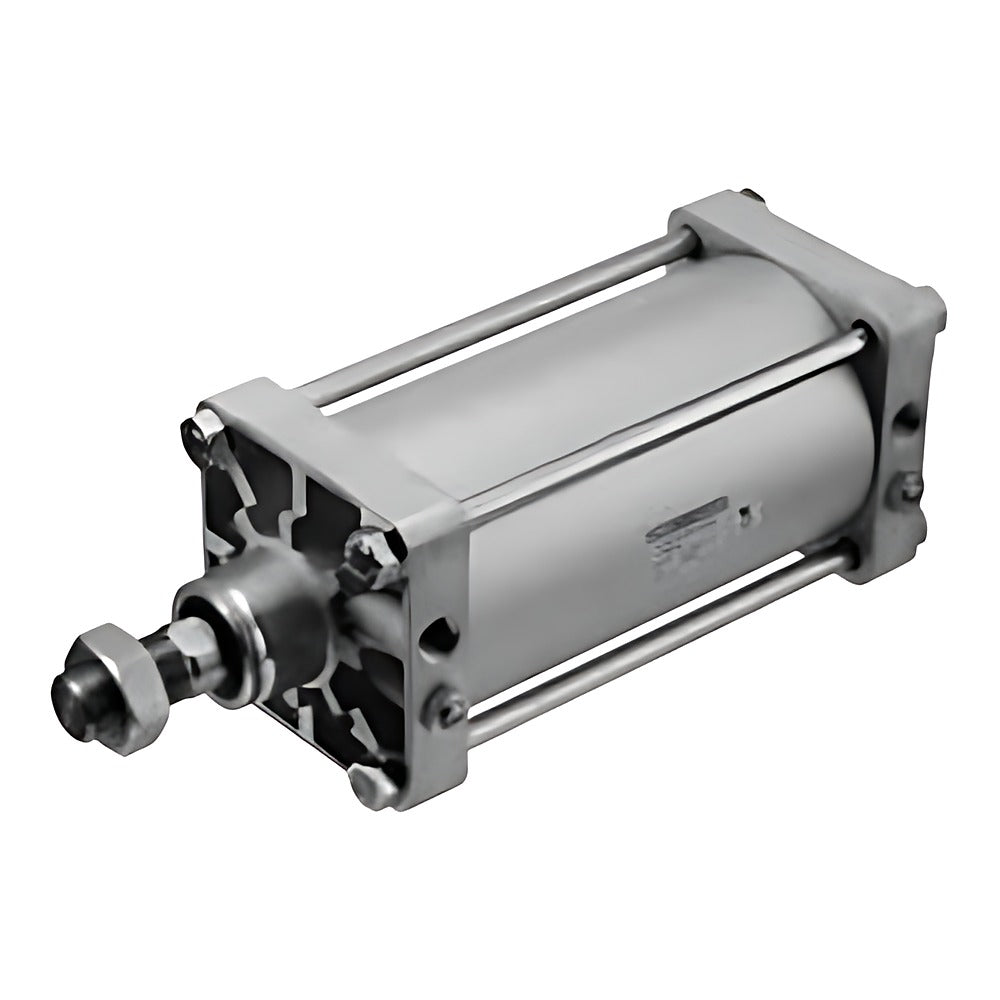

CKD SCA2-W Selex Cylinder (Outdoor, Bore 40 to 100)

CKD SCA2-W outdoor-spec Selex double-acting single-rod cylinder, bore phi 40 to phi 100, with air cushion.

Key features

Outdoor WEATHER PROOF spec, ambient -20 to 60 C
Mountings: basic, axial foot, rod flange, head flange (fitted at factory)
Air cushion both ends, rod or head end, or none
Standard strokes 25-500 mm; intermediate strokes in 1 mm steps up to 600/700/800 mm on order
Options: silicone bellows L1 (250 C), cushion needle position S/T, NPT/G thread (made to order) not multiplied

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.6 MPa
Ambient temperature	-20 to 60 C (no freezing)
Piston speed	50 to 1000 mm/s
Port	Rc1/4 (40), Rc3/8 (50, 63), Rc1/2 (80, 100)
Lubrication	Not required
Source	CKD Korea catalog CC-1276K, p. 88-91

SCA2-00-40B-25-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-00-40B-50-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-00-40B-75-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-00-40B-100-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-00-40B-150-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-00-40B-200-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-00-40B-250-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-00-40B-300-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-00-40B-350-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-00-40B-400-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-00-40B-450-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-00-40B-500-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-00-40R-25-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-00-40R-50-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-00-40R-75-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-00-40R-100-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-00-40R-150-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-00-40R-200-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-00-40R-250-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-00-40R-300-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-00-40R-350-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-00-40R-400-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-00-40R-450-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-00-40R-500-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-00-40H-25-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-00-40H-50-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-00-40H-75-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-00-40H-100-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-00-40H-150-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-00-40H-200-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-00-40H-250-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-00-40H-300-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-00-40H-350-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-00-40H-400-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-00-40H-450-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-00-40H-500-W		Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-00-40N-25-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-40N-50-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-40N-75-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-40N-100-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-40N-150-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-40N-200-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-40N-250-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-40N-300-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-40N-350-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-40N-400-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-40N-450-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-40N-500-W		Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-50B-25-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-00-50B-50-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-00-50B-75-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-00-50B-100-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-00-50B-150-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-00-50B-200-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-00-50B-250-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-00-50B-300-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-00-50B-350-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-00-50B-400-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-00-50B-450-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-00-50B-500-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-00-50R-25-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-00-50R-50-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-00-50R-75-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-00-50R-100-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-00-50R-150-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-00-50R-200-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-00-50R-250-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-00-50R-300-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-00-50R-350-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-00-50R-400-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-00-50R-450-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-00-50R-500-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-00-50H-25-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-00-50H-50-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-00-50H-75-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-00-50H-100-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-00-50H-150-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-00-50H-200-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-00-50H-250-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-00-50H-300-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-00-50H-350-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-00-50H-400-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-00-50H-450-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-00-50H-500-W		Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-00-50N-25-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-50N-50-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-50N-75-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-50N-100-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-50N-150-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-50N-200-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-50N-250-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-50N-300-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-50N-350-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-50N-400-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-50N-450-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-50N-500-W		Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-63B-25-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-00-63B-50-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-00-63B-75-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-00-63B-100-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-00-63B-150-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-00-63B-200-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-00-63B-250-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-00-63B-300-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-00-63B-350-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-00-63B-400-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-00-63B-450-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-00-63B-500-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-00-63R-25-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-00-63R-50-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-00-63R-75-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-00-63R-100-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-00-63R-150-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-00-63R-200-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-00-63R-250-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-00-63R-300-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-00-63R-350-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-00-63R-400-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-00-63R-450-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-00-63R-500-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-00-63H-25-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-00-63H-50-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-00-63H-75-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-00-63H-100-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-00-63H-150-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-00-63H-200-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-00-63H-250-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-00-63H-300-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-00-63H-350-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-00-63H-400-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-00-63H-450-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-00-63H-500-W		Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-00-63N-25-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-63N-50-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-63N-75-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-63N-100-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-63N-150-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-63N-200-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-63N-250-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-63N-300-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-63N-350-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-63N-400-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-63N-450-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-63N-500-W		Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-80B-25-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-00-80B-50-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-00-80B-75-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-00-80B-100-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-00-80B-150-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-00-80B-200-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-00-80B-250-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-00-80B-300-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-00-80B-350-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-00-80B-400-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-00-80B-450-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-00-80B-500-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-00-80R-25-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-00-80R-50-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-00-80R-75-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-00-80R-100-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-00-80R-150-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-00-80R-200-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-00-80R-250-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-00-80R-300-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-00-80R-350-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-00-80R-400-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-00-80R-450-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-00-80R-500-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-00-80H-25-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-00-80H-50-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-00-80H-75-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-00-80H-100-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-00-80H-150-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-00-80H-200-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-00-80H-250-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-00-80H-300-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-00-80H-350-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-00-80H-400-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-00-80H-450-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-00-80H-500-W		Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-00-80N-25-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-80N-50-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-80N-75-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-80N-100-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-80N-150-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-80N-200-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-80N-250-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-80N-300-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-80N-350-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-80N-400-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-80N-450-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-80N-500-W		Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-00-100B-25-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-00-100B-50-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-00-100B-75-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-00-100B-100-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-00-100B-150-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-00-100B-200-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-00-100B-250-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-00-100B-300-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-00-100B-350-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-00-100B-400-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-00-100B-450-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-00-100B-500-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-00-100R-25-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-00-100R-50-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-00-100R-75-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-00-100R-100-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-00-100R-150-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-00-100R-200-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-00-100R-250-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-00-100R-300-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-00-100R-350-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-00-100R-400-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-00-100R-450-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-00-100R-500-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-00-100H-25-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-00-100H-50-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-00-100H-75-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-00-100H-100-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-00-100H-150-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-00-100H-200-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-00-100H-250-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-00-100H-300-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-00-100H-350-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-00-100H-400-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-00-100H-450-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-00-100H-500-W		Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-00-100N-25-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-00-100N-50-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-00-100N-75-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-00-100N-100-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-00-100N-150-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-00-100N-200-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-00-100N-250-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-00-100N-300-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-00-100N-350-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-00-100N-400-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-00-100N-450-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-00-100N-500-W		Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-40B-25-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-LB-40B-50-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-LB-40B-75-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-LB-40B-100-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-LB-40B-150-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-LB-40B-200-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-LB-40B-250-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-LB-40B-300-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-LB-40B-350-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-LB-40B-400-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-LB-40B-450-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-LB-40B-500-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-LB-40R-25-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-LB-40R-50-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-LB-40R-75-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-LB-40R-100-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-LB-40R-150-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-LB-40R-200-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-LB-40R-250-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-LB-40R-300-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-LB-40R-350-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-LB-40R-400-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-LB-40R-450-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-LB-40R-500-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-LB-40H-25-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-LB-40H-50-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-LB-40H-75-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-LB-40H-100-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-LB-40H-150-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-LB-40H-200-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-LB-40H-250-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-LB-40H-300-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-LB-40H-350-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-LB-40H-400-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-LB-40H-450-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-LB-40H-500-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-LB-40N-25-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-40N-50-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-40N-75-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-40N-100-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-40N-150-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-40N-200-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-40N-250-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-40N-300-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-40N-350-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-40N-400-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-40N-450-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-40N-500-W		Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-50B-25-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-LB-50B-50-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-LB-50B-75-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-LB-50B-100-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-LB-50B-150-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-LB-50B-200-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-LB-50B-250-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-LB-50B-300-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-LB-50B-350-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-LB-50B-400-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-LB-50B-450-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-LB-50B-500-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-LB-50R-25-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-LB-50R-50-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-LB-50R-75-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-LB-50R-100-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-LB-50R-150-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-LB-50R-200-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-LB-50R-250-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-LB-50R-300-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-LB-50R-350-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-LB-50R-400-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-LB-50R-450-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-LB-50R-500-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-LB-50H-25-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-LB-50H-50-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-LB-50H-75-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-LB-50H-100-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-LB-50H-150-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-LB-50H-200-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-LB-50H-250-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-LB-50H-300-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-LB-50H-350-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-LB-50H-400-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-LB-50H-450-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-LB-50H-500-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-LB-50N-25-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-50N-50-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-50N-75-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-50N-100-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-50N-150-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-50N-200-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-50N-250-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-50N-300-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-50N-350-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-50N-400-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-50N-450-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-50N-500-W		Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-63B-25-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-LB-63B-50-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-LB-63B-75-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-LB-63B-100-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-LB-63B-150-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-LB-63B-200-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-LB-63B-250-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-LB-63B-300-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-LB-63B-350-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-LB-63B-400-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-LB-63B-450-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-LB-63B-500-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-LB-63R-25-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-LB-63R-50-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-LB-63R-75-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-LB-63R-100-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-LB-63R-150-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-LB-63R-200-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-LB-63R-250-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-LB-63R-300-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-LB-63R-350-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-LB-63R-400-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-LB-63R-450-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-LB-63R-500-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-LB-63H-25-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-LB-63H-50-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-LB-63H-75-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-LB-63H-100-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-LB-63H-150-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-LB-63H-200-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-LB-63H-250-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-LB-63H-300-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-LB-63H-350-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-LB-63H-400-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-LB-63H-450-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-LB-63H-500-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-LB-63N-25-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-63N-50-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-63N-75-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-63N-100-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-63N-150-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-63N-200-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-63N-250-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-63N-300-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-63N-350-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-63N-400-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-63N-450-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-63N-500-W		Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-80B-25-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-LB-80B-50-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-LB-80B-75-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-LB-80B-100-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-LB-80B-150-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-LB-80B-200-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-LB-80B-250-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-LB-80B-300-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-LB-80B-350-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-LB-80B-400-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-LB-80B-450-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-LB-80B-500-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-LB-80R-25-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-LB-80R-50-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-LB-80R-75-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-LB-80R-100-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-LB-80R-150-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-LB-80R-200-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-LB-80R-250-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-LB-80R-300-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-LB-80R-350-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-LB-80R-400-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-LB-80R-450-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-LB-80R-500-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-LB-80H-25-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-LB-80H-50-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-LB-80H-75-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-LB-80H-100-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-LB-80H-150-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-LB-80H-200-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-LB-80H-250-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-LB-80H-300-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-LB-80H-350-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-LB-80H-400-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-LB-80H-450-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-LB-80H-500-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-LB-80N-25-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-80N-50-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-80N-75-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-80N-100-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-80N-150-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-80N-200-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-80N-250-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-80N-300-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-80N-350-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-80N-400-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-80N-450-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-80N-500-W		Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-LB-100B-25-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-LB-100B-50-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-LB-100B-75-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-LB-100B-100-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-LB-100B-150-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-LB-100B-200-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-LB-100B-250-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-LB-100B-300-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-LB-100B-350-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-LB-100B-400-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-LB-100B-450-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-LB-100B-500-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-LB-100R-25-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-LB-100R-50-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-LB-100R-75-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-LB-100R-100-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-LB-100R-150-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-LB-100R-200-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-LB-100R-250-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-LB-100R-300-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-LB-100R-350-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-LB-100R-400-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-LB-100R-450-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-LB-100R-500-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-LB-100H-25-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-LB-100H-50-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-LB-100H-75-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-LB-100H-100-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-LB-100H-150-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-LB-100H-200-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-LB-100H-250-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-LB-100H-300-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-LB-100H-350-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-LB-100H-400-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-LB-100H-450-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-LB-100H-500-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-LB-100N-25-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-LB-100N-50-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-LB-100N-75-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-LB-100N-100-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-LB-100N-150-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-LB-100N-200-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-LB-100N-250-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-LB-100N-300-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-LB-100N-350-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-LB-100N-400-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-LB-100N-450-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-LB-100N-500-W		Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-40B-25-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FA-40B-50-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FA-40B-75-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FA-40B-100-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FA-40B-150-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FA-40B-200-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FA-40B-250-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FA-40B-300-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FA-40B-350-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FA-40B-400-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FA-40B-450-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FA-40B-500-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FA-40R-25-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FA-40R-50-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FA-40R-75-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FA-40R-100-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FA-40R-150-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FA-40R-200-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FA-40R-250-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FA-40R-300-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FA-40R-350-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FA-40R-400-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FA-40R-450-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FA-40R-500-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FA-40H-25-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FA-40H-50-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FA-40H-75-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FA-40H-100-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FA-40H-150-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FA-40H-200-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FA-40H-250-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FA-40H-300-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FA-40H-350-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FA-40H-400-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FA-40H-450-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FA-40H-500-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FA-40N-25-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-40N-50-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-40N-75-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-40N-100-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-40N-150-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-40N-200-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-40N-250-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-40N-300-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-40N-350-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-40N-400-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-40N-450-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-40N-500-W		Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-50B-25-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FA-50B-50-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FA-50B-75-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FA-50B-100-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FA-50B-150-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FA-50B-200-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FA-50B-250-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FA-50B-300-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FA-50B-350-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FA-50B-400-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FA-50B-450-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FA-50B-500-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FA-50R-25-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FA-50R-50-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FA-50R-75-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FA-50R-100-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FA-50R-150-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FA-50R-200-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FA-50R-250-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FA-50R-300-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FA-50R-350-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FA-50R-400-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FA-50R-450-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FA-50R-500-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FA-50H-25-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FA-50H-50-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FA-50H-75-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FA-50H-100-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FA-50H-150-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FA-50H-200-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FA-50H-250-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FA-50H-300-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FA-50H-350-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FA-50H-400-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FA-50H-450-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FA-50H-500-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FA-50N-25-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-50N-50-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-50N-75-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-50N-100-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-50N-150-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-50N-200-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-50N-250-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-50N-300-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-50N-350-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-50N-400-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-50N-450-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-50N-500-W		Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-63B-25-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FA-63B-50-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FA-63B-75-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FA-63B-100-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FA-63B-150-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FA-63B-200-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FA-63B-250-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FA-63B-300-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FA-63B-350-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FA-63B-400-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FA-63B-450-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FA-63B-500-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FA-63R-25-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FA-63R-50-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FA-63R-75-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FA-63R-100-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FA-63R-150-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FA-63R-200-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FA-63R-250-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FA-63R-300-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FA-63R-350-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FA-63R-400-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FA-63R-450-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FA-63R-500-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FA-63H-25-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FA-63H-50-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FA-63H-75-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FA-63H-100-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FA-63H-150-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FA-63H-200-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FA-63H-250-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FA-63H-300-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FA-63H-350-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FA-63H-400-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FA-63H-450-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FA-63H-500-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FA-63N-25-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-63N-50-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-63N-75-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-63N-100-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-63N-150-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-63N-200-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-63N-250-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-63N-300-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-63N-350-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-63N-400-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-63N-450-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-63N-500-W		Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-80B-25-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FA-80B-50-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FA-80B-75-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FA-80B-100-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FA-80B-150-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FA-80B-200-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FA-80B-250-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FA-80B-300-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FA-80B-350-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FA-80B-400-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FA-80B-450-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FA-80B-500-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FA-80R-25-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FA-80R-50-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FA-80R-75-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FA-80R-100-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FA-80R-150-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FA-80R-200-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FA-80R-250-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FA-80R-300-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FA-80R-350-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FA-80R-400-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FA-80R-450-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FA-80R-500-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FA-80H-25-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FA-80H-50-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FA-80H-75-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FA-80H-100-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FA-80H-150-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FA-80H-200-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FA-80H-250-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FA-80H-300-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FA-80H-350-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FA-80H-400-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FA-80H-450-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FA-80H-500-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FA-80N-25-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-80N-50-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-80N-75-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-80N-100-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-80N-150-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-80N-200-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-80N-250-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-80N-300-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-80N-350-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-80N-400-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-80N-450-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-80N-500-W		Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FA-100B-25-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FA-100B-50-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FA-100B-75-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FA-100B-100-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FA-100B-150-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FA-100B-200-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FA-100B-250-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FA-100B-300-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FA-100B-350-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FA-100B-400-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FA-100B-450-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FA-100B-500-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FA-100R-25-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FA-100R-50-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FA-100R-75-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FA-100R-100-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FA-100R-150-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FA-100R-200-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FA-100R-250-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FA-100R-300-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FA-100R-350-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FA-100R-400-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FA-100R-450-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FA-100R-500-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FA-100H-25-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FA-100H-50-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FA-100H-75-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FA-100H-100-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FA-100H-150-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FA-100H-200-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FA-100H-250-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FA-100H-300-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FA-100H-350-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FA-100H-400-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FA-100H-450-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FA-100H-500-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FA-100N-25-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FA-100N-50-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FA-100N-75-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FA-100N-100-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FA-100N-150-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FA-100N-200-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FA-100N-250-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FA-100N-300-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FA-100N-350-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FA-100N-400-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FA-100N-450-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FA-100N-500-W		Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-40B-25-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FB-40B-50-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FB-40B-75-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FB-40B-100-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FB-40B-150-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FB-40B-200-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FB-40B-250-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FB-40B-300-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FB-40B-350-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FB-40B-400-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FB-40B-450-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FB-40B-500-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FB-40R-25-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FB-40R-50-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FB-40R-75-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FB-40R-100-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FB-40R-150-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FB-40R-200-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FB-40R-250-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FB-40R-300-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FB-40R-350-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FB-40R-400-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FB-40R-450-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FB-40R-500-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FB-40H-25-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FB-40H-50-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FB-40H-75-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FB-40H-100-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FB-40H-150-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FB-40H-200-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FB-40H-250-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FB-40H-300-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FB-40H-350-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FB-40H-400-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FB-40H-450-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FB-40H-500-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FB-40N-25-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-40N-50-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-40N-75-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-40N-100-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-40N-150-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-40N-200-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-40N-250-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-40N-300-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-40N-350-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-40N-400-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-40N-450-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-40N-500-W		Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-50B-25-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FB-50B-50-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FB-50B-75-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FB-50B-100-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FB-50B-150-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FB-50B-200-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FB-50B-250-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FB-50B-300-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FB-50B-350-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FB-50B-400-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FB-50B-450-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FB-50B-500-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FB-50R-25-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FB-50R-50-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FB-50R-75-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FB-50R-100-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FB-50R-150-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FB-50R-200-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FB-50R-250-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FB-50R-300-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FB-50R-350-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FB-50R-400-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FB-50R-450-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FB-50R-500-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FB-50H-25-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FB-50H-50-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FB-50H-75-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FB-50H-100-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FB-50H-150-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FB-50H-200-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FB-50H-250-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FB-50H-300-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FB-50H-350-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FB-50H-400-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FB-50H-450-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FB-50H-500-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FB-50N-25-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-50N-50-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-50N-75-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-50N-100-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-50N-150-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-50N-200-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-50N-250-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-50N-300-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-50N-350-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-50N-400-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-50N-450-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-50N-500-W		Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-63B-25-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FB-63B-50-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FB-63B-75-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FB-63B-100-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FB-63B-150-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FB-63B-200-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FB-63B-250-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FB-63B-300-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FB-63B-350-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FB-63B-400-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FB-63B-450-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FB-63B-500-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FB-63R-25-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FB-63R-50-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FB-63R-75-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FB-63R-100-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FB-63R-150-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FB-63R-200-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FB-63R-250-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FB-63R-300-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FB-63R-350-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FB-63R-400-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FB-63R-450-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FB-63R-500-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FB-63H-25-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FB-63H-50-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FB-63H-75-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FB-63H-100-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FB-63H-150-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FB-63H-200-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FB-63H-250-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FB-63H-300-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FB-63H-350-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FB-63H-400-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FB-63H-450-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FB-63H-500-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FB-63N-25-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-63N-50-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-63N-75-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-63N-100-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-63N-150-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-63N-200-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-63N-250-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-63N-300-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-63N-350-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-63N-400-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-63N-450-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-63N-500-W		Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-80B-25-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FB-80B-50-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FB-80B-75-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FB-80B-100-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FB-80B-150-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FB-80B-200-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FB-80B-250-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FB-80B-300-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FB-80B-350-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FB-80B-400-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FB-80B-450-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FB-80B-500-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FB-80R-25-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FB-80R-50-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FB-80R-75-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FB-80R-100-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FB-80R-150-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FB-80R-200-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FB-80R-250-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FB-80R-300-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FB-80R-350-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FB-80R-400-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FB-80R-450-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FB-80R-500-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FB-80H-25-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FB-80H-50-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FB-80H-75-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FB-80H-100-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FB-80H-150-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FB-80H-200-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FB-80H-250-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FB-80H-300-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FB-80H-350-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FB-80H-400-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FB-80H-450-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FB-80H-500-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FB-80N-25-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-80N-50-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-80N-75-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-80N-100-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-80N-150-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-80N-200-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-80N-250-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-80N-300-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-80N-350-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-80N-400-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-80N-450-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-80N-500-W		Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
SCA2-FB-100B-25-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
SCA2-FB-100B-50-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
SCA2-FB-100B-75-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
SCA2-FB-100B-100-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
SCA2-FB-100B-150-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
SCA2-FB-100B-200-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
SCA2-FB-100B-250-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
SCA2-FB-100B-300-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
SCA2-FB-100B-350-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
SCA2-FB-100B-400-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
SCA2-FB-100B-450-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
SCA2-FB-100B-500-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
SCA2-FB-100R-25-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
SCA2-FB-100R-50-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
SCA2-FB-100R-75-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
SCA2-FB-100R-100-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
SCA2-FB-100R-150-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
SCA2-FB-100R-200-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
SCA2-FB-100R-250-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
SCA2-FB-100R-300-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
SCA2-FB-100R-350-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
SCA2-FB-100R-400-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
SCA2-FB-100R-450-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
SCA2-FB-100R-500-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
SCA2-FB-100H-25-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
SCA2-FB-100H-50-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
SCA2-FB-100H-75-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
SCA2-FB-100H-100-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
SCA2-FB-100H-150-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
SCA2-FB-100H-200-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
SCA2-FB-100H-250-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
SCA2-FB-100H-300-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
SCA2-FB-100H-350-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
SCA2-FB-100H-400-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
SCA2-FB-100H-450-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
SCA2-FB-100H-500-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
SCA2-FB-100N-25-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
SCA2-FB-100N-50-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
SCA2-FB-100N-75-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
SCA2-FB-100N-100-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
SCA2-FB-100N-150-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
SCA2-FB-100N-200-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
SCA2-FB-100N-250-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
SCA2-FB-100N-300-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
SCA2-FB-100N-350-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
SCA2-FB-100N-400-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
SCA2-FB-100N-450-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
SCA2-FB-100N-500-W		Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm

Pneumatic CylindersCKD

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SCA2-W Selex Cylinder (Outdoor, Bore 40 to 100)

Brand CKD·Pneumatic Cylinders

Available part numbers (960)

SCA2-00-40B-25-W, SCA2-00-40B-50-W, SCA2-00-40B-75-W, SCA2-00-40B-100-W, SCA2-00-40B-150-W, SCA2-00-40B-200-W, SCA2-00-40B-250-W, SCA2-00-40B-300-W, SCA2-00-40B-350-W, SCA2-00-40B-400-W + 950 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SCA2-00-40B-25-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-00-40B-50-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-00-40B-75-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-00-40B-100-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-00-40B-150-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-00-40B-200-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-00-40B-250-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-00-40B-300-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-00-40B-350-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-00-40B-400-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-00-40B-450-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-00-40B-500-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-00-40R-25-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-00-40R-50-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-00-40R-75-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-00-40R-100-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-00-40R-150-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-00-40R-200-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-00-40R-250-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-00-40R-300-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-00-40R-350-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-00-40R-400-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-00-40R-450-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-00-40R-500-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-00-40H-25-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-00-40H-50-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-00-40H-75-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-00-40H-100-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-00-40H-150-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-00-40H-200-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-00-40H-250-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-00-40H-300-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-00-40H-350-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-00-40H-400-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-00-40H-450-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-00-40H-500-W	Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-00-40N-25-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-40N-50-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-40N-75-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-40N-100-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-40N-150-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-40N-200-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-40N-250-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-40N-300-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-40N-350-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-40N-400-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-40N-450-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-40N-500-W	Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-50B-25-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-00-50B-50-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-00-50B-75-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-00-50B-100-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-00-50B-150-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-00-50B-200-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-00-50B-250-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-00-50B-300-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-00-50B-350-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-00-50B-400-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-00-50B-450-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-00-50B-500-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-00-50R-25-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-00-50R-50-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-00-50R-75-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-00-50R-100-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-00-50R-150-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-00-50R-200-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-00-50R-250-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-00-50R-300-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-00-50R-350-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-00-50R-400-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-00-50R-450-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-00-50R-500-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-00-50H-25-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-00-50H-50-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-00-50H-75-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-00-50H-100-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-00-50H-150-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-00-50H-200-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-00-50H-250-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-00-50H-300-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-00-50H-350-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-00-50H-400-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-00-50H-450-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-00-50H-500-W	Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-00-50N-25-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-50N-50-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-50N-75-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-50N-100-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-50N-150-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-50N-200-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-50N-250-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-50N-300-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-50N-350-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-50N-400-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-50N-450-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-50N-500-W	Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-63B-25-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-00-63B-50-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-00-63B-75-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-00-63B-100-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-00-63B-150-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-00-63B-200-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-00-63B-250-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-00-63B-300-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-00-63B-350-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-00-63B-400-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-00-63B-450-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-00-63B-500-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-00-63R-25-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-00-63R-50-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-00-63R-75-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-00-63R-100-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-00-63R-150-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-00-63R-200-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-00-63R-250-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-00-63R-300-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-00-63R-350-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-00-63R-400-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-00-63R-450-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-00-63R-500-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-00-63H-25-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-00-63H-50-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-00-63H-75-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-00-63H-100-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-00-63H-150-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-00-63H-200-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-00-63H-250-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-00-63H-300-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-00-63H-350-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-00-63H-400-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-00-63H-450-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-00-63H-500-W	Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-00-63N-25-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-63N-50-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-63N-75-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-63N-100-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-63N-150-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-63N-200-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-63N-250-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-63N-300-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-63N-350-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-63N-400-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-63N-450-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-63N-500-W	Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-80B-25-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-00-80B-50-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-00-80B-75-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-00-80B-100-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-00-80B-150-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-00-80B-200-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-00-80B-250-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-00-80B-300-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-00-80B-350-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-00-80B-400-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-00-80B-450-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-00-80B-500-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-00-80R-25-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-00-80R-50-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-00-80R-75-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-00-80R-100-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-00-80R-150-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-00-80R-200-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-00-80R-250-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-00-80R-300-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-00-80R-350-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-00-80R-400-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-00-80R-450-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-00-80R-500-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-00-80H-25-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-00-80H-50-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-00-80H-75-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-00-80H-100-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-00-80H-150-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-00-80H-200-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-00-80H-250-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-00-80H-300-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-00-80H-350-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-00-80H-400-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-00-80H-450-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-00-80H-500-W	Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-00-80N-25-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-80N-50-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-80N-75-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-80N-100-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-80N-150-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-80N-200-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-80N-250-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-80N-300-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-80N-350-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-80N-400-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-80N-450-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-80N-500-W	Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-00-100B-25-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-00-100B-50-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-00-100B-75-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-00-100B-100-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-00-100B-150-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-00-100B-200-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-00-100B-250-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-00-100B-300-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-00-100B-350-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-00-100B-400-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-00-100B-450-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-00-100B-500-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-00-100R-25-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-00-100R-50-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-00-100R-75-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-00-100R-100-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-00-100R-150-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-00-100R-200-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-00-100R-250-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-00-100R-300-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-00-100R-350-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-00-100R-400-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-00-100R-450-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-00-100R-500-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-00-100H-25-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-00-100H-50-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-00-100H-75-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-00-100H-100-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-00-100H-150-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-00-100H-200-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-00-100H-250-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-00-100H-300-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-00-100H-350-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-00-100H-400-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-00-100H-450-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-00-100H-500-W	Mounting: Basic \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-00-100N-25-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-00-100N-50-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-00-100N-75-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-00-100N-100-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-00-100N-150-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-00-100N-200-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-00-100N-250-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-00-100N-300-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-00-100N-350-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-00-100N-400-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-00-100N-450-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-00-100N-500-W	Mounting: Basic \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-40B-25-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-LB-40B-50-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-LB-40B-75-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-LB-40B-100-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-LB-40B-150-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-LB-40B-200-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-LB-40B-250-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-LB-40B-300-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-LB-40B-350-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-LB-40B-400-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-LB-40B-450-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-LB-40B-500-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-LB-40R-25-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-LB-40R-50-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-LB-40R-75-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-LB-40R-100-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-LB-40R-150-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-LB-40R-200-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-LB-40R-250-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-LB-40R-300-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-LB-40R-350-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-LB-40R-400-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-LB-40R-450-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-LB-40R-500-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-LB-40H-25-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-LB-40H-50-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-LB-40H-75-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-LB-40H-100-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-LB-40H-150-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-LB-40H-200-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-LB-40H-250-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-LB-40H-300-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-LB-40H-350-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-LB-40H-400-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-LB-40H-450-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-LB-40H-500-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-LB-40N-25-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-40N-50-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-40N-75-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-40N-100-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-40N-150-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-40N-200-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-40N-250-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-40N-300-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-40N-350-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-40N-400-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-40N-450-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-40N-500-W	Mounting: Axial foot \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-50B-25-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-LB-50B-50-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-LB-50B-75-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-LB-50B-100-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-LB-50B-150-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-LB-50B-200-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-LB-50B-250-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-LB-50B-300-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-LB-50B-350-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-LB-50B-400-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-LB-50B-450-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-LB-50B-500-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-LB-50R-25-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-LB-50R-50-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-LB-50R-75-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-LB-50R-100-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-LB-50R-150-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-LB-50R-200-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-LB-50R-250-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-LB-50R-300-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-LB-50R-350-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-LB-50R-400-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-LB-50R-450-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-LB-50R-500-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-LB-50H-25-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-LB-50H-50-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-LB-50H-75-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-LB-50H-100-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-LB-50H-150-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-LB-50H-200-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-LB-50H-250-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-LB-50H-300-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-LB-50H-350-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-LB-50H-400-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-LB-50H-450-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-LB-50H-500-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-LB-50N-25-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-50N-50-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-50N-75-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-50N-100-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-50N-150-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-50N-200-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-50N-250-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-50N-300-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-50N-350-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-50N-400-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-50N-450-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-50N-500-W	Mounting: Axial foot \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-63B-25-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-LB-63B-50-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-LB-63B-75-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-LB-63B-100-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-LB-63B-150-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-LB-63B-200-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-LB-63B-250-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-LB-63B-300-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-LB-63B-350-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-LB-63B-400-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-LB-63B-450-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-LB-63B-500-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-LB-63R-25-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-LB-63R-50-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-LB-63R-75-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-LB-63R-100-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-LB-63R-150-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-LB-63R-200-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-LB-63R-250-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-LB-63R-300-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-LB-63R-350-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-LB-63R-400-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-LB-63R-450-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-LB-63R-500-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-LB-63H-25-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-LB-63H-50-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-LB-63H-75-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-LB-63H-100-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-LB-63H-150-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-LB-63H-200-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-LB-63H-250-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-LB-63H-300-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-LB-63H-350-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-LB-63H-400-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-LB-63H-450-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-LB-63H-500-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-LB-63N-25-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-63N-50-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-63N-75-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-63N-100-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-63N-150-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-63N-200-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-63N-250-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-63N-300-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-63N-350-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-63N-400-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-63N-450-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-63N-500-W	Mounting: Axial foot \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-80B-25-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-LB-80B-50-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-LB-80B-75-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-LB-80B-100-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-LB-80B-150-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-LB-80B-200-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-LB-80B-250-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-LB-80B-300-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-LB-80B-350-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-LB-80B-400-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-LB-80B-450-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-LB-80B-500-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-LB-80R-25-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-LB-80R-50-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-LB-80R-75-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-LB-80R-100-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-LB-80R-150-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-LB-80R-200-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-LB-80R-250-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-LB-80R-300-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-LB-80R-350-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-LB-80R-400-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-LB-80R-450-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-LB-80R-500-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-LB-80H-25-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-LB-80H-50-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-LB-80H-75-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-LB-80H-100-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-LB-80H-150-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-LB-80H-200-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-LB-80H-250-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-LB-80H-300-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-LB-80H-350-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-LB-80H-400-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-LB-80H-450-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-LB-80H-500-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-LB-80N-25-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-80N-50-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-80N-75-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-80N-100-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-80N-150-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-80N-200-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-80N-250-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-80N-300-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-80N-350-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-80N-400-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-80N-450-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-80N-500-W	Mounting: Axial foot \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-LB-100B-25-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-LB-100B-50-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-LB-100B-75-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-LB-100B-100-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-LB-100B-150-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-LB-100B-200-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-LB-100B-250-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-LB-100B-300-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-LB-100B-350-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-LB-100B-400-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-LB-100B-450-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-LB-100B-500-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-LB-100R-25-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-LB-100R-50-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-LB-100R-75-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-LB-100R-100-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-LB-100R-150-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-LB-100R-200-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-LB-100R-250-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-LB-100R-300-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-LB-100R-350-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-LB-100R-400-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-LB-100R-450-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-LB-100R-500-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-LB-100H-25-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-LB-100H-50-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-LB-100H-75-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-LB-100H-100-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-LB-100H-150-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-LB-100H-200-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-LB-100H-250-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-LB-100H-300-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-LB-100H-350-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-LB-100H-400-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-LB-100H-450-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-LB-100H-500-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-LB-100N-25-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-LB-100N-50-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-LB-100N-75-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-LB-100N-100-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-LB-100N-150-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-LB-100N-200-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-LB-100N-250-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-LB-100N-300-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-LB-100N-350-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-LB-100N-400-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-LB-100N-450-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-LB-100N-500-W	Mounting: Axial foot \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-40B-25-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FA-40B-50-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FA-40B-75-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FA-40B-100-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FA-40B-150-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FA-40B-200-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FA-40B-250-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FA-40B-300-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FA-40B-350-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FA-40B-400-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FA-40B-450-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FA-40B-500-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FA-40R-25-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FA-40R-50-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FA-40R-75-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FA-40R-100-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FA-40R-150-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FA-40R-200-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FA-40R-250-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FA-40R-300-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FA-40R-350-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FA-40R-400-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FA-40R-450-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FA-40R-500-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FA-40H-25-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FA-40H-50-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FA-40H-75-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FA-40H-100-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FA-40H-150-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FA-40H-200-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FA-40H-250-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FA-40H-300-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FA-40H-350-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FA-40H-400-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FA-40H-450-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FA-40H-500-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FA-40N-25-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-40N-50-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-40N-75-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-40N-100-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-40N-150-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-40N-200-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-40N-250-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-40N-300-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-40N-350-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-40N-400-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-40N-450-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-40N-500-W	Mounting: Rod flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-50B-25-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FA-50B-50-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FA-50B-75-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FA-50B-100-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FA-50B-150-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FA-50B-200-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FA-50B-250-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FA-50B-300-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FA-50B-350-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FA-50B-400-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FA-50B-450-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FA-50B-500-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FA-50R-25-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FA-50R-50-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FA-50R-75-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FA-50R-100-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FA-50R-150-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FA-50R-200-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FA-50R-250-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FA-50R-300-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FA-50R-350-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FA-50R-400-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FA-50R-450-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FA-50R-500-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FA-50H-25-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FA-50H-50-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FA-50H-75-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FA-50H-100-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FA-50H-150-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FA-50H-200-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FA-50H-250-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FA-50H-300-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FA-50H-350-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FA-50H-400-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FA-50H-450-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FA-50H-500-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FA-50N-25-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-50N-50-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-50N-75-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-50N-100-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-50N-150-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-50N-200-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-50N-250-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-50N-300-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-50N-350-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-50N-400-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-50N-450-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-50N-500-W	Mounting: Rod flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-63B-25-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FA-63B-50-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FA-63B-75-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FA-63B-100-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FA-63B-150-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FA-63B-200-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FA-63B-250-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FA-63B-300-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FA-63B-350-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FA-63B-400-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FA-63B-450-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FA-63B-500-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FA-63R-25-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FA-63R-50-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FA-63R-75-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FA-63R-100-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FA-63R-150-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FA-63R-200-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FA-63R-250-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FA-63R-300-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FA-63R-350-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FA-63R-400-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FA-63R-450-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FA-63R-500-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FA-63H-25-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FA-63H-50-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FA-63H-75-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FA-63H-100-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FA-63H-150-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FA-63H-200-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FA-63H-250-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FA-63H-300-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FA-63H-350-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FA-63H-400-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FA-63H-450-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FA-63H-500-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FA-63N-25-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-63N-50-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-63N-75-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-63N-100-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-63N-150-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-63N-200-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-63N-250-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-63N-300-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-63N-350-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-63N-400-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-63N-450-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-63N-500-W	Mounting: Rod flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-80B-25-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FA-80B-50-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FA-80B-75-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FA-80B-100-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FA-80B-150-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FA-80B-200-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FA-80B-250-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FA-80B-300-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FA-80B-350-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FA-80B-400-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FA-80B-450-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FA-80B-500-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FA-80R-25-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FA-80R-50-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FA-80R-75-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FA-80R-100-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FA-80R-150-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FA-80R-200-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FA-80R-250-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FA-80R-300-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FA-80R-350-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FA-80R-400-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FA-80R-450-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FA-80R-500-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FA-80H-25-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FA-80H-50-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FA-80H-75-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FA-80H-100-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FA-80H-150-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FA-80H-200-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FA-80H-250-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FA-80H-300-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FA-80H-350-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FA-80H-400-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FA-80H-450-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FA-80H-500-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FA-80N-25-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-80N-50-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-80N-75-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-80N-100-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-80N-150-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-80N-200-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-80N-250-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-80N-300-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-80N-350-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-80N-400-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-80N-450-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-80N-500-W	Mounting: Rod flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FA-100B-25-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FA-100B-50-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FA-100B-75-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FA-100B-100-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FA-100B-150-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FA-100B-200-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FA-100B-250-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FA-100B-300-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FA-100B-350-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FA-100B-400-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FA-100B-450-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FA-100B-500-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FA-100R-25-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FA-100R-50-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FA-100R-75-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FA-100R-100-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FA-100R-150-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FA-100R-200-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FA-100R-250-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FA-100R-300-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FA-100R-350-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FA-100R-400-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FA-100R-450-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FA-100R-500-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FA-100H-25-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FA-100H-50-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FA-100H-75-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FA-100H-100-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FA-100H-150-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FA-100H-200-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FA-100H-250-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FA-100H-300-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FA-100H-350-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FA-100H-400-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FA-100H-450-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FA-100H-500-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FA-100N-25-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FA-100N-50-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FA-100N-75-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FA-100N-100-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FA-100N-150-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FA-100N-200-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FA-100N-250-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FA-100N-300-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FA-100N-350-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FA-100N-400-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FA-100N-450-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FA-100N-500-W	Mounting: Rod flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-40B-25-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FB-40B-50-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FB-40B-75-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FB-40B-100-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FB-40B-150-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FB-40B-200-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FB-40B-250-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FB-40B-300-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FB-40B-350-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FB-40B-400-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FB-40B-450-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FB-40B-500-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FB-40R-25-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FB-40R-50-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FB-40R-75-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FB-40R-100-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FB-40R-150-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FB-40R-200-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FB-40R-250-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FB-40R-300-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FB-40R-350-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FB-40R-400-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FB-40R-450-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FB-40R-500-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FB-40H-25-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FB-40H-50-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FB-40H-75-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FB-40H-100-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FB-40H-150-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FB-40H-200-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FB-40H-250-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FB-40H-300-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FB-40H-350-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FB-40H-400-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FB-40H-450-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FB-40H-500-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FB-40N-25-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-40N-50-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-40N-75-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-40N-100-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-40N-150-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-40N-200-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-40N-250-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-40N-300-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-40N-350-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-40N-400-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-40N-450-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-40N-500-W	Mounting: Head flange \| Bore: 40 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-50B-25-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FB-50B-50-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FB-50B-75-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FB-50B-100-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FB-50B-150-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FB-50B-200-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FB-50B-250-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FB-50B-300-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FB-50B-350-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FB-50B-400-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FB-50B-450-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FB-50B-500-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FB-50R-25-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FB-50R-50-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FB-50R-75-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FB-50R-100-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FB-50R-150-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FB-50R-200-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FB-50R-250-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FB-50R-300-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FB-50R-350-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FB-50R-400-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FB-50R-450-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FB-50R-500-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FB-50H-25-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FB-50H-50-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FB-50H-75-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FB-50H-100-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FB-50H-150-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FB-50H-200-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FB-50H-250-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FB-50H-300-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FB-50H-350-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FB-50H-400-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FB-50H-450-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FB-50H-500-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FB-50N-25-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-50N-50-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-50N-75-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-50N-100-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-50N-150-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-50N-200-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-50N-250-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-50N-300-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-50N-350-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-50N-400-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-50N-450-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-50N-500-W	Mounting: Head flange \| Bore: 50 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-63B-25-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FB-63B-50-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FB-63B-75-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FB-63B-100-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FB-63B-150-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FB-63B-200-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FB-63B-250-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FB-63B-300-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FB-63B-350-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FB-63B-400-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FB-63B-450-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FB-63B-500-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FB-63R-25-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FB-63R-50-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FB-63R-75-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FB-63R-100-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FB-63R-150-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FB-63R-200-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FB-63R-250-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FB-63R-300-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FB-63R-350-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FB-63R-400-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FB-63R-450-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FB-63R-500-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FB-63H-25-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FB-63H-50-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FB-63H-75-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FB-63H-100-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FB-63H-150-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FB-63H-200-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FB-63H-250-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FB-63H-300-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FB-63H-350-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FB-63H-400-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FB-63H-450-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FB-63H-500-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FB-63N-25-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-63N-50-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-63N-75-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-63N-100-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-63N-150-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-63N-200-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-63N-250-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-63N-300-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-63N-350-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-63N-400-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-63N-450-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-63N-500-W	Mounting: Head flange \| Bore: 63 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-80B-25-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FB-80B-50-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FB-80B-75-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FB-80B-100-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FB-80B-150-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FB-80B-200-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FB-80B-250-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FB-80B-300-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FB-80B-350-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FB-80B-400-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FB-80B-450-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FB-80B-500-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FB-80R-25-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FB-80R-50-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FB-80R-75-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FB-80R-100-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FB-80R-150-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FB-80R-200-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FB-80R-250-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FB-80R-300-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FB-80R-350-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FB-80R-400-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FB-80R-450-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FB-80R-500-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FB-80H-25-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FB-80H-50-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FB-80H-75-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FB-80H-100-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FB-80H-150-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FB-80H-200-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FB-80H-250-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FB-80H-300-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FB-80H-350-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FB-80H-400-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FB-80H-450-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FB-80H-500-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FB-80N-25-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-80N-50-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-80N-75-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-80N-100-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-80N-150-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-80N-200-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-80N-250-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-80N-300-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-80N-350-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-80N-400-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-80N-450-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-80N-500-W	Mounting: Head flange \| Bore: 80 mm \| Cushion: None \| Stroke: 500 mm
	SCA2-FB-100B-25-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 25 mm
	SCA2-FB-100B-50-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 50 mm
	SCA2-FB-100B-75-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 75 mm
	SCA2-FB-100B-100-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 100 mm
	SCA2-FB-100B-150-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 150 mm
	SCA2-FB-100B-200-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 200 mm
	SCA2-FB-100B-250-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 250 mm
	SCA2-FB-100B-300-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 300 mm
	SCA2-FB-100B-350-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 350 mm
	SCA2-FB-100B-400-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 400 mm
	SCA2-FB-100B-450-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 450 mm
	SCA2-FB-100B-500-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Both ends \| Stroke: 500 mm
	SCA2-FB-100R-25-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 25 mm
	SCA2-FB-100R-50-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 50 mm
	SCA2-FB-100R-75-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 75 mm
	SCA2-FB-100R-100-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 100 mm
	SCA2-FB-100R-150-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 150 mm
	SCA2-FB-100R-200-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 200 mm
	SCA2-FB-100R-250-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 250 mm
	SCA2-FB-100R-300-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 300 mm
	SCA2-FB-100R-350-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 350 mm
	SCA2-FB-100R-400-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 400 mm
	SCA2-FB-100R-450-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 450 mm
	SCA2-FB-100R-500-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Rod end \| Stroke: 500 mm
	SCA2-FB-100H-25-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 25 mm
	SCA2-FB-100H-50-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 50 mm
	SCA2-FB-100H-75-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 75 mm
	SCA2-FB-100H-100-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 100 mm
	SCA2-FB-100H-150-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 150 mm
	SCA2-FB-100H-200-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 200 mm
	SCA2-FB-100H-250-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 250 mm
	SCA2-FB-100H-300-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 300 mm
	SCA2-FB-100H-350-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 350 mm
	SCA2-FB-100H-400-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 400 mm
	SCA2-FB-100H-450-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 450 mm
	SCA2-FB-100H-500-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: Head end \| Stroke: 500 mm
	SCA2-FB-100N-25-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 25 mm
	SCA2-FB-100N-50-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 50 mm
	SCA2-FB-100N-75-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 75 mm
	SCA2-FB-100N-100-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 100 mm
	SCA2-FB-100N-150-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 150 mm
	SCA2-FB-100N-200-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 200 mm
	SCA2-FB-100N-250-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 250 mm
	SCA2-FB-100N-300-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 300 mm
	SCA2-FB-100N-350-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 350 mm
	SCA2-FB-100N-400-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 400 mm
	SCA2-FB-100N-450-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 450 mm
	SCA2-FB-100N-500-W	Mounting: Head flange \| Bore: 100 mm \| Cushion: None \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD SCA2-W Selex Cylinder (Outdoor, Bore 40 to 100)
