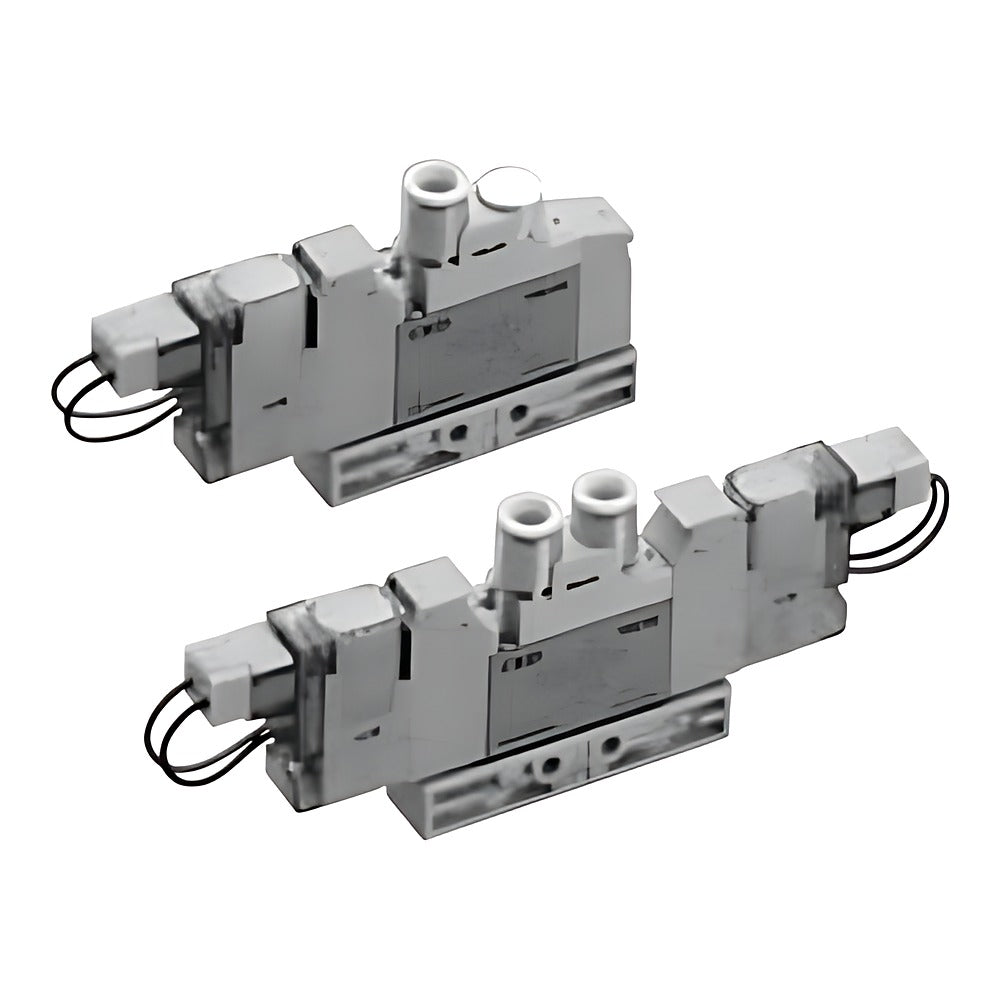

CKD 3GA1/2/3-P70 3-Port Solenoid Valve (Clean, Single, Direct Piping)

CKD 3GA1/3GA2/3GA3 pilot-operated 3-port solenoid valves in clean-room P70 specification, including dual 3-port versions.

Key features

Clean-room specification: suffix -P70 (exhaust treatment, dust-generation prevention); -P74 adds copper/silicone/halogen-free materials (made to order, not combinable with option A)
2-position single N.C. or N.O. on all sizes; dual 3-port types 66/67/76/77 on sizes 1 and 2
Same body and mounting as the 4GA 5-port valves; cylinder bores 20-100 mm
A/B ports: one-touch fittings, M5/Rc threads, inch fittings/NPT and G thread (size 2)
Grommet lead, E connector or DIN terminal box (sizes 2/3); surge killer and lamp available

Specifications

Valve type	Pilot operated soft spool valve
Fluid	Compressed air
Operating pressure	0.2-0.7 MPa
Proof pressure	1.05 MPa
Ambient / fluid temp.	-5 to 55 C / 5 to 55 C
Manual override	Non-locking/locking (standard)
Power consumption	0.35 W (0.40 W with lamp) DC
Applicable cylinder bore	20-100 mm
Clean specification	P70: exhaust treated (clean room); P74 to order
Code format	3GA<size><sw>0R-<port>-<wiring>-<volt>-P70
Source	CKD Korea catalog CB-033S-4, p. 433-474

3GA110R-CF-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-CF-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-CF-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-CF-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-CF-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA110R-C18-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-C18-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-C18-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-C18-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-C18-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA110R-C4-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-C4-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-C4-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-C4-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-C4-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA110R-C6-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-C6-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-C6-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-C6-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-C6-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA110R-M5-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-M5-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-M5-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-M5-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-M5-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA110R-C3N-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-C3N-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-C3N-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-C3N-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-C3N-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA110R-C4N-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA110R-C4N-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA110R-C4N-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA110R-C4N-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA110R-C4N-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-CF-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-CF-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-CF-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-CF-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-CF-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-C18-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-C18-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-C18-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-C18-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-C18-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-C4-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-C4-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-C4-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-C4-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-C4-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-C6-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-C6-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-C6-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-C6-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-C6-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-M5-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-M5-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-M5-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-M5-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-M5-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-C3N-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-C3N-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-C3N-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-C3N-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-C3N-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1110R-C4N-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1110R-C4N-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1110R-C4N-E2-1-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1110R-C4N-E2-3-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1110R-C4N-E2-4-P70		Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-CF-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-CF-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-CF-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-CF-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-CF-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-C18-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-C18-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-C18-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-C18-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-C18-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-C4-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-C4-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-C4-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-C4-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-C4-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-C6-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-C6-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-C6-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-C6-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-C6-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-M5-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-M5-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-M5-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-M5-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-M5-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-C3N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-C3N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-C3N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-C3N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-C3N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1660R-C4N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1660R-C4N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1660R-C4N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1660R-C4N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1660R-C4N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-CF-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-CF-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-CF-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-CF-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-CF-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-C18-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-C18-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-C18-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-C18-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-C18-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-C4-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-C4-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-C4-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-C4-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-C4-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-C6-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-C6-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-C6-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-C6-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-C6-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-M5-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-M5-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-M5-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-M5-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-M5-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-C3N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-C3N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-C3N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-C3N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-C3N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1670R-C4N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1670R-C4N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1670R-C4N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1670R-C4N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1670R-C4N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-CF-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-CF-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-CF-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-CF-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-CF-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-C18-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-C18-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-C18-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-C18-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-C18-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-C4-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-C4-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-C4-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-C4-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-C4-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-C6-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-C6-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-C6-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-C6-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-C6-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-M5-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-M5-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-M5-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-M5-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-M5-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-C3N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-C3N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-C3N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-C3N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-C3N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1760R-C4N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1760R-C4N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1760R-C4N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1760R-C4N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1760R-C4N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-CF-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-CF-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-CF-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-CF-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-CF-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-C18-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-C18-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-C18-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-C18-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-C18-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-C4-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-C4-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-C4-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-C4-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-C4-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-C6-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-C6-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-C6-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-C6-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-C6-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-M5-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-M5-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-M5-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-M5-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-M5-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-C3N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-C3N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-C3N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-C3N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-C3N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA1770R-C4N-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA1770R-C4N-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA1770R-C4N-E2-1-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA1770R-C4N-E2-3-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA1770R-C4N-E2-4-P70		Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C4-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C4-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C4-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C4-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C4-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C4-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C4-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C4-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C4-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C6-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C6-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C6-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C6-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C6-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C6-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C6-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C6-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C6-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C8-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C8-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C8-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C8-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C8-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C8-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C8-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C8-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C8-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-06-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-06-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-06-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-06-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-06-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-06-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-06-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-06-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-06-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C6N-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C6N-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C6N-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C6N-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C6N-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C6N-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C6N-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C6N-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C6N-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C8N-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C8N-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C8N-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C8N-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C8N-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C8N-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C8N-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C8N-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C8N-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-06N-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-06N-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-06N-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-06N-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-06N-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-06N-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-06N-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-06N-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-06N-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C4G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C4G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C4G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C4G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C4G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C4G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C4G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C4G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C4G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C6G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C6G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C6G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C6G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C6G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C6G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C6G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C6G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C6G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-C8G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-C8G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-C8G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-C8G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-C8G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-C8G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-C8G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-C8G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-C8G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA210R-06G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA210R-06G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA210R-06G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA210R-06G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA210R-06G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA210R-06G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA210R-06G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA210R-06G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA210R-06G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C4-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C4-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C4-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C4-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C4-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C4-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C4-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C4-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C4-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C6-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C6-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C6-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C6-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C6-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C6-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C6-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C6-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C6-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C8-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C8-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C8-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C8-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C8-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C8-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C8-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C8-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C8-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-06-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-06-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-06-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-06-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-06-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-06-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-06-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-06-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-06-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C6N-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C6N-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C6N-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C6N-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C6N-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C6N-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C6N-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C6N-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C6N-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C8N-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C8N-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C8N-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C8N-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C8N-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C8N-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C8N-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C8N-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C8N-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-06N-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-06N-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-06N-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-06N-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-06N-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-06N-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-06N-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-06N-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-06N-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C4G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C4G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C4G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C4G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C4G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C4G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C4G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C4G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C4G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C6G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C6G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C6G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C6G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C6G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C6G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C6G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C6G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C6G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-C8G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-C8G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-C8G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-C8G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-C8G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-C8G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-C8G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-C8G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-C8G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2110R-06G-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2110R-06G-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2110R-06G-E2-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2110R-06G-E2-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2110R-06G-E2-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2110R-06G-B-1-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2110R-06G-B-2-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2110R-06G-B-3-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2110R-06G-B-4-P70		Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C4-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C4-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C4-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C4-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C4-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C4-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C4-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C4-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C4-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C6-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C6-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C6-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C6-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C6-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C6-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C6-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C6-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C6-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C8-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C8-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C8-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C8-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C8-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C8-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C8-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C8-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C8-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-06-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-06-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-06-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-06-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-06-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-06-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-06-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-06-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-06-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C6N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C6N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C6N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C6N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C6N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C6N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C6N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C6N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C6N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C8N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C8N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C8N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C8N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C8N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C8N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C8N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C8N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C8N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-06N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-06N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-06N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-06N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-06N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-06N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-06N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-06N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-06N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C4G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C4G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C4G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C4G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C4G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C4G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C4G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C4G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C4G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C6G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C6G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C6G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C6G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C6G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C6G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C6G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C6G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C6G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-C8G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-C8G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-C8G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-C8G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-C8G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-C8G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-C8G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-C8G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-C8G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2660R-06G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2660R-06G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2660R-06G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2660R-06G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2660R-06G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2660R-06G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2660R-06G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2660R-06G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2660R-06G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C4-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C4-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C4-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C4-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C4-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C4-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C4-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C4-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C4-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C6-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C6-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C6-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C6-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C6-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C6-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C6-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C6-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C6-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C8-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C8-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C8-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C8-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C8-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C8-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C8-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C8-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C8-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-06-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-06-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-06-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-06-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-06-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-06-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-06-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-06-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-06-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C6N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C6N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C6N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C6N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C6N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C6N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C6N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C6N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C6N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C8N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C8N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C8N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C8N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C8N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C8N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C8N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C8N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C8N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-06N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-06N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-06N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-06N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-06N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-06N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-06N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-06N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-06N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C4G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C4G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C4G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C4G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C4G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C4G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C4G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C4G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C4G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C6G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C6G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C6G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C6G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C6G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C6G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C6G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C6G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C6G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-C8G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-C8G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-C8G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-C8G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-C8G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-C8G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-C8G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-C8G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-C8G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2670R-06G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2670R-06G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2670R-06G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2670R-06G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2670R-06G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2670R-06G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2670R-06G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2670R-06G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2670R-06G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C4-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C4-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C4-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C4-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C4-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C4-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C4-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C4-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C4-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C6-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C6-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C6-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C6-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C6-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C6-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C6-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C6-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C6-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C8-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C8-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C8-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C8-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C8-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C8-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C8-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C8-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C8-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-06-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-06-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-06-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-06-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-06-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-06-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-06-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-06-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-06-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C6N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C6N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C6N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C6N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C6N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C6N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C6N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C6N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C6N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C8N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C8N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C8N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C8N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C8N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C8N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C8N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C8N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C8N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-06N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-06N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-06N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-06N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-06N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-06N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-06N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-06N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-06N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C4G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C4G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C4G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C4G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C4G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C4G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C4G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C4G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C4G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C6G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C6G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C6G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C6G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C6G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C6G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C6G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C6G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C6G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-C8G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-C8G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-C8G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-C8G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-C8G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-C8G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-C8G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-C8G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-C8G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2760R-06G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2760R-06G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2760R-06G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2760R-06G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2760R-06G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2760R-06G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2760R-06G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2760R-06G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2760R-06G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C4-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C4-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C4-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C4-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C4-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C4-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C4-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C4-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C4-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C6-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C6-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C6-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C6-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C6-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C6-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C6-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C6-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C6-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C8-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C8-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C8-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C8-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C8-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C8-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C8-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C8-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C8-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-06-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-06-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-06-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-06-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-06-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-06-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-06-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-06-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-06-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C6N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C6N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C6N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C6N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C6N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C6N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C6N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C6N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C6N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C8N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C8N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C8N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C8N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C8N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C8N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C8N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C8N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C8N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-06N-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-06N-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-06N-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-06N-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-06N-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-06N-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-06N-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-06N-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-06N-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C4G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C4G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C4G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C4G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C4G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C4G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C4G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C4G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C4G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C6G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C6G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C6G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C6G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C6G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C6G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C6G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C6G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C6G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-C8G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-C8G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-C8G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-C8G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-C8G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-C8G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-C8G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-C8G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-C8G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA2770R-06G-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA2770R-06G-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA2770R-06G-E2-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA2770R-06G-E2-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA2770R-06G-E2-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA2770R-06G-B-1-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA2770R-06G-B-2-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA2770R-06G-B-3-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA2770R-06G-B-4-P70		Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA310R-C6-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA310R-C6-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA310R-C6-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA310R-C6-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA310R-C6-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA310R-C6-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA310R-C6-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA310R-C6-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA310R-C6-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA310R-C8-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA310R-C8-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA310R-C8-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA310R-C8-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA310R-C8-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA310R-C8-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA310R-C8-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA310R-C8-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA310R-C8-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA310R-C10-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA310R-C10-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA310R-C10-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA310R-C10-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA310R-C10-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA310R-C10-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA310R-C10-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA310R-C10-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA310R-C10-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA310R-08-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA310R-08-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA310R-08-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA310R-08-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA310R-08-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA310R-08-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA310R-08-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA310R-08-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA310R-08-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA3110R-C6-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA3110R-C6-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA3110R-C6-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA3110R-C6-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA3110R-C6-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA3110R-C6-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA3110R-C6-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA3110R-C6-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA3110R-C6-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA3110R-C8-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA3110R-C8-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA3110R-C8-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA3110R-C8-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA3110R-C8-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA3110R-C8-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA3110R-C8-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA3110R-C8-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA3110R-C8-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA3110R-C10-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA3110R-C10-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA3110R-C10-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA3110R-C10-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA3110R-C10-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA3110R-C10-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA3110R-C10-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA3110R-C10-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA3110R-C10-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
3GA3110R-08-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
3GA3110R-08-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
3GA3110R-08-E2-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
3GA3110R-08-E2-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
3GA3110R-08-E2-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
3GA3110R-08-B-1-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
3GA3110R-08-B-2-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
3GA3110R-08-B-3-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
3GA3110R-08-B-4-P70		Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V

Solenoid ValvesCKD

876 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 3GA1/2/3-P70 3-Port Solenoid Valve (Clean, Single, Direct Piping)

Brand CKD·Solenoid Valves

Available part numbers (876)

3GA110R-CF-3-P70, 3GA110R-CF-4-P70, 3GA110R-CF-E2-1-P70, 3GA110R-CF-E2-3-P70, 3GA110R-CF-E2-4-P70, 3GA110R-C18-3-P70, 3GA110R-C18-4-P70, 3GA110R-C18-E2-1-P70, 3GA110R-C18-E2-3-P70, 3GA110R-C18-E2-4-P70 + 866 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	3GA110R-CF-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-CF-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-CF-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-CF-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-CF-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA110R-C18-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-C18-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-C18-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-C18-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-C18-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA110R-C4-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-C4-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-C4-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-C4-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-C4-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA110R-C6-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-C6-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-C6-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-C6-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-C6-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA110R-M5-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-M5-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-M5-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-M5-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-M5-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA110R-C3N-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-C3N-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-C3N-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-C3N-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-C3N-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA110R-C4N-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA110R-C4N-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA110R-C4N-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA110R-C4N-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA110R-C4N-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-CF-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-CF-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-CF-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-CF-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-CF-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-C18-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-C18-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-C18-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-C18-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-C18-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-C4-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-C4-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-C4-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-C4-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-C4-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-C6-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-C6-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-C6-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-C6-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-C6-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-M5-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-M5-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-M5-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-M5-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-M5-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-C3N-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-C3N-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-C3N-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-C3N-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-C3N-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1110R-C4N-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1110R-C4N-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1110R-C4N-E2-1-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1110R-C4N-E2-3-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1110R-C4N-E2-4-P70	Model: 3GA1 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-CF-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-CF-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-CF-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-CF-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-CF-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-C18-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-C18-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-C18-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-C18-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-C18-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-C4-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-C4-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-C4-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-C4-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-C4-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-C6-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-C6-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-C6-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-C6-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-C6-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-M5-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-M5-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-M5-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-M5-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-M5-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-C3N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-C3N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-C3N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-C3N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-C3N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1660R-C4N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1660R-C4N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1660R-C4N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1660R-C4N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1660R-C4N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-CF-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-CF-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-CF-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-CF-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-CF-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-C18-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-C18-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-C18-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-C18-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-C18-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-C4-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-C4-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-C4-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-C4-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-C4-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-C6-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-C6-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-C6-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-C6-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-C6-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-M5-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-M5-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-M5-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-M5-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-M5-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-C3N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-C3N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-C3N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-C3N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-C3N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1670R-C4N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1670R-C4N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1670R-C4N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1670R-C4N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1670R-C4N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-CF-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-CF-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-CF-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-CF-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-CF-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-C18-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-C18-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-C18-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-C18-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-C18-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-C4-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-C4-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-C4-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-C4-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-C4-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-C6-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-C6-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-C6-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-C6-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-C6-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-M5-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-M5-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-M5-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-M5-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-M5-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-C3N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-C3N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-C3N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-C3N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-C3N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1760R-C4N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1760R-C4N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1760R-C4N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1760R-C4N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1760R-C4N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-CF-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-CF-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-CF-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-CF-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-CF-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: Barb fitting 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-C18-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-C18-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-C18-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-C18-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-C18-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1.8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-C4-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-C4-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-C4-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-C4-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-C4-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-C6-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-C6-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-C6-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-C6-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-C6-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-M5-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-M5-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-M5-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-M5-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-M5-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: M5 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-C3N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-C3N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-C3N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-C3N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-C3N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/8 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA1770R-C4N-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA1770R-C4N-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA1770R-C4N-E2-1-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA1770R-C4N-E2-3-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA1770R-C4N-E2-4-P70	Model: 3GA1 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/32 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C4-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C4-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C4-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C4-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C4-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C4-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C4-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C4-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C4-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C6-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C6-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C6-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C6-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C6-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C6-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C6-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C6-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C6-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C8-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C8-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C8-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C8-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C8-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C8-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C8-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C8-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C8-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-06-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-06-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-06-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-06-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-06-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-06-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-06-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-06-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-06-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C6N-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C6N-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C6N-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C6N-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C6N-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C6N-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C6N-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C6N-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C6N-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C8N-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C8N-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C8N-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C8N-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C8N-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C8N-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C8N-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C8N-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C8N-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-06N-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-06N-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-06N-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-06N-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-06N-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-06N-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-06N-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-06N-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-06N-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C4G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C4G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C4G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C4G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C4G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C4G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C4G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C4G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C4G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C6G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C6G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C6G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C6G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C6G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C6G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C6G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C6G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C6G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-C8G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-C8G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-C8G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-C8G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-C8G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-C8G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-C8G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-C8G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-C8G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA210R-06G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA210R-06G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA210R-06G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA210R-06G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA210R-06G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA210R-06G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA210R-06G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA210R-06G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA210R-06G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.C. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C4-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C4-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C4-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C4-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C4-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C4-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C4-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C4-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C4-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C6-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C6-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C6-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C6-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C6-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C6-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C6-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C6-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C6-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C8-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C8-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C8-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C8-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C8-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C8-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C8-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C8-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C8-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-06-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-06-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-06-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-06-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-06-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-06-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-06-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-06-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-06-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C6N-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C6N-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C6N-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C6N-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C6N-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C6N-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C6N-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C6N-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C6N-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C8N-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C8N-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C8N-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C8N-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C8N-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C8N-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C8N-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C8N-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C8N-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-06N-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-06N-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-06N-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-06N-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-06N-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-06N-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-06N-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-06N-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-06N-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C4G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C4G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C4G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C4G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C4G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C4G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C4G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C4G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C4G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C6G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C6G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C6G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C6G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C6G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C6G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C6G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C6G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C6G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-C8G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-C8G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-C8G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-C8G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-C8G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-C8G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-C8G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-C8G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-C8G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2110R-06G-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2110R-06G-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2110R-06G-E2-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2110R-06G-E2-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2110R-06G-E2-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2110R-06G-B-1-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2110R-06G-B-2-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2110R-06G-B-3-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2110R-06G-B-4-P70	Model: 3GA2 \| Switching: 2-pos single, N.O. \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C4-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C4-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C4-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C4-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C4-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C4-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C4-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C4-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C4-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C6-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C6-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C6-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C6-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C6-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C6-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C6-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C6-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C6-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C8-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C8-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C8-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C8-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C8-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C8-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C8-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C8-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C8-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-06-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-06-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-06-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-06-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-06-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-06-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-06-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-06-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-06-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C6N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C6N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C6N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C6N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C6N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C6N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C6N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C6N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C6N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C8N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C8N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C8N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C8N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C8N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C8N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C8N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C8N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C8N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-06N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-06N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-06N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-06N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-06N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-06N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-06N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-06N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-06N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C4G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C4G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C4G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C4G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C4G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C4G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C4G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C4G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C4G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C6G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C6G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C6G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C6G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C6G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C6G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C6G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C6G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C6G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-C8G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-C8G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-C8G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-C8G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-C8G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-C8G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-C8G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-C8G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-C8G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2660R-06G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2660R-06G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2660R-06G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2660R-06G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2660R-06G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2660R-06G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2660R-06G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2660R-06G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2660R-06G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C4-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C4-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C4-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C4-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C4-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C4-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C4-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C4-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C4-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C6-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C6-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C6-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C6-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C6-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C6-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C6-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C6-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C6-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C8-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C8-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C8-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C8-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C8-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C8-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C8-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C8-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C8-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-06-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-06-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-06-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-06-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-06-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-06-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-06-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-06-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-06-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C6N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C6N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C6N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C6N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C6N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C6N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C6N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C6N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C6N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C8N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C8N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C8N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C8N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C8N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C8N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C8N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C8N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C8N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-06N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-06N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-06N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-06N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-06N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-06N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-06N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-06N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-06N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C4G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C4G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C4G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C4G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C4G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C4G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C4G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C4G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C4G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C6G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C6G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C6G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C6G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C6G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C6G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C6G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C6G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C6G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-C8G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-C8G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-C8G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-C8G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-C8G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-C8G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-C8G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-C8G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-C8G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2670R-06G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2670R-06G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2670R-06G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2670R-06G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2670R-06G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2670R-06G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2670R-06G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2670R-06G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2670R-06G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NC/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C4-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C4-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C4-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C4-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C4-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C4-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C4-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C4-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C4-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C6-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C6-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C6-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C6-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C6-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C6-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C6-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C6-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C6-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C8-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C8-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C8-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C8-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C8-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C8-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C8-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C8-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C8-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-06-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-06-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-06-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-06-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-06-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-06-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-06-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-06-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-06-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C6N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C6N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C6N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C6N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C6N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C6N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C6N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C6N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C6N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C8N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C8N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C8N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C8N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C8N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C8N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C8N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C8N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C8N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-06N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-06N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-06N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-06N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-06N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-06N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-06N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-06N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-06N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C4G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C4G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C4G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C4G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C4G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C4G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C4G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C4G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C4G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C6G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C6G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C6G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C6G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C6G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C6G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C6G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C6G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C6G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-C8G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-C8G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-C8G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-C8G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-C8G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-C8G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-C8G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-C8G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-C8G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2760R-06G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2760R-06G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2760R-06G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2760R-06G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2760R-06G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2760R-06G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2760R-06G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2760R-06G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2760R-06G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NC \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C4-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C4-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C4-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C4-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C4-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C4-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C4-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C4-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C4-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C6-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C6-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C6-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C6-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C6-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C6-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C6-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C6-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C6-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C8-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C8-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C8-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C8-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C8-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C8-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C8-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C8-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C8-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-06-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-06-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-06-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-06-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-06-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-06-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-06-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-06-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-06-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: Rc1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C6N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C6N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C6N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C6N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C6N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C6N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C6N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C6N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C6N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 1/4 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C8N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C8N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C8N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C8N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C8N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C8N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C8N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C8N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C8N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 5/16 in \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-06N-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-06N-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-06N-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-06N-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-06N-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-06N-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-06N-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-06N-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-06N-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: NPT1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C4G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C4G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C4G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C4G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C4G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C4G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C4G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C4G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C4G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 4 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C6G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C6G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C6G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C6G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C6G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C6G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C6G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C6G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C6G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 6 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-C8G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-C8G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-C8G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-C8G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-C8G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-C8G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-C8G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-C8G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-C8G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: One-touch 8 mm (G thread) \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA2770R-06G-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA2770R-06G-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA2770R-06G-E2-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA2770R-06G-E2-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA2770R-06G-E2-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA2770R-06G-B-1-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA2770R-06G-B-2-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA2770R-06G-B-3-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA2770R-06G-B-4-P70	Model: 3GA2 \| Switching: Dual 3-port, NO/NO \| A/B port: G1/8 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA310R-C6-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA310R-C6-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA310R-C6-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA310R-C6-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA310R-C6-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA310R-C6-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA310R-C6-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA310R-C6-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA310R-C6-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA310R-C8-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA310R-C8-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA310R-C8-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA310R-C8-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA310R-C8-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA310R-C8-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA310R-C8-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA310R-C8-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA310R-C8-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA310R-C10-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA310R-C10-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA310R-C10-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA310R-C10-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA310R-C10-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA310R-C10-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA310R-C10-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA310R-C10-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA310R-C10-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA310R-08-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA310R-08-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA310R-08-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA310R-08-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA310R-08-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA310R-08-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA310R-08-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA310R-08-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA310R-08-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.C. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA3110R-C6-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA3110R-C6-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA3110R-C6-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA3110R-C6-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA3110R-C6-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA3110R-C6-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA3110R-C6-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA3110R-C6-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA3110R-C6-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 6 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA3110R-C8-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA3110R-C8-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA3110R-C8-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA3110R-C8-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA3110R-C8-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA3110R-C8-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA3110R-C8-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA3110R-C8-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA3110R-C8-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 8 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA3110R-C10-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA3110R-C10-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA3110R-C10-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA3110R-C10-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA3110R-C10-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA3110R-C10-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA3110R-C10-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA3110R-C10-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA3110R-C10-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: One-touch 10 mm \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V
	3GA3110R-08-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC24V
	3GA3110R-08-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: Grommet lead 300 mm \| Voltage: DC12V
	3GA3110R-08-E2-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: AC100V
	3GA3110R-08-E2-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC24V
	3GA3110R-08-E2-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: E connector 300 mm, SK+lamp \| Voltage: DC12V
	3GA3110R-08-B-1-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC100V
	3GA3110R-08-B-2-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: AC200V
	3GA3110R-08-B-3-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC24V
	3GA3110R-08-B-4-P70	Model: 3GA3 \| Switching: 2-pos single, N.O. \| A/B port: Rc1/4 \| Wiring: DIN terminal box, SK+lamp \| Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD 3GA1/2/3-P70 3-Port Solenoid Valve (Clean, Single, Direct Piping)
