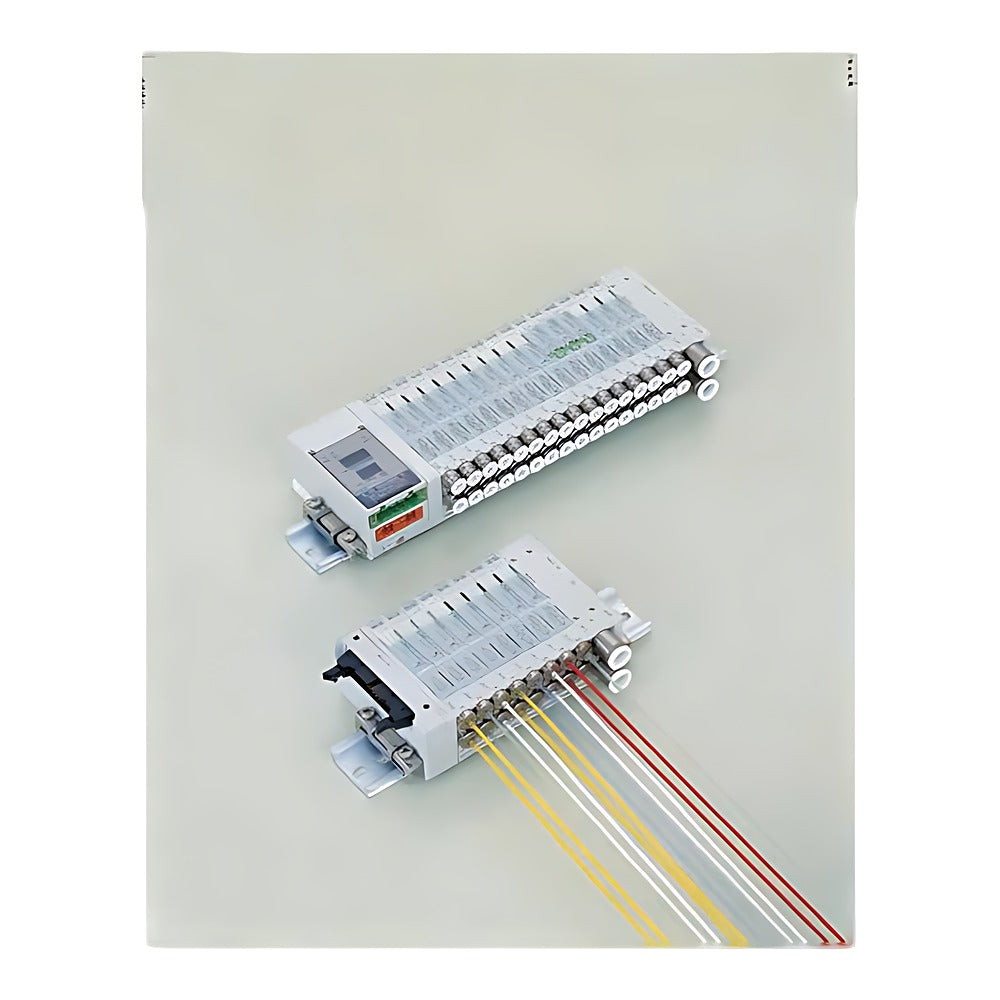

CKD 3GB/4GB Solenoid Valve with Pressure Sensor (Single Valve)

CKD 3GB1/2 and 4GB1/2/3 pilot-operated 3/5-port solenoid valves with built-in pressure sensor (option G1/G2) that outputs the A/B port pressure as a 1-5 V analog signal.

Key features

Patented pressure sensor monitors secondary (A/B) pressure for predictive maintenance, actuator confirmation in hazardous areas and switch-wire-break backup
G1: 1-port detection (2-pos single/double only); G2: 2-port detection (A and B) for all functions; sensing range 0-0.7 MPa with valve
4GB 5-port (single, double, 3-pos closed/ABR/PAB) and 3GB 2x3-port valves (66/67/76/77)
Rc1/8-Rc3/8 sub-base or valve only for base mounting (…9R-00); NPT/G ports on order
Grommet (DC), DIN terminal box (3GB2/4GB2/4GB3) and E connector shown; E0x/E2x lead lengths, EJ connectors, AC100/200V and DC3/5V by code
Options M, H, K, A, S, E, F combine with G1/G2 in the option block; P7x clean room, P4 secondary battery and ST CE versions available

Specifications

Valve type	Pilot-operated soft spool, base piping
Fluid	Compressed air
Operating pressure	0.2-0.7 MPa (internal pilot)
Proof pressure	1.05 MPa
Ambient / fluid temperature	-5 to 55°C / 5 to 55°C
Pressure sensor	Diffused semiconductor, 0-1.0 MPa, analog 1-5 V
Sensor supply	DC10.8-30.0 V, 5 mA; 1000 mm cable with connector
Sensor accuracy	Linearity ±0.5% F.S.; temperature ±2% F.S.
Coil insulation	Class B
Manual override	Non-locking / locking (standard)
Source	CKD Korea catalog CB-023SK-9, p. 423-431

3GB1660R-06-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1660R-06-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1660R-06-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1660R-06-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1660R-06-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1660R-06-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1660R-06-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1669R-00-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1669R-00-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1669R-00-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1669R-00-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1669R-00-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1669R-00-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1669R-00-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1670R-06-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1670R-06-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1670R-06-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1670R-06-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1670R-06-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1670R-06-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1670R-06-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1679R-00-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1679R-00-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1679R-00-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1679R-00-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1679R-00-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1679R-00-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1679R-00-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1760R-06-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1760R-06-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1760R-06-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1760R-06-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1760R-06-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1760R-06-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1760R-06-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1769R-00-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1769R-00-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1769R-00-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1769R-00-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1769R-00-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1769R-00-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1769R-00-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1770R-06-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1770R-06-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1770R-06-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1770R-06-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1770R-06-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1770R-06-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1770R-06-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB1779R-00-G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB1779R-00-G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB1779R-00-E0G2-1		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB1779R-00-E0G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB1779R-00-E0G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB1779R-00-E2G2-3		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB1779R-00-E2G2-4		Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2660R-08-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2660R-08-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2660R-08-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2660R-08-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2660R-08-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2660R-08-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2660R-08-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2660R-08-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2660R-08-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2660R-08-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2660R-08-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2660R-08-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2660R-08-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2660R-08-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2660R-08-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2669R-00-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2669R-00-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2669R-00-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2669R-00-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2669R-00-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2669R-00-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2669R-00-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2669R-00-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2669R-00-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2669R-00-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2669R-00-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2669R-00-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2669R-00-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2669R-00-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2669R-00-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2670R-08-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2670R-08-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2670R-08-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2670R-08-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2670R-08-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2670R-08-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2670R-08-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2670R-08-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2670R-08-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2670R-08-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2670R-08-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2670R-08-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2670R-08-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2670R-08-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2670R-08-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2679R-00-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2679R-00-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2679R-00-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2679R-00-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2679R-00-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2679R-00-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2679R-00-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2679R-00-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2679R-00-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2679R-00-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2679R-00-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2679R-00-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2679R-00-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2679R-00-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2679R-00-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2760R-08-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2760R-08-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2760R-08-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2760R-08-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2760R-08-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2760R-08-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2760R-08-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2760R-08-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2760R-08-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2760R-08-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2760R-08-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2760R-08-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2760R-08-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2760R-08-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2760R-08-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2769R-00-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2769R-00-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2769R-00-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2769R-00-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2769R-00-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2769R-00-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2769R-00-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2769R-00-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2769R-00-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2769R-00-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2769R-00-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2769R-00-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2769R-00-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2769R-00-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2769R-00-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2770R-08-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2770R-08-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2770R-08-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2770R-08-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2770R-08-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2770R-08-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2770R-08-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2770R-08-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2770R-08-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2770R-08-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2770R-08-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2770R-08-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2770R-08-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2770R-08-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2770R-08-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
3GB2779R-00-G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
3GB2779R-00-G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
3GB2779R-00-BG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
3GB2779R-00-BG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
3GB2779R-00-BG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
3GB2779R-00-BG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
3GB2779R-00-BNG2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
3GB2779R-00-BNG2-2		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
3GB2779R-00-BNG2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
3GB2779R-00-BNG2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
3GB2779R-00-E0G2-1		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
3GB2779R-00-E0G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
3GB2779R-00-E0G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
3GB2779R-00-E2G2-3		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
3GB2779R-00-E2G2-4		Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB110R-06-G1-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB110R-06-G1-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB110R-06-E0G1-1		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB110R-06-E0G1-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB110R-06-E0G1-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB110R-06-E2G1-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB110R-06-E2G1-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB119R-00-G1-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB119R-00-G1-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB119R-00-E0G1-1		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB119R-00-E0G1-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB119R-00-E0G1-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB119R-00-E2G1-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB119R-00-E2G1-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB110R-06-G2-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB110R-06-G2-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB110R-06-E0G2-1		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB110R-06-E0G2-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB110R-06-E0G2-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB110R-06-E2G2-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB110R-06-E2G2-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB119R-00-G2-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB119R-00-G2-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB119R-00-E0G2-1		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB119R-00-E0G2-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB119R-00-E0G2-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB119R-00-E2G2-3		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB119R-00-E2G2-4		Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB120R-06-G1-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB120R-06-G1-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB120R-06-E0G1-1		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB120R-06-E0G1-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB120R-06-E0G1-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB120R-06-E2G1-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB120R-06-E2G1-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB129R-00-G1-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB129R-00-G1-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB129R-00-E0G1-1		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB129R-00-E0G1-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB129R-00-E0G1-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB129R-00-E2G1-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB129R-00-E2G1-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB120R-06-G2-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB120R-06-G2-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB120R-06-E0G2-1		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB120R-06-E0G2-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB120R-06-E0G2-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB120R-06-E2G2-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB120R-06-E2G2-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB129R-00-G2-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB129R-00-G2-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB129R-00-E0G2-1		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB129R-00-E0G2-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB129R-00-E0G2-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB129R-00-E2G2-3		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB129R-00-E2G2-4		Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB130R-06-G2-3		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB130R-06-G2-4		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB130R-06-E0G2-1		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB130R-06-E0G2-3		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB130R-06-E0G2-4		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB130R-06-E2G2-3		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB130R-06-E2G2-4		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB139R-00-G2-3		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB139R-00-G2-4		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB139R-00-E0G2-1		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB139R-00-E0G2-3		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB139R-00-E0G2-4		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB139R-00-E2G2-3		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB139R-00-E2G2-4		Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB140R-06-G2-3		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB140R-06-G2-4		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB140R-06-E0G2-1		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB140R-06-E0G2-3		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB140R-06-E0G2-4		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB140R-06-E2G2-3		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB140R-06-E2G2-4		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB149R-00-G2-3		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB149R-00-G2-4		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB149R-00-E0G2-1		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB149R-00-E0G2-3		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB149R-00-E0G2-4		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB149R-00-E2G2-3		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB149R-00-E2G2-4		Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB150R-06-G2-3		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB150R-06-G2-4		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB150R-06-E0G2-1		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB150R-06-E0G2-3		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB150R-06-E0G2-4		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB150R-06-E2G2-3		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB150R-06-E2G2-4		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB159R-00-G2-3		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB159R-00-G2-4		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB159R-00-E0G2-1		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB159R-00-E0G2-3		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB159R-00-E0G2-4		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB159R-00-E2G2-3		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB159R-00-E2G2-4		Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB210R-08-G1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB210R-08-G1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB210R-08-BG1-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB210R-08-BG1-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB210R-08-BG1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB210R-08-BG1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB210R-08-BNG1-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB210R-08-BNG1-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB210R-08-BNG1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB210R-08-BNG1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB210R-08-E0G1-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB210R-08-E0G1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB210R-08-E0G1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB210R-08-E2G1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB210R-08-E2G1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB219R-00-G1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB219R-00-G1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB219R-00-BG1-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB219R-00-BG1-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB219R-00-BG1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB219R-00-BG1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB219R-00-BNG1-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB219R-00-BNG1-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB219R-00-BNG1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB219R-00-BNG1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB219R-00-E0G1-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB219R-00-E0G1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB219R-00-E0G1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB219R-00-E2G1-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB219R-00-E2G1-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB210R-08-G2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB210R-08-G2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB210R-08-BG2-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB210R-08-BG2-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB210R-08-BG2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB210R-08-BG2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB210R-08-BNG2-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB210R-08-BNG2-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB210R-08-BNG2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB210R-08-BNG2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB210R-08-E0G2-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB210R-08-E0G2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB210R-08-E0G2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB210R-08-E2G2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB210R-08-E2G2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB219R-00-G2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB219R-00-G2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB219R-00-BG2-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB219R-00-BG2-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB219R-00-BG2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB219R-00-BG2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB219R-00-BNG2-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB219R-00-BNG2-2		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB219R-00-BNG2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB219R-00-BNG2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB219R-00-E0G2-1		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB219R-00-E0G2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB219R-00-E0G2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB219R-00-E2G2-3		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB219R-00-E2G2-4		Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB220R-08-G1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB220R-08-G1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB220R-08-BG1-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB220R-08-BG1-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB220R-08-BG1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB220R-08-BG1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB220R-08-BNG1-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB220R-08-BNG1-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB220R-08-BNG1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB220R-08-BNG1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB220R-08-E0G1-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB220R-08-E0G1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB220R-08-E0G1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB220R-08-E2G1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB220R-08-E2G1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB229R-00-G1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB229R-00-G1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB229R-00-BG1-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB229R-00-BG1-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB229R-00-BG1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB229R-00-BG1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB229R-00-BNG1-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB229R-00-BNG1-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB229R-00-BNG1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB229R-00-BNG1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB229R-00-E0G1-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB229R-00-E0G1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB229R-00-E0G1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB229R-00-E2G1-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB229R-00-E2G1-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB220R-08-G2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB220R-08-G2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB220R-08-BG2-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB220R-08-BG2-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB220R-08-BG2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB220R-08-BG2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB220R-08-BNG2-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB220R-08-BNG2-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB220R-08-BNG2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB220R-08-BNG2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB220R-08-E0G2-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB220R-08-E0G2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB220R-08-E0G2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB220R-08-E2G2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB220R-08-E2G2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB229R-00-G2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB229R-00-G2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB229R-00-BG2-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB229R-00-BG2-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB229R-00-BG2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB229R-00-BG2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB229R-00-BNG2-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB229R-00-BNG2-2		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB229R-00-BNG2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB229R-00-BNG2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB229R-00-E0G2-1		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB229R-00-E0G2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB229R-00-E0G2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB229R-00-E2G2-3		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB229R-00-E2G2-4		Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB230R-08-G2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB230R-08-G2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB230R-08-BG2-1		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB230R-08-BG2-2		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB230R-08-BG2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB230R-08-BG2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB230R-08-BNG2-1		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB230R-08-BNG2-2		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB230R-08-BNG2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB230R-08-BNG2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB230R-08-E0G2-1		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB230R-08-E0G2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB230R-08-E0G2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB230R-08-E2G2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB230R-08-E2G2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB239R-00-G2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB239R-00-G2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB239R-00-BG2-1		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB239R-00-BG2-2		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB239R-00-BG2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB239R-00-BG2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB239R-00-BNG2-1		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB239R-00-BNG2-2		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB239R-00-BNG2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB239R-00-BNG2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB239R-00-E0G2-1		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB239R-00-E0G2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB239R-00-E0G2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB239R-00-E2G2-3		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB239R-00-E2G2-4		Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB240R-08-G2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB240R-08-G2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB240R-08-BG2-1		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB240R-08-BG2-2		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB240R-08-BG2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB240R-08-BG2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB240R-08-BNG2-1		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB240R-08-BNG2-2		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB240R-08-BNG2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB240R-08-BNG2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB240R-08-E0G2-1		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB240R-08-E0G2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB240R-08-E0G2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB240R-08-E2G2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB240R-08-E2G2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB249R-00-G2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB249R-00-G2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB249R-00-BG2-1		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB249R-00-BG2-2		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB249R-00-BG2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB249R-00-BG2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB249R-00-BNG2-1		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB249R-00-BNG2-2		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB249R-00-BNG2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB249R-00-BNG2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB249R-00-E0G2-1		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB249R-00-E0G2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB249R-00-E0G2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB249R-00-E2G2-3		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB249R-00-E2G2-4		Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB250R-08-G2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB250R-08-G2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB250R-08-BG2-1		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB250R-08-BG2-2		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB250R-08-BG2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB250R-08-BG2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB250R-08-BNG2-1		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB250R-08-BNG2-2		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB250R-08-BNG2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB250R-08-BNG2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB250R-08-E0G2-1		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB250R-08-E0G2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB250R-08-E0G2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB250R-08-E2G2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB250R-08-E2G2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB259R-00-G2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB259R-00-G2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB259R-00-BG2-1		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB259R-00-BG2-2		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB259R-00-BG2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB259R-00-BG2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB259R-00-BNG2-1		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB259R-00-BNG2-2		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB259R-00-BNG2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB259R-00-BNG2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB259R-00-E0G2-1		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB259R-00-E0G2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB259R-00-E0G2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB259R-00-E2G2-3		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB259R-00-E2G2-4		Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB310R-08-G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB310R-08-G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB310R-08-BG1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB310R-08-BG1-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB310R-08-BG1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB310R-08-BG1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB310R-08-BNG1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB310R-08-BNG1-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB310R-08-BNG1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB310R-08-BNG1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB310R-08-E0G1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB310R-08-E0G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB310R-08-E0G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB310R-08-E2G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB310R-08-E2G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB310R-10-G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB310R-10-G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB310R-10-BG1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB310R-10-BG1-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB310R-10-BG1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB310R-10-BG1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB310R-10-BNG1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB310R-10-BNG1-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB310R-10-BNG1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB310R-10-BNG1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB310R-10-E0G1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB310R-10-E0G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB310R-10-E0G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB310R-10-E2G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB310R-10-E2G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB319R-00-G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB319R-00-G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB319R-00-BG1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB319R-00-BG1-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB319R-00-BG1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB319R-00-BG1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB319R-00-BNG1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB319R-00-BNG1-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB319R-00-BNG1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB319R-00-BNG1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB319R-00-E0G1-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB319R-00-E0G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB319R-00-E0G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB319R-00-E2G1-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB319R-00-E2G1-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB310R-08-G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB310R-08-G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB310R-08-BG2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB310R-08-BG2-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB310R-08-BG2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB310R-08-BG2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB310R-08-BNG2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB310R-08-BNG2-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB310R-08-BNG2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB310R-08-BNG2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB310R-08-E0G2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB310R-08-E0G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB310R-08-E0G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB310R-08-E2G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB310R-08-E2G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB310R-10-G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB310R-10-G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB310R-10-BG2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB310R-10-BG2-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB310R-10-BG2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB310R-10-BG2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB310R-10-BNG2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB310R-10-BNG2-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB310R-10-BNG2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB310R-10-BNG2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB310R-10-E0G2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB310R-10-E0G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB310R-10-E0G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB310R-10-E2G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB310R-10-E2G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB319R-00-G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB319R-00-G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB319R-00-BG2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB319R-00-BG2-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB319R-00-BG2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB319R-00-BG2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB319R-00-BNG2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB319R-00-BNG2-2		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB319R-00-BNG2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB319R-00-BNG2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB319R-00-E0G2-1		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB319R-00-E0G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB319R-00-E0G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB319R-00-E2G2-3		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB319R-00-E2G2-4		Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB320R-08-G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB320R-08-G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB320R-08-BG1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB320R-08-BG1-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB320R-08-BG1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB320R-08-BG1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB320R-08-BNG1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB320R-08-BNG1-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB320R-08-BNG1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB320R-08-BNG1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB320R-08-E0G1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB320R-08-E0G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB320R-08-E0G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB320R-08-E2G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB320R-08-E2G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB320R-10-G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB320R-10-G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB320R-10-BG1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB320R-10-BG1-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB320R-10-BG1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB320R-10-BG1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB320R-10-BNG1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB320R-10-BNG1-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB320R-10-BNG1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB320R-10-BNG1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB320R-10-E0G1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB320R-10-E0G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB320R-10-E0G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB320R-10-E2G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB320R-10-E2G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB329R-00-G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB329R-00-G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB329R-00-BG1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB329R-00-BG1-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB329R-00-BG1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB329R-00-BG1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB329R-00-BNG1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB329R-00-BNG1-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB329R-00-BNG1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB329R-00-BNG1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB329R-00-E0G1-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB329R-00-E0G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB329R-00-E0G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB329R-00-E2G1-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB329R-00-E2G1-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB320R-08-G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB320R-08-G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB320R-08-BG2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB320R-08-BG2-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB320R-08-BG2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB320R-08-BG2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB320R-08-BNG2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB320R-08-BNG2-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB320R-08-BNG2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB320R-08-BNG2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB320R-08-E0G2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB320R-08-E0G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB320R-08-E0G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB320R-08-E2G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB320R-08-E2G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB320R-10-G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB320R-10-G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB320R-10-BG2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB320R-10-BG2-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB320R-10-BG2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB320R-10-BG2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB320R-10-BNG2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB320R-10-BNG2-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB320R-10-BNG2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB320R-10-BNG2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB320R-10-E0G2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB320R-10-E0G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB320R-10-E0G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB320R-10-E2G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB320R-10-E2G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB329R-00-G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB329R-00-G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB329R-00-BG2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB329R-00-BG2-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB329R-00-BG2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB329R-00-BG2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB329R-00-BNG2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB329R-00-BNG2-2		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB329R-00-BNG2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB329R-00-BNG2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB329R-00-E0G2-1		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB329R-00-E0G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB329R-00-E0G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB329R-00-E2G2-3		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB329R-00-E2G2-4		Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB330R-08-G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB330R-08-G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB330R-08-BG2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB330R-08-BG2-2		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB330R-08-BG2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB330R-08-BG2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB330R-08-BNG2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB330R-08-BNG2-2		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB330R-08-BNG2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB330R-08-BNG2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB330R-08-E0G2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB330R-08-E0G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB330R-08-E0G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB330R-08-E2G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB330R-08-E2G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB330R-10-G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB330R-10-G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB330R-10-BG2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB330R-10-BG2-2		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB330R-10-BG2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB330R-10-BG2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB330R-10-BNG2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB330R-10-BNG2-2		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB330R-10-BNG2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB330R-10-BNG2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB330R-10-E0G2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB330R-10-E0G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB330R-10-E0G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB330R-10-E2G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB330R-10-E2G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB339R-00-G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB339R-00-G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB339R-00-BG2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB339R-00-BG2-2		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB339R-00-BG2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB339R-00-BG2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB339R-00-BNG2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB339R-00-BNG2-2		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB339R-00-BNG2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB339R-00-BNG2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB339R-00-E0G2-1		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB339R-00-E0G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB339R-00-E0G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB339R-00-E2G2-3		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB339R-00-E2G2-4		Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB340R-08-G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB340R-08-G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB340R-08-BG2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB340R-08-BG2-2		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB340R-08-BG2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB340R-08-BG2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB340R-08-BNG2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB340R-08-BNG2-2		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB340R-08-BNG2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB340R-08-BNG2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB340R-08-E0G2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB340R-08-E0G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB340R-08-E0G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB340R-08-E2G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB340R-08-E2G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB340R-10-G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB340R-10-G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB340R-10-BG2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB340R-10-BG2-2		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB340R-10-BG2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB340R-10-BG2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB340R-10-BNG2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB340R-10-BNG2-2		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB340R-10-BNG2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB340R-10-BNG2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB340R-10-E0G2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB340R-10-E0G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB340R-10-E0G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB340R-10-E2G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB340R-10-E2G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB349R-00-G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB349R-00-G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB349R-00-BG2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB349R-00-BG2-2		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB349R-00-BG2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB349R-00-BG2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB349R-00-BNG2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB349R-00-BNG2-2		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB349R-00-BNG2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB349R-00-BNG2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB349R-00-E0G2-1		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB349R-00-E0G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB349R-00-E0G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB349R-00-E2G2-3		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB349R-00-E2G2-4		Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB350R-08-G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB350R-08-G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB350R-08-BG2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB350R-08-BG2-2		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB350R-08-BG2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB350R-08-BG2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB350R-08-BNG2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB350R-08-BNG2-2		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB350R-08-BNG2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB350R-08-BNG2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB350R-08-E0G2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB350R-08-E0G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB350R-08-E0G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB350R-08-E2G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB350R-08-E2G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB350R-10-G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB350R-10-G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB350R-10-BG2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB350R-10-BG2-2		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB350R-10-BG2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB350R-10-BG2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB350R-10-BNG2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB350R-10-BNG2-2		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB350R-10-BNG2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB350R-10-BNG2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB350R-10-E0G2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB350R-10-E0G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB350R-10-E0G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB350R-10-E2G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB350R-10-E2G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
4GB359R-00-G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
4GB359R-00-G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
4GB359R-00-BG2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
4GB359R-00-BG2-2		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
4GB359R-00-BG2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
4GB359R-00-BG2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
4GB359R-00-BNG2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
4GB359R-00-BNG2-2		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
4GB359R-00-BNG2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
4GB359R-00-BNG2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
4GB359R-00-E0G2-1		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
4GB359R-00-E0G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
4GB359R-00-E0G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
4GB359R-00-E2G2-3		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
4GB359R-00-E2G2-4		Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V

Solenoid ValvesCKD

799 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 3GB/4GB Solenoid Valve with Pressure Sensor (Single Valve)

Brand CKD·Solenoid Valves

Available part numbers (799)

3GB1660R-06-G2-3, 3GB1660R-06-G2-4, 3GB1660R-06-E0G2-1, 3GB1660R-06-E0G2-3, 3GB1660R-06-E0G2-4, 3GB1660R-06-E2G2-3, 3GB1660R-06-E2G2-4, 3GB1669R-00-G2-3, 3GB1669R-00-G2-4, 3GB1669R-00-E0G2-1 + 789 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	3GB1660R-06-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1660R-06-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1660R-06-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1660R-06-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1660R-06-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1660R-06-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1660R-06-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1669R-00-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1669R-00-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1669R-00-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1669R-00-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1669R-00-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1669R-00-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1669R-00-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1670R-06-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1670R-06-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1670R-06-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1670R-06-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1670R-06-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1670R-06-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1670R-06-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1679R-00-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1679R-00-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1679R-00-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1679R-00-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1679R-00-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1679R-00-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1679R-00-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1760R-06-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1760R-06-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1760R-06-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1760R-06-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1760R-06-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1760R-06-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1760R-06-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1769R-00-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1769R-00-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1769R-00-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1769R-00-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1769R-00-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1769R-00-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1769R-00-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1770R-06-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1770R-06-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1770R-06-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1770R-06-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1770R-06-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1770R-06-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1770R-06-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB1779R-00-G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB1779R-00-G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB1779R-00-E0G2-1	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB1779R-00-E0G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB1779R-00-E0G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB1779R-00-E2G2-3	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB1779R-00-E2G2-4	Series: 3GB1 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2660R-08-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2660R-08-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2660R-08-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2660R-08-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2660R-08-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2660R-08-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2660R-08-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2660R-08-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2660R-08-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2660R-08-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2660R-08-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2660R-08-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2660R-08-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2660R-08-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2660R-08-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2669R-00-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2669R-00-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2669R-00-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2669R-00-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2669R-00-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2669R-00-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2669R-00-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2669R-00-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2669R-00-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2669R-00-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2669R-00-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2669R-00-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2669R-00-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2669R-00-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2669R-00-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2670R-08-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2670R-08-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2670R-08-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2670R-08-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2670R-08-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2670R-08-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2670R-08-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2670R-08-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2670R-08-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2670R-08-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2670R-08-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2670R-08-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2670R-08-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2670R-08-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2670R-08-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2679R-00-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2679R-00-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2679R-00-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2679R-00-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2679R-00-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2679R-00-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2679R-00-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2679R-00-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2679R-00-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2679R-00-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2679R-00-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2679R-00-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2679R-00-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2679R-00-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2679R-00-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.C. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2760R-08-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2760R-08-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2760R-08-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2760R-08-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2760R-08-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2760R-08-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2760R-08-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2760R-08-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2760R-08-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2760R-08-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2760R-08-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2760R-08-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2760R-08-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2760R-08-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2760R-08-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2769R-00-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2769R-00-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2769R-00-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2769R-00-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2769R-00-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2769R-00-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2769R-00-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2769R-00-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2769R-00-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2769R-00-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2769R-00-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2769R-00-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2769R-00-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2769R-00-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2769R-00-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.C. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2770R-08-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2770R-08-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2770R-08-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2770R-08-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2770R-08-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2770R-08-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2770R-08-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2770R-08-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2770R-08-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2770R-08-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2770R-08-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2770R-08-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2770R-08-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2770R-08-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2770R-08-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	3GB2779R-00-G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	3GB2779R-00-G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	3GB2779R-00-BG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	3GB2779R-00-BG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	3GB2779R-00-BG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	3GB2779R-00-BG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	3GB2779R-00-BNG2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	3GB2779R-00-BNG2-2	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	3GB2779R-00-BNG2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	3GB2779R-00-BNG2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	3GB2779R-00-E0G2-1	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	3GB2779R-00-E0G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	3GB2779R-00-E0G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	3GB2779R-00-E2G2-3	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	3GB2779R-00-E2G2-4	Series: 3GB2 \| Switching: 2x3-port, A N.O. / B N.O. \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB110R-06-G1-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB110R-06-G1-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB110R-06-E0G1-1	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB110R-06-E0G1-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB110R-06-E0G1-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB110R-06-E2G1-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB110R-06-E2G1-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB119R-00-G1-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB119R-00-G1-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB119R-00-E0G1-1	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB119R-00-E0G1-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB119R-00-E0G1-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB119R-00-E2G1-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB119R-00-E2G1-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB110R-06-G2-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB110R-06-G2-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB110R-06-E0G2-1	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB110R-06-E0G2-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB110R-06-E0G2-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB110R-06-E2G2-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB110R-06-E2G2-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB119R-00-G2-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB119R-00-G2-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB119R-00-E0G2-1	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB119R-00-E0G2-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB119R-00-E0G2-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB119R-00-E2G2-3	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB119R-00-E2G2-4	Series: 4GB1 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB120R-06-G1-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB120R-06-G1-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB120R-06-E0G1-1	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB120R-06-E0G1-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB120R-06-E0G1-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB120R-06-E2G1-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB120R-06-E2G1-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB129R-00-G1-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB129R-00-G1-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB129R-00-E0G1-1	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB129R-00-E0G1-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB129R-00-E0G1-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB129R-00-E2G1-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB129R-00-E2G1-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB120R-06-G2-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB120R-06-G2-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB120R-06-E0G2-1	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB120R-06-E0G2-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB120R-06-E0G2-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB120R-06-E2G2-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB120R-06-E2G2-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB129R-00-G2-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB129R-00-G2-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB129R-00-E0G2-1	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB129R-00-E0G2-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB129R-00-E0G2-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB129R-00-E2G2-3	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB129R-00-E2G2-4	Series: 4GB1 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB130R-06-G2-3	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB130R-06-G2-4	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB130R-06-E0G2-1	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB130R-06-E0G2-3	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB130R-06-E0G2-4	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB130R-06-E2G2-3	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB130R-06-E2G2-4	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB139R-00-G2-3	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB139R-00-G2-4	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB139R-00-E0G2-1	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB139R-00-E0G2-3	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB139R-00-E0G2-4	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB139R-00-E2G2-3	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB139R-00-E2G2-4	Series: 4GB1 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB140R-06-G2-3	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB140R-06-G2-4	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB140R-06-E0G2-1	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB140R-06-E0G2-3	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB140R-06-E0G2-4	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB140R-06-E2G2-3	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB140R-06-E2G2-4	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB149R-00-G2-3	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB149R-00-G2-4	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB149R-00-E0G2-1	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB149R-00-E0G2-3	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB149R-00-E0G2-4	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB149R-00-E2G2-3	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB149R-00-E2G2-4	Series: 4GB1 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB150R-06-G2-3	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB150R-06-G2-4	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB150R-06-E0G2-1	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB150R-06-E0G2-3	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB150R-06-E0G2-4	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB150R-06-E2G2-3	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB150R-06-E2G2-4	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB159R-00-G2-3	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB159R-00-G2-4	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB159R-00-E0G2-1	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB159R-00-E0G2-3	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB159R-00-E0G2-4	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB159R-00-E2G2-3	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB159R-00-E2G2-4	Series: 4GB1 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB210R-08-G1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB210R-08-G1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB210R-08-BG1-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB210R-08-BG1-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB210R-08-BG1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB210R-08-BG1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB210R-08-BNG1-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB210R-08-BNG1-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB210R-08-BNG1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB210R-08-BNG1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB210R-08-E0G1-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB210R-08-E0G1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB210R-08-E0G1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB210R-08-E2G1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB210R-08-E2G1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB219R-00-G1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB219R-00-G1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB219R-00-BG1-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB219R-00-BG1-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB219R-00-BG1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB219R-00-BG1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB219R-00-BNG1-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB219R-00-BNG1-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB219R-00-BNG1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB219R-00-BNG1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB219R-00-E0G1-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB219R-00-E0G1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB219R-00-E0G1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB219R-00-E2G1-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB219R-00-E2G1-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB210R-08-G2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB210R-08-G2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB210R-08-BG2-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB210R-08-BG2-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB210R-08-BG2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB210R-08-BG2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB210R-08-BNG2-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB210R-08-BNG2-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB210R-08-BNG2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB210R-08-BNG2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB210R-08-E0G2-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB210R-08-E0G2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB210R-08-E0G2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB210R-08-E2G2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB210R-08-E2G2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB219R-00-G2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB219R-00-G2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB219R-00-BG2-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB219R-00-BG2-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB219R-00-BG2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB219R-00-BG2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB219R-00-BNG2-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB219R-00-BNG2-2	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB219R-00-BNG2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB219R-00-BNG2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB219R-00-E0G2-1	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB219R-00-E0G2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB219R-00-E0G2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB219R-00-E2G2-3	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB219R-00-E2G2-4	Series: 4GB2 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB220R-08-G1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB220R-08-G1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB220R-08-BG1-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB220R-08-BG1-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB220R-08-BG1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB220R-08-BG1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB220R-08-BNG1-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB220R-08-BNG1-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB220R-08-BNG1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB220R-08-BNG1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB220R-08-E0G1-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB220R-08-E0G1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB220R-08-E0G1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB220R-08-E2G1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB220R-08-E2G1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB229R-00-G1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB229R-00-G1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB229R-00-BG1-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB229R-00-BG1-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB229R-00-BG1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB229R-00-BG1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB229R-00-BNG1-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB229R-00-BNG1-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB229R-00-BNG1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB229R-00-BNG1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB229R-00-E0G1-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB229R-00-E0G1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB229R-00-E0G1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB229R-00-E2G1-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB229R-00-E2G1-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB220R-08-G2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB220R-08-G2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB220R-08-BG2-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB220R-08-BG2-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB220R-08-BG2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB220R-08-BG2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB220R-08-BNG2-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB220R-08-BNG2-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB220R-08-BNG2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB220R-08-BNG2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB220R-08-E0G2-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB220R-08-E0G2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB220R-08-E0G2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB220R-08-E2G2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB220R-08-E2G2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB229R-00-G2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB229R-00-G2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB229R-00-BG2-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB229R-00-BG2-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB229R-00-BG2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB229R-00-BG2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB229R-00-BNG2-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB229R-00-BNG2-2	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB229R-00-BNG2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB229R-00-BNG2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB229R-00-E0G2-1	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB229R-00-E0G2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB229R-00-E0G2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB229R-00-E2G2-3	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB229R-00-E2G2-4	Series: 4GB2 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB230R-08-G2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB230R-08-G2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB230R-08-BG2-1	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB230R-08-BG2-2	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB230R-08-BG2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB230R-08-BG2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB230R-08-BNG2-1	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB230R-08-BNG2-2	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB230R-08-BNG2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB230R-08-BNG2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB230R-08-E0G2-1	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB230R-08-E0G2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB230R-08-E0G2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB230R-08-E2G2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB230R-08-E2G2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB239R-00-G2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB239R-00-G2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB239R-00-BG2-1	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB239R-00-BG2-2	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB239R-00-BG2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB239R-00-BG2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB239R-00-BNG2-1	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB239R-00-BNG2-2	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB239R-00-BNG2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB239R-00-BNG2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB239R-00-E0G2-1	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB239R-00-E0G2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB239R-00-E0G2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB239R-00-E2G2-3	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB239R-00-E2G2-4	Series: 4GB2 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB240R-08-G2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB240R-08-G2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB240R-08-BG2-1	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB240R-08-BG2-2	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB240R-08-BG2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB240R-08-BG2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB240R-08-BNG2-1	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB240R-08-BNG2-2	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB240R-08-BNG2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB240R-08-BNG2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB240R-08-E0G2-1	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB240R-08-E0G2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB240R-08-E0G2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB240R-08-E2G2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB240R-08-E2G2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB249R-00-G2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB249R-00-G2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB249R-00-BG2-1	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB249R-00-BG2-2	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB249R-00-BG2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB249R-00-BG2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB249R-00-BNG2-1	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB249R-00-BNG2-2	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB249R-00-BNG2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB249R-00-BNG2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB249R-00-E0G2-1	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB249R-00-E0G2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB249R-00-E0G2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB249R-00-E2G2-3	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB249R-00-E2G2-4	Series: 4GB2 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB250R-08-G2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB250R-08-G2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB250R-08-BG2-1	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB250R-08-BG2-2	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB250R-08-BG2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB250R-08-BG2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB250R-08-BNG2-1	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB250R-08-BNG2-2	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB250R-08-BNG2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB250R-08-BNG2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB250R-08-E0G2-1	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB250R-08-E0G2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB250R-08-E0G2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB250R-08-E2G2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB250R-08-E2G2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB259R-00-G2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB259R-00-G2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB259R-00-BG2-1	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB259R-00-BG2-2	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB259R-00-BG2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB259R-00-BG2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB259R-00-BNG2-1	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB259R-00-BNG2-2	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB259R-00-BNG2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB259R-00-BNG2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB259R-00-E0G2-1	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB259R-00-E0G2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB259R-00-E0G2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB259R-00-E2G2-3	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB259R-00-E2G2-4	Series: 4GB2 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB310R-08-G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB310R-08-G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB310R-08-BG1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB310R-08-BG1-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB310R-08-BG1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB310R-08-BG1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB310R-08-BNG1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB310R-08-BNG1-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB310R-08-BNG1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB310R-08-BNG1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB310R-08-E0G1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB310R-08-E0G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB310R-08-E0G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB310R-08-E2G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB310R-08-E2G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB310R-10-G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB310R-10-G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB310R-10-BG1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB310R-10-BG1-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB310R-10-BG1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB310R-10-BG1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB310R-10-BNG1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB310R-10-BNG1-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB310R-10-BNG1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB310R-10-BNG1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB310R-10-E0G1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB310R-10-E0G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB310R-10-E0G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB310R-10-E2G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB310R-10-E2G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB319R-00-G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB319R-00-G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB319R-00-BG1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB319R-00-BG1-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB319R-00-BG1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB319R-00-BG1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB319R-00-BNG1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB319R-00-BNG1-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB319R-00-BNG1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB319R-00-BNG1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB319R-00-E0G1-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB319R-00-E0G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB319R-00-E0G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB319R-00-E2G1-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB319R-00-E2G1-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB310R-08-G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB310R-08-G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB310R-08-BG2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB310R-08-BG2-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB310R-08-BG2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB310R-08-BG2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB310R-08-BNG2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB310R-08-BNG2-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB310R-08-BNG2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB310R-08-BNG2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB310R-08-E0G2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB310R-08-E0G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB310R-08-E0G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB310R-08-E2G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB310R-08-E2G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB310R-10-G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB310R-10-G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB310R-10-BG2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB310R-10-BG2-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB310R-10-BG2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB310R-10-BG2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB310R-10-BNG2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB310R-10-BNG2-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB310R-10-BNG2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB310R-10-BNG2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB310R-10-E0G2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB310R-10-E0G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB310R-10-E0G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB310R-10-E2G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB310R-10-E2G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB319R-00-G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB319R-00-G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB319R-00-BG2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB319R-00-BG2-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB319R-00-BG2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB319R-00-BG2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB319R-00-BNG2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB319R-00-BNG2-2	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB319R-00-BNG2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB319R-00-BNG2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB319R-00-E0G2-1	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB319R-00-E0G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB319R-00-E0G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB319R-00-E2G2-3	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB319R-00-E2G2-4	Series: 4GB3 \| Switching: 2-pos single \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB320R-08-G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB320R-08-G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB320R-08-BG1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB320R-08-BG1-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB320R-08-BG1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB320R-08-BG1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB320R-08-BNG1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB320R-08-BNG1-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB320R-08-BNG1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB320R-08-BNG1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB320R-08-E0G1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB320R-08-E0G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB320R-08-E0G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB320R-08-E2G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB320R-08-E2G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB320R-10-G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB320R-10-G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB320R-10-BG1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB320R-10-BG1-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB320R-10-BG1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB320R-10-BG1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB320R-10-BNG1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB320R-10-BNG1-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB320R-10-BNG1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB320R-10-BNG1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB320R-10-E0G1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB320R-10-E0G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB320R-10-E0G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB320R-10-E2G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB320R-10-E2G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB329R-00-G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB329R-00-G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB329R-00-BG1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB329R-00-BG1-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB329R-00-BG1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB329R-00-BG1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB329R-00-BNG1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB329R-00-BNG1-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB329R-00-BNG1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB329R-00-BNG1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB329R-00-E0G1-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB329R-00-E0G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB329R-00-E0G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB329R-00-E2G1-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB329R-00-E2G1-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 1-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB320R-08-G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB320R-08-G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB320R-08-BG2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB320R-08-BG2-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB320R-08-BG2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB320R-08-BG2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB320R-08-BNG2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB320R-08-BNG2-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB320R-08-BNG2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB320R-08-BNG2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB320R-08-E0G2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB320R-08-E0G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB320R-08-E0G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB320R-08-E2G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB320R-08-E2G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB320R-10-G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB320R-10-G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB320R-10-BG2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB320R-10-BG2-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB320R-10-BG2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB320R-10-BG2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB320R-10-BNG2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB320R-10-BNG2-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB320R-10-BNG2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB320R-10-BNG2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB320R-10-E0G2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB320R-10-E0G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB320R-10-E0G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB320R-10-E2G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB320R-10-E2G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB329R-00-G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB329R-00-G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB329R-00-BG2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB329R-00-BG2-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB329R-00-BG2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB329R-00-BG2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB329R-00-BNG2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB329R-00-BNG2-2	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB329R-00-BNG2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB329R-00-BNG2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB329R-00-E0G2-1	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB329R-00-E0G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB329R-00-E0G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB329R-00-E2G2-3	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB329R-00-E2G2-4	Series: 4GB3 \| Switching: 2-pos double \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB330R-08-G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB330R-08-G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB330R-08-BG2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB330R-08-BG2-2	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB330R-08-BG2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB330R-08-BG2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB330R-08-BNG2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB330R-08-BNG2-2	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB330R-08-BNG2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB330R-08-BNG2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB330R-08-E0G2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB330R-08-E0G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB330R-08-E0G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB330R-08-E2G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB330R-08-E2G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB330R-10-G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB330R-10-G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB330R-10-BG2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB330R-10-BG2-2	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB330R-10-BG2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB330R-10-BG2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB330R-10-BNG2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB330R-10-BNG2-2	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB330R-10-BNG2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB330R-10-BNG2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB330R-10-E0G2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB330R-10-E0G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB330R-10-E0G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB330R-10-E2G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB330R-10-E2G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB339R-00-G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB339R-00-G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB339R-00-BG2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB339R-00-BG2-2	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB339R-00-BG2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB339R-00-BG2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB339R-00-BNG2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB339R-00-BNG2-2	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB339R-00-BNG2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB339R-00-BNG2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB339R-00-E0G2-1	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB339R-00-E0G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB339R-00-E0G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB339R-00-E2G2-3	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB339R-00-E2G2-4	Series: 4GB3 \| Switching: 3-pos all ports blocked \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB340R-08-G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB340R-08-G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB340R-08-BG2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB340R-08-BG2-2	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB340R-08-BG2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB340R-08-BG2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB340R-08-BNG2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB340R-08-BNG2-2	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB340R-08-BNG2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB340R-08-BNG2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB340R-08-E0G2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB340R-08-E0G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB340R-08-E0G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB340R-08-E2G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB340R-08-E2G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB340R-10-G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB340R-10-G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB340R-10-BG2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB340R-10-BG2-2	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB340R-10-BG2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB340R-10-BG2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB340R-10-BNG2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB340R-10-BNG2-2	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB340R-10-BNG2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB340R-10-BNG2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB340R-10-E0G2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB340R-10-E0G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB340R-10-E0G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB340R-10-E2G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB340R-10-E2G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB349R-00-G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB349R-00-G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB349R-00-BG2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB349R-00-BG2-2	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB349R-00-BG2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB349R-00-BG2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB349R-00-BNG2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB349R-00-BNG2-2	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB349R-00-BNG2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB349R-00-BNG2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB349R-00-E0G2-1	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB349R-00-E0G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB349R-00-E0G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB349R-00-E2G2-3	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB349R-00-E2G2-4	Series: 4GB3 \| Switching: 3-pos A/B/R connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB350R-08-G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB350R-08-G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB350R-08-BG2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB350R-08-BG2-2	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB350R-08-BG2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB350R-08-BG2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB350R-08-BNG2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB350R-08-BNG2-2	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB350R-08-BNG2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB350R-08-BNG2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB350R-08-E0G2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB350R-08-E0G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB350R-08-E0G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB350R-08-E2G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB350R-08-E2G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc1/4 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB350R-10-G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB350R-10-G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB350R-10-BG2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB350R-10-BG2-2	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB350R-10-BG2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB350R-10-BG2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB350R-10-BNG2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB350R-10-BNG2-2	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB350R-10-BNG2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB350R-10-BNG2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB350R-10-E0G2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB350R-10-E0G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB350R-10-E0G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB350R-10-E2G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB350R-10-E2G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Rc3/8 \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V
	4GB359R-00-G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC24V
	4GB359R-00-G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: Grommet lead wire 300 mm \| Voltage: DC12V
	4GB359R-00-BG2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC100V
	4GB359R-00-BG2-2	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: AC200V
	4GB359R-00-BG2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC24V
	4GB359R-00-BG2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal box (Pg7) \| Voltage: DC12V
	4GB359R-00-BNG2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC100V
	4GB359R-00-BNG2-2	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: AC200V
	4GB359R-00-BNG2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC24V
	4GB359R-00-BNG2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: DIN terminal, no box \| Voltage: DC12V
	4GB359R-00-E0G2-1	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: AC100V
	4GB359R-00-E0G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC24V
	4GB359R-00-E0G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector, 300 mm \| Voltage: DC12V
	4GB359R-00-E2G2-3	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC24V
	4GB359R-00-E2G2-4	Series: 4GB3 \| Switching: 3-pos P/A/B connection \| Sensor: Pressure sensor, 2-port detection \| Port: Valve only (for base mounting) \| Wiring: E connector 300 mm, surge/lamp \| Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD 3GB/4GB Solenoid Valve with Pressure Sensor (Single Valve)
