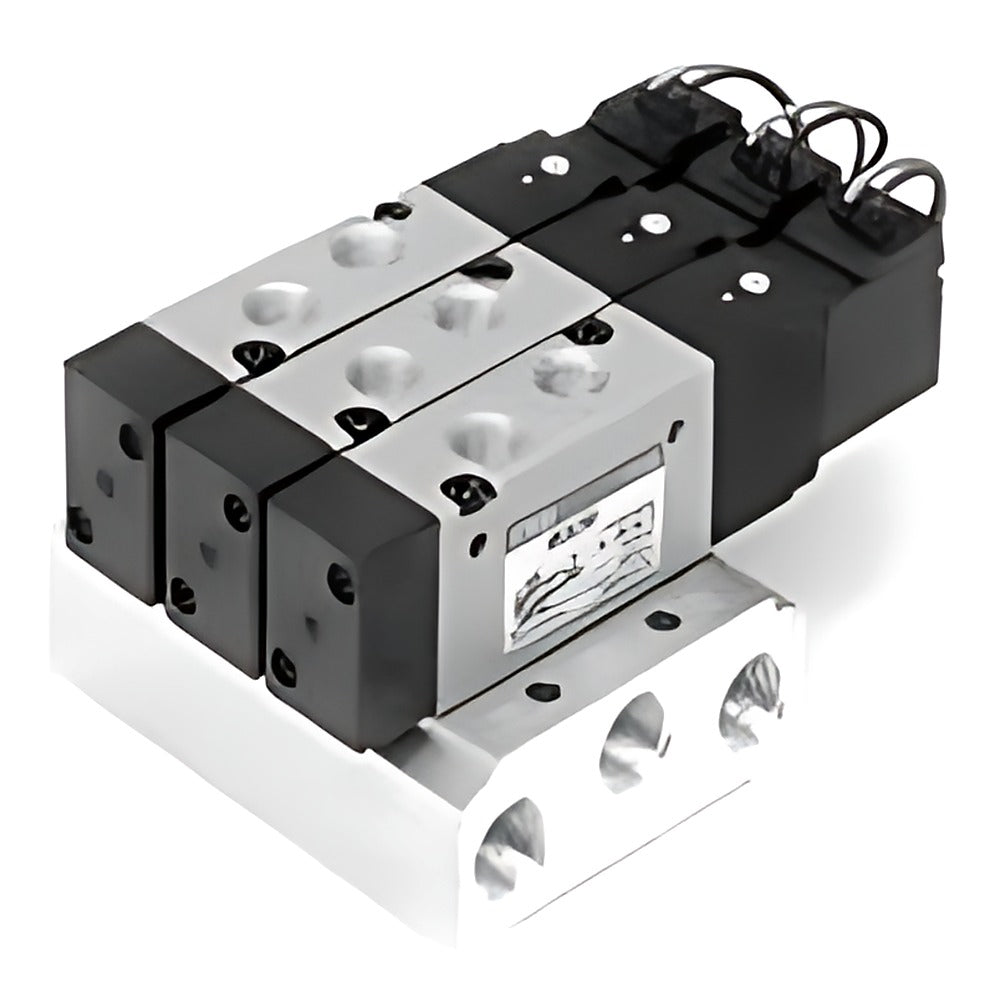

CKD 3KA/4KA/4KB Selex Manifold-Mount Solenoid Valve (Single Unit)

CKD 3KA/4KA/4KB Selex Manifold-Mount Solenoid Valve (Single Unit)

CKD 3KA1/4KA1-4KA4 (direct) and 4KB1-4KB4 (sub-plate) Selex solenoid valve units for mounting on M3KA/M4KA and M4KB individual wiring manifolds.

Key features

  • Manifold-use single valves (model digit 9) supplied with gasket and mounting screws
  • 4KA type uses the A/B port symbol of the manifold; 4KB type valve only (00), 4KB1 rear-piping base 00Y, central exhaust base 00CE
  • Listed with grommet lead; small terminal box B, L/LS, C or D connectors inserted after the port/manual blocks
  • Voltages AC100V, AC200V, DC24V standard; DC12V, AC110V, AC220V optional
  • Nameplate shows 4KA0 although ordered as 4KA9

Specifications

Valve type Pilot operated soft spool valve
Fluid Compressed air
Max. operating pressure 0.70 MPa
Proof pressure 1.05 MPa
Ambient temperature -5 to 50°C (no freezing)
Fluid temperature 5 to 50°C
Applicable cylinder bore ø20 to ø160
Wiring (listed codes) Grommet lead 300 mm
Source CKD Korea catalog CB-023SK-9, p. 1342, 1360, 1376, 1388
3KA119-M5-AC100V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: M5 | Voltage: AC100V
3KA119-M5-AC200V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: M5 | Voltage: AC200V
3KA119-M5-DC24V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: M5 | Voltage: DC24V
3KA119-GS4-AC100V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø4 one-touch | Voltage: AC100V
3KA119-GS4-AC200V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø4 one-touch | Voltage: AC200V
3KA119-GS4-DC24V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø4 one-touch | Voltage: DC24V
3KA119-GS6-AC100V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø6 one-touch | Voltage: AC100V
3KA119-GS6-AC200V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø6 one-touch | Voltage: AC200V
3KA119-GS6-DC24V Model: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø6 one-touch | Voltage: DC24V
3KA1119-M5-AC100V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: M5 | Voltage: AC100V
3KA1119-M5-AC200V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: M5 | Voltage: AC200V
3KA1119-M5-DC24V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: M5 | Voltage: DC24V
3KA1119-GS4-AC100V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø4 one-touch | Voltage: AC100V
3KA1119-GS4-AC200V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø4 one-touch | Voltage: AC200V
3KA1119-GS4-DC24V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø4 one-touch | Voltage: DC24V
3KA1119-GS6-AC100V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø6 one-touch | Voltage: AC100V
3KA1119-GS6-AC200V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø6 one-touch | Voltage: AC200V
3KA1119-GS6-DC24V Model: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø6 one-touch | Voltage: DC24V
3KA129-M5-AC100V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: M5 | Voltage: AC100V
3KA129-M5-AC200V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: M5 | Voltage: AC200V
3KA129-M5-DC24V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: M5 | Voltage: DC24V
3KA129-GS4-AC100V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø4 one-touch | Voltage: AC100V
3KA129-GS4-AC200V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø4 one-touch | Voltage: AC200V
3KA129-GS4-DC24V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø4 one-touch | Voltage: DC24V
3KA129-GS6-AC100V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø6 one-touch | Voltage: AC100V
3KA129-GS6-AC200V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø6 one-touch | Voltage: AC200V
3KA129-GS6-DC24V Model: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø6 one-touch | Voltage: DC24V
4KA119-M5-AC100V Model: 4KA1 | Switching: 2-pos single | Port: M5 | Voltage: AC100V
4KA119-M5-AC200V Model: 4KA1 | Switching: 2-pos single | Port: M5 | Voltage: AC200V
4KA119-M5-DC24V Model: 4KA1 | Switching: 2-pos single | Port: M5 | Voltage: DC24V
4KA119-GS4-AC100V Model: 4KA1 | Switching: 2-pos single | Port: ø4 one-touch | Voltage: AC100V
4KA119-GS4-AC200V Model: 4KA1 | Switching: 2-pos single | Port: ø4 one-touch | Voltage: AC200V
4KA119-GS4-DC24V Model: 4KA1 | Switching: 2-pos single | Port: ø4 one-touch | Voltage: DC24V
4KA119-GS6-AC100V Model: 4KA1 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC100V
4KA119-GS6-AC200V Model: 4KA1 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC200V
4KA119-GS6-DC24V Model: 4KA1 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: DC24V
4KA129-M5-AC100V Model: 4KA1 | Switching: 2-pos double | Port: M5 | Voltage: AC100V
4KA129-M5-AC200V Model: 4KA1 | Switching: 2-pos double | Port: M5 | Voltage: AC200V
4KA129-M5-DC24V Model: 4KA1 | Switching: 2-pos double | Port: M5 | Voltage: DC24V
4KA129-GS4-AC100V Model: 4KA1 | Switching: 2-pos double | Port: ø4 one-touch | Voltage: AC100V
4KA129-GS4-AC200V Model: 4KA1 | Switching: 2-pos double | Port: ø4 one-touch | Voltage: AC200V
4KA129-GS4-DC24V Model: 4KA1 | Switching: 2-pos double | Port: ø4 one-touch | Voltage: DC24V
4KA129-GS6-AC100V Model: 4KA1 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC100V
4KA129-GS6-AC200V Model: 4KA1 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC200V
4KA129-GS6-DC24V Model: 4KA1 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: DC24V
4KA139-M5-AC100V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: M5 | Voltage: AC100V
4KA139-M5-AC200V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: M5 | Voltage: AC200V
4KA139-M5-DC24V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: M5 | Voltage: DC24V
4KA139-GS4-AC100V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: ø4 one-touch | Voltage: AC100V
4KA139-GS4-AC200V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: ø4 one-touch | Voltage: AC200V
4KA139-GS4-DC24V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: ø4 one-touch | Voltage: DC24V
4KA139-GS6-AC100V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC100V
4KA139-GS6-AC200V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC200V
4KA139-GS6-DC24V Model: 4KA1 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: DC24V
4KA149-M5-AC100V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: M5 | Voltage: AC100V
4KA149-M5-AC200V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: M5 | Voltage: AC200V
4KA149-M5-DC24V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: M5 | Voltage: DC24V
4KA149-GS4-AC100V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø4 one-touch | Voltage: AC100V
4KA149-GS4-AC200V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø4 one-touch | Voltage: AC200V
4KA149-GS4-DC24V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø4 one-touch | Voltage: DC24V
4KA149-GS6-AC100V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC100V
4KA149-GS6-AC200V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC200V
4KA149-GS6-DC24V Model: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: DC24V
4KA159-M5-AC100V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: M5 | Voltage: AC100V
4KA159-M5-AC200V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: M5 | Voltage: AC200V
4KA159-M5-DC24V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: M5 | Voltage: DC24V
4KA159-GS4-AC100V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø4 one-touch | Voltage: AC100V
4KA159-GS4-AC200V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø4 one-touch | Voltage: AC200V
4KA159-GS4-DC24V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø4 one-touch | Voltage: DC24V
4KA159-GS6-AC100V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC100V
4KA159-GS6-AC200V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC200V
4KA159-GS6-DC24V Model: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: DC24V
4KA219-06-AC100V Model: 4KA2 | Switching: 2-pos single | Port: Rc1/8 | Voltage: AC100V
4KA219-06-AC200V Model: 4KA2 | Switching: 2-pos single | Port: Rc1/8 | Voltage: AC200V
4KA219-06-DC24V Model: 4KA2 | Switching: 2-pos single | Port: Rc1/8 | Voltage: DC24V
4KA219-GS6-AC100V Model: 4KA2 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC100V
4KA219-GS6-AC200V Model: 4KA2 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC200V
4KA219-GS6-DC24V Model: 4KA2 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: DC24V
4KA219-GS8-AC100V Model: 4KA2 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC100V
4KA219-GS8-AC200V Model: 4KA2 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC200V
4KA219-GS8-DC24V Model: 4KA2 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: DC24V
4KA229-06-AC100V Model: 4KA2 | Switching: 2-pos double | Port: Rc1/8 | Voltage: AC100V
4KA229-06-AC200V Model: 4KA2 | Switching: 2-pos double | Port: Rc1/8 | Voltage: AC200V
4KA229-06-DC24V Model: 4KA2 | Switching: 2-pos double | Port: Rc1/8 | Voltage: DC24V
4KA229-GS6-AC100V Model: 4KA2 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC100V
4KA229-GS6-AC200V Model: 4KA2 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC200V
4KA229-GS6-DC24V Model: 4KA2 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: DC24V
4KA229-GS8-AC100V Model: 4KA2 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC100V
4KA229-GS8-AC200V Model: 4KA2 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC200V
4KA229-GS8-DC24V Model: 4KA2 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: DC24V
4KA239-06-AC100V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Voltage: AC100V
4KA239-06-AC200V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Voltage: AC200V
4KA239-06-DC24V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Voltage: DC24V
4KA239-GS6-AC100V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC100V
4KA239-GS6-AC200V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC200V
4KA239-GS6-DC24V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: DC24V
4KA239-GS8-AC100V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC100V
4KA239-GS8-AC200V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC200V
4KA239-GS8-DC24V Model: 4KA2 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: DC24V
4KA249-06-AC100V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: Rc1/8 | Voltage: AC100V
4KA249-06-AC200V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: Rc1/8 | Voltage: AC200V
4KA249-06-DC24V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: Rc1/8 | Voltage: DC24V
4KA249-GS6-AC100V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC100V
4KA249-GS6-AC200V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC200V
4KA249-GS6-DC24V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: DC24V
4KA249-GS8-AC100V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC100V
4KA249-GS8-AC200V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC200V
4KA249-GS8-DC24V Model: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: DC24V
4KA259-06-AC100V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: Rc1/8 | Voltage: AC100V
4KA259-06-AC200V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: Rc1/8 | Voltage: AC200V
4KA259-06-DC24V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: Rc1/8 | Voltage: DC24V
4KA259-GS6-AC100V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC100V
4KA259-GS6-AC200V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC200V
4KA259-GS6-DC24V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: DC24V
4KA259-GS8-AC100V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC100V
4KA259-GS8-AC200V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC200V
4KA259-GS8-DC24V Model: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: DC24V
4KA319-08-AC100V Model: 4KA3 | Switching: 2-pos single | Port: Rc1/4 | Voltage: AC100V
4KA319-08-AC200V Model: 4KA3 | Switching: 2-pos single | Port: Rc1/4 | Voltage: AC200V
4KA319-08-DC24V Model: 4KA3 | Switching: 2-pos single | Port: Rc1/4 | Voltage: DC24V
4KA319-GS8-AC100V Model: 4KA3 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC100V
4KA319-GS8-AC200V Model: 4KA3 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC200V
4KA319-GS8-DC24V Model: 4KA3 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: DC24V
4KA319-GS10-AC100V Model: 4KA3 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC100V
4KA319-GS10-AC200V Model: 4KA3 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC200V
4KA319-GS10-DC24V Model: 4KA3 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: DC24V
4KA329-08-AC100V Model: 4KA3 | Switching: 2-pos double | Port: Rc1/4 | Voltage: AC100V
4KA329-08-AC200V Model: 4KA3 | Switching: 2-pos double | Port: Rc1/4 | Voltage: AC200V
4KA329-08-DC24V Model: 4KA3 | Switching: 2-pos double | Port: Rc1/4 | Voltage: DC24V
4KA329-GS8-AC100V Model: 4KA3 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC100V
4KA329-GS8-AC200V Model: 4KA3 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC200V
4KA329-GS8-DC24V Model: 4KA3 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: DC24V
4KA329-GS10-AC100V Model: 4KA3 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC100V
4KA329-GS10-AC200V Model: 4KA3 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC200V
4KA329-GS10-DC24V Model: 4KA3 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: DC24V
4KA339-08-AC100V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: AC100V
4KA339-08-AC200V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: AC200V
4KA339-08-DC24V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: DC24V
4KA339-GS8-AC100V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC100V
4KA339-GS8-AC200V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC200V
4KA339-GS8-DC24V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: DC24V
4KA339-GS10-AC100V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC100V
4KA339-GS10-AC200V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC200V
4KA339-GS10-DC24V Model: 4KA3 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: DC24V
4KA349-08-AC100V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: Rc1/4 | Voltage: AC100V
4KA349-08-AC200V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: Rc1/4 | Voltage: AC200V
4KA349-08-DC24V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: Rc1/4 | Voltage: DC24V
4KA349-GS8-AC100V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC100V
4KA349-GS8-AC200V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC200V
4KA349-GS8-DC24V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: DC24V
4KA349-GS10-AC100V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC100V
4KA349-GS10-AC200V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC200V
4KA349-GS10-DC24V Model: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: DC24V
4KA359-08-AC100V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: Rc1/4 | Voltage: AC100V
4KA359-08-AC200V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: Rc1/4 | Voltage: AC200V
4KA359-08-DC24V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: Rc1/4 | Voltage: DC24V
4KA359-GS8-AC100V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC100V
4KA359-GS8-AC200V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC200V
4KA359-GS8-DC24V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: DC24V
4KA359-GS10-AC100V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC100V
4KA359-GS10-AC200V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC200V
4KA359-GS10-DC24V Model: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: DC24V
4KA419-10-AC100V Model: 4KA4 | Switching: 2-pos single | Port: Rc3/8 | Voltage: AC100V
4KA419-10-AC200V Model: 4KA4 | Switching: 2-pos single | Port: Rc3/8 | Voltage: AC200V
4KA419-10-DC24V Model: 4KA4 | Switching: 2-pos single | Port: Rc3/8 | Voltage: DC24V
4KA419-GS10-AC100V Model: 4KA4 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC100V
4KA419-GS10-AC200V Model: 4KA4 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC200V
4KA419-GS10-DC24V Model: 4KA4 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: DC24V
4KA419-GS12-AC100V Model: 4KA4 | Switching: 2-pos single | Port: ø12 one-touch | Voltage: AC100V
4KA419-GS12-AC200V Model: 4KA4 | Switching: 2-pos single | Port: ø12 one-touch | Voltage: AC200V
4KA419-GS12-DC24V Model: 4KA4 | Switching: 2-pos single | Port: ø12 one-touch | Voltage: DC24V
4KA429-10-AC100V Model: 4KA4 | Switching: 2-pos double | Port: Rc3/8 | Voltage: AC100V
4KA429-10-AC200V Model: 4KA4 | Switching: 2-pos double | Port: Rc3/8 | Voltage: AC200V
4KA429-10-DC24V Model: 4KA4 | Switching: 2-pos double | Port: Rc3/8 | Voltage: DC24V
4KA429-GS10-AC100V Model: 4KA4 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC100V
4KA429-GS10-AC200V Model: 4KA4 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC200V
4KA429-GS10-DC24V Model: 4KA4 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: DC24V
4KA429-GS12-AC100V Model: 4KA4 | Switching: 2-pos double | Port: ø12 one-touch | Voltage: AC100V
4KA429-GS12-AC200V Model: 4KA4 | Switching: 2-pos double | Port: ø12 one-touch | Voltage: AC200V
4KA429-GS12-DC24V Model: 4KA4 | Switching: 2-pos double | Port: ø12 one-touch | Voltage: DC24V
4KA439-10-AC100V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Voltage: AC100V
4KA439-10-AC200V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Voltage: AC200V
4KA439-10-DC24V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Voltage: DC24V
4KA439-GS10-AC100V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC100V
4KA439-GS10-AC200V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC200V
4KA439-GS10-DC24V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: DC24V
4KA439-GS12-AC100V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: ø12 one-touch | Voltage: AC100V
4KA439-GS12-AC200V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: ø12 one-touch | Voltage: AC200V
4KA439-GS12-DC24V Model: 4KA4 | Switching: 3-pos all ports blocked | Port: ø12 one-touch | Voltage: DC24V
4KA449-10-AC100V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: Rc3/8 | Voltage: AC100V
4KA449-10-AC200V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: Rc3/8 | Voltage: AC200V
4KA449-10-DC24V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: Rc3/8 | Voltage: DC24V
4KA449-GS10-AC100V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC100V
4KA449-GS10-AC200V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC200V
4KA449-GS10-DC24V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: DC24V
4KA449-GS12-AC100V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø12 one-touch | Voltage: AC100V
4KA449-GS12-AC200V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø12 one-touch | Voltage: AC200V
4KA449-GS12-DC24V Model: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø12 one-touch | Voltage: DC24V
4KA459-10-AC100V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: Rc3/8 | Voltage: AC100V
4KA459-10-AC200V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: Rc3/8 | Voltage: AC200V
4KA459-10-DC24V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: Rc3/8 | Voltage: DC24V
4KA459-GS10-AC100V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC100V
4KA459-GS10-AC200V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC200V
4KA459-GS10-DC24V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: DC24V
4KA459-GS12-AC100V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø12 one-touch | Voltage: AC100V
4KA459-GS12-AC200V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø12 one-touch | Voltage: AC200V
4KA459-GS12-DC24V Model: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø12 one-touch | Voltage: DC24V
4KB119-00-AC100V Model: 4KB1 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB119-00-AC200V Model: 4KB1 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB119-00-DC24V Model: 4KB1 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB119-00Y-AC100V Model: 4KB1 | Switching: 2-pos single | Port: Valve only, rear base | Voltage: AC100V
4KB119-00Y-AC200V Model: 4KB1 | Switching: 2-pos single | Port: Valve only, rear base | Voltage: AC200V
4KB119-00Y-DC24V Model: 4KB1 | Switching: 2-pos single | Port: Valve only, rear base | Voltage: DC24V
4KB119-00CE-AC100V Model: 4KB1 | Switching: 2-pos single | Port: Valve only, central exh. base | Voltage: AC100V
4KB119-00CE-AC200V Model: 4KB1 | Switching: 2-pos single | Port: Valve only, central exh. base | Voltage: AC200V
4KB119-00CE-DC24V Model: 4KB1 | Switching: 2-pos single | Port: Valve only, central exh. base | Voltage: DC24V
4KB129-00-AC100V Model: 4KB1 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB129-00-AC200V Model: 4KB1 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB129-00-DC24V Model: 4KB1 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB129-00Y-AC100V Model: 4KB1 | Switching: 2-pos double | Port: Valve only, rear base | Voltage: AC100V
4KB129-00Y-AC200V Model: 4KB1 | Switching: 2-pos double | Port: Valve only, rear base | Voltage: AC200V
4KB129-00Y-DC24V Model: 4KB1 | Switching: 2-pos double | Port: Valve only, rear base | Voltage: DC24V
4KB129-00CE-AC100V Model: 4KB1 | Switching: 2-pos double | Port: Valve only, central exh. base | Voltage: AC100V
4KB129-00CE-AC200V Model: 4KB1 | Switching: 2-pos double | Port: Valve only, central exh. base | Voltage: AC200V
4KB129-00CE-DC24V Model: 4KB1 | Switching: 2-pos double | Port: Valve only, central exh. base | Voltage: DC24V
4KB139-00-AC100V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB139-00-AC200V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB139-00-DC24V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB139-00Y-AC100V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, rear base | Voltage: AC100V
4KB139-00Y-AC200V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, rear base | Voltage: AC200V
4KB139-00Y-DC24V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, rear base | Voltage: DC24V
4KB139-00CE-AC100V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, central exh. base | Voltage: AC100V
4KB139-00CE-AC200V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, central exh. base | Voltage: AC200V
4KB139-00CE-DC24V Model: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, central exh. base | Voltage: DC24V
4KB149-00-AC100V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB149-00-AC200V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB149-00-DC24V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB149-00Y-AC100V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, rear base | Voltage: AC100V
4KB149-00Y-AC200V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, rear base | Voltage: AC200V
4KB149-00Y-DC24V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, rear base | Voltage: DC24V
4KB149-00CE-AC100V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, central exh. base | Voltage: AC100V
4KB149-00CE-AC200V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, central exh. base | Voltage: AC200V
4KB149-00CE-DC24V Model: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, central exh. base | Voltage: DC24V
4KB159-00-AC100V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB159-00-AC200V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB159-00-DC24V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
4KB159-00Y-AC100V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, rear base | Voltage: AC100V
4KB159-00Y-AC200V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, rear base | Voltage: AC200V
4KB159-00Y-DC24V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, rear base | Voltage: DC24V
4KB159-00CE-AC100V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, central exh. base | Voltage: AC100V
4KB159-00CE-AC200V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, central exh. base | Voltage: AC200V
4KB159-00CE-DC24V Model: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, central exh. base | Voltage: DC24V
4KB219-00-AC100V Model: 4KB2 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB219-00-AC200V Model: 4KB2 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB219-00-DC24V Model: 4KB2 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB229-00-AC100V Model: 4KB2 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB229-00-AC200V Model: 4KB2 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB229-00-DC24V Model: 4KB2 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB239-00-AC100V Model: 4KB2 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB239-00-AC200V Model: 4KB2 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB239-00-DC24V Model: 4KB2 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB249-00-AC100V Model: 4KB2 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB249-00-AC200V Model: 4KB2 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB249-00-DC24V Model: 4KB2 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB259-00-AC100V Model: 4KB2 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB259-00-AC200V Model: 4KB2 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB259-00-DC24V Model: 4KB2 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
4KB319-00-AC100V Model: 4KB3 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB319-00-AC200V Model: 4KB3 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB319-00-DC24V Model: 4KB3 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB329-00-AC100V Model: 4KB3 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB329-00-AC200V Model: 4KB3 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB329-00-DC24V Model: 4KB3 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB339-00-AC100V Model: 4KB3 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB339-00-AC200V Model: 4KB3 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB339-00-DC24V Model: 4KB3 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB349-00-AC100V Model: 4KB3 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB349-00-AC200V Model: 4KB3 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB349-00-DC24V Model: 4KB3 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB359-00-AC100V Model: 4KB3 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB359-00-AC200V Model: 4KB3 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB359-00-DC24V Model: 4KB3 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
4KB419-00-AC100V Model: 4KB4 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB419-00-AC200V Model: 4KB4 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB419-00-DC24V Model: 4KB4 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB429-00-AC100V Model: 4KB4 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB429-00-AC200V Model: 4KB4 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB429-00-DC24V Model: 4KB4 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB439-00-AC100V Model: 4KB4 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB439-00-AC200V Model: 4KB4 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB439-00-DC24V Model: 4KB4 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB449-00-AC100V Model: 4KB4 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB449-00-AC200V Model: 4KB4 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB449-00-DC24V Model: 4KB4 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB459-00-AC100V Model: 4KB4 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB459-00-AC200V Model: 4KB4 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB459-00-DC24V Model: 4KB4 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
Solenoid ValvesCKD
297 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 3KA/4KA/4KB Selex Manifold-Mount Solenoid Valve (Single Unit)

Brand CKD·Solenoid Valves

Available part numbers (297)

3KA119-M5-AC100V, 3KA119-M5-AC200V, 3KA119-M5-DC24V, 3KA119-GS4-AC100V, 3KA119-GS4-AC200V, 3KA119-GS4-DC24V, 3KA119-GS6-AC100V, 3KA119-GS6-AC200V, 3KA119-GS6-DC24V, 3KA1119-M5-AC100V + 287 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3KA119-M5-AC100VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: M5 | Voltage: AC100V
3KA119-M5-AC200VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: M5 | Voltage: AC200V
3KA119-M5-DC24VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: M5 | Voltage: DC24V
3KA119-GS4-AC100VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø4 one-touch | Voltage: AC100V
3KA119-GS4-AC200VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø4 one-touch | Voltage: AC200V
3KA119-GS4-DC24VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø4 one-touch | Voltage: DC24V
3KA119-GS6-AC100VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø6 one-touch | Voltage: AC100V
3KA119-GS6-AC200VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø6 one-touch | Voltage: AC200V
3KA119-GS6-DC24VModel: 3KA1 | Switching: 3-port 2-pos single NC | Port: ø6 one-touch | Voltage: DC24V
3KA1119-M5-AC100VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: M5 | Voltage: AC100V
3KA1119-M5-AC200VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: M5 | Voltage: AC200V
3KA1119-M5-DC24VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: M5 | Voltage: DC24V
3KA1119-GS4-AC100VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø4 one-touch | Voltage: AC100V
3KA1119-GS4-AC200VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø4 one-touch | Voltage: AC200V
3KA1119-GS4-DC24VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø4 one-touch | Voltage: DC24V
3KA1119-GS6-AC100VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø6 one-touch | Voltage: AC100V
3KA1119-GS6-AC200VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø6 one-touch | Voltage: AC200V
3KA1119-GS6-DC24VModel: 3KA1 | Switching: 3-port 2-pos single NO | Port: ø6 one-touch | Voltage: DC24V
3KA129-M5-AC100VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: M5 | Voltage: AC100V
3KA129-M5-AC200VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: M5 | Voltage: AC200V
3KA129-M5-DC24VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: M5 | Voltage: DC24V
3KA129-GS4-AC100VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø4 one-touch | Voltage: AC100V
3KA129-GS4-AC200VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø4 one-touch | Voltage: AC200V
3KA129-GS4-DC24VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø4 one-touch | Voltage: DC24V
3KA129-GS6-AC100VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø6 one-touch | Voltage: AC100V
3KA129-GS6-AC200VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø6 one-touch | Voltage: AC200V
3KA129-GS6-DC24VModel: 3KA1 | Switching: 3-port 2-pos double NC | Port: ø6 one-touch | Voltage: DC24V
4KA119-M5-AC100VModel: 4KA1 | Switching: 2-pos single | Port: M5 | Voltage: AC100V
4KA119-M5-AC200VModel: 4KA1 | Switching: 2-pos single | Port: M5 | Voltage: AC200V
4KA119-M5-DC24VModel: 4KA1 | Switching: 2-pos single | Port: M5 | Voltage: DC24V
4KA119-GS4-AC100VModel: 4KA1 | Switching: 2-pos single | Port: ø4 one-touch | Voltage: AC100V
4KA119-GS4-AC200VModel: 4KA1 | Switching: 2-pos single | Port: ø4 one-touch | Voltage: AC200V
4KA119-GS4-DC24VModel: 4KA1 | Switching: 2-pos single | Port: ø4 one-touch | Voltage: DC24V
4KA119-GS6-AC100VModel: 4KA1 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC100V
4KA119-GS6-AC200VModel: 4KA1 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC200V
4KA119-GS6-DC24VModel: 4KA1 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: DC24V
4KA129-M5-AC100VModel: 4KA1 | Switching: 2-pos double | Port: M5 | Voltage: AC100V
4KA129-M5-AC200VModel: 4KA1 | Switching: 2-pos double | Port: M5 | Voltage: AC200V
4KA129-M5-DC24VModel: 4KA1 | Switching: 2-pos double | Port: M5 | Voltage: DC24V
4KA129-GS4-AC100VModel: 4KA1 | Switching: 2-pos double | Port: ø4 one-touch | Voltage: AC100V
4KA129-GS4-AC200VModel: 4KA1 | Switching: 2-pos double | Port: ø4 one-touch | Voltage: AC200V
4KA129-GS4-DC24VModel: 4KA1 | Switching: 2-pos double | Port: ø4 one-touch | Voltage: DC24V
4KA129-GS6-AC100VModel: 4KA1 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC100V
4KA129-GS6-AC200VModel: 4KA1 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC200V
4KA129-GS6-DC24VModel: 4KA1 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: DC24V
4KA139-M5-AC100VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: M5 | Voltage: AC100V
4KA139-M5-AC200VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: M5 | Voltage: AC200V
4KA139-M5-DC24VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: M5 | Voltage: DC24V
4KA139-GS4-AC100VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: ø4 one-touch | Voltage: AC100V
4KA139-GS4-AC200VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: ø4 one-touch | Voltage: AC200V
4KA139-GS4-DC24VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: ø4 one-touch | Voltage: DC24V
4KA139-GS6-AC100VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC100V
4KA139-GS6-AC200VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC200V
4KA139-GS6-DC24VModel: 4KA1 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: DC24V
4KA149-M5-AC100VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: M5 | Voltage: AC100V
4KA149-M5-AC200VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: M5 | Voltage: AC200V
4KA149-M5-DC24VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: M5 | Voltage: DC24V
4KA149-GS4-AC100VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø4 one-touch | Voltage: AC100V
4KA149-GS4-AC200VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø4 one-touch | Voltage: AC200V
4KA149-GS4-DC24VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø4 one-touch | Voltage: DC24V
4KA149-GS6-AC100VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC100V
4KA149-GS6-AC200VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC200V
4KA149-GS6-DC24VModel: 4KA1 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: DC24V
4KA159-M5-AC100VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: M5 | Voltage: AC100V
4KA159-M5-AC200VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: M5 | Voltage: AC200V
4KA159-M5-DC24VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: M5 | Voltage: DC24V
4KA159-GS4-AC100VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø4 one-touch | Voltage: AC100V
4KA159-GS4-AC200VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø4 one-touch | Voltage: AC200V
4KA159-GS4-DC24VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø4 one-touch | Voltage: DC24V
4KA159-GS6-AC100VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC100V
4KA159-GS6-AC200VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC200V
4KA159-GS6-DC24VModel: 4KA1 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: DC24V
4KA219-06-AC100VModel: 4KA2 | Switching: 2-pos single | Port: Rc1/8 | Voltage: AC100V
4KA219-06-AC200VModel: 4KA2 | Switching: 2-pos single | Port: Rc1/8 | Voltage: AC200V
4KA219-06-DC24VModel: 4KA2 | Switching: 2-pos single | Port: Rc1/8 | Voltage: DC24V
4KA219-GS6-AC100VModel: 4KA2 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC100V
4KA219-GS6-AC200VModel: 4KA2 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: AC200V
4KA219-GS6-DC24VModel: 4KA2 | Switching: 2-pos single | Port: ø6 one-touch | Voltage: DC24V
4KA219-GS8-AC100VModel: 4KA2 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC100V
4KA219-GS8-AC200VModel: 4KA2 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC200V
4KA219-GS8-DC24VModel: 4KA2 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: DC24V
4KA229-06-AC100VModel: 4KA2 | Switching: 2-pos double | Port: Rc1/8 | Voltage: AC100V
4KA229-06-AC200VModel: 4KA2 | Switching: 2-pos double | Port: Rc1/8 | Voltage: AC200V
4KA229-06-DC24VModel: 4KA2 | Switching: 2-pos double | Port: Rc1/8 | Voltage: DC24V
4KA229-GS6-AC100VModel: 4KA2 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC100V
4KA229-GS6-AC200VModel: 4KA2 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: AC200V
4KA229-GS6-DC24VModel: 4KA2 | Switching: 2-pos double | Port: ø6 one-touch | Voltage: DC24V
4KA229-GS8-AC100VModel: 4KA2 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC100V
4KA229-GS8-AC200VModel: 4KA2 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC200V
4KA229-GS8-DC24VModel: 4KA2 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: DC24V
4KA239-06-AC100VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Voltage: AC100V
4KA239-06-AC200VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Voltage: AC200V
4KA239-06-DC24VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: Rc1/8 | Voltage: DC24V
4KA239-GS6-AC100VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC100V
4KA239-GS6-AC200VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: AC200V
4KA239-GS6-DC24VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: ø6 one-touch | Voltage: DC24V
4KA239-GS8-AC100VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC100V
4KA239-GS8-AC200VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC200V
4KA239-GS8-DC24VModel: 4KA2 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: DC24V
4KA249-06-AC100VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: Rc1/8 | Voltage: AC100V
4KA249-06-AC200VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: Rc1/8 | Voltage: AC200V
4KA249-06-DC24VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: Rc1/8 | Voltage: DC24V
4KA249-GS6-AC100VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC100V
4KA249-GS6-AC200VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: AC200V
4KA249-GS6-DC24VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø6 one-touch | Voltage: DC24V
4KA249-GS8-AC100VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC100V
4KA249-GS8-AC200VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC200V
4KA249-GS8-DC24VModel: 4KA2 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: DC24V
4KA259-06-AC100VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: Rc1/8 | Voltage: AC100V
4KA259-06-AC200VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: Rc1/8 | Voltage: AC200V
4KA259-06-DC24VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: Rc1/8 | Voltage: DC24V
4KA259-GS6-AC100VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC100V
4KA259-GS6-AC200VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: AC200V
4KA259-GS6-DC24VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø6 one-touch | Voltage: DC24V
4KA259-GS8-AC100VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC100V
4KA259-GS8-AC200VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC200V
4KA259-GS8-DC24VModel: 4KA2 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: DC24V
4KA319-08-AC100VModel: 4KA3 | Switching: 2-pos single | Port: Rc1/4 | Voltage: AC100V
4KA319-08-AC200VModel: 4KA3 | Switching: 2-pos single | Port: Rc1/4 | Voltage: AC200V
4KA319-08-DC24VModel: 4KA3 | Switching: 2-pos single | Port: Rc1/4 | Voltage: DC24V
4KA319-GS8-AC100VModel: 4KA3 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC100V
4KA319-GS8-AC200VModel: 4KA3 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: AC200V
4KA319-GS8-DC24VModel: 4KA3 | Switching: 2-pos single | Port: ø8 one-touch | Voltage: DC24V
4KA319-GS10-AC100VModel: 4KA3 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC100V
4KA319-GS10-AC200VModel: 4KA3 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC200V
4KA319-GS10-DC24VModel: 4KA3 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: DC24V
4KA329-08-AC100VModel: 4KA3 | Switching: 2-pos double | Port: Rc1/4 | Voltage: AC100V
4KA329-08-AC200VModel: 4KA3 | Switching: 2-pos double | Port: Rc1/4 | Voltage: AC200V
4KA329-08-DC24VModel: 4KA3 | Switching: 2-pos double | Port: Rc1/4 | Voltage: DC24V
4KA329-GS8-AC100VModel: 4KA3 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC100V
4KA329-GS8-AC200VModel: 4KA3 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: AC200V
4KA329-GS8-DC24VModel: 4KA3 | Switching: 2-pos double | Port: ø8 one-touch | Voltage: DC24V
4KA329-GS10-AC100VModel: 4KA3 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC100V
4KA329-GS10-AC200VModel: 4KA3 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC200V
4KA329-GS10-DC24VModel: 4KA3 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: DC24V
4KA339-08-AC100VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: AC100V
4KA339-08-AC200VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: AC200V
4KA339-08-DC24VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: Rc1/4 | Voltage: DC24V
4KA339-GS8-AC100VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC100V
4KA339-GS8-AC200VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: AC200V
4KA339-GS8-DC24VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: ø8 one-touch | Voltage: DC24V
4KA339-GS10-AC100VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC100V
4KA339-GS10-AC200VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC200V
4KA339-GS10-DC24VModel: 4KA3 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: DC24V
4KA349-08-AC100VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: Rc1/4 | Voltage: AC100V
4KA349-08-AC200VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: Rc1/4 | Voltage: AC200V
4KA349-08-DC24VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: Rc1/4 | Voltage: DC24V
4KA349-GS8-AC100VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC100V
4KA349-GS8-AC200VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: AC200V
4KA349-GS8-DC24VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø8 one-touch | Voltage: DC24V
4KA349-GS10-AC100VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC100V
4KA349-GS10-AC200VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC200V
4KA349-GS10-DC24VModel: 4KA3 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: DC24V
4KA359-08-AC100VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: Rc1/4 | Voltage: AC100V
4KA359-08-AC200VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: Rc1/4 | Voltage: AC200V
4KA359-08-DC24VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: Rc1/4 | Voltage: DC24V
4KA359-GS8-AC100VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC100V
4KA359-GS8-AC200VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: AC200V
4KA359-GS8-DC24VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø8 one-touch | Voltage: DC24V
4KA359-GS10-AC100VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC100V
4KA359-GS10-AC200VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC200V
4KA359-GS10-DC24VModel: 4KA3 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: DC24V
4KA419-10-AC100VModel: 4KA4 | Switching: 2-pos single | Port: Rc3/8 | Voltage: AC100V
4KA419-10-AC200VModel: 4KA4 | Switching: 2-pos single | Port: Rc3/8 | Voltage: AC200V
4KA419-10-DC24VModel: 4KA4 | Switching: 2-pos single | Port: Rc3/8 | Voltage: DC24V
4KA419-GS10-AC100VModel: 4KA4 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC100V
4KA419-GS10-AC200VModel: 4KA4 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: AC200V
4KA419-GS10-DC24VModel: 4KA4 | Switching: 2-pos single | Port: ø10 one-touch | Voltage: DC24V
4KA419-GS12-AC100VModel: 4KA4 | Switching: 2-pos single | Port: ø12 one-touch | Voltage: AC100V
4KA419-GS12-AC200VModel: 4KA4 | Switching: 2-pos single | Port: ø12 one-touch | Voltage: AC200V
4KA419-GS12-DC24VModel: 4KA4 | Switching: 2-pos single | Port: ø12 one-touch | Voltage: DC24V
4KA429-10-AC100VModel: 4KA4 | Switching: 2-pos double | Port: Rc3/8 | Voltage: AC100V
4KA429-10-AC200VModel: 4KA4 | Switching: 2-pos double | Port: Rc3/8 | Voltage: AC200V
4KA429-10-DC24VModel: 4KA4 | Switching: 2-pos double | Port: Rc3/8 | Voltage: DC24V
4KA429-GS10-AC100VModel: 4KA4 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC100V
4KA429-GS10-AC200VModel: 4KA4 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: AC200V
4KA429-GS10-DC24VModel: 4KA4 | Switching: 2-pos double | Port: ø10 one-touch | Voltage: DC24V
4KA429-GS12-AC100VModel: 4KA4 | Switching: 2-pos double | Port: ø12 one-touch | Voltage: AC100V
4KA429-GS12-AC200VModel: 4KA4 | Switching: 2-pos double | Port: ø12 one-touch | Voltage: AC200V
4KA429-GS12-DC24VModel: 4KA4 | Switching: 2-pos double | Port: ø12 one-touch | Voltage: DC24V
4KA439-10-AC100VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Voltage: AC100V
4KA439-10-AC200VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Voltage: AC200V
4KA439-10-DC24VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: Rc3/8 | Voltage: DC24V
4KA439-GS10-AC100VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC100V
4KA439-GS10-AC200VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: AC200V
4KA439-GS10-DC24VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: ø10 one-touch | Voltage: DC24V
4KA439-GS12-AC100VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: ø12 one-touch | Voltage: AC100V
4KA439-GS12-AC200VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: ø12 one-touch | Voltage: AC200V
4KA439-GS12-DC24VModel: 4KA4 | Switching: 3-pos all ports blocked | Port: ø12 one-touch | Voltage: DC24V
4KA449-10-AC100VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: Rc3/8 | Voltage: AC100V
4KA449-10-AC200VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: Rc3/8 | Voltage: AC200V
4KA449-10-DC24VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: Rc3/8 | Voltage: DC24V
4KA449-GS10-AC100VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC100V
4KA449-GS10-AC200VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: AC200V
4KA449-GS10-DC24VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø10 one-touch | Voltage: DC24V
4KA449-GS12-AC100VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø12 one-touch | Voltage: AC100V
4KA449-GS12-AC200VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø12 one-touch | Voltage: AC200V
4KA449-GS12-DC24VModel: 4KA4 | Switching: 3-pos A-B-R connection | Port: ø12 one-touch | Voltage: DC24V
4KA459-10-AC100VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: Rc3/8 | Voltage: AC100V
4KA459-10-AC200VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: Rc3/8 | Voltage: AC200V
4KA459-10-DC24VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: Rc3/8 | Voltage: DC24V
4KA459-GS10-AC100VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC100V
4KA459-GS10-AC200VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: AC200V
4KA459-GS10-DC24VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø10 one-touch | Voltage: DC24V
4KA459-GS12-AC100VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø12 one-touch | Voltage: AC100V
4KA459-GS12-AC200VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø12 one-touch | Voltage: AC200V
4KA459-GS12-DC24VModel: 4KA4 | Switching: 3-pos P-A-B connection | Port: ø12 one-touch | Voltage: DC24V
4KB119-00-AC100VModel: 4KB1 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB119-00-AC200VModel: 4KB1 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB119-00-DC24VModel: 4KB1 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB119-00Y-AC100VModel: 4KB1 | Switching: 2-pos single | Port: Valve only, rear base | Voltage: AC100V
4KB119-00Y-AC200VModel: 4KB1 | Switching: 2-pos single | Port: Valve only, rear base | Voltage: AC200V
4KB119-00Y-DC24VModel: 4KB1 | Switching: 2-pos single | Port: Valve only, rear base | Voltage: DC24V
4KB119-00CE-AC100VModel: 4KB1 | Switching: 2-pos single | Port: Valve only, central exh. base | Voltage: AC100V
4KB119-00CE-AC200VModel: 4KB1 | Switching: 2-pos single | Port: Valve only, central exh. base | Voltage: AC200V
4KB119-00CE-DC24VModel: 4KB1 | Switching: 2-pos single | Port: Valve only, central exh. base | Voltage: DC24V
4KB129-00-AC100VModel: 4KB1 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB129-00-AC200VModel: 4KB1 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB129-00-DC24VModel: 4KB1 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB129-00Y-AC100VModel: 4KB1 | Switching: 2-pos double | Port: Valve only, rear base | Voltage: AC100V
4KB129-00Y-AC200VModel: 4KB1 | Switching: 2-pos double | Port: Valve only, rear base | Voltage: AC200V
4KB129-00Y-DC24VModel: 4KB1 | Switching: 2-pos double | Port: Valve only, rear base | Voltage: DC24V
4KB129-00CE-AC100VModel: 4KB1 | Switching: 2-pos double | Port: Valve only, central exh. base | Voltage: AC100V
4KB129-00CE-AC200VModel: 4KB1 | Switching: 2-pos double | Port: Valve only, central exh. base | Voltage: AC200V
4KB129-00CE-DC24VModel: 4KB1 | Switching: 2-pos double | Port: Valve only, central exh. base | Voltage: DC24V
4KB139-00-AC100VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB139-00-AC200VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB139-00-DC24VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB139-00Y-AC100VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, rear base | Voltage: AC100V
4KB139-00Y-AC200VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, rear base | Voltage: AC200V
4KB139-00Y-DC24VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, rear base | Voltage: DC24V
4KB139-00CE-AC100VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, central exh. base | Voltage: AC100V
4KB139-00CE-AC200VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, central exh. base | Voltage: AC200V
4KB139-00CE-DC24VModel: 4KB1 | Switching: 3-pos all ports blocked | Port: Valve only, central exh. base | Voltage: DC24V
4KB149-00-AC100VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB149-00-AC200VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB149-00-DC24VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB149-00Y-AC100VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, rear base | Voltage: AC100V
4KB149-00Y-AC200VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, rear base | Voltage: AC200V
4KB149-00Y-DC24VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, rear base | Voltage: DC24V
4KB149-00CE-AC100VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, central exh. base | Voltage: AC100V
4KB149-00CE-AC200VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, central exh. base | Voltage: AC200V
4KB149-00CE-DC24VModel: 4KB1 | Switching: 3-pos A-B-R connection | Port: Valve only, central exh. base | Voltage: DC24V
4KB159-00-AC100VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB159-00-AC200VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB159-00-DC24VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
4KB159-00Y-AC100VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, rear base | Voltage: AC100V
4KB159-00Y-AC200VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, rear base | Voltage: AC200V
4KB159-00Y-DC24VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, rear base | Voltage: DC24V
4KB159-00CE-AC100VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, central exh. base | Voltage: AC100V
4KB159-00CE-AC200VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, central exh. base | Voltage: AC200V
4KB159-00CE-DC24VModel: 4KB1 | Switching: 3-pos P-A-B connection | Port: Valve only, central exh. base | Voltage: DC24V
4KB219-00-AC100VModel: 4KB2 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB219-00-AC200VModel: 4KB2 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB219-00-DC24VModel: 4KB2 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB229-00-AC100VModel: 4KB2 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB229-00-AC200VModel: 4KB2 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB229-00-DC24VModel: 4KB2 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB239-00-AC100VModel: 4KB2 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB239-00-AC200VModel: 4KB2 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB239-00-DC24VModel: 4KB2 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB249-00-AC100VModel: 4KB2 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB249-00-AC200VModel: 4KB2 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB249-00-DC24VModel: 4KB2 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB259-00-AC100VModel: 4KB2 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB259-00-AC200VModel: 4KB2 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB259-00-DC24VModel: 4KB2 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
4KB319-00-AC100VModel: 4KB3 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB319-00-AC200VModel: 4KB3 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB319-00-DC24VModel: 4KB3 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB329-00-AC100VModel: 4KB3 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB329-00-AC200VModel: 4KB3 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB329-00-DC24VModel: 4KB3 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB339-00-AC100VModel: 4KB3 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB339-00-AC200VModel: 4KB3 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB339-00-DC24VModel: 4KB3 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB349-00-AC100VModel: 4KB3 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB349-00-AC200VModel: 4KB3 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB349-00-DC24VModel: 4KB3 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB359-00-AC100VModel: 4KB3 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB359-00-AC200VModel: 4KB3 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB359-00-DC24VModel: 4KB3 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V
4KB419-00-AC100VModel: 4KB4 | Switching: 2-pos single | Port: Valve only | Voltage: AC100V
4KB419-00-AC200VModel: 4KB4 | Switching: 2-pos single | Port: Valve only | Voltage: AC200V
4KB419-00-DC24VModel: 4KB4 | Switching: 2-pos single | Port: Valve only | Voltage: DC24V
4KB429-00-AC100VModel: 4KB4 | Switching: 2-pos double | Port: Valve only | Voltage: AC100V
4KB429-00-AC200VModel: 4KB4 | Switching: 2-pos double | Port: Valve only | Voltage: AC200V
4KB429-00-DC24VModel: 4KB4 | Switching: 2-pos double | Port: Valve only | Voltage: DC24V
4KB439-00-AC100VModel: 4KB4 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC100V
4KB439-00-AC200VModel: 4KB4 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: AC200V
4KB439-00-DC24VModel: 4KB4 | Switching: 3-pos all ports blocked | Port: Valve only | Voltage: DC24V
4KB449-00-AC100VModel: 4KB4 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC100V
4KB449-00-AC200VModel: 4KB4 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: AC200V
4KB449-00-DC24VModel: 4KB4 | Switching: 3-pos A-B-R connection | Port: Valve only | Voltage: DC24V
4KB459-00-AC100VModel: 4KB4 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC100V
4KB459-00-AC200VModel: 4KB4 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: AC200V
4KB459-00-DC24VModel: 4KB4 | Switching: 3-pos P-A-B connection | Port: Valve only | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
